Step-by-Step Dimmer Switch Wiring Guide with Clear Circuit Diagram
Start by identifying the neutral, live, and ground wires in your electrical box. The live conductor (black or red) carries power from the circuit breaker to the load, while the neutral (white) completes the circuit. The ground (green or bare copper) serves as a safety measure–never omit it. Modern adjustable illumination devices require all three wires connected properly to function safely and avoid electrical hazards.
Before touching any wires, shut off the power at the breaker panel. Verify the circuit is dead using a non-contact voltage tester. Failure to confirm zero voltage risks severe shock or damage to the device. If your existing setup lacks a neutral wire (common in older homes), upgrade the wiring before proceeding–improvising without one violates safety standards and may cause malfunction.
Follow the manufacturer’s schematic precisely. Most intensity regulators have two brass terminals for the live and load wires, plus a green or bare terminal for grounding. Connect the incoming live wire to the input terminal (often marked “LINE”). Attach the wire leading to the fixture to the output terminal (“LOAD”). Reversing these connections will prevent the device from working or create a fire risk.
After securing all connections, wrap each terminal with electrical tape to prevent accidental shorts. Mount the device into the electrical box, ensuring no bare wires are exposed. Restore power and test the control by rotating or sliding the actuator–if it fails to respond or flickers abnormally, immediately cut power and recheck connections. Common mistakes include loose wires, incorrect polarity, or missing ground.
For three-way configurations (multiple control points), use compatible modules labeled for multi-location operation. The primary unit connects to the supply, while secondary controls require travelers between them. Miswiring in these setups leads to unpredictable behavior–double-check each link against the provided layout.
How to Connect a Light Control Adjustment Device
Verify the circuit breaker is off before handling any electrical components. Use a non-contact voltage tester near the installation site to confirm no current is present.
Identify the line (hot) wire, neutral wire, and load wire in the existing electrical box. The line wire typically carries the current from the power source and is often black or red. The neutral wire returns the current and is usually white. The load wire connects to the lighting fixture and may share the same color coding as the line wire.
Remove the existing light regulator if replacing an older model. Disconnect all wires by unscrewing the terminal screws or releasing the push-in connectors. Keep wires separated to avoid accidental contact.
Prepare the new adjustment device by attaching its grounding wire to the electrical box’s grounding screw. If the box lacks a grounding terminal, connect it to the grounding wire from the circuit. Secure the connection with a wire nut.
- Strip 3/8 inch of insulation from each wire using wire strippers.
- Insert the line wire into the designated terminal on the device (often labeled “L” or “Line”).
- Insert the load wire into the terminal for the controlled output (labeled “Load” or similar).
- If the device requires a neutral connection, attach the neutral wire to its terminal.
Fold wires neatly into the electrical box, ensuring no bare sections are exposed. Attach the adjustment device to the box using the provided mounting screws. Install the cover plate afterward.
Restore power by turning the circuit breaker back on. Test the device by rotating or sliding the control mechanism. The connected light should respond by varying its brightness accordingly. If no change occurs, immediately turn off the power and recheck all connections.
For installations involving multiple light sources controlled by a single device, ensure compatibility with the total wattage rating. Most devices support between 600W to 1000W for incandescent or halogen fixtures. LED or CFL bulbs may require a dedicated low-voltage model to function correctly without flickering or humming.
Essential Gear and Supplies for Adjustable Light Control Setup
Begin with a voltage tester rated for your circuit type–120V for standard residential systems, 277V for commercial settings. Non-contact models like the Klein Tools NCVT-3 eliminate guesswork by detecting live currents through insulation. Check for UL or ETL certification to ensure safety compliance; cheap knockoffs often fail under real-world conditions. Pair this with insulated screwdrivers featuring 1,000V-rated shafts–Phillips #2 and flathead 3/16″ cover most terminals. Magnetic tips prevent dropped screws, a critical detail when working in cramped junction boxes.
Wire strippers must match your conductor gauge: 12-14 AWG for household lighting circuits, 10 AWG for dedicated high-load lines. Automatic models like the IRWIN VISE-GRIP 2078300 adjust tension automatically, reducing nicks that compromise wire integrity. For copper-only systems, a standard strippers suffice, but aluminum wiring requires specialized tools like racheting models with non-corrosive jaws. Include needle-nose pliers with an 8″ reach to navigate deep electrical boxes; serrated jaws provide grip without damaging conductor strands. A fish tape helps route new wiring through walls–1/8″ steel tape handles most runs, while nylon-coated versions reduce friction in EMT conduit.
Gather circuit-safe components: twist-on wire connectors (yellow for 12-10 AWG, red for 16-14 AWG), UL-listed push-in connectors for solid-core wire, and heat-shrink tubing for exposed splices. Choose connectors with built-in anti-oxidant gel for aluminum wiring to prevent corrosion. Include a digital multimeter with a minimum 600V AC/DC range to verify voltage drops and confirm grounding paths. Non-contact thermometers detect hotspots on overloaded connections, while clamp meters measure current without breaking circuits. For grounding, use bare copper wire (10 AWG minimum) and green grounding screws–never substitute with hardware-store zinc-coated alternatives.
Add wall plates designed for single-gang or double-gang boxes; decorator styles accept both rocker and toggle faceplates. Look for faceplates with captive screws to eliminate vibration loosening over time. Junction box extenders correct alignment issues in old installations, available in plastic or metal–metal versions provide grounding continuity when mounted to metal studs. For recessed boxes, adjustable depth rings ensure the control sits flush with drywall. Carry a torpedo level to prevent misaligned plates, which create gaps that accumulate dust and compromise safety. A headlamp (500+ lumens) frees both hands for working; choose models with adjustable beam angles to avoid blinding yourself during close-up tasks.
How to Connect a Single-Pole Light Control Unit: A Clear Guide
Turn off the circuit breaker supplying power to the existing fixture before starting. Strip ⅜ inch of insulation from the ends of both hot (black or red) and neutral (white) conductors. Attach the bare or green grounding wire to the designated terminal on the new regulator–most models include a screw or clamp for this. Connect the hot lead to the brass-colored terminal and the neutral to the silver one, ensuring tight twists or crimps to prevent loose connections. If the setup includes a wall box with limited space, consider using insulated wire nuts rated for 600V to secure splices instead of relying solely on terminal screws.
Verify compatibility with LED or incandescent bulbs; some modern controllers require specific load types to function correctly. After securing all links, gently fold the wires back into the junction space, avoiding sharp bends that could damage the cores. Restore power and test the unit by adjusting the knob–if flickering occurs, check grounding integrity or consult the manual for load capacity limits.

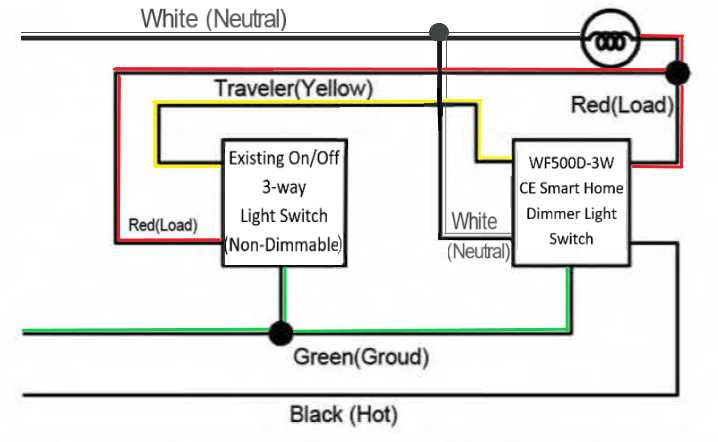

Proper Installation of a Triple-Position Light Control
Identify the common terminal on the existing multi-location regulator–it’s typically marked with a darker screw or labeled “COM.” Connect this to the same terminal on your new control mechanism using a 12-gauge copper conductor. The remaining two traveler terminals on both units must match exactly; mismatching these will cause unpredictable illumination behavior or complete failure. Verify voltage with a non-contact tester before handling any connections to prevent arcing or shock hazards. For LED-compatible models, ensure the fixture’s wattage rating exceeds the total load by at least 20% to avoid flickering or premature failure.
After securing all connections, wrap each terminal with electrical tape and tuck the assembly neatly into the wall box. Test the setup by toggling all positions–each should seamlessly adjust brightness without dead zones. If erratic performance occurs, recheck traveler continuity with a multimeter, probing between terminals at both ends while toggling. For smart versions with wireless capabilities, pair the device with its hub before finalizing installation, as some models require initialization in a specific state.
Common Mistakes to Avoid When Installing Light Control Devices
Connecting the live wire to the incorrect terminal on a brightness regulator frequently causes overheating or immediate failure. Most manuals specify a designated input for the feed cable–typically marked with “L,” “Line,” or a brass-colored screw. Reversing this with the neutral or load output (often silver or black) disrupts the internal circuitry, risking component damage. Verify polarity with a multimeter before securing connections; AC voltage should register only on the live input, never on the neutral or ground.
Critical Errors and Their Consequences
| Error | Effect | Detection Method | Corrective Action |
|---|---|---|---|
| Loose screw terminals | Intermittent flickering or arcing | Visual inspection; wiggled wires show movement | Tighten screws to 0.8 Nm torque; use ferrules for stranded wire |
| Mixing incompatible bulb types | Diminished lifespan of both regulator and bulbs; audible hum | Label check: fixtures rated for resistive loads or specific wattage ranges (e.g., ≤60W LED, ≥40W resistive) | Replace bulbs with compatible ratings or install a dedicated resistive-load device |
| Ignoring minimum load specifications | Flicker, failure to activate, or premature wear | Manufacturer specs: minimum loads typically range 5W–25W | Add resistive dummy load or combine circuits to meet threshold |
| Improper grounding | Safety hazard, potential circuit breaker trips | Multimeter continuity test: grounded terminal should show 0 ohms to earth | Ensure metal device box is properly earthed; never substitute neutral for ground |
Overloading a single control unit beyond its rated capacity is another common oversight. Most household models tolerate loads between 150W and 600W, yet exceeding this by connecting multiple high-wattage fixtures triggers thermal shutdown or component burnout. Distribute loads across separate units or use a single higher-capacity model if exceeding 400W; always cross-reference the manufacturer’s wattage guidelines with the fixture labels before installation.
