Understanding Diode Symbols and Their Role in Schematic Circuit Design

Start by placing the arrow-shaped symbol with a straight line at its tip to represent current flow direction. The line indicates the cathode, marked by a stripe on the physical component, while the arrowhead aligns with the anode. Never reverse this orientation–doing so disrupts forward-bias operation and introduces unintended reverse leakage.

For rectification, position the symbol in series with the load, ensuring the cathode faces the positive terminal. In low-voltage applications (below 5V), select Schottky variants–their lower forward drop (0.2-0.3V) prevents power loss compared to standard silicon types (0.6-0.7V). Verify footprint compatibility: SOD-123 packages suit compact designs, while DO-41 handles higher currents up to 1A.

In transient protection layouts, add a TVS parallel to sensitive nodes with polarity matching the voltage rail. Avalanche types tolerate 50-100A pulses briefly; lead time for surge absorption must align with IEC 61000-4-5 standards. For signal clamping, use Zener variants–select breakdown voltages 10-15% above nominal rail to avoid steady-state conduction.

Avoid placing symbols near high-frequency traces (above 10MHz). Parasitic capacitance (typically 1-5pF) introduces phase shifts; surface-mount MELF packages reduce this by 30% over through-hole. In precision analog paths, opt for matched pairs–differential diode arrays eliminate threshold mismatches in logarithmic amplifiers.

Label each symbol with unique identifiers (D1, D2, etc.) and specify part numbers in the BOM header. For multi-layer boards, replicate the symbol on all relevant layers, ensuring netlist consistency. Failure to do so risks unrouted connections during PCB layout generation.

Representing Semiconductor Components in Schematics

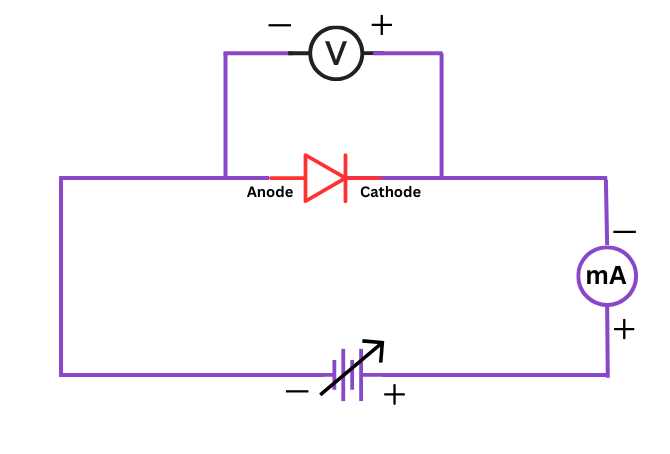

Place the symbol with the anode (arrow side) facing the positive voltage source and the cathode (bar) toward the load to prevent reverse current. For standard silicon-based devices, use the default D designation followed by a sequential number–e.g., D1–unless working with specialized variants like Zener regulators (ZD1), Schottky types (SD1), or light-emitting variants (LED1). Ensure the symbol’s orientation matches the anticipated electron flow direction.

Annotate key parameters directly on the schematic where space permits: forward voltage drop (V_f), reverse breakdown voltage (V_br), and continuous forward current (I_f). Below is a comparison of common categories and their typical values:

Type	Forward Voltage Drop (V)	Max Reverse Voltage (V)	Continuous Current (A)	Recovery Time (ns)
Silicon PN	0.6–0.7	50–1000	1–3	5–100
Zener	0.7	2.4–200 (regulated)	0.05–2	N/A
Schottky	0.15–0.45	10–100	0.1–5	<10
Fast Recovery	0.7–1.0	50–1200	0.5–10	20–500
Light-emitting	1.8–4.0 (color-dependent)	5–20	0.01–0.1	N/A

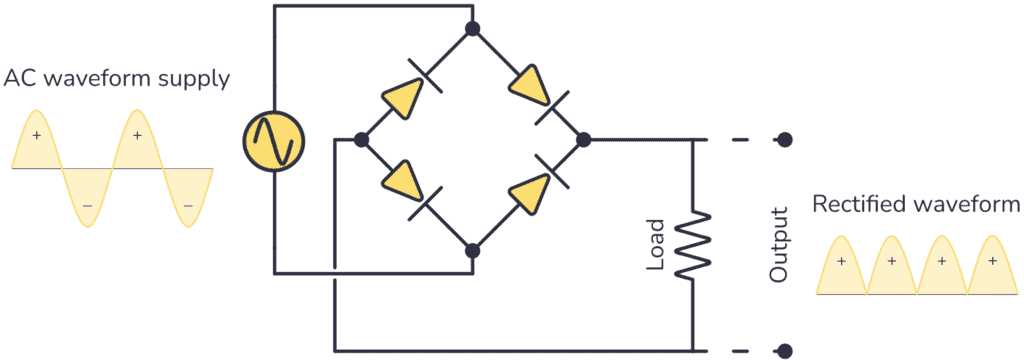

Group identical polarized components into sub-blocks with shared reference designators if they serve the same function–e.g., a bridge rectifier quartet labeled BR1–to reduce clutter. Use component value multipliers (k, M) sparingly; instead, specify exact reverse voltage ratings (e.g., 1N4007 1000 V) to avoid ambiguity during assembly or troubleshooting.

How to Identify a Semiconductor Symbol in Schematics

Locate the arrowhead-triangle shape pointing toward a straight line–this marks a unidirectional current limiter in any electrical blueprint. The triangle’s base always faces the input, while the line denotes the output terminal. Check for a second line parallel to the first in some variants; this indicates a bidirectional Zener-type component.

Verify the presence of polarity markers: a “+” or band near the line signifies the cathode, while the triangle’s apex aligns with the anode. Schottky symbols omit the central line but retain the arrow. Tunnel variants add two additional lines intersecting the primary shape, forming a distinct cross pattern.

Key Differences Across Variants

Rectifiers show no extra annotations, whereas LEDs replace the straight line with two outward-pointing arrows. Photoreceptors invert the arrow’s direction entirely. Varactors embed a capacitor symbol adjacent to the triangle. Reference guides like IEC 60617 or ANSI Y32.2 confirm these nuances–always cross-check unfamiliar glyphs.

Scan for adjacent labels–”D”, “CR”, or “V” followed by numbers help confirm identification. Schematics mix lettering styles; uppercase letters often denote discrete parts, while lowercase may signal integrated subcomponents. CAD tools like KiCad or Altium include pop-up tooltips revealing full specifications when hovering over the symbol.

Measure the relative scale: standard unidirectional limiters occupy minimal space, whereas complex variants (avalanche, tunnel) expand vertically. Clustering multiple identical symbols suggests arrays; single instances typically represent standalone units. Always trace connected traces–unidirectional types link only two nodes, while bidirectional types span three or more.

Critical Specifications for Selecting a Semiconductor Element

Prioritize reverse voltage rating–ensure the component tolerates at least 1.5× the maximum peak inverse voltage it will encounter. For example, a 100V transient requires a minimum 150V-rated part to prevent avalanche breakdown. Ignoring this risks catastrophic failure in inductive or capacitive loads.

Verify forward current handling against steady-state and surge conditions. A 1A continuous rating won’t suffice if transient currents reach 5A–check datasheets for IF(AV) and IFSM values. Overcurrent degrades thermal performance, shortening lifespan by 40-60% in mismatched applications.

Thermal resistance (RθJA) dictates cooling needs. A 60°C/W part on a PCB with 2W dissipation will reach 120°C junction temperature–exceeding limits requires heatsinks or derating. Use the formula TJ = TA + (PD × RθJA) to avoid thermal runaway in high-power scenarios.

Leakage current (IR) matters in precision or low-power designs. A 1μA reverse current may seem negligible, but in a 10MΩ sense resistor, it introduces 10V error–opt for Schottky variants if leakage under 10nA is critical.

Response time (trr) separates fast-recovery types from standard PN junctions. A 50ns part won’t suffice for 1MHz PWM; switching losses scale with frequency, demanding sub-10ns types in high-speed converters. Always cross-reference trr with driver slew rates to avoid shoot-through failures.

Step-by-Step Guide to Sketching a Semiconductor Element in Schematic Tools

Select a tool with ANSI/IEEE-compliant symbol libraries. LTspice, KiCad, and Proteus include standardized two-terminal representations with cathode stripes by default. Verify the symbol’s orientation matches the intended current flow direction–incorrect placement alters simulation outcomes.

Open the component palette and filter for passive nonlinear devices. In KiCad, press P to access the picker; type “anode” in the search bar to immediately locate the correct item. Avoid dragging general-purpose symbols–opt for the one explicitly labeled with polarity markings.

• Anchor the symbol by left-clicking the desired starting junction. Release mouse buttons only after confirming alignment with existing traces to prevent misalignment.
• Rotate before finalizing placement: R in KiCad, right-click in Proteus. Ensure the striped end faces the lower potential node for conventional forward-bias configurations.

Adjust grid snap settings to 0.1-inch subdivisions when working with imperial layouts; metric projects benefit from 2.54 mm spacing for seamless integration with breadboard prototypes. Misaligned symbols introduce cross-talk in high-frequency schematics.

Add explicit labels for clarity. Use D? nomenclature followed by sequential numbering (e.g., D1, D2) in multi-component designs. Position labels 1 mm above the top edge to avoid overlap with adjacent traces.

1. Right-click the symbol and select “Properties” to open parameter fields. Populate forward voltage drop (Vf = 0.7 V for silicon, 0.3 V for Schottky) and reverse breakdown voltage.
2. Specify thermal coefficients if simulating temperature-dependent behavior–default values often neglect junction heating effects.

Validate connectivity by toggling the net highlighting tool. Click each terminal; correct connections illuminate the entire trace path in contrasting color. Disconnected segments require manual routing using orthogonal segments only–45° angles introduce parasitics in SPICE models.

Exporting for Documentation

Generate vector outputs in SVG format to preserve resolution during scaling. For PDF exports, set line weights to 0.2 mm minimum; thinner strokes become illegible when printed at A4 dimensions. Include a legend table mapping reference designators to manufacturer part numbers.

Common Mistakes When Integrating Semiconductor Components

Reverse polarity remains the most frequent blunder, occurring when the anode and cathode are swapped. A single reversed junction can render an entire assembly inoperable, especially in low-voltage designs where forward voltage drop (typically 0.7V for silicon) isn’t accounted for. Always verify the stripe on the component’s casing–this marks the cathode–and double-check against schematic markers. For SMD variants, look for the chamfered corner or dot instead.

Overlooking thermal considerations leads to premature failures. Even small-signal units dissipate heat when conducting; exceeding the maximum forward current (often 1A for general-purpose types) without heatsinking causes thermal runaway. Consult datasheets for derating curves: most components tolerate 25°C ambient, but degradation accelerates above 60°C. Use thermal adhesive or a dedicated pad for high-power applications, and ensure airflow spaces aren’t blocked by adjacent parts.

Incorrect Biasing and Voltage Spikes

• Connecting a junction in parallel with an inductive load (e.g., relays, motors) without flyback protection guarantees voltage spikes that exceed reverse breakdown limits. A freewheeling bypass (e.g., Schottky clamped to the supply rail) absorbs energy, preventing avalanche breakdown.
• Assuming all components share identical forward voltage drops is dangerous. Germanium types drop ≈0.3V, while silicon Schottky units hover around 0.2V–mixing them in precision rectifiers introduces voltage mismatches that disrupt timing circuits.
• Omitting series resistance in high-impedance inputs (e.g., op-amp feedback paths) invites leakage currents that skew measurements. A 1kΩ resistor in series stabilizes bias points and reduces noise coupling.

Failure to account for dynamic behavior in AC-coupled networks creates signal distortion. Junction capacitance (pF range for switching types) interacts with stray wiring inductance, forming resonant circuits that ring at MHz frequencies. Suppress oscillations by adding a 10–100Ω damping resistor in series with high-speed signal paths or using ferrite beads for RF isolation. For transient-heavy environments, pair with a TVS unit rated 10% above the peak inverse voltage.
