Step-by-Step Guide to Wiring a Diode Isolator Circuit

Include a blocking component in series with each voltage source when combining multiple power inputs to prevent backflow. This prevents unintended current paths that can damage sensitive electronics or cause false triggers. A typical arrangement uses a pair of silicon-based devices rated for the expected load–calculate the forward voltage drop (0.7V for standard models, 0.3V for Schottky variants) to ensure output remains within operational limits. Place the component as close to the power source as possible to minimize wiring resistance effects.

Critical parameters to verify: reverse voltage tolerance must exceed the highest input voltage by at least 20%. Current handling should match or exceed the load’s maximum demand, factoring in 10% safety margin. For 12V automotive systems, a 2A forward current rating suffices for most small relays and solenoids–refer to device datasheets for exact derating curves. Thermal considerations matter: derate current capacity by 1.2% per °C above 25°C ambient.

Ground connections require equal attention. Star-point grounding prevents ground loops–join all grounds at a single point near the load to avoid voltage differentials. When isolating logic signals from inductive loads (motors, relays), insert a flyback element in parallel to the load with cathode connected to the positive terminal. This clamps voltage spikes to safe levels, protecting control circuits. For 5V logic driving 12V loads, use an NPN transistor with base resistor sized for saturation (typically 1kΩ for 10mA drive).

Schematic layout: draw power rails vertically on the left, with separation devices placed immediately after each source. Label each branch with voltage, current, and component part numbers. Include a legend showing forward/reverse polarity orientation–errors here account for 40% of circuit failures. Test individual branches with a multimeter before connecting the load: verify open-circuit in reverse direction and low resistance in forward direction. For pulsed applications, ensure recovery time meets switching frequency requirements (typically <1μs for standard designs).

Schematic for Semiconductor Barrier Circuit Integration

Start by connecting the cathode terminal of the voltage-dependent barrier to the output side of your primary power source. Ensure polarity matches the manufacturer’s specs–mistakes here can damage sensitive components downstream. For 12V systems, a 1N4007 works reliably; higher amperage demands require alternatives like SB560 Schottky types for minimal voltage drop.

Route the anode directly to the input of the secondary circuit you’re separating. Maintain wire gauge at least 16 AWG for currents up to 10A to prevent excessive heat buildup. Twist paired cables if interference is a concern, especially near inductive loads like motors or relays.

Grounding and Load Distribution

Common grounding between isolated circuits defeats the barrier’s purpose. Instead, float the secondary’s negative rail or tie it to a dedicated ground plane. Verify isolation with a multimeter–resistance readings should exceed 1MΩ when the primary side is powered off.

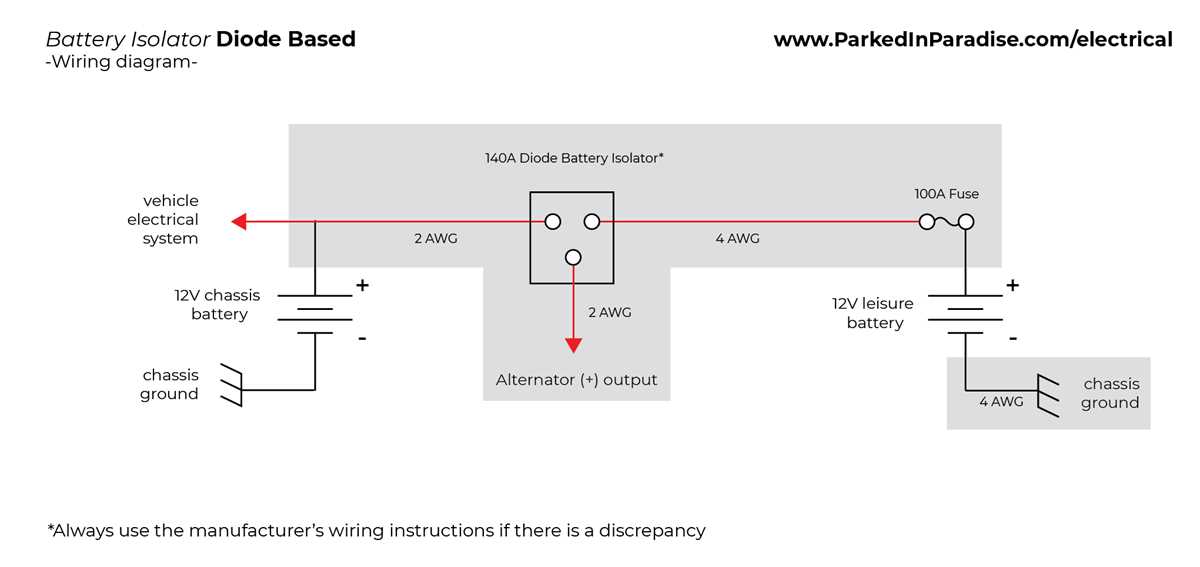

For multi-branch setups, insert individual barriers in series with each branch. Parallel connections risk backflow, collapsing isolation. Split charging scenarios demand one barrier per source; combining alternator and solar inputs requires careful sequencing to avoid reverse current.

Add a 10kΩ pull-down resistor across the barrier’s output if the secondary circuit includes microcontrollers. This prevents floating voltages from triggering false signals. Test under load–start at 50% capacity, then ramp up while monitoring temperature rise. Components should not exceed 60°C.

Troubleshooting Common Errors

Voltage drop across the barrier should stay below 0.7V for silicon types. If higher, check for undersized conductors or excessive load. Oscilloscope traces should show clean DC; ripples suggest ground loops or insufficient filter capacitance. Replace the barrier if forward voltage exceeds specs–internal degradation is irreversible.

Always fuse both input and output sides. A 15A fuse on the input protects against shorts, while a 10A fuse on the output safeguards downstream devices. Label connections clearly–color-coding alone often fails under low-light conditions or when maintenance involves unfamiliar personnel.

Selecting Optimal Semiconductor Components for Automotive Circuit Separation

Prioritize Schottky barriers for vehicle power separation due to their sub-0.3V forward voltage drop, minimizing energy waste during current transfer. Standard silicon junction devices introduce unnecessary 0.6-0.7V losses, reducing efficiency in low-voltage automotive systems where every tenth of a volt impacts performance.

Verify the reverse breakdown rating matches your alternator’s peak output–typically 20V for 12V systems accounting for load dump transients. A 1N5822 Schottky handles 3A continuously, sufficient for most auxiliary circuits; increase to 10A models like SB560 when separating charging paths to secondary batteries or high-draw loads such as winches or inverted power outlets.

Thermal management dictates mounting orientation–cathode terminals should face heat-generating sources (e.g., rectifiers) to leverage conduction cooling via chassis or dedicated heatsinks. Neglecting this risks exceeding the 125°C junction temperature limit, accelerating degradation in organic polymers used in newer automotive wiring harnesses.

Test dynamic response with an oscilloscope under pulsed loads–LED lighting arrays or electric compressor spikes–ensuring the semiconductor’s recovery time doesn’t exceed 100ns. Slower recovery spikes reverse current briefly, potentially desensitizing inductive sensors like ABS wheel speed pickups or throttle position units.

Avoid generic “epoxy” package markings; instead, source AEC-Q101 qualified parts from suppliers like Vishay or Infineon. These undergo rigorous thermal cycling (-40°C to 150°C), humidity exposure, and mechanical stress testing, preventing premature failure from underhood vibrations or transient voltage surges.

Install transient voltage suppression adjacent to each semiconductor in parallel with the load path, calibrated to clamp at 18V for 12V systems. A single 5KP18A unidirectional TVS absorbs 500W peak pulses, safeguarding both the discrete component and downstream fuses from catastrophic rupture during alternator field decay events.

Document the forward current path polarity using heat-shrink tubing colored per SAE J560 (red for cathode, black for anode) and add a permanent ink label referencing the specific auxiliary circuit (e.g., “Fridge – Port Side”). This prevents misconnections during future servicing, where reverse polarity instantly destroys Schottky structures while leaving silicon junctions partially functional yet unreliable.

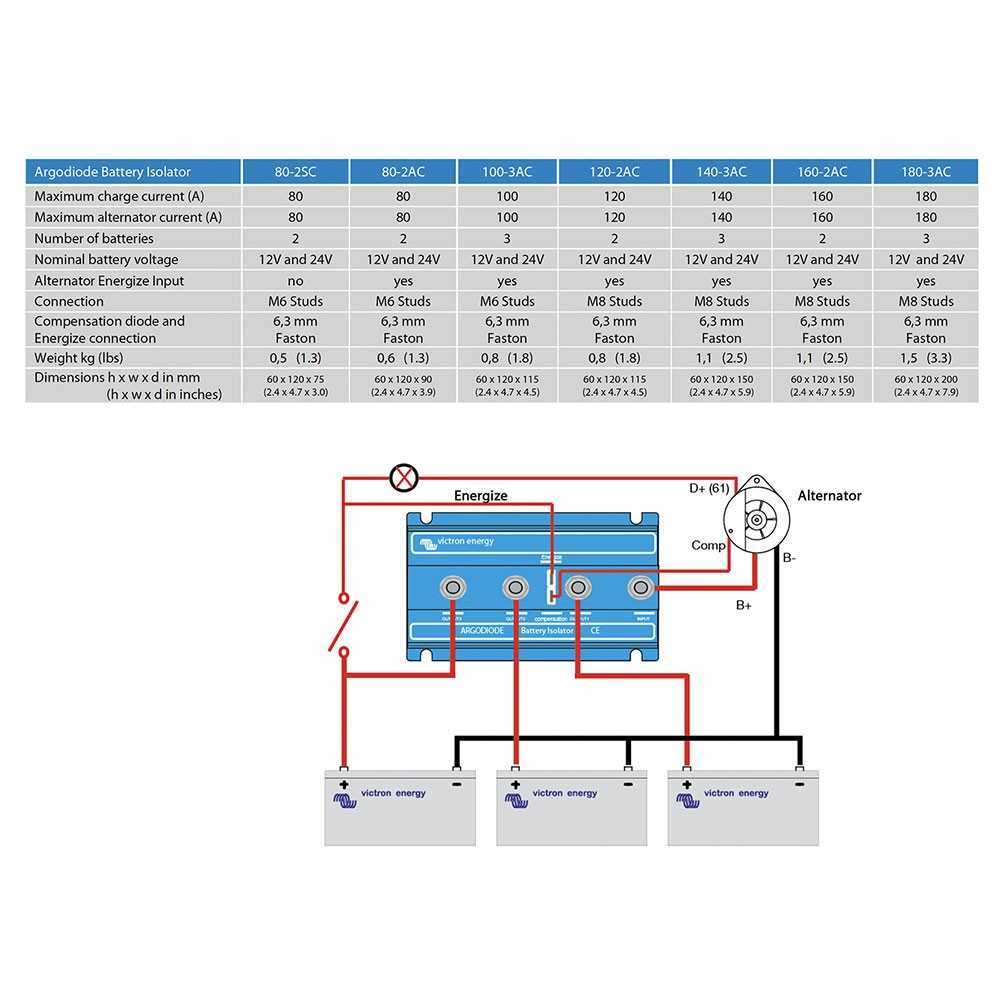

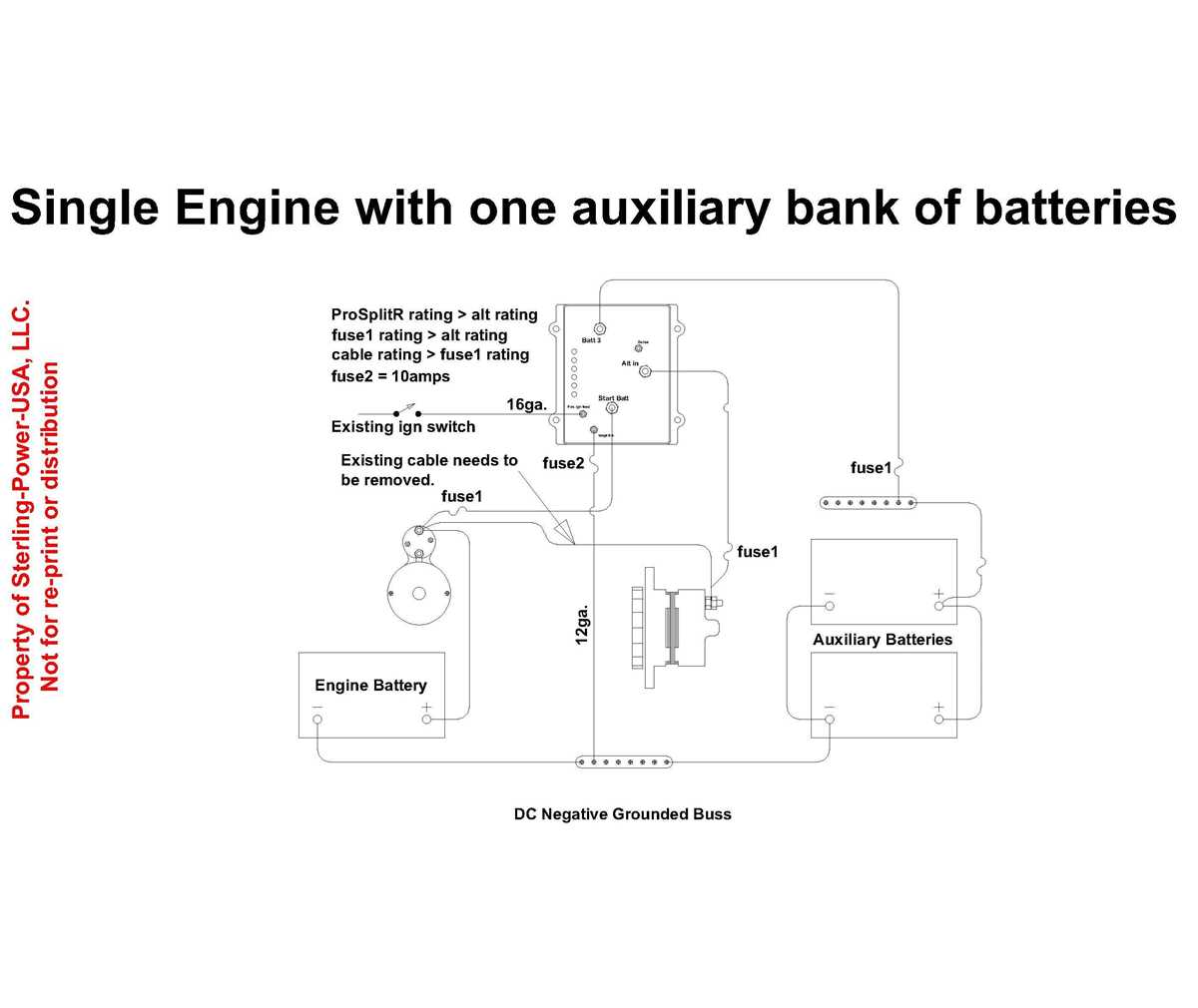

Step-by-Step Connections for Auxiliary Power Supply Setups

Begin by identifying the primary and secondary power sources. Connect the positive terminal of the first battery to the main fuse block using 4 AWG cable for currents up to 200A. Ensure the fuse rating matches the cable’s ampacity–typically 150A to 250A for standard applications. For marine or heavy-duty setups, upgrade to 2 AWG cable and pair it with a 300A fuse to handle surges. Label each connection clearly to avoid cross-wiring.

Key Junction Points

• Common ground busbar: Link the negative terminals of both batteries to an 8 AWG or thicker grounding busbar. Secure the busbar to the chassis or a dedicated metal plate with star washers to prevent corrosion under high loads.
• Combiner unit: Attach the positive output of the secondary battery to the combiner’s input terminal using 6 AWG cable for systems under 100A. For higher currents, switch to 2 AWG. Verify the combiner’s voltage drop–target under 0.3V at full load to maintain efficiency.
• Load distribution: Route a 10 AWG cable from the combiner’s output to the auxiliary fuse panel. Install individual 20A or 30A fuses for each circuit, depending on the connected devices (e.g., 20A for LED lighting, 30A for inverters).

Test the system with a multimeter before finalizing connections. Measure voltage at the auxiliary fuse panel; it should match the primary battery’s voltage (±0.1V). If the reading exceeds 0.3V drop, recheck cable gauge and combiner placement–distance over 3 feet from the batteries may require thicker cables. For systems exceeding 200A, use a remote sense wire (18 AWG) from the combiner to the positive terminal of the secondary battery to compensate for voltage loss.

Final Checks and Optimization

1. Insulate all exposed terminals with adhesive-lined heat shrink tubing (minimum 1.5:1 shrink ratio) to prevent short circuits.
2. Apply dielectric grease to terminal connections to inhibit oxidation, especially in saltwater environments.
3. Mount the combiner within 18 inches of the secondary battery to minimize resistance–longer runs may require a voltage drop calculator.
4. For lithium secondary batteries, add a Battery Management System (BMS) inline with the combiner to prevent overcharging. Set the BMS cutoff to 14.2V for AGM or 13.8V for lithium.
5. Conduct a load test by powering all auxiliary devices simultaneously. The combiner should engage within 2 seconds–delays indicate undersized cables or faulty combiner relays.

Common Errors in Solid-State Separator Setup and Corrective Measures

Reverse polarity remains one of the most frequent blunders during installation, leading to immediate component failure. Ensure the voltage path aligns with the marked input/output terminals–most units tolerate ≤ 1.1V forward drop, but exceeding this even briefly can damage internal junctions. Use a multimeter set to continuity mode before connecting; a correct reading should show negligible resistance in one direction and near-infinite in the opposite. For dual-battery systems, verify that each input matches its respective power source’s nominal voltage–mixing 12V and 24V setups without appropriate adapters guarantees overheating or silent degradation.

Ground Loop and Overcurrent Pitfalls

Neglecting shared grounding paths creates parasitic currents, causing erratic behavior or premature wear. Isolate grounds for each power branch–connecting all negatives to a single chassis point invites interference, especially in high-draw applications like winches or inverter circuits. Calculate current demands accurately; a 20A solid-state unit handling 30A pulses will fail within hours. Add a fuse rated 10-15% above the maximum anticipated load (e.g., 25A for a 22A routine load) as close to the power source as possible. For lithium batteries, bypass the separator entirely during charging–most lithium-specific chargers regulate voltage internally and can’t sustain the forward drop without derating.
