Step-by-Step Guide to Building a Direct Online Motor Control Wiring Layout
Begin with a low-side switching configuration to minimize component stress. Use a logic-level MOSFET (e.g., IRLZ44N) rated for at least 2x your expected current draw–this prevents thermal runaway during sustained operation. Pair it with a freewheeling diode (1N5822) positioned directly across the load terminals to clamp inductive kickback. Avoid generic 1N4007 diodes; their slow recovery time risks emitter damage.
Isolate command signals using an optocoupler (HCPL-3120) to shield microcontroller logic from voltage spikes. Connect the input side to a PWM-capable GPIO pin (e.g., Arduino’s Timer1) with a series resistor calculated as R = (Vin – Vf)/If, where Vf is the LED forward voltage (1.2V) and If is 10–15mA. On the output side, tie the collector to the MOSFET gate and add a 10kΩ pull-down resistor to ensure rapid turn-off.
Power the actuator from a dedicated DC supply sized to handle stall current. For a 12V DC drive, use a 25V-rated bulk capacitor (470µF) near the regulator input to suppress ripple. If incorporating regenerative braking, shunt excess energy into a high-wattage resistor (5W, 10Ω) connected to an additional transistor stage to bleed voltage safely.
Route all high-current paths with 18AWG or thicker wire–resistive losses in 22AWG traces can exceed 100mV per inch under load. For noise-sensitive applications, star-ground connections directly to the supply’s negative terminal. Avoid shared return paths between logic and power sections; a single-point ground scheme prevents ground loops.
Implement fault detection by monitoring the MOSFET’s drain voltage with a voltage divider feeding an ADC. A sudden drop below 0.3V suggests a short; trigger an immediate shutdown via hardware interrupt. For redundancy, add a polyfuse (e.g., 2A hold) in series with the actuator to prevent catastrophic failures during prolonged stall conditions.

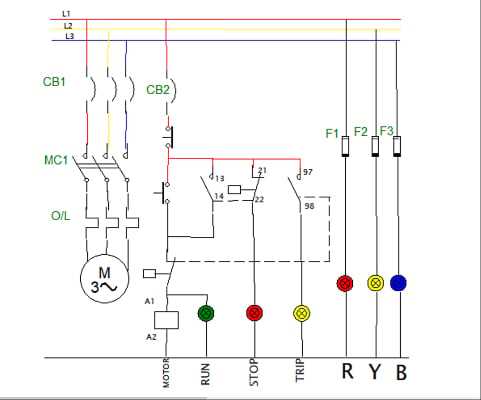

Schematic for Immediate Power Activation in Industrial Drives
Start with a three-phase power source rated for 10% above the driven mechanism’s full-load current. Connect a molded case breaker sized for instantaneous trip at 200–300% of nominal current to prevent conductor overheating during locked-rotor events.
Place a contactor directly downstream, selecting coils with 24 VDC or 110 VAC rating matching plant control voltage. Verify coil inrush current against controller relay contacts; contactors above 100 A typically demand relay contacts rated for 10 A minimum.
| Contactor Size (A) | Coil Inrush (A) | Minimum Relay Contact (A) |
|---|---|---|
| 25 | 0.35 | 1 |
| 50 | 0.6 | 2 |
| 100 | 1.2 | 5 |
| 200 | 2.5 | 10 |
Wire auxiliary NO contacts in parallel with the start pushbutton to maintain coil voltage once initiated. Use 14 AWG for control circuits; 12 AWG only if runs exceed 30 m to keep voltage drop under 5%.
Add a thermal overload relay sized for trip class 10 or 20 based on driven equipment inertia. Position heater elements within 5% of the nominal current rating. Bypass elements during initial commissioning to verify start sequences without nuisance trips.
Include a transformer for control voltage if mains exceed 240 V. Core sizes start at 40 VA for single-axis setups, scaling linearly–add 15 VA per additional contactor coil. Protect secondary with a fuse rated at 150% of expected continuous current.
Ground the enclosure via 8 AWG copper, bonded to the incoming service ground. Verify earth resistance below 2 Ω before energization; repeat quarterly if installation sits in corrosive environments.
Label every conductor termination with heat-shrink sleeves, marking source, destination, and signal type–avoid handwritten tags prone to smudging. Reserve panel space equivalent to 20% of total footprint for future expansion.
Test sequence: apply control voltage without main power, confirm contactor engagement within 20 ms, verify NO/NC auxiliary contacts switched, then energize main busbar. Measure inrush current with a clamp meter; expect 6–8× nominal current for standard squirrel-cage rotors.
Core Elements for Heavy-Duty Starter Setup
Begin with a three-pole contactor rated for 125% of the machine’s full-load current. Schneider Electric’s LC1D series or Siemens 3RT variants offer proven durability, with coil voltages spanning 24V AC/DC to 600V AC to match industrial power grids. Pair this with thermal overload relays–class 10 trip curves suit most induction loads, while class 20 better handles high-inertia fans or mills. ABB’s TA series or Eaton’s PKZ relays deliver ±3% current precision, preventing nuisance tripping during transient inrush spikes.
Fuse selection demands 300% of locked-rotor amps, but never over 400 volts; NH gG or UL Class RK1 types balance fast-acting protection against false blows. Square D’s QPH fuses or Cooper Bussmann’s JJS series offer 20ka interrupting ratings–critical for short-circuit withstand. For manual intervention, include a spring-loaded selector switch with maintained-contact positions; Eaton’s 30mm modular switchgear (e.g., XE series) provides IP65 sealing against dust ingress, while modular terminals simplify wiring.
Shunt coils on contactors must handle 85–110% nominal voltage swings; add RC snubbers (0.1μF + 100Ω, 250V) across coil terminals to suppress voltage spikes from back-EMF. For acceleration control, integrate rotor inertia dampers only if startup exceeds 5 seconds; NEMA design B machines under 50HP rarely need these, but NEMA D types benefit from Eaton’s DS3 series torque limiters. Grounding follows NEC 250.122, requiring #8 AWG copper for 50HP units, upsized to #6 if conduit runs exceed 100 feet.
Step-by-Step Wiring of a Three-Phase Drivetrain with Full Voltage Non-Reversing Initiator
Begin by ensuring the supply lines–L1, L2, and L3–are disconnected from the mains. Label each conductor with phase-identifying tape (red for L1, yellow for L2, blue for L3) to eliminate ambiguity during reassembly. Verify the starter’s contactor coil voltage matches the control circuit voltage (typically 230V or 400V) to prevent premature failure or inefficient operation.
Connect the three-phase power feed to the starter’s input terminals (U, V, W), observing the correct sequence: L1→U, L2→V, L3→W. Use crimped ring lugs rated for at least 125% of the drivetrain’s full-load current (consult the nameplate data). Secure each connection with a torque wrench set to the terminal manufacturer’s specified value (usually 1.2–1.5 Nm for M6 screws) to avoid thermal runaway due to loose contact.
Wire the overload relay heaters in series with the drivetrain’s windings, selecting heater elements based on the nominal current (e.g., 6.3A for a 5.5 kW unit). Route the control circuit through the normally closed (NC) auxiliary contacts of the overload relay to the stop pushbutton. Ensure the starter’s coil circuit (A1/A2 terminals) is wired in parallel with the start pushbutton to maintain self-holding operation. Test the coil resistance with a multimeter; deviations exceeding ±10% indicate internal corrosion or incorrect voltage rating.
Integrate a pilot lamp (24V or 110V) across the contactor coil to provide visual confirmation of energization. Use a varistor (MOV) across the coil terminals to suppress voltage spikes induced by inductive kickback, prolonging contactor lifespan. Ground the drivetrain’s frame and starter enclosure with a 10 mm² bare copper conductor, bonding all metallic parts to the main earth busbar with star washers to prevent corrosion-related high-impedance paths.
After completing all connections, perform a megohmmeter test (500V DC) between each winding pair and between windings and ground; resistance below 1 MΩ mandates drying the unit or replacing compromised insulation. Energize the system and measure phase currents with a clamp meter–unbalanced currents exceeding 5% require rechecking the supply voltage symmetry or adjusting the overload relay settings. Document all readings for future reference and compliance audits.
Critical Errors to Sidestep When Building a Starter Configuration
Miswiring the overload relay ranks as the most frequent yet overlooked blunder. Position it after the contactor’s power terminals, not before–failing this risks bypassing thermal protection entirely. Verify the relay’s trip class (usually Class 10 or 20) matches the driven load’s inertia; mismatches cause nuisance tripping or insufficient protection. Always calibrate the relay per the nameplate’s full-load current, never relying on default settings.
Neglecting cable sizing guarantees premature failures. Use the 70°C column of NEC Table 310.16 for copper conductors, derating for ambient temperatures above 30°C and bundling (3+ conductors). For 400V three-phase setups, a 10A load requires at least 2.5mm²; upsize by 20% if the run exceeds 30 meters. Aluminum conductors demand 1.5× larger cross-sections than copper for equivalent current capacity.
- Connecting the neutral to the Starter’s frame–even temporarily–creates ground loops, introducing 50/60Hz noise into control signals. Isolate neutral from PE at all junctions.
- Omitting a snubber circuit (RC network, 100Ω + 0.1µF) across contactor coils invites arcing, reducing contact life by 60–75%.
- Reversing phase sequence without a rotating phase tester can invert rotation, damaging pumps, conveyors, or compressors.
Component Selection Pitfalls
Choosing contactors solely by horsepower ratings ignores duty cycle. IEC AC-3 rated devices suit intermittent operation (≤50 starts/hour); AC-1 serves resistive loads. For frequent cycling (>200/day), select AC-4 rated contactors to prevent welding contacts. Undervoltage releases must match the coil voltage–24V DC coils paired with 230V AC supplies burn out in seconds.
Heat dissipation demands attention. Mount thermal relays vertically, away from heat-producing elements; horizontal installation skews trip times by ±15%. Leave 50mm clearance above/below sealed enclosures to meet IP20 airflow requirements. Ambient compensation is mandatory above 40°C–opt for relays with ambient sensors or recalibrate trip curves.
Control wiring oversights:
- Looping emergency stop circuits in series with auxiliary contacts defeats redundancy; wire E-stops separately to force immediate coil dropout.
- Twisting control cables (1 twist per 5cm) reduces induced noise by 40% compared to parallel runs.
- Omnibus bars for ground connections cause voltage gradients–use star configurations with single-point earthing.
Power factor correction capacitors must never connect downstream of the starter without detuned reactors. Inrush currents (>20× FLC) destroy capacitors in
