Simple Homemade Ammeter Circuit Design Step-by-Step Guide

Assemble a low-cost, precision current measurement tool using a shunt resistor and an operational amplifier. A 0.1Ω shunt with 1% tolerance provides sufficient resolution for currents up to 10A while minimizing power loss. Pair it with an LM358 op-amp configured as a non-inverting amplifier with a gain of 20. This setup converts 100mV full-scale input to a readable 2V output, compatible with standard multimeters or microcontroller ADCs.

Avoid common pitfalls: bypass the op-amp power pins with 0.1µF capacitors placed as close as possible to the IC to suppress high-frequency noise. Route signal traces away from switching regulators or inductive loads to prevent erroneous readings. For battery-powered applications, add a 3.3V voltage reference like the TL431 to eliminate drift from supply fluctuations.

Expand functionality with a microcontroller for logging or display. An ATmega328P sampling at 10Hz with 10-bit resolution offers ±0.5% accuracy–sufficient for most diagnostic tasks. Include a 1N4007 diode across the shunt to clamp inductive kickback when measuring motor loads. Test the circuit with a known current source (e.g., a 1kΩ resistor and 5V supply) to verify linearity before deployment.

For higher currents, replace the shunt with a Hall-effect sensor like the ACS712. It provides galvanic isolation and handles up to 20A with a linear 185mV/A output. Calibrate by comparing readings against a bench meter at 50%, 100%, and 120% of expected load. Store calibration values in EEPROM if using a microcontroller to account for component tolerances.

Building Your Own Current Measurement Tool: Key Steps

Begin with a shunt resistor rated for your expected current range. For most low-power applications, a 0.1Ω resistor with 1% tolerance or better handles up to 5A with minimal voltage drop. Solder it in series with your load circuit–avoid long leads to prevent parasitic resistance. Use thick gauge wire (18AWG or lower) for connections to ensure accuracy. Multimeter readings across the shunt should then be converted using Ohm’s Law: current = voltage / resistance. Example: a 50mV drop across 0.1Ω equals 500mA.

Amplify the signal if measuring microamps or milliamps. An operational amplifier (op-amp) like the LM358 configured in non-inverting mode scales the shunt voltage to a readable level. Set gain with resistors: Rf (feedback) and Rin (input). For instance, Rf = 10kΩ and Rin = 1kΩ yields a gain of 11x. Calibrate using a known current source–adjust Rf until the output matches expected values. Avoid exceeding the op-amp’s supply voltage to prevent clipping.

Component Selection Table

Component	Value/Part Number	Purpose
Shunt Resistor	0.1Ω, 1W, 1%	Converts current to voltage
Op-Amp	LM358, MCP6002	Amplifies shunt voltage
Feedback Resistor	10kΩ, 0.1%	Sets gain with Rin
Input Resistor	1kΩ, 0.1%	Works with Rf for gain
Power Supply	±5V dual rail	Powers op-amp

Add a microcontroller for digital readouts. An Arduino Nano samples the amplified voltage via its ADC. Use a 10-bit resolution for 0–5V range (4.88mV per step). Code calculates current: current_mA = (analogRead(pin) * 4.88) / shunt_resistance. For 0.1Ω, every 4.88mV equals 48.8mA. Include averaging (10 samples) to reduce noise. Battery-powered devices require low-power modes–disable unused peripherals to conserve energy.

Test with a dummy load (e.g., 10Ω power resistor). Verify linearity across the current range. Check for self-heating in the shunt–excessive power dissipation (>10% of rating) distorts readings. If accuracy drifts, recalibrate with a precision multimeter. For AC measurements, add a rectifier circuit (1N4007 diodes) and capacitor (100μF) to smooth the signal. Ensure the op-amp’s bandwidth exceeds your frequency range (LM358: 1MHz typical).

Mount the circuit on perforated board, keeping high-current paths short. Use star grounding to minimize interference. For high currents (>10A), upgrade the shunt to a 0.01Ω, 5W model and add a heat sink. Document your calibrations–note resistor values, gain settings, and observed offsets. Store configuration data in EEPROM for consistent performance. Replace components with 5% tolerance or worse only if recalibration is performed.

Choosing the Optimal Shunt Resistance for Current Measurement

Pick a shunt resistor with a resistance value that generates a voltage drop of 50–100 mV at the maximum expected current. This range balances sensitivity and power dissipation–values below 50 mV risk signal noise interference, while drops exceeding 100 mV unnecessarily waste energy as heat. For example, a 10 A circuit requires a 5–10 mΩ shunt to stay within this window. Always verify the resistor’s power rating: a 10 mΩ shunt handling 10 A must dissipate 1 W (P = I² × R), so select a component rated for at least 1.5 W to prevent thermal drift.

Prioritize resistors with low temperature coefficients (ideally 60°C. Check datasheets for thermal resistance (Θ_JA)–a shunt with Θ_JA = 50°C/W will rise 50°C per watt of power, meaning a 2 W shunt could reach 100°C above ambient in continuous operation. Mount shunts on heat-sinks or PCB copper pours (>1 oz) if ambient conditions exceed 40°C.

• Copper-based alloys (e.g., manganin, constantan): Near-zero TCR, ideal for precision below 10 A.
• Aluminum shunts: Cost-effective for high currents (>50 A), but require derating due to higher TCR (~300 ppm/°C).
• Surface-mount resistors (e.g., 2512 package): Limited to 5 A continuous due to thermal constraints; use parallel configurations for higher loads.

For pulsed currents, calculate the RMS equivalent of the waveform to size the shunt. A 20 A peak pulse with 10% duty cycle requires a resistor sized for 6.3 A RMS (I_RMS = I_peak × √Duty). Add a 20% safety margin to the resistor’s power rating to account for transient spikes. Test the setup with a 4-wire Kelvin connection–attach sense leads directly to the shunt’s terminals to eliminate lead resistance errors (>1 mΩ per 10 mm of 22 AWG wire).

Constructing a Simple Current-Measuring Circuit with Precision Voltage Drop Analysis

Select a shunt resistor rated for at least 1.5× the maximum expected current to prevent thermal drift. A 0.01Ω manganin or constantan element with ±1% tolerance ensures stable readings for currents up to 10A. Connect the shunt in series with the load, placing voltage measurement points at the resistor’s terminals–never across extended leads, as contact resistance (~0.1mΩ per cm) introduces errors exceeding 5% at 5A. For a 0.01Ω shunt carrying 5A, expect a 50mV drop; verify with a 4½-digit multimeter to confirm linearity before finalizing connections.

Configure the moving-coil indicator by calculating its internal resistance (R_m) using the formula: R_m = (V_FS × R_shunt) / I_FS, where V_FS is full-scale voltage (typically 50–100mV) and I_FS is the meter’s rated current (e.g., 1mA). For a 100µA movement with 900Ω sensitivity, a 5A full-scale requires R_shunt = 0.01Ω, yielding 50mV. Add a series resistor (R_adj) to fine-tune scaling: R_adj = (V_{FS_desired} / V_{FS_measured} – 1) × (R_shunt + R_m). Bypass the shunt with a 0.1µF ceramic capacitor to suppress high-frequency noise, particularly in switching power circuits.

Validate the setup by applying a known current (e.g., 2.5A from a bench supply) and comparing the meter’s reading to a calibrated reference. Deviations >0.5% indicate thermal EMF errors (mitigated by copper-to-copper junctions) or lead inductance (solved by twisted pairs). Document voltage drop at 20%, 50%, and 80% of full scale–the burden voltage (V_burden = I × R_shunt) should not exceed 100mV at 10A to avoid distorting load behavior. For AC currents, add a diode bridge ahead of the meter to rectify readings, but account for a 1.4V forward drop in calculations.

Integrating Serial Output with Your Digital Multimeter for Current Measurement

Select a digital multimeter (DMM) with UART or USB serial capabilities–models like the UT61E, Fluke 17B, or Keysight U1242C support raw data logging via their proprietary protocols. Verify the baud rate in the manual; 9600 is common, but some devices use 19200 or 38400. Connect the DMM’s TX pin to a microcontroller’s RX (e.g., Arduino’s pin 0) or a USB-to-TTL adapter like CP2102 for direct PC reading.

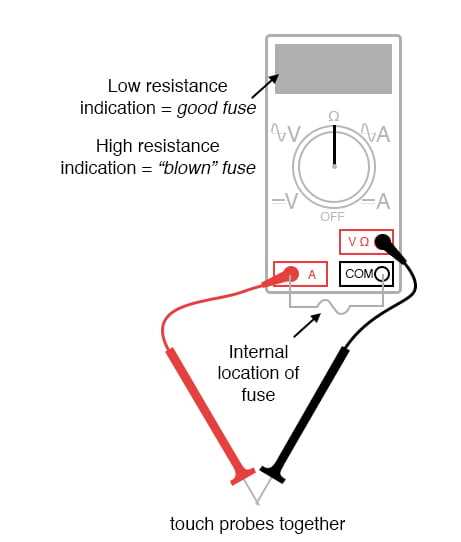

For low-current ranges (≤400mA), use the DMM’s native milliamp setting–this avoids shunt resistor inaccuracies. If measuring higher currents, switch to the 10A port and reduce the range manually to minimize noise. Ensure the probe cables are twisted-pair or shielded to prevent induced voltage errors from nearby AC lines.

• Fluke 17B: Outputs CSV-like strings every 500ms; parse for the 4th field (current value).
• UT61E: Requires checksum validation; use a CRC-16 algorithm on the received data packet.
• Keysight U1242C: Emulates a serial port via USB; use Keysight’s IO Libraries Suite to access the SCPI command set.

Configure the serial port with 8 data bits, 1 stop bit, no parity, and hardware flow control disabled. For timestamps, add a real-time clock (RTC) module like DS3231–log each reading with a Unix timestamp to correlate current fluctuations with external events (e.g., relay activation).

To filter noise, apply a 10-sample moving average in software or a 1kHz low-pass RC filter (1kΩ + 10µF) on the analog side. For pulsed currents (e.g., PWM-controlled loads), reduce the sampling interval to 10ms using a faster microcontroller (STM32) or an FPGA with DMA.

Export the data in JSON or binary format for compact storage. For binary logging, use 4-byte floats (IEEE 754) for current values and 8-byte integers for time. Example Arduino snippet:

1. Initialize Serial1 at 9600 baud if using a Mega.
2. Read until newline: while (Serial1.available()) { char c = Serial1.read(); buffer += c; }
3. Parse the buffer: float current = buffer.substring(10, 16).toFloat();
4. Write to SD card: file.write((uint8_t*)&current, 4);

Calibrate the DMM by comparing its readings to a NIST-traceable reference source (e.g., Keithley 2450). For sub-milliamp measurements, enable the 400µA range and apply Ohm’s Law corrections if the internal shunt introduces voltage drop errors.

Troubleshooting Serial Data Dropouts

If readings freeze, check for buffer overflows–limit packet size to 32 bytes and discard malformed payloads. For ground loops, isolate the DMM’s ground from the load’s ground using an optocoupler (e.g., PC817) or differential amplifier (INA125). If baud rates mismatch, use an oscilloscope to verify the signal’s bit width–adjust the microcontroller’s UART divider accordingly.
