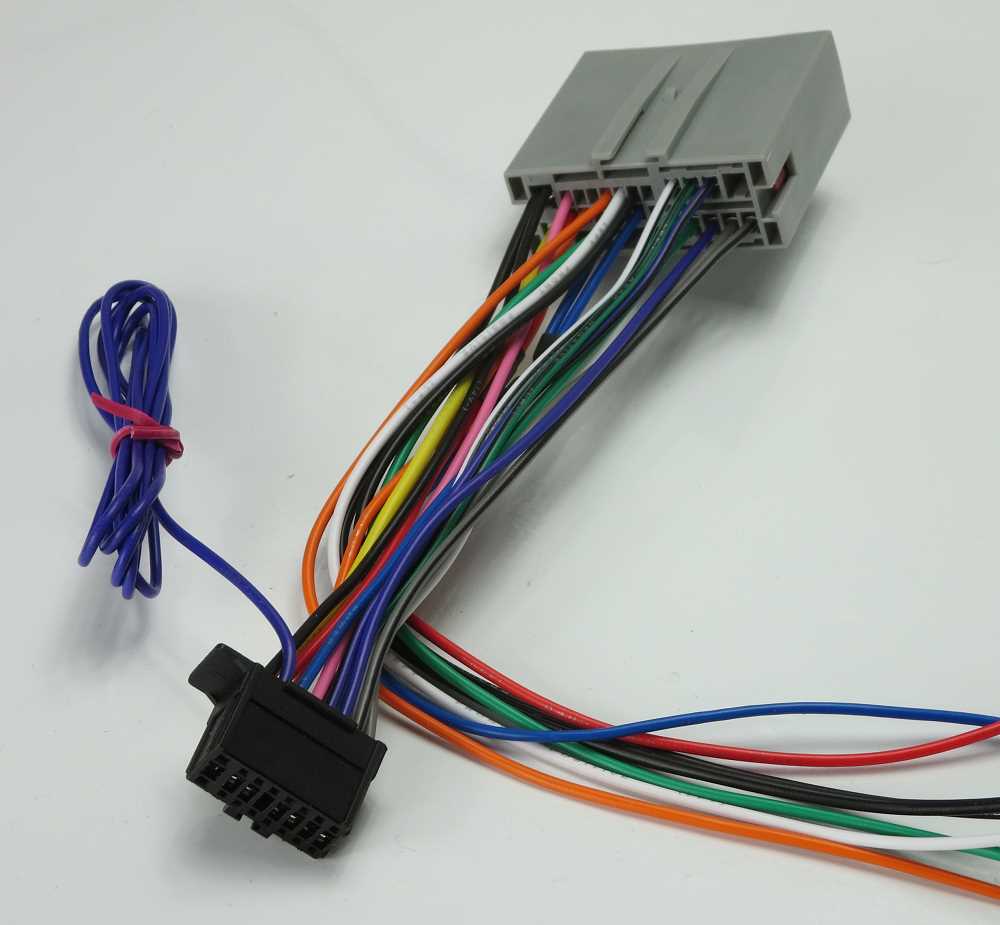

Complete Wiring Guide for Pioneer DMH-100BT Head Unit Installation

Begin by locating the 16-pin ISO harness at the back of the unit. Pin 1 (yellow) delivers constant 12V power–connect it directly to the battery via a 15A fuse placed within 10 cm of the terminal. Pin 2 (red) handles accessory power; link it to the ignition switch with a 10A fuse to prevent parasitic drain. Ground pin 3 (black) to a clean chassis point using an 8-gauge wire for stable operation.

For speaker outputs, pins 4–7 (front left/right) and 8–11 (rear left/right) must match impedance–4 ohms for standard setups. Use twisted pair cables (minimum 18 AWG) to reduce interference, especially near power wires. Avoid parallel runs with RCA cables; cross at 90° angles if unavoidable.

Bluetooth and USB functions depend on pins 12–16. Pin 12 (blue/white) activates the remote turn-on for amplifiers–route it through a relay if connecting aftermarket audio gear. Pins 13–14 (green and purple) handle reverse camera input; ensure the camera’s 6V power supply is isolated from other circuits to prevent voltage spikes.

Double-check all connections with a multimeter before powering on. A reversed polarity on pin 1 or 2 will damage the unit permanently. For microphone input (if used), run a shielded 2-core wire (pin 15, brown) away from high-current paths to avoid noise. Keep the harness length under 2 meters to maintain signal integrity.

Practical Connection Guide for DMH-100BT Integration

Begin by locating the 12-pin harness at the rear of the unit; pins 1 through 4 handle power delivery. Connect pin 1 to a constant 12V source via a 10A fuse to ensure stable operation during ignition-off states. Pin 2 requires ignition-switched 12V–use a relay-triggered circuit to prevent voltage drops affecting performance. Verify ground connections on pins 3 and 4 with a multimeter set to ohms; resistance should read below 0.2Ω to avoid interference.

For speaker outputs, match wires by color-coding: front left (gray), front right (white), rear left (green), rear right (purple). Strip 10mm of insulation and twist strands tightly before crimping with gold-plated 0.5-1.5mm² connectors–tin solder joints only if working with high-current paths (rear channels). Use heat-shrink tubing rated for 125°C to seal connections; electrical tape degrades under heat cycles and vibration.

Auxiliary inputs (pins 5-8) support RCA or 3.5mm adapters; wire gauge depends on cable run length. For distances under 5 meters, 22AWG shielded copper suffices; over 5 meters, upsize to 18AWG and add ferrite cores at both ends to suppress high-frequency noise. Test continuity before securing cables–open circuits here cause intermittent audio dropout.

Bluetooth antenna placement matters: route the supplied coaxial cable away from metal chassis components and power wires. Keep a minimum 50mm separation from other signal carriers to prevent desense. Secure the antenna’s magnetic base to a flat steel surface beneath the dashboard for optimal RF transmission; avoid adhesive mounts near defroster grids.

Illumination control (pin 9) links to vehicle dimmer circuits. Use a 1kΩ resistor in series to protect LED backlighting from current spikes. If factory dimming isn’t available, connect this pin directly to ignition-switched 12V through a 500mA slow-blow fuse–alternative solutions with aftermarket adjusters introduce flicker under 60Hz PWM loads.

Parking brake and reverse signal inputs (pins 10-12) require verification against local regulations. Wire pin 10 through a momentary switch to ground for menu access while stationary; some regions mandate a physical brake interlock. For reverse camera activation, attach pin 12 to the reverse light circuit with a 1N4007 diode to block backfeed–omitting this can damage the unit’s video input circuitry.

Final validation involves a systematic power-up sequence: first, ground all connections. Apply constant 12V, then ignition. Check for backlight activation before engaging audio outputs–parallel troubleshooting of each channel prevents masking speaker shorts or phase issues. Log voltage at each harness pin under load; deviations above 0.5V from battery voltage indicate poor grounding or undersized wiring.

Step-by-Step Connection Process for BT-100 Head Unit Power Input

Disconnect the vehicle’s battery negative terminal before handling any electrical connections to prevent short circuits or accidental damage. Locate the head unit’s wiring harness and identify the red (+12V) and yellow (memory) power leads–these must connect to the vehicle’s constant 12V supply via a fuse-rated circuit (typically 10A).

• Strip 6mm of insulation from the power wires using precision wire strippers.
• Crimp closed-end connectors onto the exposed copper strands to ensure secure contact.
• Attach the red wire to the ignition-switched fuse tap or an accessory circuit that activates with the key turn.
• Connect the yellow wire directly to the battery’s positive terminal using an inline fuse holder placed within 20cm of the terminal.

Ground the black wire to a bare metal chassis point near the installation site–avoid painted surfaces; sand down to bare steel if necessary. Use a star washer or crimp ring terminal for a low-resistance connection, securing it tightly with a metric bolt (usually M6 or equivalent).

After all connections are verified, reconnect the battery negative terminal and power on the unit. Confirm functionality by checking display illumination, radio presets retention, and accessory power draw (measured at 0.3A–0.5A standby with a multimeter). If the unit fails to power on, recheck fuse continuity and wire polarity–reverse polarity can damage internal components irreversibly.

Locating and Connecting Audio Channels on the Pioneer DMH-100BT Unit

Begin by matching the amplifier’s rear panel labels to the correct audio paths. The Pioneer DMH-100BT features eight discrete outputs–four for front and rear speakers, plus a dedicated subwoofer channel. Each terminal is color-coded (white, gray, green, purple, blue, and black) and marked with positive (+) or negative (-) polarity. Use 18-16 AWG stranded copper wire for full-range channels and 16-14 AWG for the subwoofer to ensure optimal signal transfer without voltage drop.

Channel Assignment and Wire Gauge Selection

Front left and right outputs (white/gray) require 18 AWG wire for 50W RMS handling, while rear channels (green/purple) benefit from 16 AWG for distances exceeding 3 meters to prevent power loss. The subwoofer output (blue) demands 14 AWG due to its 20-150Hz frequency range and higher current draw. Secure connections with crimp connectors or solder, then insulate with heat-shrink tubing to avoid short circuits. Verify impedance compatibility–4-8 ohms for full-range speakers, 1-4 ohms for subwoofers–before finalizing connections.

Test each channel individually using a 1 kHz sine wave signal at 75% volume. Listen for distortion; if detected, recheck polarity–reversed connections phase-cancel frequencies below 200Hz, weakening bass response. For factory speaker replacements, retain original wiring harness adapters to preserve vehicle integrity and OEM settings. Ground the unit’s chassis to the car body using a 12 AWG wire and a clean, unpainted metal surface to eliminate ground loops.

Ground and Antenna Connection Best Practices for Car Multimedia Systems

Use a minimum of 8 AWG copper wire for grounding connections to ensure stable electrical flow and prevent signal interference. Attach the ground cable directly to the vehicle’s chassis within 18 inches of the head unit’s mounting location, avoiding painted or coated surfaces to guarantee a low-resistance path.

Pre-tin the ground wire end with solder before securing it under a bolt or screw to prevent oxidation over time. Avoid relying on self-tapping screws; instead, use existing chassis bolts or drill a hole for a machine screw if necessary, ensuring proper torque specifications (typically 8-12 lb-ft) to maintain a secure bond.

Route the antenna cable along the shortest path from the unit to the vehicle’s antenna base, keeping it at least 6 inches away from power lines and ignition wires to minimize RF interference. Use ferrite cores at both ends of the cable if the run exceeds 12 feet or passes near potential noise sources like alternators or fuel pumps.

Inspect the antenna connector for corrosion or damage before installation. Apply dielectric grease to the threads of the antenna base to protect against moisture ingress, particularly in vehicles exposed to harsh environments. For aftermarket antennas, verify compatibility with the system’s impedance (typically 50 ohms) to avoid signal degradation.

Test the ground connection with a multimeter before finalizing installation; readings should show less than 0.5 ohms between the unit’s ground terminal and the chassis. If resistance exceeds this threshold, clean the mounting surface with a wire brush or sandpaper and reattach the connection, ensuring all paint or oxidation is removed.

Avoid daisy-chaining grounds through multiple components, as this can introduce noise and voltage drops. Dedicate a single, robust ground point for the multimedia system, separate from other electronics like amplifiers or lighting modules to maintain signal integrity.

For FM reception optimization, position the antenna away from large metal obstructions (e.g., roof racks, solar shades) that can block or reflect signals. If using an amplified antenna, connect its power lead directly to the system’s ignition-switched circuit rather than the head unit’s power output to prevent voltage sag during peak usage.

Document the layout of all connections, including wire lengths and routing paths, to simplify troubleshooting or future upgrades. Label each wire at both ends with heat-shrink tubing or tags to identify purposes (e.g., “ANT+,” “GND”) and prevent misconnections during maintenance.
