Complete Wiring Guide for Pioneer DMH 1500NEX Car Stereo Installation
Start with the power cable–ensure the red wire (constant 12V) connects to the battery terminal, bypassing the ignition switch. The yellow (switched 12V) should link to the ACC line on your vehicle’s fuse box, avoiding aftermarket adapters that may introduce voltage drops. Ground the black wire directly to chassis metal, sanding paint or corrosion for a stable connection. A weak ground causes audio distortion and system instability.
Speaker outputs follow a strict color code: white (front left +/-), gray (front right +/-), green (rear left +/-), and purple (rear right +/-). Crossovers or amplifiers require 16-gauge wire minimum; thinner cables degrade sound quality at higher volumes. Verify polarity–mismatched leads invert phase, creating hollow or muffled audio. Use crimp connectors or solder joints; twist-and-tape connections fail under vibration.
For the RCA inputs, route cables away from power wires and ignition coils to prevent interference. Shielded cables reduce engine noise; if hum persists, add a ground loop isolator. The steering wheel control adapter (if used) bypasses the head unit’s native wiring–check compatibility with your vehicle’s make/model before splicing. Incorrect connections may trigger error codes or disable features.
Parking brake and reverse signal wires require specific triggers. Connect the parking brake wire to a switch that grounds when engaged; failure may disable video playback. The reverse wire should tie to the backup light circuit–tapping into incorrect lines risks disabling safety features. Test functionality before finalizing installation.
USB and auxiliary ports demand direct connections. Avoid using extension cables for USB, as they introduce latency or power loss. The Bluetooth module’s antenna should mount vertically, away from metallic obstructions, to maintain signal strength. If pairing fails, reset the system by holding the Eject button for 10 seconds.
Document each connection with photos or labels before closing panels. Use a multimeter to confirm voltages–12V at constant and switched inputs, 0V at ground. If the unit powers off intermittently, inspect fuses in the vehicle’s factory harness; aftermarket fuses are often undersized.
Pioneer AV Unit Connection Blueprint: Hands-On Walkthrough
Begin by identifying the harness connectors at the rear of the unit–labeled A through G on the official schematics. Connector A handles power input: pin 1 accepts constant 12V (yellow), pin 2 grounds (black), and pin 4 carries ignition-switched power (red). Skip pin 3–it’s reserved for future firmware. Misrouted power leads will trip the unit’s internal fuse, so verify connections with a multimeter set to 20V DC before insertion.
Audio output uses connectors B and C. Left/right rear channels (B) require 4-ohm impedance; mismatched impedance risks overheating the amplifier. Front channels (C) support 2-ohm loads but only if the vehicle’s alternator exceeds 70A output–check your charging system specs. Speaker wires (pin pairs 1/2, 3/4) must maintain consistent polarity; reverse polarity causes phase cancellation, muting midrange frequencies. Color codes follow ISO standard: gray=front left, white=front right, green=rear left, purple=rear right.
Essential Adapter Pinouts
| Adapter Model | Function | Pin Assignments |
|---|---|---|
| Metra 70-1761 | Toyota/Lexus integration | 1=Parking brake (violet), 2=Reverse detection (green), 3=Speed sensor (gray), 4=Illumination (pink) |
| Scosche GMOS-03 | GM vehicles 2003+ | 1=OnStar retainer (blue/white), 2=Bose amp bypass (brown), 3=Mute trigger (orange), 4=Steering wheel controls (yellow) |
| Pac SNI-1 | Subaru steering wheel controls | 1=Data (+), 2=Data (-), 3=Ground, 4=12V switched |
Ground the chassis using an 8-gauge or thicker wire connected directly to the vehicle’s frame, avoiding painted surfaces–resistance above 0.5 ohms introduces alternator whine. For vehicles with factory navigation, locate the GPS antenna lead (connector D, pin 7, blue/white stripe) and route it away from power cables; EMI disrupts satellite lock. If the rearview camera feed appears grainy, insert a 220µF capacitor inline–this filters voltage spikes from the reverse light circuit.
Steering wheel controls require specific resistor values. Measure the voltage across the control wires first: 0V=none pressed, 2.5V=volume up, 3.3V=volume down, 4.7V=seek up, 1.2V=seek down. Program these values in the unit’s interface under “SW Control Calibration.” Store-bought adapters like iDatalink bypass this but add latency–avoid if you prioritize response time under 150ms.
Common Error Codes & Fixes
Error code “E-01” indicates insufficient power. Verify the alternator output exceeds 95A and the battery’s cold-cranking amps match the manufacturer’s spec; undervoltage triggers a forced shutdown. “E-03” points to a detached ground–re-check all ground connections with a continuity tester. “E-06” appears when the parking brake wire (connector A, pin 6, violet) isn’t properly terminated; connect it to a switchable 12V source or tie it to the reverse light wire for automatic bypass.
Bluetooth microphone placement affects call clarity. Mount the mic within 12 inches of the driver’s seat, angled toward the mouth–factory locations near rearview mirrors pick up wind noise above 45 mph. If voice commands lag, reset the unit’s microphone calibration: hold the phone button for 10 seconds, say “test,” then adjust gain levels in the settings menu until the input meter peaks at -6dB.
Pinpointing Critical Elements in the Pioneer AV Receiver Connectivity Setup
Locate the 16-pin power adapter first–it’s the primary link between the head unit and the vehicle’s electrical framework. Disconnect the battery before handling any terminals to prevent short circuits. The adapter splits into two key branches: the constant power lead (yellow) and the switched accessory wire (red). Verify these with a multimeter: constant should show 12V regardless of ignition position, while accessory only activates when the key is turned.
Trace the ground connection: a thick black cable terminating at a dedicated chassis bolt or metal panel. Poor grounding causes intermittent functionality issues, from static audio to complete system reboot loops. Ensure the contact surface is clean, free of paint or rust, and secured tightly. For vehicles with frame coatings, scrape a small area to bare metal or use a star washer to penetrate the barrier.
Inspect the speaker outputs next. The harness features eight RCA-type connectors–four for front/rear pairs (left/right) and four additional leads for subwoofer control. Mismatched impedance or loose connections lead to distorted sound or no output. Match each wire to the amplifier’s input specifications; standard setups use 4-8 ohm resistance. If balanced audio is required, identify the differential signal wires (often shielded) to avoid interference pickup.
Auxiliary Connections Breakdown
- Illumination wire (orange): Adjusts display brightness with headlight activation. Connect to the vehicle’s dimmer circuit for automatic syncing.
- Reverse signal (purple): Triggers backup camera output. Attach to the backup light circuit; some models require a 12V trigger pulse.
- Mute wire (blue/white): Silences audio during calls or navigation prompts. Pair with steering wheel controls if retaining factory button functionality.
- Parking brake (pink): Safety interlock for video playback. Wire to the parking brake switch to comply with legal restrictions.
For CAN bus or steering wheel control integration, refer to the vehicle-specific adapter harness. Generic aftermarket kits often include a separate loom with labeled wires for cruise control, volume adjustment, and mode switching. Verify compatibility with the receiver’s firmware version–earlier units may require manual input mapping via a hidden service menu. Label all connections before assembly; use heat-shrink tubing or electrical tape to isolate splices. Reassemble the dash only after confirming all features operate as intended.
Step-by-Step Wire Color Coding and Connection Points
Start by identifying the yellow power lead–this must connect to a 12V constant source, preferably fused at 10A. Locate the vehicle’s battery terminal or an auxiliary fuse box slot labeled “always-on” to avoid draining the battery during ignition-off periods. Avoid splicing into circuits powering critical modules like airbags or ECUs.
Match the red ignition-controlled wire to a switched 12V line activated when the key turns to ACC or ON. Use a multimeter to verify voltage drops below 11.8V aren’t present under load. Common tap points include the radio harness or cigarette lighter socket, but confirm with a wiring schematic specific to your vehicle model to prevent erratic behavior.
Grounding and Signal Integrity
Attach the black ground wire to a bare metal chassis point within 18 inches of the head unit’s installation location. Sand away paint or corrosion at the connection site and apply dielectric grease to prevent oxidation. Poor grounding causes audio distortion, backlight flickering, or touchscreen lag.

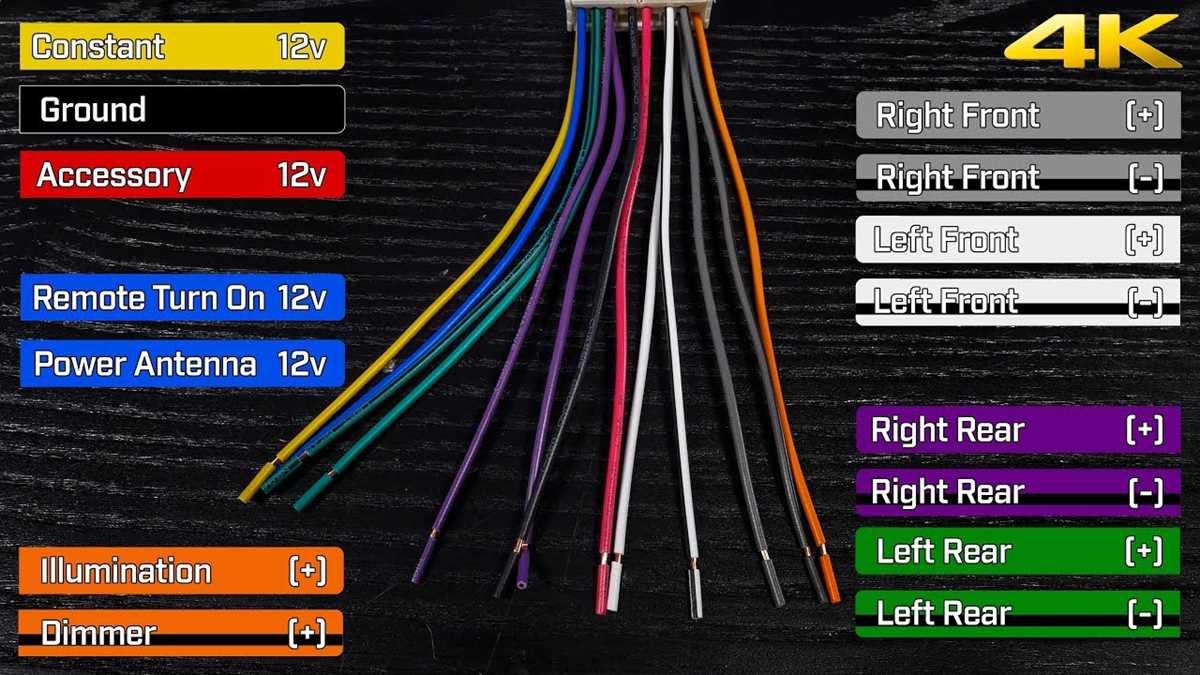

For speaker outputs, follow this standard color pairing:
- Front Left (+/-): White (positive), White/Black (negative)
- Front Right (+/-): Gray (positive), Gray/Black (negative)
- Rear Left (+/-): Green (positive), Green/Black (negative)
- Rear Right (+/-): Purple (positive), Purple/Black (negative)
Ensure polarity matches factory stereo connections–reversed leads degrade soundstage imaging. Use crimp connectors or solder with heat shrink tubing for permanent, corrosion-resistant joints.
Auxiliary and Power Antenna Wires
The blue/white remote turn-on wire triggers external amplifiers or powered antennas. Route this to a relay if driving multiple aftermarket components to avoid exceeding the unit’s 300mA current limit. For passive antennas, connect the solid blue wire to the vehicle’s antenna lead, typically a thin coaxial cable with a push-on connector.
Trim excess wire length to minimize interference–coil no more than 6 inches of slack near high-current pathways like alternator cables. Label each connection with colored tape matching the wire’s purpose, then secure bundles with nylon ties every 4–6 inches. This prevents rattling and simplifies future diagnostics.
