How to Read and Use Dodge Ram Radio Wiring Schematics for Repairs

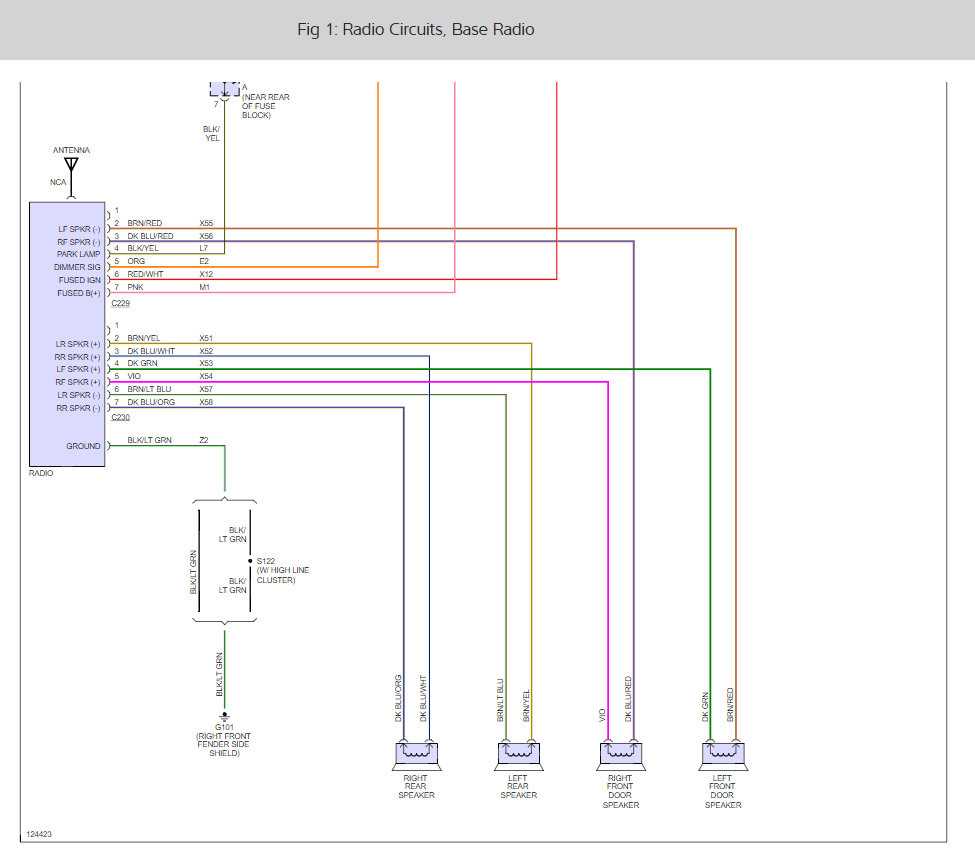

For 2015–2022 models, the factory harness includes a 16-pin connector adjacent to the central display unit. Pinout assignments: pin 3 (yellow) delivers 12V constant power, pin 10 (red) provides ignition-switched supply, pin 5 (black) serves as chassis ground. Verify fuse ratings–15A for memory circuits, 20A for accessory lines–before tapping into the existing bundle.

Aftermarket interfaces commonly require an ISO adapter; bypass OEM amplification only when replacing speakers rated above 60W RMS. The factory network integrates CAN bus communication on pins 12 and 13–interrupting these signals triggers fault codes stored in the BCM. Use a bidirectional scanner to clear errors post-installation.

Color-coding varies by production year. Pre-2014 builds utilize dark green for left channel, grey/red stripe for right. Later iterations switch to purple (LF) and tan (RF). Always cross-reference against the VIN-specific schematics; generic charts contain inconsistencies.

Ground connections must terminate directly to the vehicle’s frame using star washers–avoid daisy-chaining through plastic mounts. Locate the primary ground point beneath the driver-side dashboard; resistance should not exceed 0.2 ohms. Excessive impedance introduces alternator whine and corrupts GPS signals.

Retain the original antenna amplifier circuit unless upgrading to a roof-mounted unit. Disconnecting the inline module disables automatic climate control synchronization. For custom installs, route RCA cables away from power wires by at least 8 inches; shielded twisted pairs reduce interference from the diesel injector pulse.

Automotive Audio System Connection Guide for 2010–2023 Pickup Models

Locate the 16-pin ISO harness behind the factory head unit for immediate access to power, speaker, and ground connections. Pin 4 (constant 12V) and pin 7 (switched 12V) are color-coded yellow and red respectively–verify with a multimeter before splicing. For models equipped with Uconnect, pins 10 and 11 carry CAN bus data; bypassing these will trigger dashboard error codes unless a load resistor (330Ω) is installed.

Aftermarket amplifiers require a dedicated remote turn-on lead, typically tapped into pin 7 of the ISO connector. For vehicles with premium sound systems (e.g., Alpine or Harman Kardon), retain the factory amplifier by connecting its 8-channel output harness–disregarding this step results in no audio on rear channels. Speaker wires follow a consistent polarity: front left (+) gray, front left (-) gray/black; rear left (+) green, rear left (-) green/black. Resistance across each pair should read 4Ω±0.5Ω.

Grounding and Interference Prevention

Secure the ground wire (pin 5, black) to an unpainted metal surface near the head unit, using a star washer for optimal conductivity. If static or alternator whine persists, route RCA cables away from power wires and add a noise filter (10A) inline. For diesel variants, disconnect the battery during installation to prevent module reset errors, particularly on 2019+ models where the Body Control Module (BCM) monitors accessory voltage spikes.

Factory Harness Adapter Kits

Metra 70-1002 or Scosche CR02C adapters eliminate soldering but may lack steering wheel control retention; Crutchfield’s direct-fit kits include as-built resistor packs for seamless integration. For navigation-equipped trucks, retain the GPS antenna by connecting its coaxial cable to the aftermarket unit’s designated port–mismatched impedance (typically 75Ω) causes signal dropout. Older models (pre-2013) may require a separate amplifier bypass harness (Axxess ASWC-1) to retain hands-free calling.

Test all connections with the ignition in “accessory” mode before finalizing trim panels. Verify speaker balance, fade, and subwoofer output at 50% volume to prevent distortion. For OEM backup cameras, retain the purple/yellow composite video lead; third-party cameras necessitate an NTSC-to-RCA adapter. Document all splices with heat-shrink tubing and label wires using a P-touch for future troubleshooting.

Finding the Precise Electrical Schematic for Your Pickup Variant

Begin with the manufacturer’s official service manual–identify the exact trim and build year stamped on the driver-side door jamb or beneath the hood. Factory manuals for trucks produced from 2002 to 2023 are segmented into sections: “Infotainment,” “Body Control,” and “Fuse Box,” each containing sub-diagrams for auxiliary units, antenna connections, and power distribution. Avoid third-party generic charts; color codes shift between model refreshes–2010-2013 clusters use orange for illumination, while 2014-2018 switch to pink for the same circuit.

Online databases like ALLDATA, Mitchell1, or the OEM’s subscription portal archive schematics by VIN parsing–enter the full 17-digit identifier to bypass filtration errors. For 2019-2023 models, verify the “Uconnect 4C/5” wiring bundle layout; earlier variants (2009-2018) include distinct amp-turn-on leads, absent in later base trims. If accessing forums, cross-check pinouts against a multimeter reading of the vehicle’s behind-dash harness–plug-and-play harnesses often omit auxiliary inputs present in factory setups.

Pinpointing Year-Specific Deviations

2006-2008 trucks integrate a single DIN harness with a 12-pin square connector, whereas 2009 introduces a 24-pin elongated plug with digital signal wires–confusing them risks damaging the CAN bus. Post-2020 heavy-duty variants add a secondary ground splice under the glove box, absent in 1500 series, requiring separate tracing. Use a non-contact voltage tester to confirm live circuits before disconnecting; factory schematics occasionally mislabel “ACC” as “RUN” in 2015-2017 diagrams.

For imports or fleet vehicles, request the regional service bulletin–European models (2013-2021) include a separate ISO adapter ring with reversed polarity on illumination leads, while North American builds use a direct-mount 40-pin harness. If retrofitting aftermarket equipment, prioritize diagrams listing “Resistor Networks” or “Load Reduction Modules” in the fuse block; skipping these causes phantom error codes in 2022+ systems.

Physical manuals from Haynes or Chilton provide baseline references but omit mid-cycle updates–2012 received a hidden USB hub behind the center console, unmarked in most third-party guides. For absolute accuracy, extract the build sheet from the glovebox or under-seat storage; it details optional packages (e.g., “Harman Kardon,” “SiriusXM Tuner”) with corresponding wiring deviations not covered in generic documents.

Decoding Color Standards in Vehicle Audio Integration Harnesses

Begin by identifying the harness connector type–most late-model pickup variants use a 12-pin or 16-pin interface, each with distinct color schemes. The power feed typically follows a dark green (DG) with a yellow stripe (DG/Y) for constant 12V supply, while light blue (LB) with a white stripe (LB/W) delivers switched power, critical for retention memory during ignition cycles. Ground connections uniformly rely on solid black (B) or black with a brown stripe (B/BR) for chassis grounding–verify continuity with a multimeter (below 0.5 ohms) to prevent signal interference.

Speaker outputs adhere to industry-standard polarity conventions but deviate in labeling. Front left positive commonly uses gray (GY), while its negative counterpart is gray with a black stripe (GY/B). Rear right channels invert this pattern: violet (V) for positive, violet with a black stripe (V/B) for negative. Confusingly, some variants swap these colors–always cross-reference with factory service manuals for build-specific discrepancies. Auxiliary inputs, if present, often employ orange with a white stripe (O/W) for auxiliary power or data lines; improper connection risks frying onboard amplifiers.

Critical Signal and Accessory Wire Functions

Wire Color	Function	Voltage (Key On)	Fuse Rating
Pink (P)	Illumination control	0-10V (dimmer)	10A
Dark blue (DB)	Antitheft data	Pulsed 5V	N/A
Brown (BR)	Remote turn-on	12V	7.5A
Yellow (Y)	Reverse signal	12V	10A

Isolate the illumination circuit–pink (P) wiring–to prevent backfeeding voltage into the head unit’s display. For vehicles equipped with steering wheel controls, locate the serial data bus (purple/white (P/W)), which requires a specific resistive load (typically 2.2kΩ) for proper functionality. When splicing, use heat-shrink butt connectors (minimum 16AWG for power lines) to prevent corrosion-induced failures. Aftermarket installations frequently ignore the reverse signal (yellow (Y)), disabling backup camera integration–verify this line feeds to both the camera module and infotainment unit.

Antitheft systems complicate third-party upgrades by embedding cryptographic tokens in the dark blue (DB) line. Bypassing this requires either a CAN bus simulator or factory radio replacement–never splice directly, as doing so triggers irreversible module lockouts. For older harnesses lacking dedicated USB or Bluetooth connections, repurpose the white (W) or light green (LG) wires (auxiliary outputs) by splicing to a 3.5mm audio jack or FM modulator. Test all connections under load: simulate ignition cycles 20 times to confirm memory retention, then recheck for parasitic draws (target

Step-by-Step Guide to Extracting the Stock Audio Unit Without Wire Mishaps

Begin by locating the trim panel surrounding the entertainment console. Most late-model trucks use plastic clips to secure this cover; identify the release points by running a plastic pry tool along the seam. Work methodically to avoid snapping fragile clips–insert the tool at an angle, twist gently, and pop each clip free before moving to the next. If resistance feels excessive, check for hidden screws behind rubber plugs or decorative panels near the gear shift.

Disconnect the negative battery terminal before proceeding. This eliminates risk of short circuits and resets the vehicle’s electrical system, preventing accidental airbag deployment or loss of presets. Use a 10mm wrench to loosen the clamp on the terminal, then slide it off the post. Tuck the cable aside to prevent it from touching metal surfaces while you work.

Remove the climate control knob assembly if it obstructs access. Pull the knob straight outward with even pressure–some models require a quarter-turn counterclockwise before release. Behind it, you’ll find two screws securing the upper bezel; remove these with a Torx T20 driver. Lower bezel screws are often tucked beneath small covers–pop these off with a flathead screwdriver to reveal 8mm or 10mm fasteners.

Handling the Dashboard Fasteners

Document each screw location as you extract them. Use masking tape to label screws by their position (e.g., “top left,” “center bolt”) and stick them to a magnetized tray or sheet of cardboard. Some vehicles employ varying thread lengths–confusing them during reinstallation can cause misalignment or rattles. If screws refuse to budge, apply penetrating oil and wait ten minutes before retrying with a driver that fits perfectly to avoid stripping heads.

• Inspect behind the unit for secondary mounts–some models use a vertical bracket or horizontal slide rails requiring extra disengagement.
• Check for electrical connectors blocked by the unit’s metal frame; press the tab locks simultaneously while wiggling the plugs free.
• If the unit resists extraction, verify that all screws are removed–manufacturers sometimes add hidden screws behind labels or in recessed areas.

Detaching Electrical Connections

Release the main harness by squeezing both locking tabs while pulling the plug outward. Do not yank wires–if resistance persists, check for a secondary safety clip that must be depressed first. For antenna leads, twist the coaxial connector counterclockwise while pulling straight back to avoid bending the pin. Bluetooth and satellite modules often have separate plugs; note their orientation before removal to ensure correct reinstallation.

Label each connector with its function if the factory color-coding is unclear. For instance:

1. Yellow: constant power
2. Red: switched ignition
3. Black: ground
4. Blue/white: amplifier control
5. Multicolor: speaker wires

Secure loose ends with zip ties to prevent them from retracting into the dash cavity. Avoid letting connectors dangle against metal surfaces, which can cause shorts. If reinstalling a different unit, wrap exposed terminals with electrical tape to prevent accidental contact while testing.

Reassemble in reverse order but leave the trim panel off until verifying all functions. Reconnect the battery terminal and check for proper operation–test each setting (AM/FM, auxiliary input, volume controls) before finalizing installation. If static or intermittent function occurs, double-check ground connections and antenna alignment. Once confirmed, snap the trim panel back into place, ensuring all clips engage fully without forcing them.
