How to Read and Understand Your Home Electrical Wiring Layout

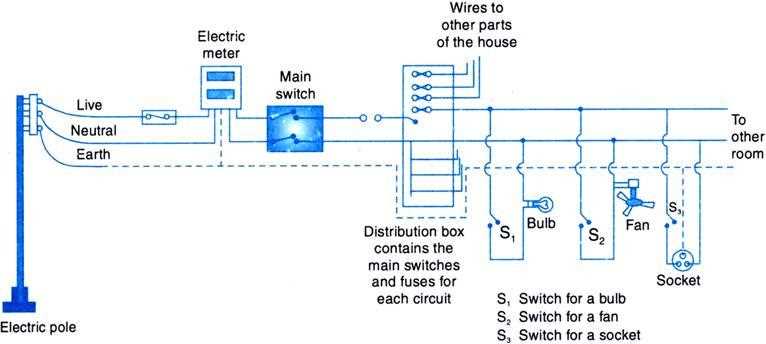

Begin by mapping the main supply entry point–typically located near the utility meter–where the 230V (or 120V) feed splits into branch lines. Use a single-line schematic to define three critical paths: lighting, sockets, and fixed appliances. Each path should originate from its own circuit breaker rated for the expected load. Lighting circuits handle minimal demand (5-6A), while sockets require 16-20A, and high-power devices like ovens need dedicated 32A lines. Failure to segregate these risks overloading and tripped breakers.

Place the consumer unit centrally for balanced distribution, no farther than 2 meters from the meter. For each branch, run 2.5mm² cable for outlets and 1.5mm² for lights, ensuring earth wires connect to a common bonding point. Include a residual-current device (RCD) protecting all downstream lines–this cuts power in under 30 milliseconds if leakage exceeds 30mA, preventing fatal shocks. Label every breaker clearly: “Main Lights,” “Kitchen Sockets,” “Oven,” etc., to simplify troubleshooting.

Route cables through walls via conduit (PVC preferred) to avoid damage. Maintain a 50mm gap from pipes or ducts; otherwise, heat or moisture can degrade insulation over time. At junctions, use terminal blocks rated for 10A above the circuit’s peak draw–cheap connectors melt under sustained loads. For multi-story homes, install a sub-panel on upper floors to reduce voltage drop (keep runs under 30 meters). Test polarity before energizing: neutral and live wires swapped will destroy appliances.

Grounding is non-negotiable. Drive a copper rod (1.5m) into damp soil near the foundation, connecting it to the consumer unit with 6mm² wire. Bond all metal structures–water pipes, radiators, even towel rails–to this rod. Without this, floating voltage can electrify taps and door handles. Finally, add surge protectors (Type 2) to shield sensitive electronics; these clamp brief spikes (up to 8kV) that fry circuit boards.

Household Wiring Layout Essentials

Before modifying any installation, disconnect the main breaker to prevent shock hazards. Locate the panel–typically in basements, garages, or utility closets–and verify power is off using a multimeter. A single main breaker rated at 100–200 amps controls all downstream feeds; bypassing it without isolation violates safety codes.

Key Components Breakdown

• Service Entry: Two hot wires (120V each) plus a neutral from the utility transformer enter via overhead or underground conduit. Color codes: black and red for hots, white for neutral, green/bare copper for ground.
• Subpanels: Install up to 12 subsidiary breakers per subpanel. Separate kitchen and bathroom circuits require 20-amp dedicated lines; 15-amp suffices for bedrooms and living areas.
• Grounding Rod: A 8-ft copper rod driven into earth near the meter connects to the neutral bus, preventing voltage surges from reaching outlets.

Route cables in straight paths avoiding sharp bends–minimum 6-inch radius for 12-gauge wire. Use plastic or steel conduit for exposed runs in basements or attics; NM-B cable (Romex) is acceptable behind drywall if protected from nails. Secure all runs with staples every 4.5 ft per NEC 334.30(C).

Label every breaker in the panel with indelible ink. For example:

1. Left Hot (120V) – Kitchen Lights
2. Right Hot (120V) – Garage Outlets
3. 240V – Water Heater (double pole 30 amp)

Unlabeled panels increase troubleshooting time and create confusion during emergencies.

Test GFCI outlets monthly by pressing the “Test” button; reset with “Reset.” Replace any outlet where “Test” fails to trip or “Reset” doesn’t restore power. Install AFCI breakers for bedroom circuits–mandatory since 2008–to interrupt arc faults, a leading cause of residential fires.

Common Mistakes to Avoid

• Overloading a 14-gauge wire with a 20-amp breaker–switch to 12-gauge for 20-amp circuits.
• Daisy-chaining outlets beyond 12–each string should terminate at the last outlet to prevent voltage drop.
• Using solid wire in flexible conduit–stranded wire resists fatigue from vibration.
• Ignoring junction boxes–exposed splices invite shorts and fire risks.

Calculate total load before adding appliances. A 2,000-sq-ft home typically requires 150–200 amps. For example:

• Electric range: 50 amps (240V)
• HVAC: 30–60 amps
• Lights/outlets: 15–20 amps per circuit

Exceeding 80% of panel capacity necessitates a subpanel upgrade.

Key Components of a Household Wiring Layout

Begin by installing a main service panel rated for at least 200 amps in modern homes–this acts as the hub for all power distribution. Position it near the utility meter but no closer than 3 feet to plumbing or gas lines to comply with safety codes. Use copper bus bars instead of aluminum for lower resistance and longer lifespan. Ensure the panel has 40% spare capacity for future expansions, such as EV chargers or solar inverters.

Run 12-gauge non-metallic sheathed cable (NM-B) for 15-20 amp general-purpose outlets and lighting circuits. Reserve 10-gauge wiring for high-load appliances like microwaves, garbage disposals, and bathroom heaters, which draw 20-30 amps peak. Label every breaker clearly with its corresponding room and purpose; use heat-shrink tubing for durability. Separate dedicated lines for refrigerators, washing machines, and HVAC systems to prevent voltage drops during simultaneous use.

Grounding and Safety Mechanisms

Ground rods must be driven at least 8 feet deep into soil with resistivity below 25 ohms–test with a clamp meter before finalizing connections. Use 6 AWG bare copper wire to bond the panel’s grounding bus to the rods, ensuring all metal enclosures (boxes, conduits) are tied to this system. Install ground fault circuit interrupters (GFCIs) within 6 feet of sinks, tubs, and outdoor outlets; arc fault circuit interrupters (AFCIs) are mandatory for bedrooms and living areas to detect loose connections or frayed wires.

For kitchens, split countertop outlets into two separate 20-amp circuits to handle small appliances without overloading. Bathrooms require a dedicated 20-amp GFCI circuit for hair dryers and electric razors. Attic wiring should use 12-gauge cable with a maximum 3% voltage drop over runs exceeding 50 feet–calculate using the formula: (2 × Ω × length × load) / 1000. Hardwire smoke and carbon monoxide detectors to a non-switched circuit, preferably linked to a security system for remote alerts.

Step-by-Step Guide to Sketching a Residential Wiring Plan

Begin by listing all power points in the house, grouping them by room and function. Use graph paper or specialized software like QElectroTech (free) or AutoCAD Electrical (paid) for precision. Define symbols beforehand–standard IEC or ANSI markings ensure clarity. Label each outlet, switch, and appliance with its amp rating (e.g., 16A for sockets, 6A for lights) to avoid overloading later.

Draw walls as straight lines, maintaining scale (1:50 or 1:100). Place the main panel at the entry point of the supply line, typically near the meter. Sketch subpanels for large areas like kitchens or workshops if the load exceeds 100A. Route cables along the shortest path, avoiding intersections with plumbing or structural beams. Use different colors for live (red), neutral (blue), and earth (green/yellow) conductors per international codes.

Key Symbols and Their Meanings

Symbol	Represents	Notes
○	Ceiling light	Add wattage (e.g., 60W)
–◻–	Wall socket	Dual-gang for twin outlets
⏚	Earth connection	Mandatory for all metallic fixtures
⎓	Three-way switch	For stairwell or long hallways

Calculate total load for each branch by summing device wattages. Divide by voltage (230V/120V) to get amperage. Ensure no branch exceeds 80% of its breaker’s rating–e.g., a 20A breaker should max at 16A. For inductive loads (motors, compressors), add a 25% safety margin. Cross-check with local regulations; some regions require arc-fault circuit interrupters (AFCIs) for bedrooms.

Finalize by adding a legend and title block with project name, date, and your contact details. Scan or export the plan as a PDF/A for long-term storage. Include a bill of materials with wire gauge (e.g., 2.5 mm² for sockets, 1.5 mm² for lights), conduit types (PVC or steel), and breaker sizes. Verify all connections lead back to the panel without dead ends. Trace each path with a highlighter to confirm continuity before installation.

Common Mistakes to Avoid When Setting Up Home Power Networks

Overloading a single breaker by connecting multiple high-wattage appliances to one path risks tripping the protection or, worse, causing overheating. A 15-amp breaker handles up to 1,800 watts safely–exceeding this by even 10% can degrade insulation over time. Calculate total load per path: a space heater (1,500W) plus a hairdryer (1,600W) on a single 20-amp breaker already approaches danger levels. Distribute heavy loads across separate paths, ensuring no single line carries more than 80% of its rated capacity.

Skipping ground connections invites shock hazards, especially in wet areas. A three-prong outlet installed without a proper ground wire leaves current flowing through unintended paths–like metal fixtures or plumbing–when faults occur. Verify continuity from the outlet’s ground terminal to the main grounding busbar using a multimeter; readings above 1 ohm indicate a loose or missing connection. Copper grounding rods must extend at least 8 feet into moist soil for effective dissipation, with clamps tightened to manufacturer torque specs.

Neglecting Wire Gauge for Lengthy Runs

A 12-gauge wire safe for 20-amp paths drops voltage noticeably over distances exceeding 50 feet, forcing appliances to draw more current. A 100-foot run of 12-gauge wire carrying 16 amps loses nearly 5% voltage–enough to dim lights or strain motors. Use voltage drop calculators before installation, opting for thicker gauges (10 or 8 AWG) for longer feeds. Label all paths with wire type and length during installation to simplify future troubleshooting.

Mixing aluminum conductors with copper terminals without specialized compounds accelerates corrosion at splice points. Oxidation increases resistance, creating localized heating that weakens connections. If aluminum wiring exists, use approved anti-oxidant paste (like Noalox) at every splice and terminal, torquing connections precisely–overtightening crushes strands, while undertightening leaves gaps. Replace outdated twist-on connectors with COPALUM or AlumiConn kits, designed to accommodate dissimilar metals without degradation.

Ignoring arc-fault and ground-fault protection in kitchens, bathrooms, and bedrooms violates modern safety codes. A standard breaker won’t detect low-level arcs–like those from a frayed lamp cord–that generate intense localized heat. Install AFCI breakers for 15- and 20-amp circuits in living areas and GFCI outlets within 6 feet of sinks. Test protection devices monthly with the built-in button; a trip time exceeding 0.03 seconds signals device failure requiring immediate replacement.
