Step-by-Step Guide to Wiring a Double Pole Electrical Switch

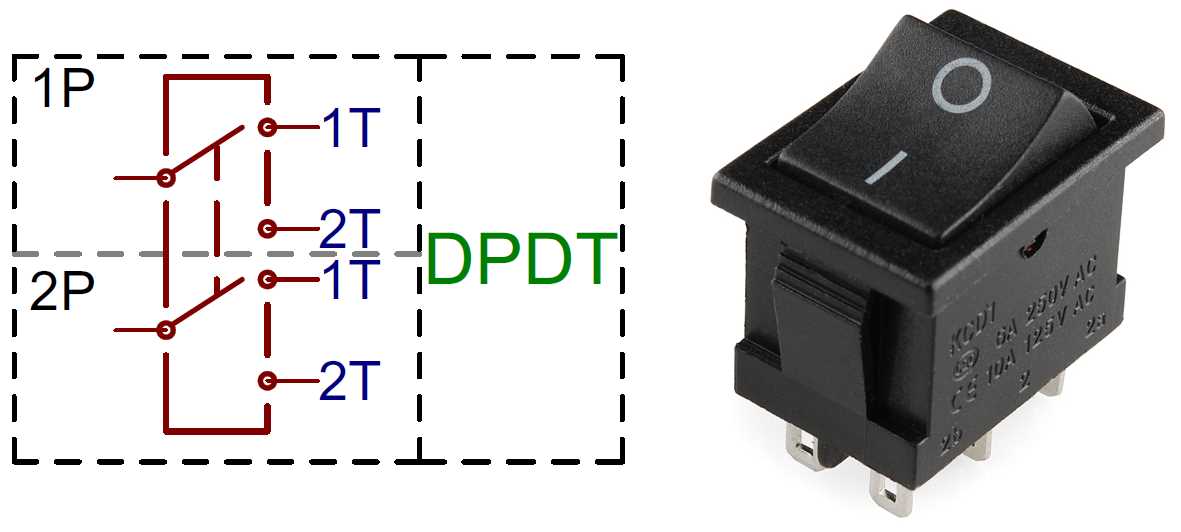

Use a dual-contact configuration for applications requiring simultaneous disconnection of both live and neutral lines. This ensures complete isolation of the powered device from the supply, reducing risk of residual current or accidental re-energization. Standard two-blade designs typically include four terminal screws–two input and two output–with internal mechanical linkages forcing both contacts to open or close in unison. Verify the arrangement aligns with local electrical codes, particularly for fixed appliances like water heaters or sub-panels where single-point control is insufficient.

Begin wiring by confirming power is off at the breaker. Attach the incoming phase (L1) and neutral (N) wires to the upper terminals, then connect the outgoing L1 and N to the lower screws, maintaining consistent polarity. Miswiring–especially reversing L1 and N–can create unsafe conditions or damage connected equipment. For motor loads or inductive circuits, specify a model with arc suppression features to prevent contact pitting over repeated cycles.

Test the setup before full operation. Engage the control lever and use a multimeter to confirm zero volts across both output terminals in the off position. In the on position, verify 120V (or 240V for split-phase systems) between live terminals and zero volts to neutral. If voltage persists in either state, inspect for broken linkages, loose connections, or incorrect terminal assignments. Replace any unit with signs of overheating, such as discolored housing or melted insulation.

Consider auxiliary features for specific needs: illuminated handles improve visibility in low-light areas; weatherproof enclosures suit outdoor installations; and snap-action mechanisms ensure reliable operation under frequent toggling. For three-phase setups, pair this with a suitably rated disconnect to achieve safe, coordinated control of multiple conductors. Always select a unit with a current rating at least 20% above the maximum load to prevent overheating during startup surges or transient events.

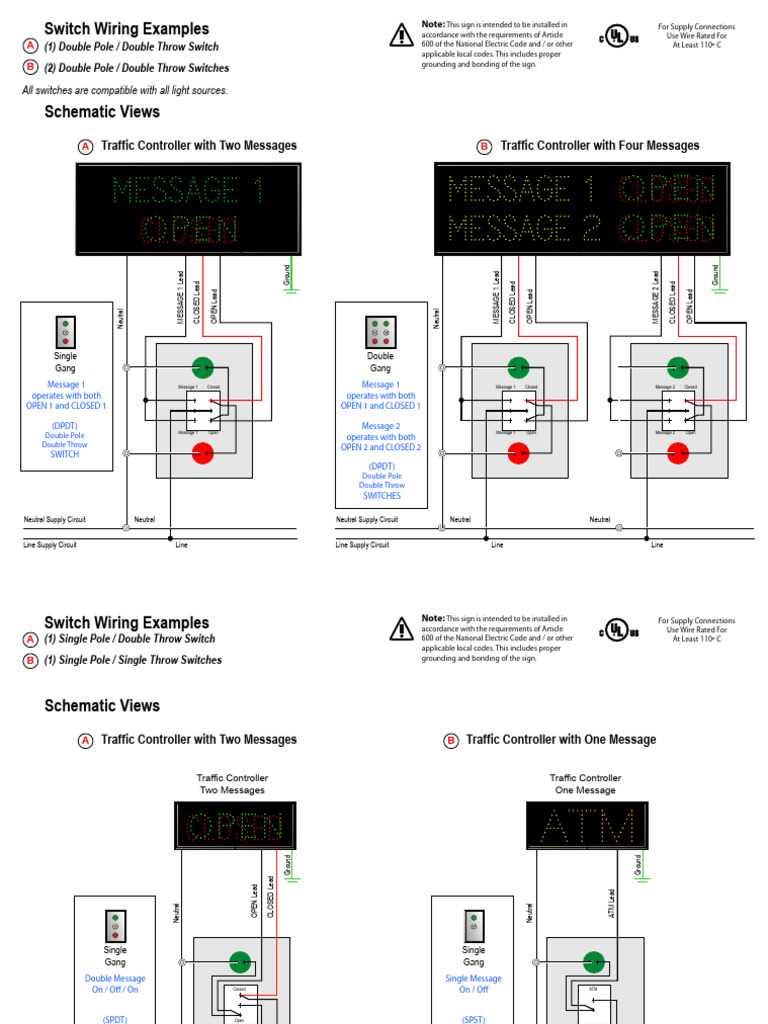

Dual-Control Mechanism Wiring Guide

Install a two-section control device by connecting both live terminals to separate input wires from the power source. Use 12-gauge NM cable for 20-amp loads and 14-gauge for 15-amp systems. Label each conductor with colored tape: red for primary input, black for secondary, and white for neutral if applicable. Ensure the breaker matches the wire gauge–20A for 12-gauge, 15A for 14-gauge–to prevent overheating.

Follow this terminal sequence for correct operation:

• Screw terminal 1: Hot wire (L1) from main panel
• Screw terminal 2: Secondary hot wire (L2) from same panel
• Screw terminal 3: Load wire to fixture (L1 out)
• Screw terminal 4: Second load wire (L2 out)
• Ground screw: Bare copper wire to junction box

Test continuity with a multimeter: probe terminals 1–3 and 2–4 in both positions. Voltage should toggle between 0V and line voltage (120V/240V) when toggled. If readings fluctuate, check for loose connections or reversed polarity.

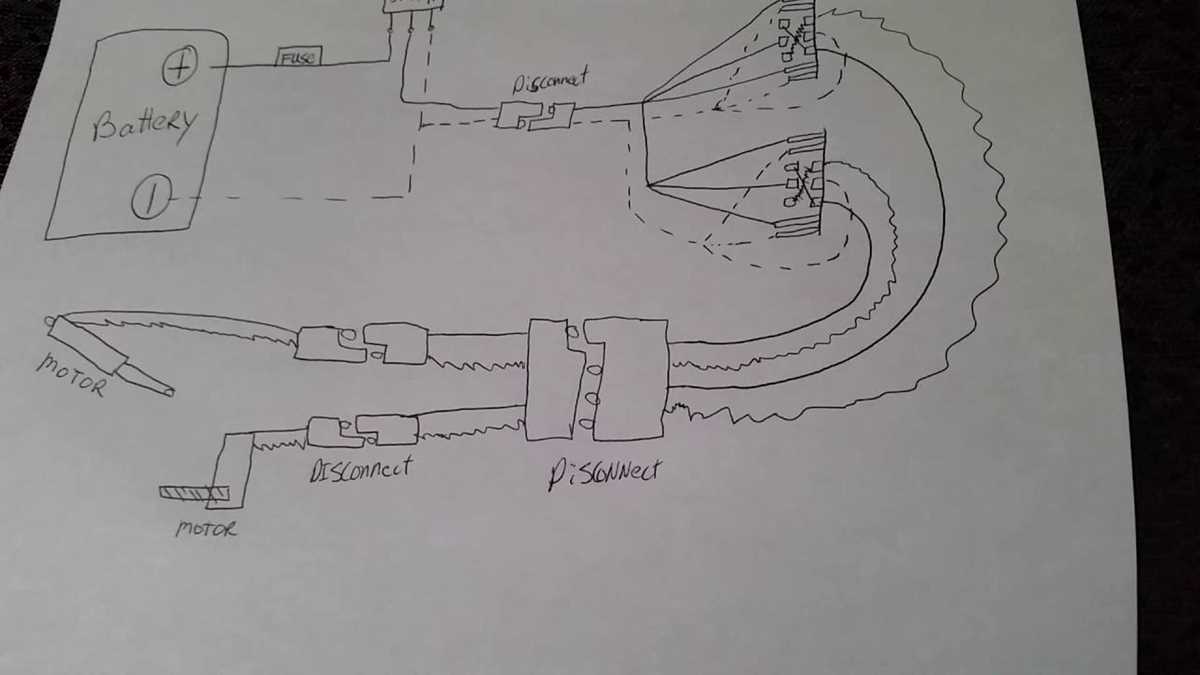

For motorized or dual-voltage applications (e.g., 240V tools), wire both sections in parallel to maintain balanced current. Use pigtail splices to join multiple neutrals in the same junction box–never splice directly to the control device terminals. Secure all connections with torque screwdriver (18–20 in-lbs for 12–14 gauge) to comply with NEC 110.14(D).

Avoid common pitfalls:

1. Skipping insulation stripping: Expose exactly 5/8″ of copper; excess increases short-circuit risk.
2. Mixing gauge sizes: Combining 12- and 14-gauge wires can cause voltage drop under load.
3. Omitting arc-fault protection: Install CAFCI breakers for bedroom or living area circuits.
4. Ignoring depth capacity: Deep junction boxes (minimum 3.5″ depth) prevent wire overcrowding.

Key Installation Steps for a Dual-Control Electrical Device

First, disconnect power at the breaker panel to avoid shock hazards–verify absence of voltage with a non-contact tester before handling wires. Use 12-gauge or 14-gauge copper conductors for standard residential loads, ensuring the gauge matches the breaker rating: 20A for 12-gauge, 15A for 14-gauge. Route the live (“hot”) wire from the source to the first terminal on the device, securing it with a terminal screw torqued to 12–15 inch-pounds. The second live wire connects to the opposite terminal, forming a parallel path for simultaneous current control.

Neutral wires should never be interrupted by this device–bundle them with a wire nut, leaving them untouched unless required by exception (e.g., smart models with neutral requirements). For grounding, attach a bare or green-insulated wire to the device’s grounding screw, then link it to the circuit’s grounding bus or metal junction box. Use a torque screwdriver for all connections to prevent loosening over time, which can cause arcing.

Load-Side Connections and Testing

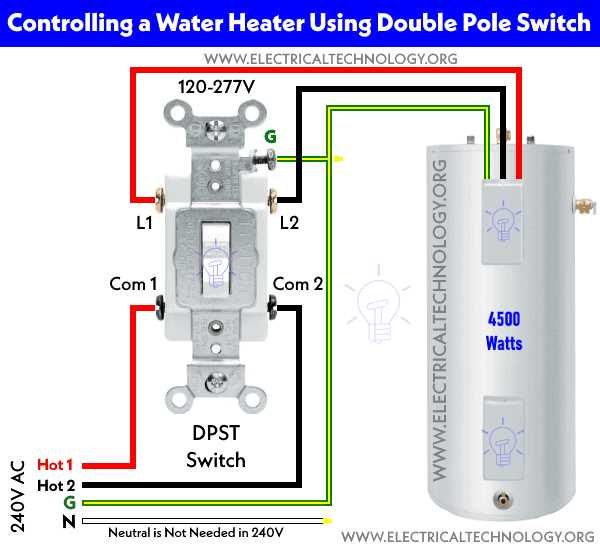

Attach the load-side wires–typically two live conductors–to the remaining terminals, ensuring polarity matches the source side (e.g., brass screws for live, silver for neutral if applicable). For split-phase 240V applications (e.g., water heaters), connect both ungrounded conductors to separate terminals; the device will break both lines simultaneously. Label all wires at the breaker and device for future reference.

Before restoring power, inspect for exposed copper, proper insulation coverage, and secure wire nuts. Energize the circuit and test operation with a multimeter: voltage should read zero when off and match the source voltage when on. If the device fails to operate, recheck terminal tightness, breaker functionality, and wire continuity using a continuity tester. Replace immediately if damaged–Mechanisms with cracked housings or discolored contacts pose fire risks.

Step-by-Step Guide to Building a Dual-Break Control Setup

Begin by selecting a two-gang enclosure rated for your voltage and current requirements–typically 15A at 240V for residential use. Verify the enclosure’s IP rating if installing in damp or outdoor locations; IP44 or higher is mandatory for safety.

Wire the live conductor (usually red or brown) from the power source to the first terminal of one breaker mechanism. Repeat for the neutral (blue or black) to its corresponding terminal. Ensure each connection is tightened to 1.2 Nm using a torque screwdriver–loose terminals cause arcing and overheating.

Connect the outgoing wires to the secondary terminals of each breaker pair. For a lighting setup, attach the first pair to a ceiling fixture, the second to a separate outlet. Use stranded copper wire (1.5 mm² for 15A circuits) to prevent brittleness over time. Strip 8–10 mm of insulation; longer exposures risk short circuits.

Component Compatibility Checklist

Component	Specification	Verification Method
Breaker pair	Dual-gang, 16A rating	Check manufacturer’s label for UL/CE mark
Enclosure	Polycarbonate, IP44	Test gasket integrity with a flashlight
Wire gauge	1.5 mm² for 240V/15A	Use calipers to measure diameter

Secure the breaker pair into the enclosure with the provided screws, ensuring no wire strands are pinched between the backplate and the unit. Snap the cover plate into place, verifying alignment with the switch levers–misalignment can prevent proper engagement.

Before energizing, test continuity across terminals with a multimeter. Activate each lever independently; the meter should read 0 ohms when closed and infinite resistance when open. If readings deviate, recheck connections–intermittent contacts can damage appliances during operation. Once confirmed, restore power and toggle the levers to validate simultaneous control of both circuits.

Troubleshooting Common Errors

If the setup fails to isolate both circuits when toggled, verify:

1. Terminal torque meets 1.2 Nm–under-tightened screws cause intermittent contact.
2. Wire strands aren’t frayed or touching adjacent terminals.
3. Breaker pair is correctly seated in the enclosure–gaps disrupt mechanical linkage.

Where to Install Dual-Control Mechanisms in Home Electrical Systems

Install tandem breakers in water heater setups to disrupt both live and neutral lines simultaneously. This prevents residual current from damaging heating elements when the unit is off. For 240V appliances like ovens or dryers, this configuration is mandatory in most building codes–check local regulations before wiring.

Use heavy-duty dual-action toggles for whole-house generators. The mechanism must isolate both power lines from the grid to avoid backfeeding, which can electrocute utility workers. Connect a listed transfer device with a dedicated subpanel for appliances that must remain powered during outages, such as refrigerators or medical equipment.

• Basement sump pumps – wire dual-line breakers to eliminate ground faults during flooding.
• Attic ventilation fans – install split-contact controls with a thermostat override.
• Outdoor compressors (AC units) – combine with a disconnect box per NEC 440.14 requirements.

In workshops, pair split-contact toggles with dedicated 20A circuits for table saws and welders. Run #10 AWG wire for 30A dual-breakers–these tools draw inconsistent loads that trip single-line setups. Attach a surge protector rated for the maximum amperage to prevent motor burnout.

For bathroom renovations, use moisture-resistant dual-toggle plates near showers and tubs. Connect them to dedicated GFCI circuits with 12-gauge wiring–ground faults here cause 70% of household electrical fires. Keep switches at least 3 feet from wet areas unless they’re specified for wet locations.

1. Kitchen appliances – dedicate a tandem breaker to each: fridge, microwave, and dishwasher.
2. Garage door openers – combine with a manual disconnect for maintenance safety.
3. Laundry machines – wire with a 30A dual-breaker for 240V connections.

In home offices, segregate computer workstations with dual-line cutoffs. This isolates sensitive electronics from power surges while allowing safe maintenance. Use a UPS with pure sine wave output for desktops and NAS drives–they handle split-phase interruptions better than modified sine wave models.

For lighting control, avoid mixing tandem breakers with dimmer modules. Instead, wire dual-action flip plates to groups of fixtures–one for main lights, another for accent lighting. In stairwells, link them to occupancy sensors with a 15-minute timeout to meet energy code standards.
