Step-by-Step Guide to Understanding Clothes Dryer Electrical Wiring Layout

Before modifying or troubleshooting any appliance’s power supply, isolate the circuit at the breaker panel and verify the absence of voltage with a multimeter. Most residential units rated at 240V require a dedicated double-pole 30-amp breaker feeding a four-wire circuit (two hots, one neutral, one ground). Confirm conductor gauge matches the load: 10 AWG copper for 30-amp circuits, 8 AWG for 40-amp. Grounding must terminate to an approved busbar in the service panel; never bond neutral and ground at the appliance terminal block.

Terminal identification follows a standard color code: red and black for line conductors (L1, L2), white for neutral, bare or green for ground. Connect neutral to the center tap of a 240V transformer if the appliance includes 120V controls, motors, or accessories. For 3-wire legacy installations, retrofit a ground conductor or install a ground-fault circuit interrupter breaker to comply with current NEC Article 250.140. Avoid backfeeding neutral with ground; improper bonding creates shock hazards and violates UL standards.

Test continuity between all conductors and chassis before energizing. Measure voltage between L1-L2 (should read 240V), L1-neutral and L2-neutral (120V each), and verify 0V between neutral and ground at the terminal block. If the appliance features a heater element, expect resistance between 10-50 ohms at L1-L2; infinite resistance indicates an open element. Replace damaged or discolored terminal blocks immediately–carbonized insulation signals overheating and imminent failure.

Label all conductors at both the appliance and breaker panel with heat-shrink tubing or adhesive tags. Document phase rotation (L1, L2) to ensure motor-driven components rotate correctly during reinstallation. For European or dual-voltage models, consult the rating plate: 220-240V appliances may require a step-down transformer or reconfigured internal jumper links. Keep a spare 30-amp appliance cord with strain relief; cord damage accounts for 18% of field-service calls.

How to Interpret Appliance Electrical Layouts for Safe Installation

Start by locating the terminal block inside the machine’s rear panel–typically a white or gray rectangular component with three or four screw terminals labeled L1, L2 (for 240V models), N, and sometimes G. Verify the voltage rating on the manufacturer’s metal plate: 120V units use L1 and N, while 240V variants require L1, L2, and often N for the motor. For 3-wire setups, combine neutral and ground at the terminal block; 4-wire configurations must keep these separate to prevent shock hazards. Always match the colored cables–black (L1), red (L2), white (N), green or bare (ground)–to their corresponding screws.

Check the circuit breaker before connecting: a dedicated 30-amp double-pole breaker with 10 AWG copper wire is standard for most residential units. If the installation uses older 3-wire supply lines, replace them with 4-wire cables where possible–local electrical codes (like NEC 250.140) mandate this for new constructions. Use a multimeter to confirm 0 ohms between N and ground and 120V between L1/L2 and N; any other reading indicates a wiring fault requiring immediate correction to avoid fire risks.

For gas-powered models, ensure the electrical layout isolates the igniter circuit–usually a 120V line from L1 to N with no connection to ground–while keeping the motor and controls on a separate leg. If modifying an existing setup, label every wire before disconnecting, and take a photograph of the original configuration. Replace any damaged strain-relief clamps at the cable entry point to prevent insulation wear over time. Consult the unit’s service manual for model-specific terminal block diagrams, as some European or commercial variants use 230V single-phase with different labeling conventions.

Interpreting Electrical Configurations for Major Appliance Brands

Locate the legend first–most manufacturers place it in a corner or along the edge of the layout. symbols like L, N, and G correspond to live, neutral, and ground connections, but vary by brand: Whirlpool often uses BR (brown) for live, GE labels ground as GRN/YEL, while Samsung employs color stripes instead of abbreviations. Cross-reference these with the appliance’s terminal block to avoid mismatches.

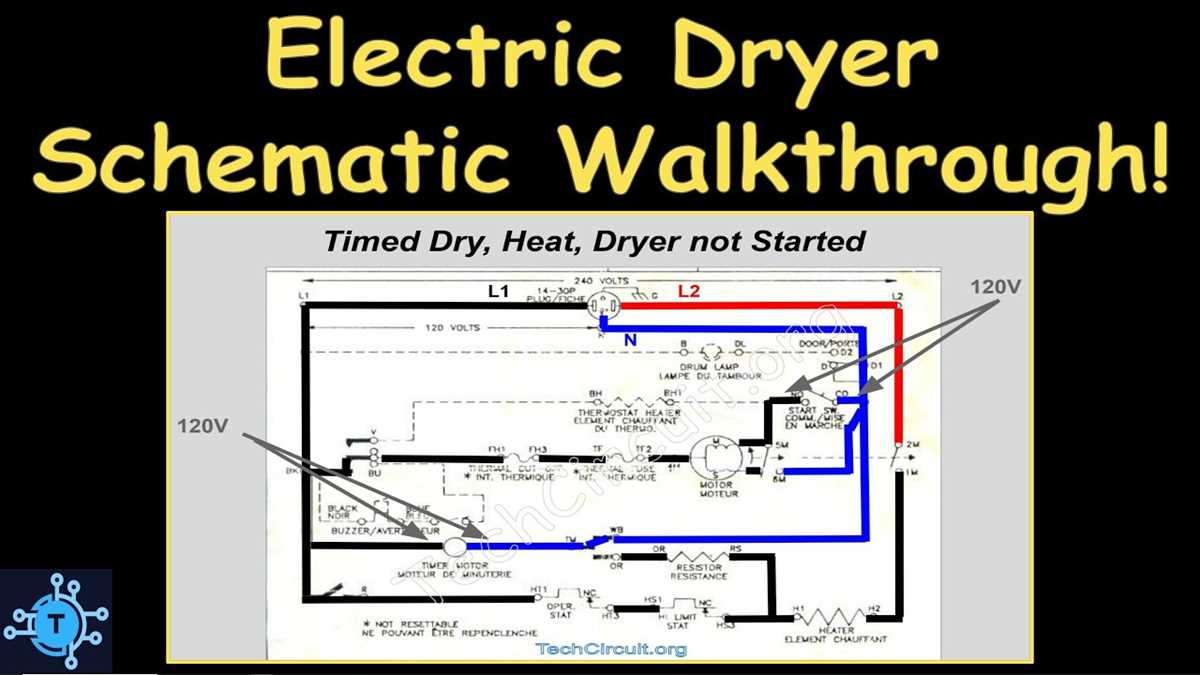

Trace the power path from the mains inlet: a typical 240V setup splits into two hot legs, each feeding separate heating and motor circuits. On a GE layout, follow the thick red and black lines–these merge at the thermal fuse before diverging again to the heater coil and drum rotation assembly. If the path breaks at a dashed circle (usually a safety device), check continuity with a multimeter; most models abort operation if resistance exceeds 1 ohm.

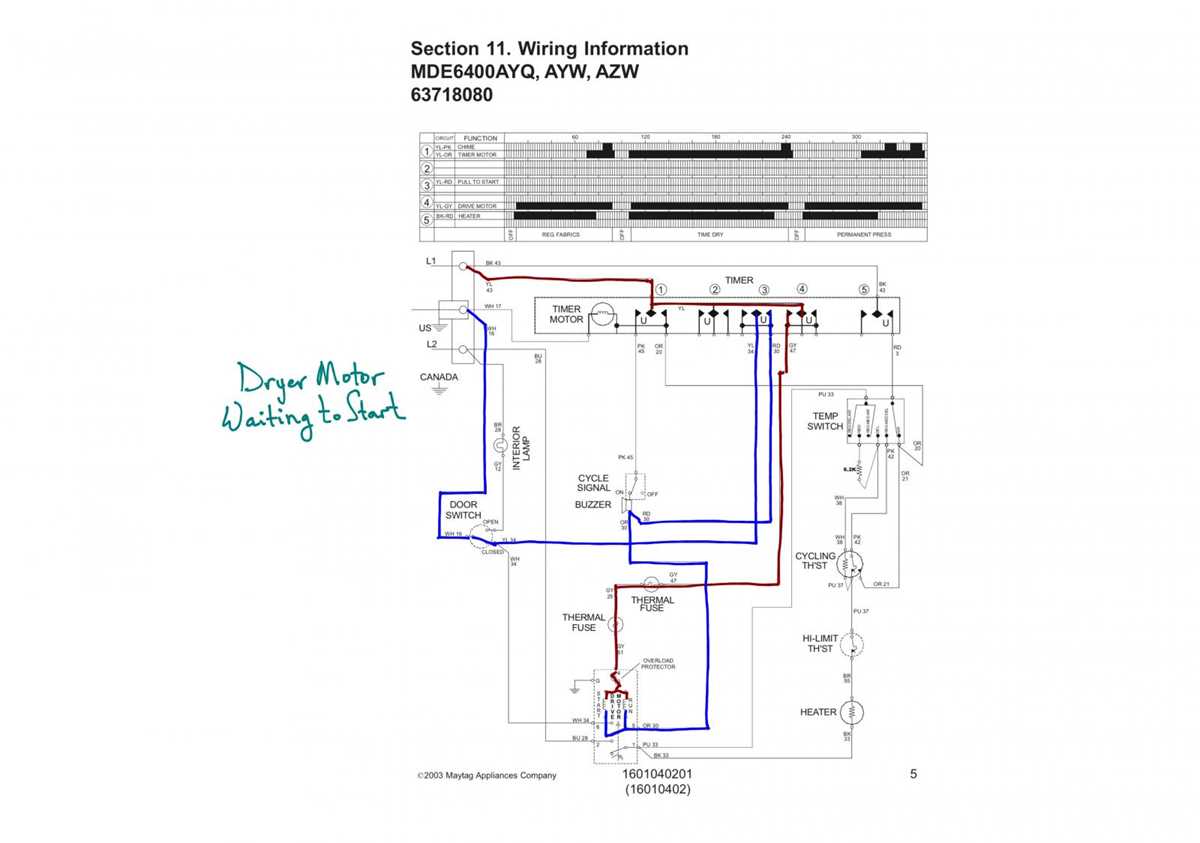

Identify auxiliary components like the cycling thermostat or high-limit switch–these appear as smaller circles or rectangles branching off the main current flow. Maytag’s diagrams frequently label these with a numerical code (e.g., TH1, HL2), while LG simplifies with icons: a flame symbol for the burner, a wavy line for the blower. Measure voltage drop here: 120V across the motor windings, 240V across the heater terminals when engaged.

Examine the timer’s wiring clusters–these resemble spider legs extending to multiple switches. On Frigidaire units, the timer’s common terminal connects to 12 colored wires; the green-striped lead always grounds the chassis, while the pink handles the door latch interlock. Use an alligator clip to safely probe these connections while powered off, ensuring no short circuits exist between adjacent contacts (spacing should prevent accidental contact during operation).

For three-phase industrial units, note the delta or wye configuration: the diagram will depict either a triangle or star pattern. Siemens models use a numbered grid (e.g., U1-V1-W1), while Bosch consolidates into a single thick line splitting into three thinner lines at the motor. Verify phase rotation with a phase rotation meter–incorrect sequencing causes reverse spinning and potential overload.

Check for ambient temperature controls: some European brands (AEG, Miele) include a separate module marked “Umgebung” or “Room”. These adjust drying intensity based on external sensor readings; disconnecting them defaults the appliance to maximum heat but may trigger error codes if the MCU detects missing feedback.

Look for hidden test points–Sharp embeds these as tiny black dots near the control board, labeled TP1-TP4. These allow direct voltage readings without disassembly; TP1 typically shows 5V DC for logic circuits, TP2 mirrors the incoming AC voltage when the heater relay closes. Never probe these with power applied unless the manual explicitly permits it.

Compare the diagram to the physical appliance: older Kenmore models label internal components with reflective stickers matching the schematic’s numbering (e.g., H1 for the heater, M1 for the motor). If labels are missing, use a non-contact voltage tester to trace active lines while operating–any metal component touching two hot conductors simultaneously indicates a severe insulation breach requiring immediate service.

Step-by-Step Guide to Identifying Terminal Blocks on an Appliance

Locate the rear access panel–usually secured with 4-6 screws–and remove it to expose the internal connections. Most models feature a clearly labeled terminal block near the motor or heating element housing, distinguished by 3-4 metal posts with threaded nuts. Check for color-coded wires or embossed markings (e.g., L1, L2, N, GND) on the block itself; these indicate functional assignments. If markings are absent, trace each wire back to its source–power cords typically connect to the outermost posts, while neutral and ground occupy the center positions.

• Use a multimeter to verify terminal assignments: set to ohms (Ω) and probe each post against the chassis. A reading near zero signals the ground terminal.
• For 240V setups, L1 and L2 posts will show ~120V each when measured against neutral; combined, they should deliver 240V.
• Label each wire with masking tape before disconnection to prevent miswiring during reassembly.

Inspect the block for corrosion or pitting–common in high-amperage connections. Clean terminals with a wire brush and apply dielectric grease to prevent future oxidation. Ensure all fasteners are torqued to 12-15 in-lbs; over-tightening can strip threads, while loose connections risk arcing. Reattach wires in reverse order of removal, crossing the loops over the posts in a clockwise direction for secure clamping.

3-Prong vs. 4-Prong Appliance Receptacle Hookups: Key Variations

Always match the cord configuration to the terminal block inside the machine. Older three-slot outlets combine neutral and ground into a single post, requiring a bridge link between the center screw and the frame. Remove this jumper if switching to a four-slot setup–failure to do so creates a shock hazard. Newer installations separate neutral and ground with a dedicated wire to the panel, improving safety under ground fault conditions.

Outlet Age and Code Compliance

Homes built before 1996 typically have three-slot receptacles, complying with the electrical code at the time. After 1996, NEC mandates four-slot receptacles for new or upgraded circuits, demanding an individual ground conductor. Check local amendments–some jurisdictions grandfather older outlets, while others insist on retrofitting. Use a non-contact tester to confirm all conductors are de-energized before any alterations.

Alternating current flows through the outer two terminals–240 volts between them and 120 volts from either lug to the center post. The grounded neutral carries return current, while the ground wire protects against insulation failures. In four-slot outlets, the ground wire terminates to a green screw on the chassis, distinct from the neutral bus. Three-slot setups merge these pathways, risking energized metal surfaces if the neutral connection loosens.

Cord Attachment Procedures

Strip each conductor to expose ¾ inch of bare wire. Slide the stripped ends into the corresponding terminal slots–L-shaped for looping, straight for direct insertion–and tighten screws to 15 in-lbs torque. Fold excess wire back over itself to prevent stray strands from shorting. Verify absence of sharp edges on terminal blocks to avoid nicking insulation during appliance movement.

Four-slot configurations require removing the green bonding screw from the neutral buss if present. Install a ground wire attached directly to the chassis using a star washer for reliable contact. Leave the neutral wire unconnected if no jumper exists; improper bonding here forces return current through the chassis, violating code and tripping GFCI breakers. Label all connections inside the access panel to simplify future service.

Recheck tightness after 24 hours–heat cycling loosens connections, raising resistance. Test receptacle polarity with a multimeter: 240V across the outer slots, 120V from each outer slot to neutral, and 0V from neutral to ground in four-slot setups. Replace any outlet showing signs of arcing or discoloration immediately.
