How to Wire a Dual Battery System for Your Boat Step by Step Guide
For twin energy storage setups, combine matching capacity cells with identical internal resistance and chemistry. Use 2/0 AWG copper conductors–minimum 18 inches for interconnects–to prevent voltage drop under 300A loads. Secure connections with tinned lugs and heat-shrink tubing to resist corrosion in saltwater environments. Isolate each unit with a 150A Class T fuse within 7 inches of the positive terminal.

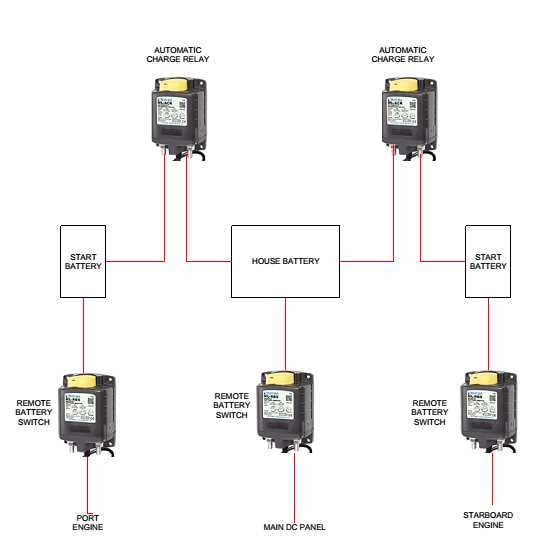

Position the central busbar equidistant from both cells to ensure balanced current distribution. For alternator charging, install a battery combiner with automatic voltage sensing–set cut-in at 13.2V and cut-out at 12.8V–to prevent backfeeding. Ground the negative terminal to the hull with a 3/8-inch stainless steel bolt, avoiding paint or oxidation at the contact point. Test voltage equality across both positive terminals before engaging high-demand equipment.
For lithium-phosphate configurations, add an external balancing circuit monitoring individual cell groups at 0.1% precision. Integrate a shunt-based monitor displaying real-time amperage flow with ±1A accuracy. Store digital logs of charge/discharge cycles to detect imbalances early. Replace interconnects every 3 years or at 10% resistance increase, whichever occurs first.
When servicing, disconnect the negative lead first and reconnect it last. Use a hydrometer for flooded cells to verify specific gravity matches within 0.025 across all units. For AGM alternatives, measure open-circuit voltage within 0.05V to confirm equal charge states before reconnection. Apply dielectric grease to all terminals to prevent inductive arcing.
Marine Power System Configuration Guide

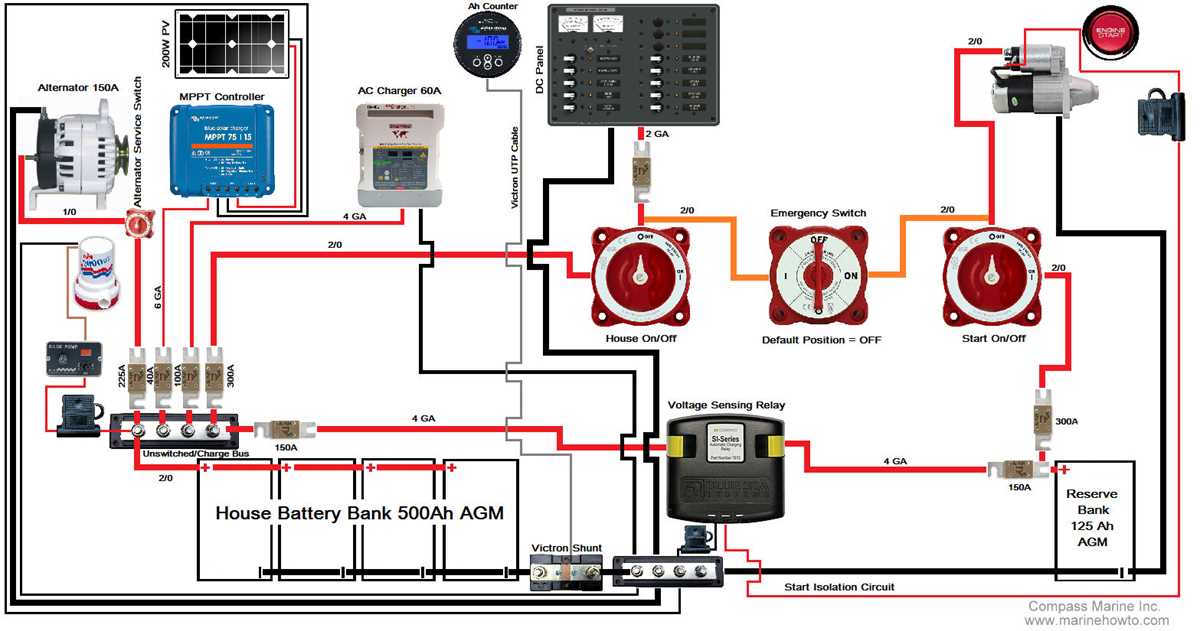

Install a selector switch rated for at least 300 amps to manage two independent energy sources in a parallel setup. Use 4/0 AWG tinned copper cable for primary connections–this gauge handles 240 amps continuously with minimal voltage drop over 5-meter runs. Position the switch within 3 feet of the units to reduce resistance; secure cables with heat-shrink tubing and anti-chafing sleeves at stress points. Label each terminal clearly: “House,” “Starter,” and “Combined” to prevent accidental cross-connections.
Add a 150-amp circuit breaker between each storage unit and the selector switch–mount them within 7 inches of the positive terminal to comply with ABYC E-11 standards. For lithium iron phosphate setups, integrate a 200-amp battery management system before the breaker to prevent overcurrent. Keep ground cables separate: use a single 4/0 AWG copper bus bar bonded to the engine block, avoiding direct chassis grounds that can introduce galvanic corrosion in saltwater environments.
Critical Connection Specifications
| Component | Minimum Cable Gauge (AWG) | Torque (inch-lbs) | Voltage Drop Limit (%) |
|---|---|---|---|
| Storage cell interconnects | 2/0 | 100 | 1.5 |
| Selector switch to starter | 4/0 | 120 | 2.0 |
| Alternator output | 1/0 | 80 | 3.0 |
| Ground bus bar | 4/0 | 170 | N/A |
Isolate the charging system with a 120-amp marine-grade isolator if connecting both power sources simultaneously–this prevents imbalance currents that can degrade lithium packs. For lead-acid configurations, disable equalization charging in the regulator settings to avoid overgassing. Test total circuit resistance with a digital micro-ohmmeter before powering up: measurements above 0.5 milliohms indicate loose terminals or corroded connections that require immediate correction.
Failure Prevention Checklist
Verify insulation resistance monthly using a 500V megohmmeter–readings below 10 megohms signal compromised dielectric integrity. Replace terminals showing green oxidation (copper sulfate) immediately; apply dielectric grease to all connections after cleaning with a wire brush and baking soda solution. Monitor voltage at the distribution panel hourly during high-load operations (e.g., air conditioning)–a drop exceeding 0.2V from source voltage suggests undersized conductors or excessive connections. Log all readings for warranty claims; most manufacturers void coverage for undocumented voltage irregularities.
Program voltage-sensitive relays with a 0.3V hysteresis window to prevent rapid cycling–set low-voltage cutoff at 11.8V for lead-acid and 12.8V for lithium. Install a 30-amp fuse directly on the positive terminal of each storage unit as a final fail-safe against catastrophic shorts. Prevent vibration-induced failures by using vibration-damping mounts for all current-carrying components; secure cables with nylon straps every 12 inches, avoiding metal ties that can chafe insulation over time.
Selecting Optimal Power Sources for Combined or Sequential Links
Opt for deep-cycle variants when configuring units in parallel to ensure uniform discharge rates and extended longevity. These models handle repetitive cycles better than starting types, avoiding voltage imbalances that degrade performance. Verify the amp-hour (Ah) ratings match within 10% to prevent uneven wear–mismatched capacities lead to premature failure of the weaker cell. AGM or lithium-iron phosphate (LiFePO4) chemistries are ideal for parallel setups, offering stable voltage output and minimal maintenance, unlike flooded lead-acid options requiring frequent electrolyte checks.
For sequential connections, prioritize units with identical voltage outputs and internal resistance. A 12V pair will yield 24V; mismatched voltages–even by 0.5V–create stress on chargers and connected devices. Lithium iron phosphate (LiFePO4) excels here due to its flat discharge curve, but requires a compatible charger with a balance lead to prevent overcharging individual cells. Avoid mixing chemistries: a lead-acid unit paired with lithium risks thermal runaway or reduced efficiency.
Check the cold cranking amps (CCA) only if starting power is needed; otherwise, focus on reserve capacity (RC) for sustained loads. In parallel, RC should align to distribute load evenly. A 100Ah unit paired with a 200Ah one will not share current proportionally–stick to identical specs. For sequential links, confirm the battery management system (BMS) can handle the combined voltage, especially with lithium chemistries where over-voltage protection is critical.
Key Specifications to Match
Verify these parameters before linking:
- Voltage: ±0.2V tolerance.
- Capacity: ≤5% variance (e.g., 100Ah ±5Ah).
- Chemistry: Never mix (lead-acid with lithium, etc.).
- Age/Usage: New units only; used ones degrade unpredictably.
- Terminal Size: Thicker cables (≥4 AWG) for parallel setups.
Skip general-purpose or automotive-grade models–they lack the cycle durability needed for combined setups.
Charging Considerations
Parallel connections demand a multi-bank charger or a single unit with tight voltage regulation (
How to Connect Two Power Sources in Parallel: A Practical Installation Manual

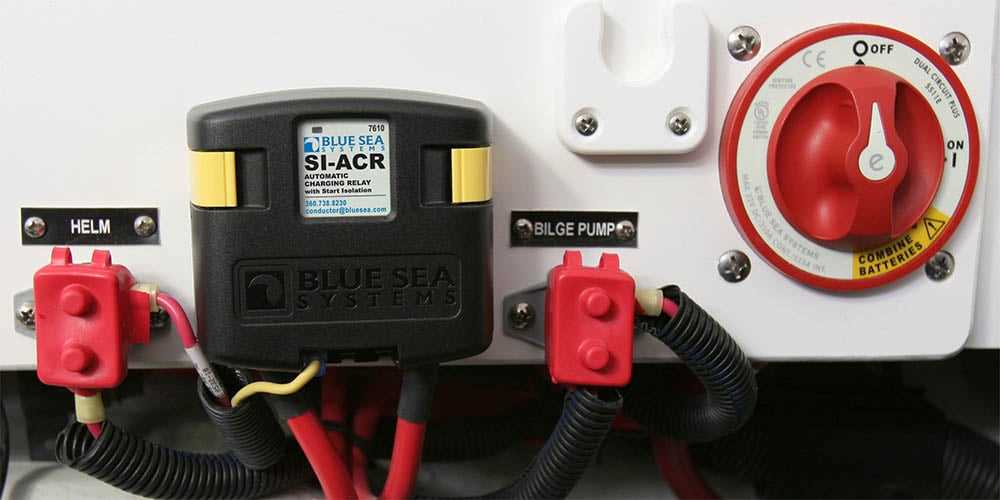

Begin by selecting a voltage-sensitive isolator rated for 150% of the combined maximum amperage of both storage units–typically 120A for marine-grade systems. Mount it within 12 inches of the primary unit to minimize voltage drop. Use 2/0 AWG tinned copper cables for all main connections; anything thinner increases resistance and heat buildup under load. Always crimp terminals with a hydraulic press and solder the joint for corrosion resistance.
First, disconnect the negative terminal of the main unit to prevent accidental shorts. Connect the positive of the primary to the isolator’s input post using a 3-inch cable. Run separate 18-inch cables from the isolator’s outputs to each positive terminal of the storage units. Label each cable with heat-shrink tubing–red for the primary, yellow for the secondary–to simplify future troubleshooting.
For the negative side, link both units directly to a common ground bus bar, not the isolator. Use 4 AWG cables here; excessive gauge wastes space without improving performance. Secure all connections with stainless steel nuts and star washers to prevent loosening from vibration. Apply dielectric grease to each terminal before tightening to 12 ft-lbs of torque.
Install a 150A fuse within 7 inches of each positive terminal to meet ABYC standards. For alternator protection, add a 200A fuse between the engine’s charging source and the isolator. Verify every connection with a digital multimeter–measure 0.1V or less between any two points under load to confirm proper installation. Higher readings indicate loose connections or undersized cables.
Test under real conditions: Start the engine and monitor both units at 2000 RPM. The secondary should show 13.8-14.2V within 30 seconds; slower charging signals a faulty isolator. Check for equalization every 2 months–if one reads 10% lower voltage, the system needs rebalancing. Use a 10A trickle charger overnight rather than running the engine to correct minor imbalances.
Store spare 2/0 AWG cables and pre-terminated isolator links in a sealed plastic case to prevent moisture ingress. Replace all connections every 3 years regardless of appearance–corrosion forms internally and isn’t visible. Keep a log of voltage readings and charging times; consistent deviations indicate impending failure of either the units or isolator.
Installing a Marine Power Selector for Targeted Energy Distribution

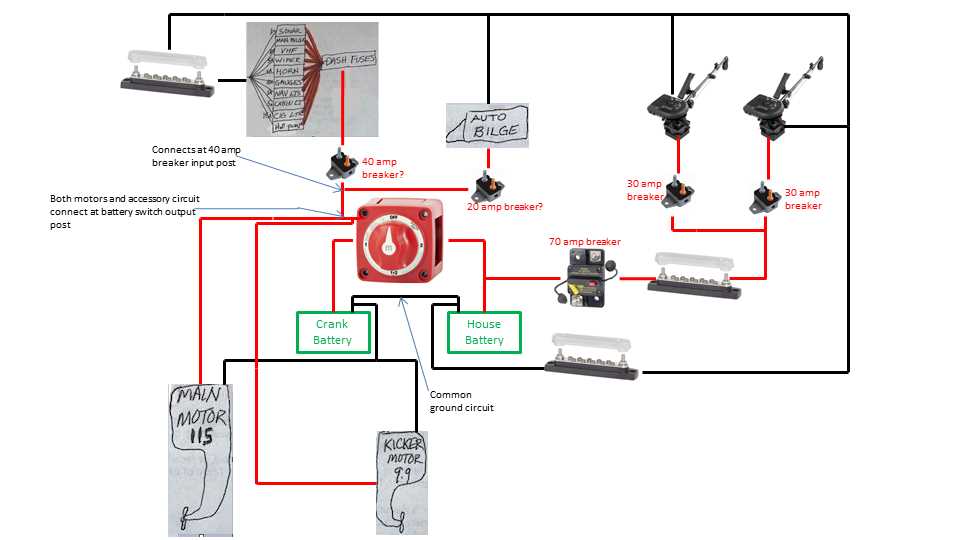

Start with a 1-2-Both-Off rotary switch rated for at least 250A continuous current. Ensure the model includes a failsafe “Off” position to isolate circuits during maintenance. Mount the selector near the main energy source, within 3 feet of the largest reserve unit, to minimize voltage drop. Use 4/0 AWG tinned copper cables for all primary connections, with heat-shrink tubing over terminals to prevent corrosion. Verify torque specifications–typically 120 in-lbs for 4/0 lugs–to avoid loose connections that create resistance.
Label each position clearly: “1” for the starter reserve, “2” for the house reserve, “Both” for combined operation, and “Off” for total isolation. Connect the positive post of the starting unit to terminal “1” and the service unit to terminal “2” using dedicated 2/0 cables. Route the common output lug to the main busbar or primary fuse block. Avoid mixing circuits–never connect accessories like bilge pumps directly to the selector; use a separate fuse block for those loads.
Install a 250A Class T fuse or ANL fuse within 7 inches of each reserve unit’s positive terminal. This protects against short circuits while allowing sufficient inrush current for engine cranks. For lithium systems, replace fuses with a battery management system (BMS) that integrates with the selector’s common output. Test the setup with a multimeter: switch to “Both,” verify equal voltage across both units, then toggle through each position to confirm clean disconnects without voltage spikes.
Ground the selector’s metal casing to the vessel’s bonding system using 6 AWG wire. If the installation includes an alternator, wire a diode isolator or echo charger between the reserves to prevent backfeeding. For vessels with sensitive electronics, add a 100A main relay controlled by the selector to eliminate voltage sag during engine start–connect the relay’s coil to the starter motor circuit and its contacts to the common bus.
Seal all connections with marine-grade dielectric grease and inspect every 50 operating hours. Replace all crimp connectors with soldered and heat-shrunk joints if installing in high-vibration areas like stern drives. For redundancy, wire a secondary low-draw alarm (e.g., 10A auto-reset breaker) between the selector’s “Off” position and a dedicated monitor–this alerts if power is accidentally left disconnected after maintenance.
Before first use, cycle the selector between all positions 10 times without load to break in contacts. Document the amperage draw of critical systems (e.g., navigation lights: 3A, VHF radio: 5A) and ensure the selected reserve capacity exceeds total load by 30%. For diesel engines, confirm the starter’s cold-cranking amps (CCA) exceed manufacturer specs–typically 1,200 CCA for a 4-cylinder–when using a single reserve in “1” position.
