StepbyStep Guide to Wiring a Dual Start Capacitor for Motors
Use a 10-gauge wire for high-current connections and 14-gauge for low-current leads. Match the run section to the motor’s rated capacitance–typically marked on the casing (e.g., 30 µF, 440 VAC). The auxiliary phase (often labeled “AUX”) connects to the start section, while the main winding links to the run terminal.

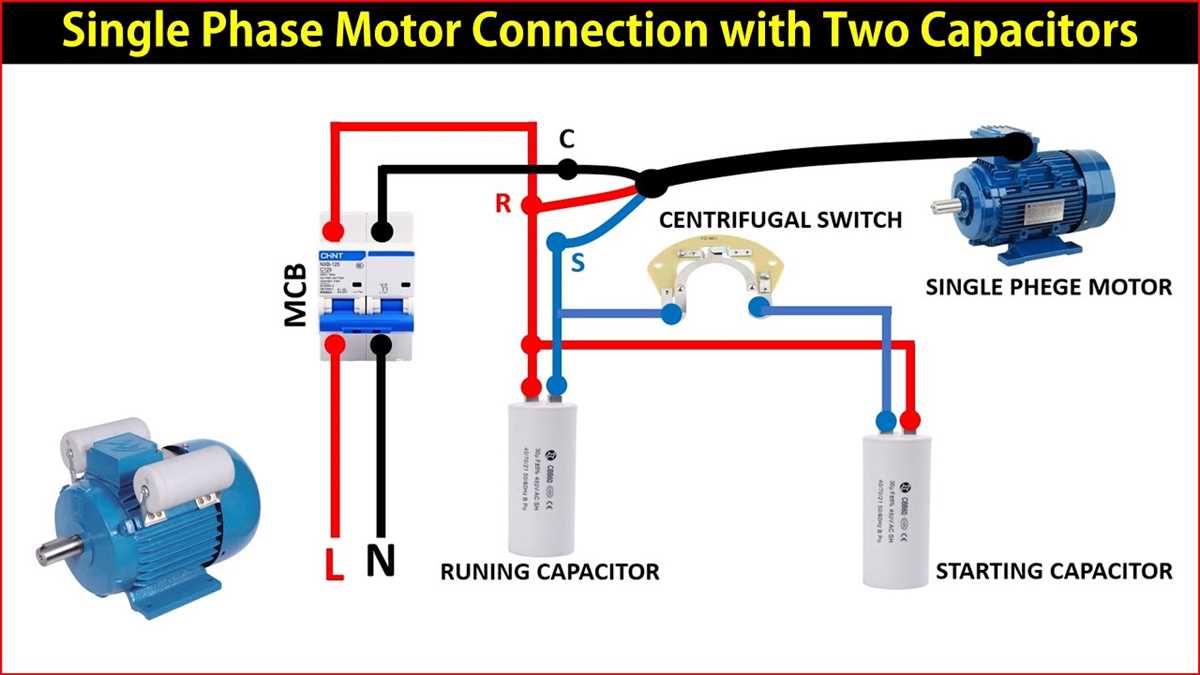

Connect the black lead from the power source to the common terminal, then split the red or blue leads for each winding–one to the run terminal, the other to the start terminal. Ensure the start lead has a centrifugal switch (or relay) in series; without it, the circuit will overheat within seconds. Confirm the switch activates at ~75-80% of rated speed.
Polarity doesn’t apply, but phase alignment does. Swap the start section leads if the motor spins backward. Double-check torque specs: a ¼ HP motor needs tighter fasteners (7-9 lb-ft) than a 1 HP unit (12-15 lb-ft). Use a multimeter to verify no continuity between windings and the chassis before powering up.
For single-phase 230V setups, ground the capacitor’s metal casing directly to the motor frame. Avoid daisy-chaining grounds; a star pattern reduces interference. If voltage drops below 210V, increase capacitance by 10% to prevent run winding burnout.
Common failures stem from loose crimps or misaligned switch contacts. Replace the switch if resistance exceeds 0.5 Ohms when closed. Test the capacitor with a dedicated meter–bulging or leaking oil means immediate replacement. Never substitute with a lower-voltage unit; a 370V part won’t survive 440V spikes.
Connecting a Two-Run Energy Storage Device in Motor Circuits
Before connecting any leads, verify the motor’s voltage rating matches your power source. A mismatched system will fail or overheat within minutes. For 120V applications, connect the common terminal to the neutral line and the auxiliary terminal through the secondary energy cell. On 240V setups, link the primary coil across both hot wires and route the auxiliary winding through the second storage component–polarity markings must align exactly.
Use a multimeter to test resistance across each winding after installation. Healthy coil values typically range between 3Ω and 20Ω depending on horsepower–readings outside this indicate internal damage. Replace any unit showing infinite resistance or zero continuity immediately. Keep leads separated during testing to avoid accidental shorts; a single mistake here risks immediate fuse burnout or motor destruction.
For reversible motors, label terminals before disassembly. Swapping wire positions changes rotation direction, but incorrect swaps during reassembly will bypass the secondary cell, causing inconsistent torque and eventual overheating. Secure all connections with crimp terminals and heat-shrink tubing–loose wires under vibration create intermittent faults that are near impossible to diagnose under load.
Add a bleeder resistor (1MΩ, ½W) across each storage cell to dissipate residual charge after power-off. Without it, terminals remain hazardous for hours, risking shock or arc flash during maintenance. Mount components at least ½ inch apart to prevent dielectric breakdown–high humidity or dust accumulation lowers the effective insulation rating of any gap.
Final step: energize the circuit with a clamp meter monitoring current draw during startup. Normal inrush should momentarily spike 5-7× running amps then stabilize within 3 seconds. Persistent high current or erratic spikes indicate incorrect sizing–consult the motor data sheet for exact cell ratings rather than relying on “common” values.
Identifying Terminals on a Combined Run-Assist Component

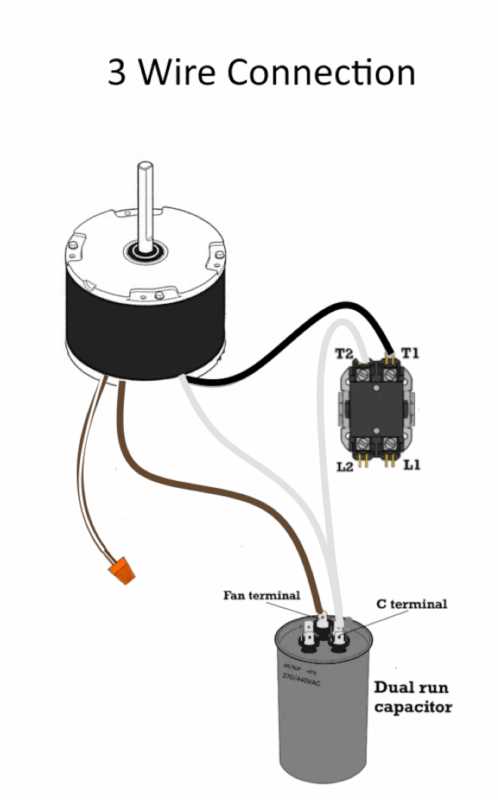

Begin by locating the three posts on the unit–typically marked “C” (common), “HERM” (hermetic compressor), and “FAN”. The “C” terminal connects to the power supply’s line side, while “HERM” and “FAN” link to their respective motor windings. Verify markings with a multimeter: set to capacitance mode, measure between “C” and “HERM” (higher value for compressor assist), then “C” and “FAN” (lower value for blower assist). If labels are missing, note that the larger section usually serves the compressor, the smaller–fan circulation.
Visual Clues and Physical Layout
The compressor-assist terminal often sits adjacent to a slightly thicker internal plate, signaling higher energy storage. Blower-assist posts may feature smaller rivets or appear recessed. On circular variants, compressor leads frequently occupy the broader segment, while fan leads align on the narrower portion. Dust caps or color-coded sleeves sometimes indicate function–red or black for compressor, blue or white for fan–but rely on electrical readings over visual cues alone.
Avoid assuming terminal positions based on wire gage: manufacturer variances exist. Some units position the fan lead closest to the casing edge, while others invert placement. Cross-reference with the equipment’s schematic–look for symbols resembling a curved line bisecting a straight one to denote the dual-section layout. If schematics are unavailable, probe continuity between windings and terminals: a direct path from “HERM” to compressor windings confirms proper identification.
For split-phase systems, the common terminal (“C”) bridges both assist sections–ensure jumper connections use at least 14 AWG wire to handle startup surges. Misidentifying posts risks reversed polarity, shortening service life: compressor sections tolerate brief reversals poorly, while fan sections may overheat. Double-check with a non-contact voltage tester before energizing–spikes at the fan lead when only compressor power is applied indicate crossed connections.
Step-by-Step Electrical Hookup for Single-Phase Motors
Begin by identifying the motor’s three critical terminals: Common (C), Run (R), and Auxiliary (A). Use a multimeter in continuity mode to confirm connections–Common should show low resistance to both Run and Auxiliary, while Run and Auxiliary must not conduct between each other. Label terminals with heat-shrink tubing or durable markers to prevent misalignment during assembly. Secure the motor mounting base before proceeding; vibrations can loosen improperly torqued bolts, causing misalignment or short circuits.
Sequence for Terminal Attachment
- Power Source to Common (C): Connect the main live conductor (typically black or red, 120V/240V) directly to the Common terminal. Use a crimp connector rated for 125% of the motor’s full-load current (e.g., 15A for a 12A motor) to avoid overheating.
- Neutral to Run (R): Attach the neutral conductor (white) to the Run terminal. For 240V configurations, split the phase and connect both legs to Run and Auxiliary, ensuring polarity matches the motor’s schematic.
- Auxiliary Circuit Bonding: Link the Auxiliary terminal to a phase-shift component (if applicable) or to the Run terminal via a relay for two-value systems. For reversible motors, wire a double-pole switch to swap Auxiliary and Run connections.
Test the assembly with a non-contact voltage detector before energizing. Verify rotation direction; incorrect sequencing may require swapping Auxiliary and Run terminals. Ground the motor casing with a green or bare conductor (minimum 10 AWG) bonded to the metal frame–omit this step only in double-insulated devices. For thermal protection, install an inline overload relay between the power source and Common terminal, calibrated to the motor’s nameplate amperage (e.g., 140% of FLA for 1HP motors).
Common Errors in Connecting Run-and-Rise Energy Storage Units
Reversing the common and auxiliary terminals destroys motor windings within minutes. Label the leads with masking tape before removal–hermetic compressors in HVAC systems often swap these connections unintentionally due to factory color-coding inconsistencies. Verify terminal positions using an analog multimeter set to ohms: the common lead registers the lowest resistance against both run and auxiliary, typically 2-5 Ω.
Overlooking voltage mismatch shortens component lifespan. Match the microfarad rating and voltage tolerance precisely–a 440V unit paired with 240V supply drops torque by 30%, while a lower voltage rating risks dielectric breakdown. Check the nameplate: 370VAC units accept ±10% tolerance only if ambient temperature stays below 70°C; above this threshold, derate by 2% per degree Celsius.
| Voltage Supply | Recommended Storage Rating | Maximum Ambient (°C) |
|---|---|---|
| 208-230V | 370-400VAC | 65 |
| 240V | 440VAC | 70 |
| 277V | 500VAC | 55 |
Ignoring thermal overloads triggers nuisance trips. Mount the unit at least 5 cm from heat-generating components–every additional degree accelerates electrolyte evaporation, reducing capacity by 0.5%. Install a bi-metallic protector rated for 1.5A above FLA to prevent premature openings; under-sized protectors fail within 800 cycles.
Leaving leads unsecured invites arcing. Use heat-shrink tubing rated for 150°C minimum–vinyl sleeves degrade at 90°C, exposing conductors to vibration-induced chafing. Torque terminal screws to 12 in-lb; over-tightening strips threads, while under-tightening allows thermal creep that loosens connections by 40% after 1,000 cycles.
Mismatching run-start ratios compromises startup torque. Maintain a 3:1 ratio between phase-shift elements–deviations beyond 10% stall compressors during pull-up. Measure capacitance with a dedicated meter before installation; digital multimeters add parasitic capacitance, skewing readings by ±15%. Replace units exhibiting bulging cases or oil leakage immediately–these symptoms indicate internal shorting that cascades to motor failure.
Failing to ground properly induces stray voltages. Connect the chassis lead to a dedicated ground rod with 6 AWG copper–using shared neutral paths introduces harmonics that erode dielectric layers at 7.2 kHz. Confirm grounding continuity with a 500V megohmmeter: readings below 1 MΩ indicate contamination requiring solvent flushing.
