Complete Guide to Dual Stereo Wiring Harness Connections and Setup

Use a 4-conductor cable for full-range speaker connections–pinout must follow the OEM color codes: yellow (constant power), black (ground), gray (+ front left), gray/black (- front left), white (+ front right), white/black (- front right). Mismatching polarity cancels bass frequencies and degrades stereo imaging.

Verify the aftermarket adapter’s pin assignments against the vehicle’s factory service manual. Many ISO 16-circuit adapters split power into two fused rails–check amperage ratings to prevent overheating. A 15A fuse should protect the main feed, while a 10A fuse safeguards accessory circuits.

Ground the shield of the signal cable directly to the chassis at the amplifier location–not at the head unit. Use star washers under screw heads to ensure low-resistance contact. Oxidized or painted mounting surfaces require sanding to bare metal for stable performance.

For balanced outputs, wire the RCA shields to the chassis only at the source end. Floating the destination end minimizes ground loop hum. Test continuity between the left and right audio grounds–values above 0.1 ohms indicate a faulty connection.

If the system includes a remote turn-on lead, route it separately from signal cables to avoid voltage spikes corrupting audio. A 1N4001 diode in series with the turn-on wire prevents backfeed from aftermarket amplifiers.

Label each connector pin with heat-shrink tubing before final assembly. Keep cable runs at least 30 cm from ignition coils and spark plug wires to prevent RF interference. Secure all cables with nylon zip ties spaced every 20 cm to prevent vibration-induced shorts.

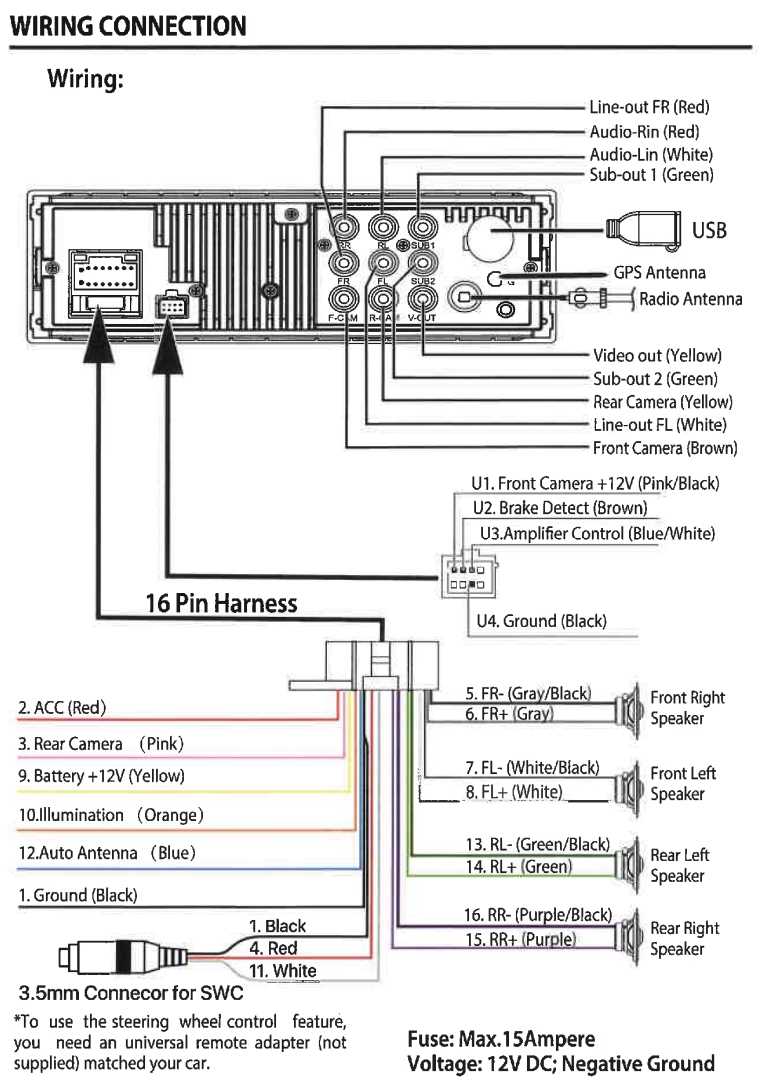

Guide to Schematic Connections for Audio Signal Integration

Identify the power source first–typically a 12V constant line (often yellow) and an ignition-switched line (red). Connect these to their corresponding inputs without splicing into factory circuits unless testing confirms compatibility. Use a multimeter to verify voltage stability at 12.6V; fluctuations above 14.2V risk damaging aftermarket components. Grounds should terminate at a dedicated chassis point, not shared with motors or solenoids, to prevent signal interference.

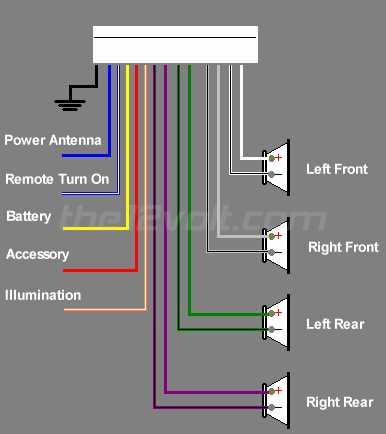

For speaker leads, match polarity by connecting positive (striped or solid wire) and negative (solid or dotted trace) to the amplifier’s output channels. Standard color codes are:

• Front left: white (+), white-black (-)
• Front right: gray (+), gray-black (-)
• Rear left: green (+), green-black (-)
• Rear right: purple (+), purple-black (-)

Cross-wiring results in phase cancellation, reducing bass response by up to 70%. Test each channel with a 1 kHz sine wave to confirm output.

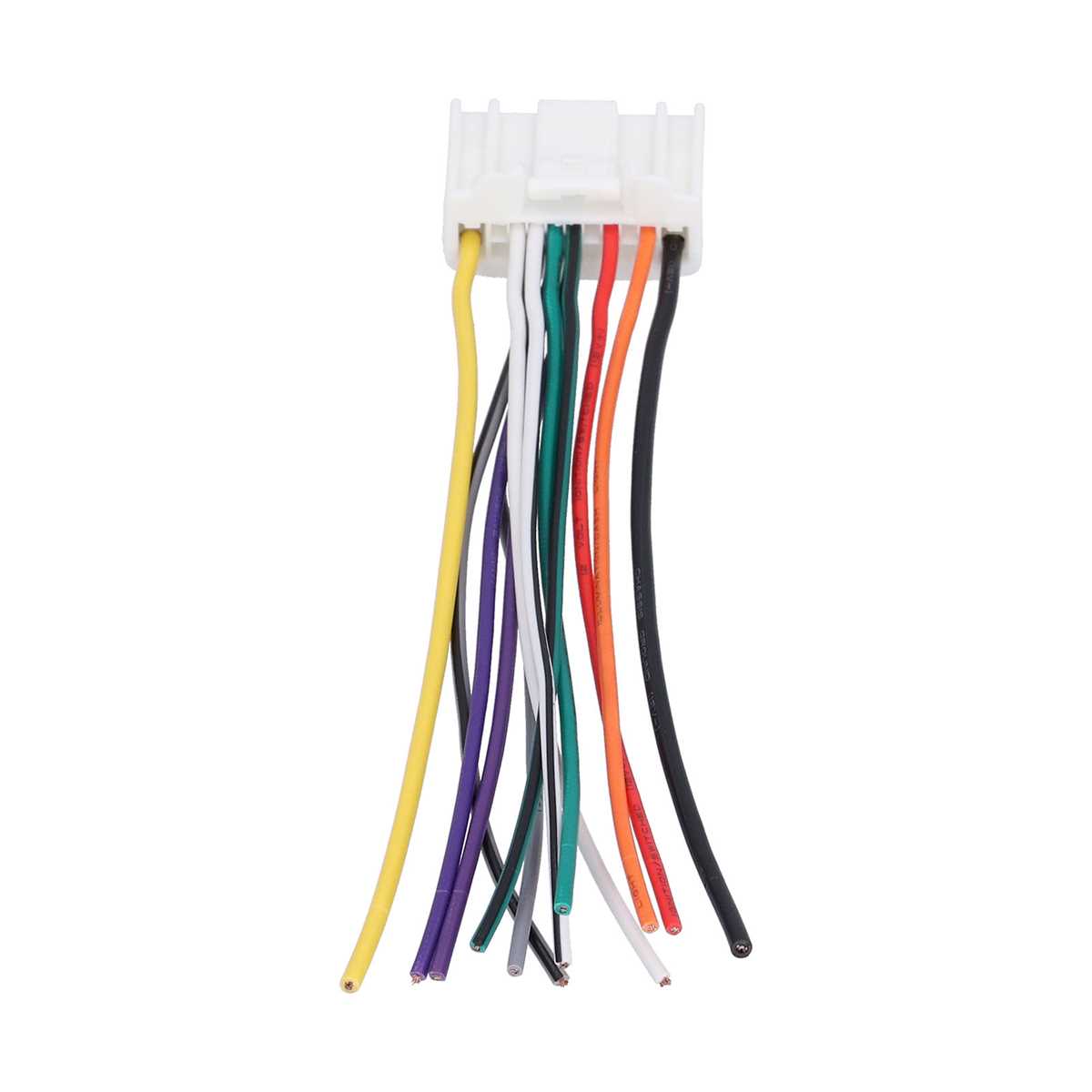

Adapter Pinouts for Common Vehicle Models

Manufacturers use proprietary connectors, requiring specific adapters:

1. Toyota/Lexus: 20-pin rectangular plug (pins A6-A8 for front signals, B4-B6 for rear)
2. Honda/Acura: 12-pin white connector (pins 2/3 for front left/right)
3. Ford: 8-pin round plug (pins 4-7 for rear outputs)

Check vehicle service manuals for deviations; aftermarket adapter kits often mislabel pins for base trim levels.

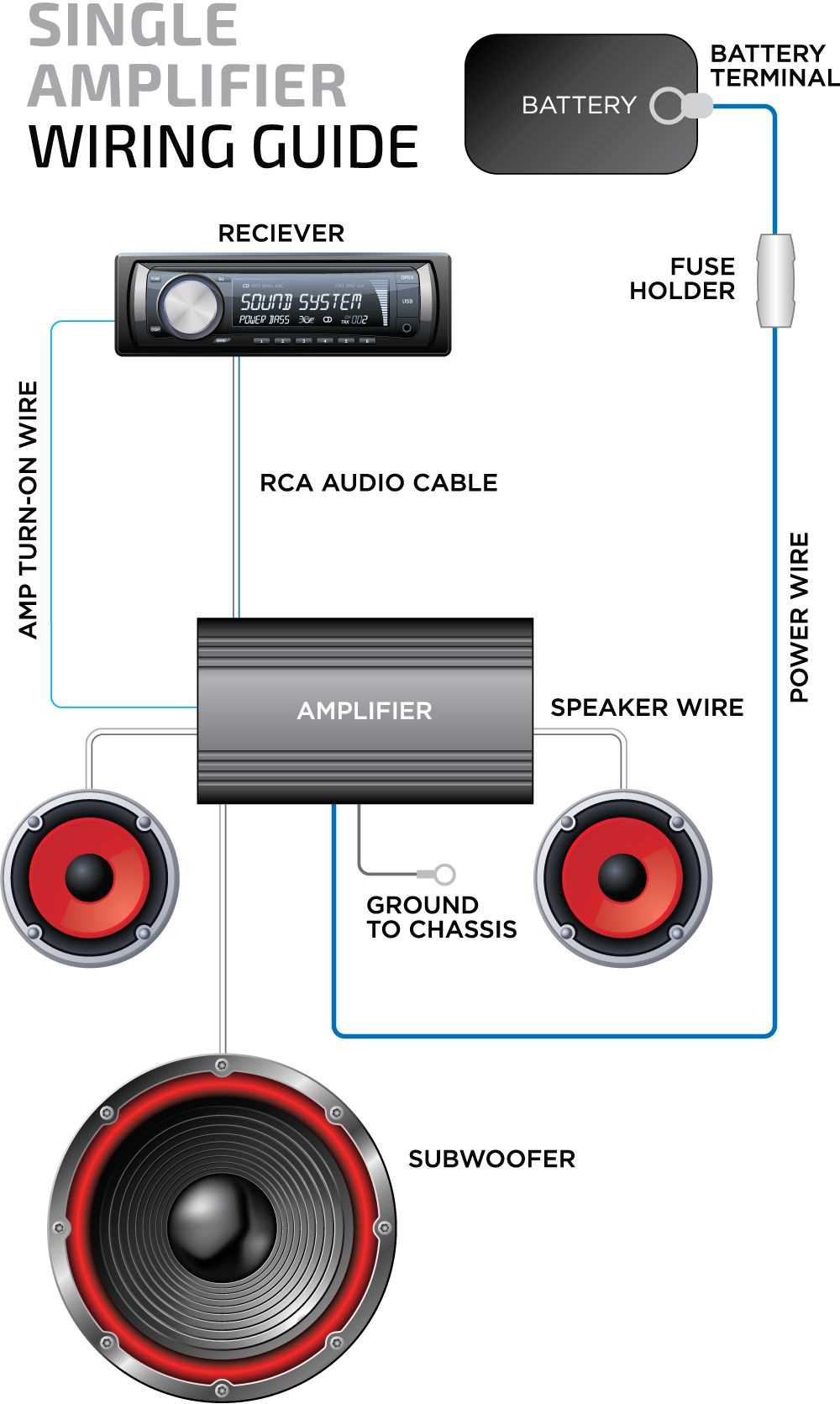

Signal processing units (e.g., crossovers, equalizers) require RCA inputs with a minimum 2V output. Connect these before amplifier inputs to avoid signal degradation. Use twisted-pair shielded cables (18-20 AWG) for RCA links, reducing electromagnetic interference by 40% compared to standard copper. For OEM integration, add a line-output converter if the vehicle lacks preamp outputs; adjust gain settings to prevent clipping at 1% THD.

Final assembly steps:

• Secure all connections with heat-shrink tubing or solder joints–crimp connectors fail after 18-24 months
• Route cables away from HVAC ducts and high-current alternator lines
• Test each component’s function with an oscilloscope before finalizing dashboard trim
• Log impedance readings (4Ω for most speakers) to diagnose future faults

Essential Equipment and Supplies for Installing an Audio Integration System

Begin with a multimeter capable of measuring DC voltage (0-20V range) and resistance (up to 200 ohms). A model with auto-ranging simplifies the process–avoid manual dial units for this task. Fluke 17B or Klein Tools MM400 are reliable choices with ±0.5% accuracy for voltage readings, critical for verifying signal integrity.

Use tinned copper wiring, preferably 18-20 AWG for speaker outputs and 16 AWG for power delivery. Oxygen-free copper (OFC) ensures minimal signal loss over runs exceeding 12 feet. Teflon or PVC insulation with a thickness of 0.3-0.4mm prevents abrasion during routing. For high-current applications, opt for silicone-jacketed cables rated at 105°C.

Crimping tools must accommodate both insulated and non-insulated terminals. The IWISS SN-48B handles 22-10 AWG with a ratcheting mechanism to prevent incomplete crimps. For soldering, a 60W temperature-controlled iron (like the Hakko FX-600) with a chisel tip (2.4mm) ensures clean joints without overheating components. Rosin-core solder (60/40 tin-lead, 0.8mm diameter) is ideal for audio circuits.

Heat-shrink tubing should cover all splices and terminals. Use a dual-wall adhesive-lined variety (3:1 shrinkage ratio) in sizes ranging from 2mm to 12mm diameter. A heat gun with adjustable airflow (e.g., Wagner HT1000) prevents melting adjacent wires. For quick repairs, polyolefin tubing without adhesive suffices but lacks moisture resistance.

A wire stripper with precision blades reduces nicking conductive strands. The Klein Tools 11055 works for 10-22 AWG wires, while the Knipex 12 62 180 offers ergonomic grips for extended use. For removing factory tape wraps, a precision knife (X-Acto Z-series) with a No. 11 blade trims cleanly without fraying. Always strip 10-12mm of insulation for secure connections.

Connector kits should include 0.5-4mm bullet terminals, spade lugs (3.2mm and 4.8mm), and ring terminals (M4 and M6 sizes). Gold-plated contacts (minimum 1µm thickness) resist corrosion in humid environments. For aftermarket interfaces, Metra 70-1721 or Scosche GM50BU ensure compatibility with 95% of vehicle platforms.

Adhesive-lined butt connectors (18-14 AWG) simplify inline splices. Choose waterproof variants (IP67 rated) for exterior or prone-to-condensation areas. Avoid twist-on wire nuts–they lack vibration resistance. For temporary setups, lever-nut connectors (Wago 221 series) allow tool-free termination but may loosen under high-frequency vibrations.

Include dielectric grease (Permatex 22058) to seal terminal connections and prevent oxidation. A small brush or cotton swab applies it evenly without excess buildup. For securing bundles, use spiral wrap (Techflex PTN series) in 6mm to 24mm diameters; it expands to accommodate multiple wires without constricting them. Zip ties (4″L, 0.15″W) with mounting holes organize runs, but cut flush to avoid snags during future maintenance.

Step-by-Step Color Code Guide for Audio Cable Pairing

Locate the solid white lead on the primary channel–this serves as the ground reference for the left speaker. Match it to the corresponding white wire with a colored stripe (typically red, blue, or green) on the secondary connector, ensuring polarity alignment for phase accuracy. Failure to pair these correctly introduces cancellation at lower frequencies, weakening bass response.

Right Channel Pairing

Identify the gray solid wire (main right signal) and connect it to the gray wire with a stripe on the accessory plug. If the system uses a shared ground, verify the secondary plug’s gray-striped wire terminates at the same ground point as the white pair. Misalignment here creates a ground loop, evidenced by a 50-60Hz hum during operation.

The yellow solid wire carries the constant 12V power feed–route it directly to the ignition-switched fuse tap or accessory circuit. Avoid splicing into the stereo memory circuit; this risks draining the vehicle battery during prolonged off periods. Use a 15-amp fuse holder within 15cm of the power source to prevent short-circuit damage.

For RCA integration, the purple lead (rear preamp left) connects to the purple RCA center pin, while the purple outer shield attaches to the ring. Repeat with the dark green (right rear) and orange (front subwoofer) leads, ensuring shield continuity to minimize interference. Twist exposed RCA connections 180° to reduce induction noise from adjacent power cables.

If the kit includes illumination wires (light brown solid and stripe), link them to the vehicle’s dimmer circuit–never to a constant voltage source. Incorrect connection causes the display to remain fully bright or unresponsive to dashboard lighting adjustments. Test functionality with headlights on; the display should dim proportionally.

Critical Errors to Sidestep in Audio Setup Integration

Mixing speaker impedance mismatches leads to distorted sound or amplified damage. Ensure all units match the amplifier’s rated ohms–typically 4Ω for car audio. A mismatch forces the amp into overheating, reducing lifespan by up to 60%. Verify specifications before connecting.

Skipping ground wire integrity invites noise interference. Secure grounding to bare metal chassis points, sanding paint or rust for optimal contact. Loose grounds manifest as buzzing or static, degrading clarity by 30-40%. Use star topology for shared grounding to minimize interference.

Incorrect polarity reversals cancel bass frequencies. Red (+) and black (-) terminals must align across all connections–reversed wires halve low-end output. Test with a multimeter or polarity tester before finalizing connections to avoid phase issues.

Overloading power leads causes voltage drops. Use 16-gauge wire for under 30W, 12-gauge for 50W+, and 8-gauge for subwoofers. Undersized cables lose 20% efficiency, increasing thermal strain. Calculate amp draw and length for proper wire selection:

Power Rating (Watts)	Recommended Wire Gauge	Max. Length (ft)
≤30	16	12
31-75	14	10
76-150	12	18
151+	8	25

Ignoring RCA shielding exposes signals to electromagnetic interference. Route signal cables away from power wires, using ferrite cores for additional noise suppression. Twist RCA pairs lightly to reduce induced hum.

Failing to fuse circuits risks fire from short circuits. Install a 50A main fuse near the battery and 20A fuses before each amplifier. Use ANL or ATC fuses–glass fuses melt under load, offering no protection. Check fuse ratings against amp current draw.

Rushing speaker placements muddies audio staging. Angle tweeters toward listeners at ear level, separate midrange drivers by 6-12 inches, and position subs 8-12 inches from rear walls. Improper placement reduces stereo imaging by 50% and bass response by 25%.

Neglecting OEM integration causes electrical conflicts. Bypass factory systems properly–direct tapping into factory units overloads circuits. Use line-output converters (LOCs) or amplifier interfaces to adapt signals without feedback from onboard computers.
