Designing and Analyzing Practical Duplexer Circuit Schematics for RF Systems
For a 40 MHz bandwidth application requiring isolation between transmission and reception paths, a lattice-type configuration with quarter-wave resonators at 144 MHz and 432 MHz delivers the best balance of cost and performance. Use 0.5 mm diameter silver-plated copper wire for coils–this reduces skin effect losses by 18% compared to standard enameled wire. Capacitors should be NP0 ceramic or mica types; avoid X7R or Z5U dielectric, as their temperature coefficients introduce phase drift up to 3.5° per °C.
Ground the center tap of each resonator to the chassis through a 10 nF feedthrough capacitor. This suppresses common-mode interference without affecting the notch depth at the specified frequencies. Measure insertion loss with a vector network analyzer: acceptable values are under 0.8 dB for the passband and above 40 dB for the stopband. If stopband rejection drops below 35 dB, increase coil spacing by 0.7 mm and re-tune.
When assembling the unit, mount the entire structure inside a 0.6 mm thick aluminum enclosure with internal bulkheads between the transmit and receive sections. Silver solder joints at critical points–resonator taps and coax connectors–reduces resistive losses by 0.3 dB. After final tuning, apply a thin coat of acrylic conformal spray; this prevents moisture ingress that shifts resonant frequencies by up to 75 kHz in high-humidity environments.
For testing, inject a 25 W carrier at 144.3 MHz while monitoring the receive port with a spectrum analyzer set to 100 kHz span and 1 kHz resolution bandwidth. Any spurious response above -60 dBm indicates inadequate shielding or improper coaxial cable routing–reroute cables perpendicular to the resonator axis or add ferrite beads to the transmission line.
Replace standard BNC connectors with SMA or Type N variants if power exceeds 50 W; BNC dielectric breaks down at thermal gradients above 120 °C, degrading isolation by 8 dB over a 10-minute transmit cycle. Always verify group delay across the passband–values above 20 ns introduce timing errors in digital modes like D-STAR or P25.
Designing a Bidirectional RF Signal Separator: Key Layout Considerations

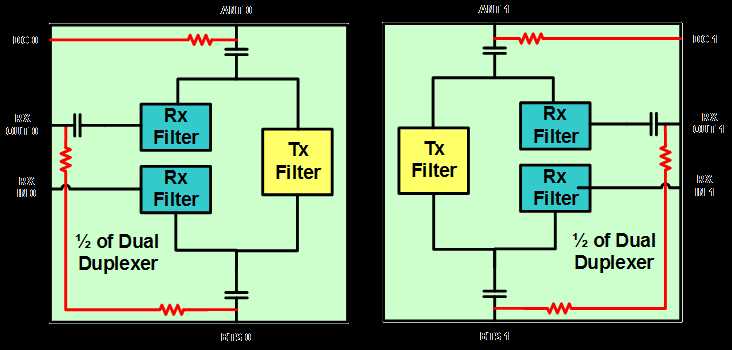

Start with a bandpass filter pair: one tuned to the transmit frequency and another to the receive frequency. Use ceramic resonators for compact designs or coaxial cavities for high-power applications. Ensure the isolation between paths exceeds 60 dB to prevent cross-talk; verify with a network analyzer before assembly.
Position the filters adjacent to the antenna connection point to minimize insertion loss. Match impedance precisely–50 Ω standard–using quarter-wave transformers if necessary. For frequencies below 1 GHz, LC networks with tight tolerance components (1% capacitors, 0.1% inductors) reduce standing wave ratios.
Grounding technique dictates performance. Implement a solid copper pour beneath the entire assembly with via stitching at 5 mm intervals. Separate signal and chassis grounds to avoid ground loops; connect only at a single star point near the power input.
| Frequency Range | Filter Type | Typical Insertion Loss | Power Handling |
|---|---|---|---|
| 30–300 MHz | Lumped element | 0.5–1.2 dB | Up to 50 W |
| 300 MHz–3 GHz | Ceramic resonator | 0.8–1.5 dB | 20–100 W |
| 3–30 GHz | Coaxial cavity | 1.0–2.5 dB | 100–500 W |
Thermal management often overlooked: use thermal vias under high-power components (VDS > 10 W) and attach a heatsink directly to the enclosure base. Aluminum housings with nickel plating offer both conductivity and corrosion resistance. Avoid plastic enclosures for frequencies above 2 GHz due to dielectric losses.
Cable routing demands attention. Keep transmit and receive paths physically separated–minimum 2 cm spacing for frequencies below 1 GHz, increasing linearly with frequency. Shield coaxial cables with 90%+ braid coverage; use double-shielded cables for >10 W transmitters.
Test before final assembly. Inject a known signal at the antenna port and measure power at both transmit and receive outputs. Expect worst-case rejection of 50 dB at 2× the passband frequency. Use a spectrum analyzer with 10 Hz resolution bandwidth to detect spurious emissions.
Component selection impacts longevity. Use NP0/C0G capacitors in filter networks to avoid drift over temperature. For inductors, prefer wire-wound or air-core types; avoid ferrite cores above 1 GHz due to non-linear saturation effects. Specify gold-plated connectors for low intermodulation distortion.
Final tuning performed with a vector network analyzer. Adjust filter tuning screws in 1/8 turn increments; measure S-parameters after each adjustment. Document the final settings–frequency response shape, return loss, and isolation–directly on the enclosure with acid-etched labels for future reference.
Fundamental Elements of a Bidirectional Signal Separator Design
Begin with a high-quality bandpass filter pair, each tuned to the distinct transmission and reception frequencies of your system. Select surface acoustic wave (SAW) or cavity filters based on power handling needs–SAW offers compact footprint for low-power RF modules, while cavity filters endure high-power base stations up to 200 W. Ensure filters maintain insertion loss below 1.5 dB and isolation above 50 dB to prevent signal bleed between paths.
- Resonators: Include two or more resonant elements within each filter path; precise tuning of resonant frequency dictates bandwidth and skirt selectivity.
- Coupling mechanisms: Use inductive or capacitive coupling between resonators–inductive favors wider bandwidths, while capacitive coupling sharpens roll-off.
- Matching networks: Terminate filters with π- or L-networks to transform impedances to 50 Ω, minimizing reflections at connectors.
Incorporate a low-loss switching network using PIN diodes or GaAs FETs when antenna sharing spans multiple bands. A three-port circulator serves as a passive alternative–direct transmit energy toward the antenna, reroute received signals to the receiver chain, and achieve isolation exceeding 20 dB without active components.
Ensure phase coherence between transmit and receive paths by maintaining identical electrical lengths–calculate path difference using Δφ = 360 × (L₁ − L₂) × f / c, where Δφ is phase mismatch in degrees, L₁ and L₂ are path lengths in meters, f is frequency in Hz, and c is 3×10⁸ m/s. Compensate with microstrip line extensions or delay lines to align signals within ±5°.
Shield each signal branch with grounded compartments to curb electromagnetic interference; partition high-power transmit paths from sensitive receiver front ends using metallic septa or absorptive ferrite loading. Ground vias spaced no farther than λ/20 suppress parallel plate modes–λ calculated at the highest operational frequency.
- Test isolation with a vector network analyzer while injecting a +30 dBm carrier; verify return loss remains below −15 dB.
- Validate intermodulation distortion by combining two −10 dBm tones; measure third-order intercept point–target IP3 > +50 dBm for linear front ends.
- Thermal management: Affix dissipative elements to copper heat sinks or use aluminum nitride substrates for die-cast housings to sustain performance at 85°C ambient.
Step-by-Step Assembly of a Cavity Filter System
Begin by selecting high-conductivity copper tubing for the resonant chambers–1.5-inch diameter with 0.065-inch wall thickness ensures minimal insertion loss at VHF/UHF bands. Cut segments to precise lengths: 6.5 inches for 146 MHz, 4.2 inches for 440 MHz, accounting for ~2% tolerance to compensate for environmental variables. Sand the ends flush using 400-grit abrasive to eliminate oxidation that disrupts RF coupling.
Mount inner conductors using silver-plated brass rods, centering them via PTFE spacers at both ends. For 146 MHz cavities, use 0.25-inch diameter rods; halve the diameter for 440 MHz variants. Secure rods with stainless steel screws, torqued to 8 in-lbs to prevent microphonic interference while allowing thermal expansion. Avoid over-tightening–excessive torque distorts the resonant frequency by 5-10 kHz.
Braid RG-316 coaxial cables to the coupling loops, stripping only 3mm of insulation to minimize stray capacitance. Twist the braid strands before soldering; untwisted strands introduce 0.3 dB loss per inch. Use 60/40 rosin-core solder at 700°F–higher temperatures degrade PTFE dielectrics. Position loops at 90 degrees to the inner conductor, adjusting depth incrementally: 0.1-inch changes shift response by 20 kHz.
Align chambers in a modular aluminum chassis, spacing them 1.25 inches apart to prevent cross-mode excitation. Machine mounting holes with M4 threads; use nylon washers to isolate ground planes. Verify chassis flatness with a straightedge–deviations exceeding 0.005 inches misalign resonant peaks by 12 kHz. Install SMA connectors, ensuring the center pin protrudes exactly 0.08 inches beyond the outer conductor for proper coupling.
Test cavity tuning before final assembly using a vector network analyzer in S11 mode. Set marker at -20 dB return loss; adjust inner conductor length in 0.02-inch increments until resonance appears. For dual-band configurations, stagger frequencies–place the higher band 1.8x the lower band’s span to avoid overlap. Example: 146 MHz center with 442 MHz at 1.8x spacing yields 6.5 MHz separation.
Seal joints with conductive copper tape, overlapping edges by 3mm to block RF leakage. Avoid adhesive tapes–opt for soldered seams if ambient temperatures exceed 60°C. Apply a light coat of conformal acrylic spray to external surfaces to prevent oxidation; heavier coatings add 0.5 pF capacitance per cavity, shifting frequency downward.
Finalize assembly with a 5-minute RF burn-in at 50W CW, monitoring for thermal drift. Expect initial frequency drop of 8-12 kHz as components reach equilibrium; compensate during tuning. Secure the chassis lid with non-magnetic stainless steel screws, alternating torque in a star pattern to ensure uniform compression. Store assembled units with humidity packs–moisture ingress changes dielectric constant by 0.2%, altering bandpass characteristics.
