Complete Duraspark 1 Wiring Diagram and Connection Guide for Ford Systems
For 1975–1984 Ford models with the thick-film ignition module, proper signal routing prevents chronic misfires and stalling. Begin by identifying the violet (ignition trigger) and orange (distributor reference) leads from the module–these two strands must terminate at the distributor’s magnetic pickup without any splices or resistance above 0.5 ohms. Test continuity with a digital multimeter set to resistance; values exceeding 0.8 ohms indicate corroded terminals or frayed insulation requiring immediate replacement.
Ground integrity determines module longevity. The black wire from the module connects directly to the engine block via a dedicated 10-gauge strand, bypassing body grounds prone to voltage drops. Secure this ground with a stainless-steel bolt torqued to 18 ft-lbs–aluminum oxide buildup on cast surfaces is a common failure point; sand the contact area with 80-grit emery cloth before installation. Avoid shared grounds with accessories like headlights; parasitic resistance above 0.1V under load causes erratic timing swings.
Power feed reliability is non-negotiable. The module’s red lead attaches to a fused 12V source switched by the ignition–factory wiring diagrams specify a 15-amp inline fuse within 6 inches of the connection. Verify voltage at the module’s terminal under cranking: readings below 9.6V indicate a weak battery or undersized alternator (minimum 65A for V8 applications). For aftermarket upgrades, a 100A silicon rectifier reduces thermal noise that can corrupt the module’s internal logic.
Coil selection affects spark energy. Match the module’s output to a 12V coil with a primary resistance of 0.7–1.0 ohms; higher resistance reduces current, weakening spark intensity. Install a 1-kilovolt resistor wire between the coil’s positive terminal and ignition switch to suppress RF interference–omitting this detail invites random timing glitches, especially at high RPM. Route all high-voltage leads at least 2.5 inches from sensor wires to prevent inductive coupling.
Temperature extremes dictate component placement. Mount the ignition control unit vertically on a flat, uninsulated surface (e.g., firewall) to allow airflow; heat-soak above 180°F accelerates failure of the thick-film circuitry. Shield the module from direct engine heat using a phenolic spacer or ceramic washer–never fiberglass, as fibers can lodge between contacts. For forced-induction builds, relocate the module to the inner fender well and install a 160°F thermal cutoff switch wired in series with the ignition feed.
Ford’s Early Electronic Ignition Schematic Guide
Start by locating the ignition control module on the firewall or inner fender. The black/orange wire from the module connects directly to the negative terminal of the coil, replacing the traditional ballast resistor setup. Ensure this connection is secure and corrosion-free–poor contact here causes intermittent misfires. Use a multimeter to verify 9-12 volts at the coil positive terminal with the key in the “on” position, confirming proper power delivery from the harness.
Key Connections for Reliable Spark Delivery
The violet/white wire carries the tachometer signal to the instrument cluster–if your vehicle lacks a rev counter, cap this lead with heat-shrink tubing to prevent shorts. The white/light blue wire links to the distributor’s magnetic pickup, critical for timing signals. Solder all joints involving this circuit; crimp connectors degrade over time. For diagnostics, probe the pickup coil resistance at the harness connector–values should read 500-1500 ohms. Readings outside this range indicate a faulty sensor.
Route harness cables away from exhaust manifolds and sharp edges. The yellow/white wire supplies 12V ignition power–protect it with a fusible link or 10-amp fuse within 4 inches of the battery. Ground the module’s brown/white wire to a clean chassis point, not the distributor housing. Sand paint away from the grounding location and use a star washer to ensure conductivity. Test ground continuity with a test light; voltage drop above 0.2V suggests a weak connection.

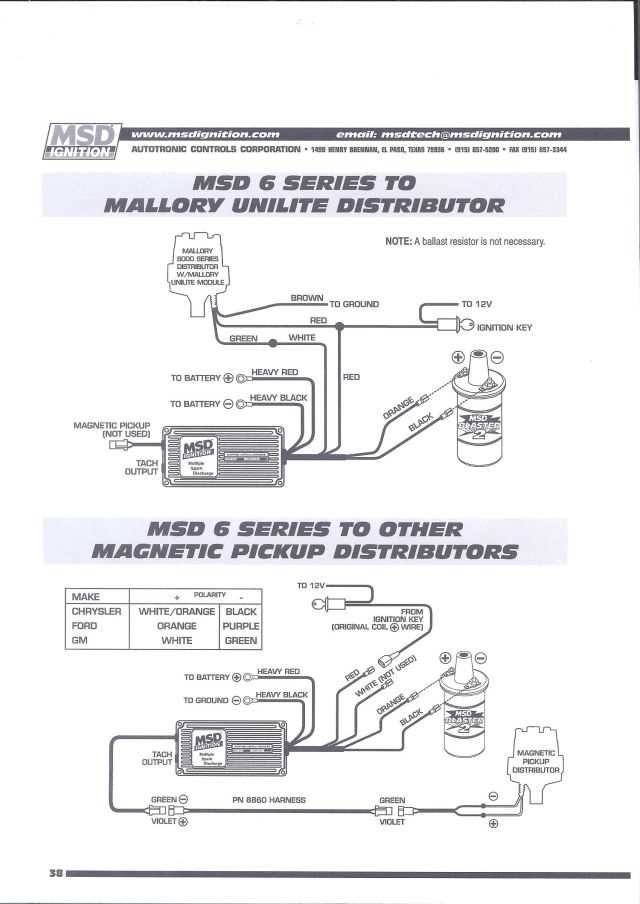

When replacing components, match Ford’s original color codes–aftermarket kits often deviate, causing confusion. The red/light green wire feeds the coil’s primary circuit; splice it only with 16-gauge wire or thicker. For high-performance applications, upgrade to an MSD 6AL box–tap its trigger input into the white/light blue circuit, retaining the original module for fail-safe operation. Avoid running ignition leads parallel to spark plug wires; cross them at 90-degree angles to minimize electrical interference.
For troubleshooting no-start conditions, jump the coil’s negative terminal to ground momentarily while cranking. Spark confirms a faulty module; no spark points to wiring faults or a dead pickup coil. Use dielectric grease on all connectors to prevent moisture ingress. Replace the condenser in the distributor cap if arcing persists–modern equivalents lack the voltage suppression needed for older ignition systems.
Step-by-Step Electrical Hookup for Early Ford Ignition Variants
Begin by securing the battery’s positive lead to the coil’s “+” terminal using 10-gauge stranded copper cable. Ensure the connection is crimped with a ring terminal and sealed with heat-shrink tubing to prevent oxidation. A misaligned or loose hookup here will cause intermittent spark dropouts at higher RPMs.
Route the ignition feed from the coil’s “-” terminal to the electronic control module’s P post. Use 14-gauge wire with a crimp connector and solder the joint for low-resistance conductivity. Verify polarity–reversing this link will disable spark delivery entirely. Label the wires to avoid cross-connections during future servicing.
Connect the distributor pickup coil’s two leads–one to the module’s N terminal, the other to C. Use twisted-pair wiring (16-gauge minimum) to reduce electromagnetic interference from the alternator or high-voltage coil pulses. A 0.008-inch air gap between the reluctor and pickup must be set with a brass feeler gauge; deviations outside 0.005–0.010 inches will cause timing scatter.
Attach the tachometer output wire from the module’s I terminal to the instrument cluster’s signal input. Use a 22-gauge shielded cable if the vehicle has long wiring runs or aftermarket audio systems. Omitting shielding may result in erratic tach needle bounce at idle.
Ground the module’s G post to the engine block with a dedicated 10-gauge braided strap. Bolt it to a clean, unpainted surface and apply dielectric grease to the contact points. Poor grounding is the most common cause of hard starting and random misfires under load.
Link the ignition switch’s RUN/START output to the module’s S terminal. Route through a 20-amp fuse within 8 inches of the switch to protect the control circuit from voltage spikes. Skip the fuse, and a short in the harness could destroy the module’s internal transistors.
Test each connection with a multimeter set to diode-check mode before powering up. Probe the pickup leads–you should read 800–1200 ohms. Below 600 or above 1500 ohms indicates a faulty stator requiring replacement. Confirm coil resistance at 1.0–1.4 ohms primary and 6500–9000 ohms secondary; outside specs demand a new coil.
Color Codes and Wire Functions in the Duraspark 1 Harness
Start by identifying the primary ignition feed line–typically a yellow (YEL) conductor with a heavy-gauge cross-section. This wire delivers battery voltage directly to the ignition module when the key is turned to the “start” or “run” position. Verify its continuity with a multimeter before diagnosing other components; voltage drop exceeding 0.5 volts under load indicates corrosion or a loose connection at the fuse block or ignition switch.
- Orange/Black (ORG/BLK)–Switched 12V output, powers the coil’s positive terminal. Interruption here causes immediate spark loss.
- Black/White (BLK/WHT)–Ground return path for the ignition module. Resistance above 0.1 ohms signals a poor chassis or engine-block ground.
- Green/White (GRN/WHT)–Trigger signal from the distributor pickup. Noise on this line from alternator interference is common; route it away from high-current wires.
- Purple (PPL)–Tachometer signal output. Connect directly to aftermarket gauges without additional resistors.
- Brown/White (BRN/WHT)–Ballast resistor bypass during cranking. Omit this wire if your setup uses a non-resistor coil.
For dual-spark applications, the yellow/black (YEL/BLK) wire supplies a secondary ignition source. Splice it cleanly into the main YEL feed, avoiding sharp bends that stress copper strands. Heat-shrink all splices; electrical tape degrades within 18 months under hood temperatures.
Troubleshooting Voltage Irregularities
Measure voltage at the orange/black wire with the engine idling: acceptable range is 13.8–14.2 volts. Readings below 13.5 volts suggest either a failing alternator or excessive resistance in the charging circuit. Check the fusible link between the battery and starter solenoid; melted insulation here mimics ignition failure.
- Disconnect the battery negative terminal before any harness work.
- Use a dedicated crimping tool for terminals; pliers create unreliable connections.
- Apply dielectric grease to connectors exposed to moisture.
- Re-route the purple wire through a grommet if it passes near exhaust manifolds.
Common Misconnections and Fixes
A reversed green/white and black/white wire causes erratic timing advance. Swap them back, then recheck base timing at 10° BTDC with a timing light. If the engine stalls when the ignition key is released, the orange/black wire’s connection to the coil is intermittent–resolder it with 60/40 rosin-core solder.
