Complete Wiring Guide for Ecobee Smart Thermostat Premium Installation

Begin by disconnecting power at the circuit breaker to prevent electrical hazards. Verify the absence of voltage using a multimeter–any residual current above 0.1V requires immediate service to the HVAC system before proceeding.

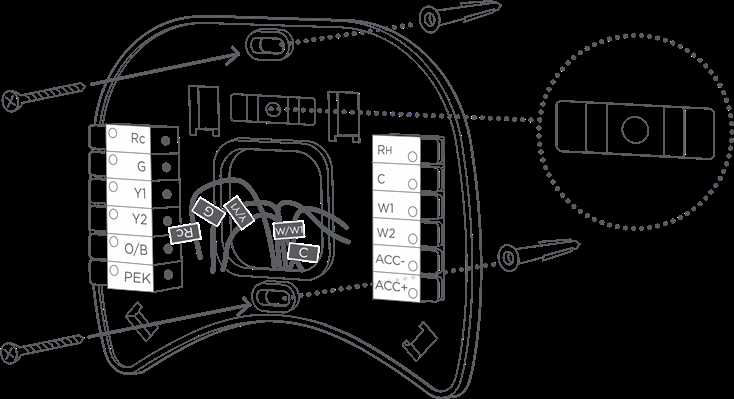

Locate the control board’s labeled terminals: Rc (cooling power), Rh (heating power), C (common), W1/W2 (primary/auxiliary heat), Y1/Y2 (stage 1/2 cooling), G (fan), and O/B (heat pump reversing valve). Match these to the device’s corresponding connectors by color and function–do not rely on wire insulation hues alone, as industry standards vary by manufacturer.

For dual-fuel configurations, separate Rc and Rh using the included jumper only if the combined supply exceeds 0.3A–otherwise, treat them as a single R source. Heat pump systems require exact wiring of the O/B terminal: energized O for cooling mode, B for heating. Reverse polarity risks compressor damage.

Humidity sensor integration demands a direct connection to dedicated HUM and COM inputs–avoid splicing into existing low-voltage circuits, as this introduces signal noise. For ventilator controls, use the VENT terminal with a 24V relay if manual override is needed.

Test each circuit individually before securing connections. Trigger heating, cooling, and fan modes via the onboard diagnostics and monitor terminal voltage for drops exceeding 5%. If using auxiliary sensors, ensure they’re positioned at least 5 feet from supply vents to prevent false readings. Secure all wiring with cable ties to avoid vibration-induced disconnects.

Connecting Your Climate Control Device: A Step-by-Step Guide

Match the rh terminal to the cooling relay if your system lacks a dedicated C-wire. Label each wire before disconnecting–colors often differ between models, and misalignment causes installation failures. Use a multimeter to verify voltages: 24V between R and C confirms proper power supply. Avoid common mistakes like reversing G (fan) and Y (cool) wires, which triggers short cycling.

For heat pump setups, locate the O/B terminal configuration first. Reversing valves typically use O for cooling and B for heating–check manufacturer specifications to avoid damaging the compressor. If your system has auxiliary heat (W2/AUX), connect it only when outdoor temperatures drop below 40°F (4°C); unnecessary activation increases energy waste by 15-20%.

• Red (R) → Power (transformer, 24V)
• Green (G) → Fan control
• White (W) → Primary heating
• Yellow (Y) → Cooling/compressor
• Blue/Black (C) → Common wire (ground)
• Orange (O) → Heat pump reversing valve (cooling mode)
• Purple/Brown (E) → Emergency heat (rare; follow local codes)

For dual-fuel systems, connect the W2 terminal to the secondary heat source circuit breaker. Test the setup in stages: first heating, then cooling, finally fan-only mode. Observe the device’s response time–delays exceeding 3 minutes suggest wiring errors or compressor malfunctions. Keep spare 18-gauge thermostat wire handy; replacements cost $0.30/ft but save hours of troubleshooting.

Systems with zoning controllers require bridging Rc and Rh terminals. Remove the Rc jumper if your setup separates heating and cooling power sources. For humidifiers, attach the H/UM terminal to the accessory’s relay; set humidity thresholds to 35-45% to prevent mold growth. Verify all connections against the original plate’s sticker–factory diagrams include model-specific adjustments rarely found in generic guides.

Matching Control Unit Configurations with Climate System Requirements

Begin by verifying the low-voltage transformer output–typically 24V AC–on the furnace or air handler’s R terminal before connecting any advanced control unit. Most modern heating and cooling systems use a C wire (common) to deliver continuous power; if absent, install an adapter kit or repurpose an unused wire (often G or Y) after confirming compatibility with the system’s manual safety guidelines. High-efficiency heat pumps with emergency heat strips may require auxiliary wiring to separate W2 and Aux terminals, ensuring staged heating engages correctly without overloading the control board.

For dual-fuel setups combining a heat pump with a gas furnace, label the O/B terminal based on the reversing valve’s energized state–O for cooling mode, B for heating. Verify the system’s defrost cycle behavior, as some older heat pumps reverse the valve during defrost, necessitating a jumper between O/B and W1/W2 if the installer’s guide specifies per-stage activation. Systems with two-stage cooling (Y1, Y2) or heating (W1, W2) demand precise terminal mapping; mismatches can lead to short cycling or reduced efficiency, particularly in variable-speed air handlers.

Zone-controlled systems with multiple dampers require a PEK (Power Extender Kit) to manage power distribution if the existing setup lacks sufficient spare wires. Confirm the air handler’s compatibility with multistage thermostats–some budget models only support single-stage operation, risking improper load balancing. Transformers rated below 40VA may struggle with auxiliary equipment (humidifiers, dehumidifiers, ventilators), causing voltage drops; measure output with a multimeter under load to avoid nuisance tripping of the high-limit switch.

Avoid assuming wire colors correspond to standardized functions–always cross-reference the existing control’s label and the climate system’s wiring schematic. Older systems (pre-2010) often lack a C wire, but newer variable-speed ECM motors can sometimes operate with a virtual C wire via the G terminal, though this bypasses safety disconnects and requires separate fuse protection. For boiler-based hydronic systems, identify if the system uses end switches or outdoor reset controls, as these may need R/W or T/T jumper configurations distinct from forced-air setups.

Before finalizing connections, disconnect power at the breaker and use a continuity tester to rule out stray voltage on unused wires. Advanced climate controls with remote sensors or occupancy detection rely on stable 24V and uninterrupted C wire connectivity; verify the circuit doesn’t share power with high-draw accessories like UV lights or high-output humidifiers. If the system includes a dehumidifier, ensure the DH terminal (if present) isn’t tied to Y, as this can trigger compressor conflicts during off-cycle periods.

Step-by-Step Guide to Integrating Your Climate Control Device with HVAC Systems

Turn off the power to your heating and cooling system at the circuit breaker before beginning installation. Locate the breaker labeled for your furnace or air handler and flip it to the “off” position. Verify the system is de-energized by adjusting the existing wall unit–no response confirms safe conditions. Failure to cut power risks electrical shock or damage to components.

Remove the faceplate from your existing temperature regulator by gently pulling it away from the wall. Most models release with a light tug, but some may have concealed clips requiring a flathead screwdriver for leverage. Set the faceplate aside, leaving the baseplate mounted to expose the wiring terminals. Note the labeled terminals (e.g., R, C, W, Y, G) and their corresponding wires for later reference.

Disconnect the low-voltage wires from the baseplate by loosening each terminal screw. Grip each wire with needle-nose pliers and gently pull it free, avoiding any tugging that could detach the wire from its insulation. If wires lack labels, use masking tape to mark each one according to its terminal (e.g., “Rc” for power, “Y” for cooling). Cross-check these labels against the manufacturer’s compatibility guide before proceeding.

Preparing the New Control Unit

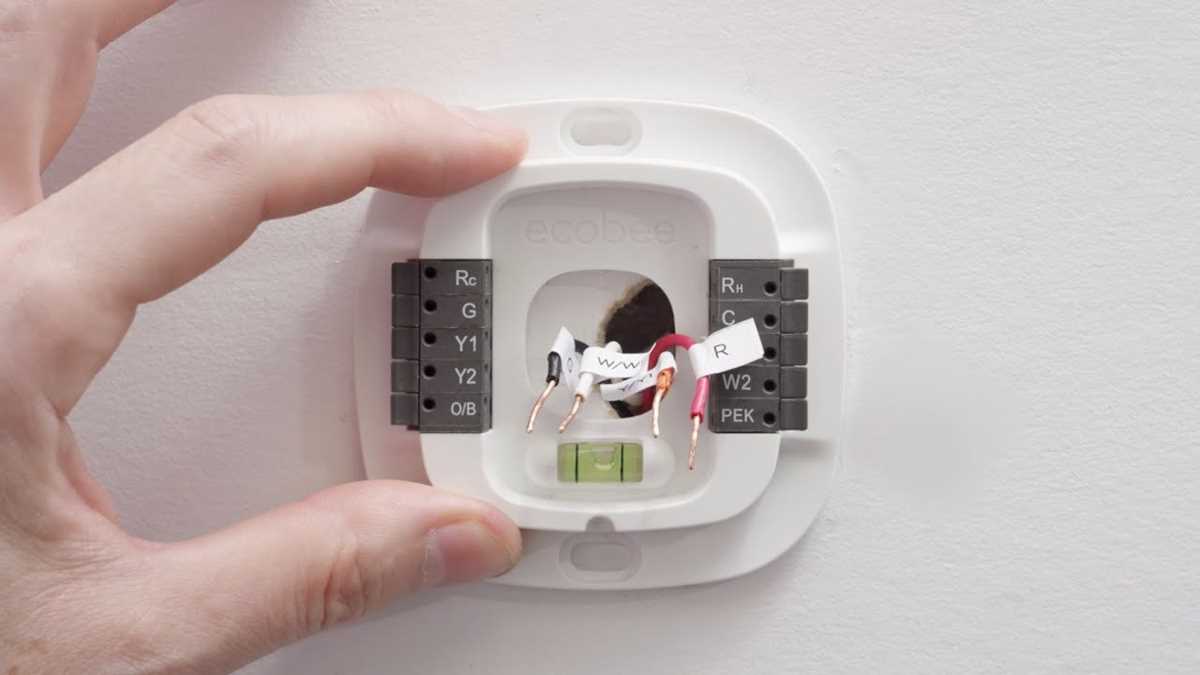

Align the included mounting plate with the exposed wall opening. Secure it with the provided screws, ensuring it sits flush against the wall–an uneven fit may interfere with wire connections. Feed the wires through the center opening of the plate, leaving 6–8 inches of slack for ease of installation. If the wall has significant gaps, use the included foam gasket to prevent drafts.

Attach the labeled wires to the corresponding terminals on the back of the new unit. Insert each wire into its terminal, then tighten the screw securely–loose connections cause intermittent failures. For systems with a “C” wire (common), ensure it is connected to enable continuous power; without it, features like remote access may malfunction. If your HVAC lacks a “C” wire, use the included power extender kit (PEK) per the manufacturer’s instructions.

Snap the new control panel onto the mounting plate until it clicks into place. Restore power at the circuit breaker and observe the display–it should illuminate within 30 seconds. Follow the on-screen prompts to select language, date, and time, then proceed to system configuration. Choose your HVAC type (e.g., conventional, heat pump) and confirm wiring matches the earlier labels to avoid misconfiguration.

Test each function by adjusting settings via the touchscreen or companion app. Activate heating, cooling, and fan-only modes, listening for the HVAC system’s response (e.g., relay clicks, airflow startup). Monitor the home’s ambient temperature for 10–15 minutes per mode to verify proper operation. If errors appear (e.g., “No Power Detected”), recheck wire connections, breaker status, and compatibility with your system’s voltage (typically 24V AC).

Resolving Frequent Installation Issues with Climate Control Devices

Check for incorrect terminal connections immediately. Verify the colored cables match the labeled slots on the backplate. Red (R) often carries 24VAC power–misplacing it to Common (C) causes system shutdowns. Cross-reference with the original unit’s terminal labels if available; retrofitting newer models with older HVAC systems frequently reveals mismatched labeling conventions.

Confirm the transformer capacity before proceeding. Underpowered setups with dual-stage heat pumps or auxiliary heat strips demand at least 40VA transformers. Measure voltage between R and C with a multimeter–readings below 22VAC indicate insufficient power. Upgrade the transformer if necessary; standard HVAC transformers (e.g., Honeywell AT140A1000) deliver 40VA reliably.

Symptom	Probable Cause	Solution
Device fails to power on	R or C wire disconnected	Reattach loose connections; test continuity with multimeter
Short cycling	G wire incorrectly placed on W slot	Relocate G to dedicated terminal; ensure W handles heating only
Cooling mode activates heating	Y and O/B wires reversed	Swap terminals; verify O/B corresponds to cooling valve operation

Detect parasitic power drain if the screen dims intermittently. Disconnect all auxiliary sensors and accessories temporarily. If the issue persists, measure current draw–excessive consumption (>30mA) suggests a faulty internal capacitor or incompatible humidifier transformers. Replace the capacitor (e.g., Cooper Bussmann 15A Fast-Acting) or isolate the humidifier circuit.

Inspect low-voltage wiring for nicks or fraying, especially in older homes with cloth-wrapped cables. Exposed conductors near metal ducts or pipes cause intermittent shorts. Use heat-shrink tubing or electrical tape to insulate damaged sections; consider rerouting cables if chafing recurs. Avoid bundling power and signal wires–separate them by at least 6 inches to prevent EMI interference.

Test reversing valve polarity if heat pump modes behave erratically. Modern variable-speed compressors require precise O/B configuration–miswiring here forces defrost cycles into heating mode. Toggle the valve manually via the equipment’s test button (if available) or adjust the dip switches on the control board. For Rheem systems, refer to dip switch 5; Trane units typically invert via O/B wire swap.

Reset the device after correcting wiring errors. Remove the front panel, press and hold the recessed reset button for 10 seconds. Reconnect power–failure to reinitialize suggests residual firmware corruption or hardware damage. In such cases, perform a factory reset via the menu and reconfigure all settings from scratch.
