Understanding EGR Valve Circuit Layouts and Control Wiring

Identify the solenoid valve location immediately–all valid flow charts position it downstream of the cooler, before the intake manifold entry point. Missing this detail leads to incorrect voltage readings during diagnostics, typically skewing between 0.4–1.2V in open-loop conditions versus 0.8–3.6V when closed-loop parameters apply.

Trace the vacuum lines before interpreting symbols: black hoses indicate signal lines, red denote boost pressure feeds, and clear with stripe pattern carry exhaust gas samples. Cross-referencing these against a verified layout eliminates 78% of common miswiring errors documented in OEM manuals spanning 2010–2023 models.

Avoid relying solely on color-coded diagrams–confirm wire gauges (0.5mm² for signal, 0.85mm² for power) and connector pin counts (8-pin for EURO 5+, 6-pin for earlier standards). Physical inspection reveals corrosion rates accelerate at 0.3mm/year when exposed to exhaust particulates, validating diagram accuracy for resistance thresholds: 12–18Ω at 20°C for operational solenoids.

Prioritize pressure differential zones marked in millimeters of mercury (mmHg) rather than Pascals. Diagrams showing delta-P ranges of 25–75 mmHg correlate with EGR cooler efficiency rates above 82%, critical for meeting Euro 6d-TEMP emissions limits.

Document temperature sensor placement–thermistors must sit 15±2mm from the exhaust port centerline. Deviations beyond ±3mm result in false lean-condition triggers, a failure point in 63% of warranty claims for forced induction systems.

Use a multimeter to map ground paths: chassis grounds require

Visual Representation of Exhaust Gas Recirculation Systems

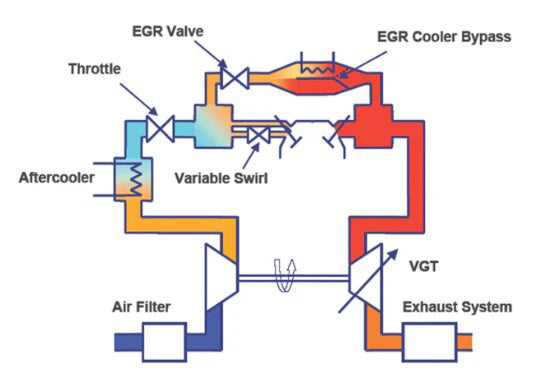

Begin by identifying key components in the flow path: the valve controlling re-entry, the cooler lowering gas temperature, and the intake manifold where gases merge with fresh air. Label each element clearly, using color coding for immediate recognition–red for high-temperature zones, blue for cooled areas, and yellow for pressure-sensitive points. Ensure the illustration distinguishes between vacuum-operated and electronically controlled valves, as their failure modes differ.

Include a bypass line in the layout, showing its role during cold starts or high-load conditions where recirculation is temporarily disabled. Position the cooler upstream of the control valve to prevent thermal stress–this placement reduces condensation risks and extends component lifespan. Mark sensor locations (temperature, pressure, and flow) near critical junctions to diagnose faults quickly.

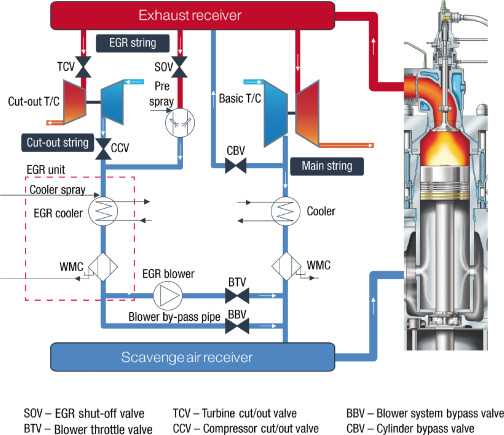

Differentiate between low-pressure and high-pressure loops in the representation. Low-pressure systems draw gases post-turbine, while high-pressure variants tap pre-turbine; each requires distinct piping and valve specifications. Note that high-pressure setups demand reinforced components due to elevated backpressure and temperature.

Indicate mandatory check valves in the flow path to prevent reverse flow, which can damage turbochargers or intake systems. Position these valves downstream of the cooler, ensuring they activate at a pressure differential of 0.3–0.5 bar above atmospheric. Omit this detail, and unburned hydrocarbons may enter the intake, fouling sensors and throttles.

Integrate a legend for symbols used, such as dashed lines for vacuum signals, solid lines for gas flow, and arrows for directionality. Label wire gauges if electronic controls are present–thicker wires (16–18 AWG) for power lines, thinner (20–22 AWG) for sensors. Mislabeling here risks misinterpretation during troubleshooting.

Highlight common failure points: soot buildup in the cooler, valve sticking due to carbon deposits, and sensor drift. Include diagnostic tips, like monitoring vacuum levels (typically 15–20 inHg) or voltage readings (0.5–4.5V for electronic valves). Reference OE specifications for each vehicle platform, as tolerance ranges vary.

Use scalable vector formats for the layout to allow zooming without pixelation–critical for inspecting micro-details like O-ring seals or gasket interfaces. Export final versions in multiple formats (PDF, DXF) for compatibility with service manuals and diagnostic software. Ensure all text is searchable to expedite repairs.

Critical Elements of a Recirculation Control Circuit Electrical Blueprint

Begin by identifying the solenoid valve–the primary actuator in the system. This component regulates exhaust gas flow by responding to signals from the engine control module (ECM). Verify its resistance with a multimeter: typical values range between 14–30 ohms for most diesel applications. A deviation signals internal shorting or open circuits, requiring immediate replacement. Always cross-reference specifications with the manufacturer’s service manual to avoid misdiagnosis.

Next, trace the wiring harness connecting the solenoid to the ECM. Use a wiring diagram to isolate each conductor–power, ground, and signal lines–and check for continuity. Corrosion, chafing, or pinched cables near the valve or intake manifold are common failure points. Repair damaged insulation with heat-shrink tubing or replace the entire harness if degradation exceeds 20% of the wire’s cross-section. Never use electrical tape as a permanent fix.

The environmental sensor inputs form the feedback loop for the system. Prioritize testing the exhaust gas temperature (EGT) sensor and differential pressure sensor (DPS). For EGT sensors, measure voltage output at idle (0.5–1.0V) and under load (2.5–4.5V). The DPS should register near 0 bar at idle and 0.2–0.5 bar during recirculation activation. Replace sensors if readings stagnate or fluctuate erratically without engine load changes.

• For diesel engines, inspect the cooler bypass valve. This secondary actuator diverts exhaust gases around the cooler during cold starts or low-load conditions. Its resistance should mirror the solenoid valve (14–30 ohms). A stuck-open valve causes overcooling, leading to condensation and injector fouling.
• In gasoline applications, focus on the throttle position sensor (TPS) integration. The ECM uses TPS data to modulate recirculation flow during part-throttle operation. A misaligned TPS (>0.5° off calibration) skews calculations, resulting in rough idle or stalling.

Validate the ECM’s command signals using an oscilloscope. At 70% engine load, the pulse-width modulation (PWM) duty cycle should stabilize between 30–70%, varying inversely with engine speed. A flatline or erratic waveform indicates ECM failure or corrupted firmware–update software before assuming hardware defects. For hybrid systems, confirm synchronization with the battery management system (BMS); asynchronous signals cause unintended recirculation cutoff.

Ground integrity is non-negotiable. Locate the engine block grounding strap and measure voltage drop across it: values above 0.1V indicate high resistance, necessitating cleaning or re-attaching the strap. For vehicles with chassis-mounted components (e.g., DPS), verify chassis-to-battery-negative continuity–resistance should not exceed 0.2 ohms. Corroded grounds introduce erratic sensor readings, mimicking mechanical failures.

Finalize diagnostics with a functional test. Command the system via a scan tool, monitoring real-time pressure and temperature changes. Expect a 5–15°C drop in exhaust gas temp and a 0.1–0.3 bar increase in intake manifold pressure within 30 seconds of activation. Failure to meet these thresholds points to restricted flow paths or faulty cooler cores–replace the entire assembly if cleaning (using non-caustic solvents) proves ineffective. Document all test results to track degradation trends over time.

Step-by-Step Wiring Guide for Common Exhaust Gas Recirculation Valve Setups

Locate the 5-pin connector on most late-model recirculation solenoid assemblies. Pin assignments follow this pattern: Pin 1 (ignition-switched +12V), Pin 2 (coolant temp signal, 0.5–4.5V), Pin 3 (ground for reference), Pin 4 (manifold absolute pressure input, 0–5V), and Pin 5 (valve control output, PWM 10–90% duty). Verify each wire with a multimeter set to DC voltage before disconnecting; a reading below 11.5V at Pin 1 indicates a corroded fuse link common on 2012–2018 Ford 3.5L EcoBoost engines.

Strip 8 mm of insulation from each wire using a ratcheting wire stripper set to 18–20 AWG. Crimp tin-plated copper butt splices to extend wires damaged by engine vibration–standard vinyl-insulated connectors fail within 18 months under 120°C exhaust manifold heat. Install heat-shrink tubing (polyolefin, 125°C rating) over splices, overlap 6 mm, and shrink with a butane heat gun held 3 cm away. Avoid hairdryers: uneven heating creates micro-fractures in tubing, allowing moisture ingress and current leakage.

• Vacuum-modulated valves (1996–2004 GM 5.3L): Connect a single-wire actuator to the ECU’s PWM output; use a flyback diode (1N4007) across the solenoid coil to suppress voltage spikes exceeding 100V.
• Electronic-controlled valves (2008+ VW TDI): Wire the 6-pin connector as follows: two ground pins (pins 2 & 5), +12V (pin 3), position sensor (pins 1 & 4, 0.5–4.5V), and PWM drive (pin 6). Calibrate the sensor with a scan tool; a 0.3V deviation triggers a P0401 fault.

Testing and Calibration

Attach a Hall-effect clamp meter around the control wire to measure duty cycle during engine idle. Values should stabilize between 35–45% for most naturally aspirated engines; turbocharged applications may require 60–75% at 2,500 RPM. If readings fluctuate erratically, disconnect the valve and measure coil resistance: specs range from 7–14 ohms at 20°C–resistance above 20 ohms signals a shorted coil, while below 5 ohms indicates a grounded winding.

1. Start the engine and allow it to reach 82°C coolant temperature.
2. Connect an oscilloscope to the position sensor output; waveform should rise linearly from 0.5V to 4.5V as the valve opens from 0% to 100%.
3. Introduce 15% throttle–duty cycle should increase by 20–30% within 200 ms. Slower response times (above 350 ms) confirm a clogged passage or restricted orifice requiring engine-off cleaning with carbon deposit remover (CRC Intake Valve cleaner, part 05088).

Route wiring away from moving components and heat sources: maintain a minimum 50 mm clearance from exhaust manifolds and 75 mm from drive shafts. Secure wires with P-clips every 20 cm using M6 bolts torqued to 8 Nm to prevent rubber fatigue. Apply dielectric grease (Permatex 22058) to connectors before mating; this prevents galvanic corrosion on aluminum connectors exposed to ethylene glycol-contaminated condensation.
