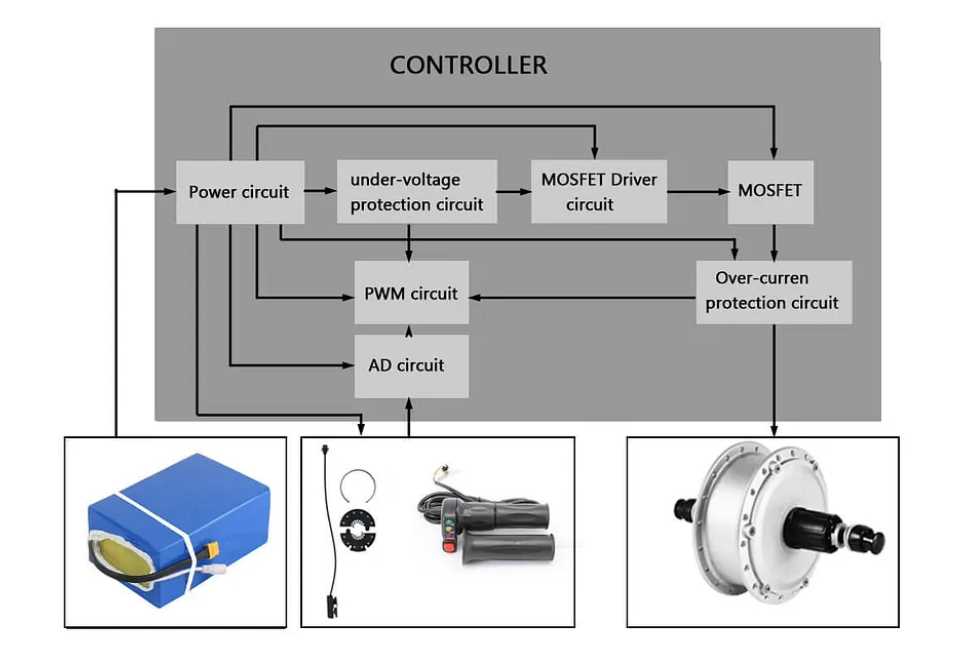

Complete Guide to Building and Understanding Electric Bike Controller Schematics

Begin with a 36V to 48V lithium-ion power pack as the foundation, ensuring it delivers at least 10Ah for urban commutes or 20Ah for off-road endurance. Pair this with a MOSFET-based throttle processor–opt for models rated 80A continuous, 200A peak–to handle sudden acceleration surges without degrading efficiency. Include a 12V auxiliary output with a dedicated voltage regulator to power accessories like LED indicators or a horn without draining the main supply.

Integrate a PWM speed governor set to 20kHz frequency for smooth torque delivery, reducing jerking during low-speed maneuvers. Add a thermal cutoff switch on the MOSFETs, calibrated to 80°C, to prevent overheating under sustained loads. For regenerative braking, wire a shunt resistor (0.01Ω, 10W) in series with the motor windings to recapture energy during deceleration–this alone can extend range by 15-20% on hilly terrain.

Connect a Hall-effect sensor array (AH3503 or equivalent) to the motor rotor for precise speed feedback, ensuring compatibility with sine-wave commutation for quieter operation. Isolate the control logic from power circuits using optocouplers (PC817) to minimize interference. For diagnostics, include a serial UART interface (baud rate 9600) to log voltage, current, and temperature data to an external microcontroller or display unit.

Use 16-gauge silicone wire for high-current paths (battery to motor) and 22-gauge stranded wire for signal lines (throttle to processor). Apply thermal paste between MOSFETs and the heatsink to improve heat dissipation–this can drop operational temperatures by 10-12°C. Secure all connections with solder and heat-shrink tubing to prevent vibration-induced loosening, a common failure point in mobile applications.

Power-Assisted Cycle Motion Control Schematic

Select a 36V or 48V system core based on wheel motor specifications–most gearless hub drives demand 48V for sustained hill climbs without overheating MOSFETs. Use a 60V DC bus capacitor (470μF) to absorb regenerative braking spikes, reducing voltage ripple below 0.5%. Position the capacitor within 10cm of the switching regulator to prevent parasitic inductance.

Integrate a Hall-effect throttle sensor (0–5V output) calibrated for 1.1kΩ input impedance to avoid signal distortion. Avoid PWM-based sensors–they introduce delay in torque response. Mount the sensor 5mm from the twist grip magnet using an aluminum bracket to minimize thermal drift from motor heat.

Key Components Layout

• Microprocessor (STM32F103): Program with 1ms PID loop for pedal-assist cadence matching; flash EEPROM with 32-bit resolution ramp profiles.
• Gate drivers (IRS2104S): Isolate with optocouplers (HCPL-3120) for 5kV transient immunity. Drive at 15kHz to balance switching losses and audible noise.
• Current shunt (0.001Ω): Place on low-side for accurate ampere-hour tracking. Use Kelvin connections to eliminate lead resistance errors.
• Temperature NTC thermistor (10kΩ at 25°C): Embed in motor winding; cut power at 120°C to avoid insulation breakdown.

Route high-current traces (minimum 3oz copper) perpendicular to signal lines to reduce EMI. Keep battery positive lead separate from controller ground until the final MOSFET stage to prevent ground loops. Use a star grounding topology at the main filter capacitor to eliminate differential noise between throttle, microprocessor, and driver grounds.

Test modulation stability with a dynamic load bank simulating 20%–100% throttle sweeps. Verify toroidal choke saturation margin (>20A) under regenerative braking. Check firmware over-voltage safeguard defaults: 54V for 48V systems, 39V for 36V. Calibrate pedal-assist response curves using a 90 RPM cadence standard–adjust PID gains in 5% increments until less than 3% speed hysteresis remains.

Key Components of a Power-Assist Drive Regulator Board

The microcontroller unit (MCU) stands as the primary computational hub of the assembly, typically an STM32F series chip with ARM Cortex-M core clocked at 72–168 MHz. Select models featuring CAN bus peripherals–like STM32F405–enable dual-communication pathways, while internal flash capacities ranging from 512 KB to 2 MB accommodate complex throttle-control algorithms and firmware-level traction assist. Opt for MCUs with dual-bank flash architecture to allow seamless over-the-air updates without operational downtime.

MOSFET power stages, often arranged in H-bridge configurations, drive the traction motor using IRFS7430 or IXFN180N100Q2 dies housed in TO-247 packages. Gate drivers like DRV8301 deliver 1.5 A source current per channel, ensuring rapid switching transitions below 30 ns rise/fall times to minimize conduction losses, especially during regenerative braking phases. Thermal vias directly beneath MOSFET pads must employ staggered 0.5 mm diameter holes backfilled with 2-ounce copper to maintain junction temperatures below 125 °C under continuous 50 A loads.

How to Read a Brushless DC Motor Control Schematic

Identify the power input symbols first–look for battery icons, fuse ratings, and voltage labels (e.g., 36V, 48V). Trace the thickest lines on the layout, as these carry high current and connect directly to the switching stage. Compare the labeled components against a reference chart to confirm MOSFETs (IRFB3077), capacitors (electrolytic vs. ceramic), and inductors, noting their values and tolerances. The schematic’s annotations often reveal critical specs like max amperage (e.g., 20A) or gate resistor values (e.g., 10Ω).

Symbol	Component	Key Parameters	Typical Location
▯▯⎸	MOSFET	VDS, RDS(on)	Near phase output
▯▯(▴)	Gate driver IC	PWM frequency	Between MCU and MOSFETs
▯▯|(⎸)	Schottky diode	Forward voltage (e.g., 0.4V)	Freewheeling path

Follow the gate driver signals back to the microcontroller pins–look for labels like “HA,” “HB,” “HC” (hall sensor inputs) or “PWM” (pulse-width modulation). Check for pull-up/pull-down resistors on these lines (e.g., 4.7kΩ) to prevent floating states. The feedback loop, typically involving a shunt resistor (e.g., 1mΩ) and an operational amplifier (e.g., LM358), will have a dedicated section; verify its gain calculations (e.g., 10x) and filter capacitors (e.g., 0.1µF). Cross-reference the pinout with the MCU’s datasheet to ensure compatibility, focusing on ADC inputs (for current sensing) and GPIO assignments (for error flags).

Wiring Connections for Hall Sensors and Throttle Input

Connect Hall effect sensors directly to the designated 5V power pin, signal output, and ground terminals on the motor driver board to ensure precise rotor position detection. Use twisted-pair cables for the signal wires (typically labeled U, V, W, and GND) to minimize electromagnetic interference, particularly in setups with high current draw. Verify the sensor sequence against the phase wiring–swapping any two Hall lines will invert rotation direction, which can be corrected later in firmware if needed.

Throttle Signal Integration

Attach the throttle’s red wire to a stable 1-5V reference voltage (regulated from the power module), the black wire to ground, and the signal wire to the throttle input pin on the control unit. Ensure the throttle operates within the 0.8-4.2V range; voltages below 0.8V may trigger failsafe cutoff, while values above 4.2V can cause erratic acceleration. For safety, insert a 10kΩ pull-down resistor between the signal line and ground to prevent floating voltage spikes during disconnection.

Test all connections with a multimeter before powering the system: confirm 5V across Hall sensor power pins, continuity between throttle signal and ground at idle, and absence of shorts between adjacent phase wires. If rotor hesitation occurs, recheck Hall sensor alignment–even a 2mm misplacement can disrupt timing. Use JST connectors for modularity, but crimp them securely to avoid intermittent faults under vibration.

Troubleshooting Voltage Regulator Issues in Power Modules

Begin by measuring input voltage at the regulator’s Vin pin with a multimeter; values should match the nominal supply range (±5%). If readings drop below 4.5V for a 5V LDO or 11V for a 12V switching unit, inspect upstream components: check fuse continuity, verify battery terminal corrosion, and test cable resistance with a milliohm meter (ideally <0.1Ω per meter).

Output instability often stems from inadequate decoupling. Replace ceramic capacitors near the Vout pin if ESR exceeds 0.5Ω (measured at 100kHz). For switch-mode regulators, confirm inductor saturation by testing core temperature–over 60°C indicates excessive current. Replace inductors with identical or higher saturation ratings (e.g., 1.2A → 1.5A). If noise persists, add a 10µF tantalum capacitor parallel to the output diode to suppress high-frequency transients.

Common Failure Patterns

• Overheating: Verify thermal paste application thickness (0.1–0.3mm) between regulator and heatsink. Clean oxidation from mounting surfaces with 1200-grit sandpaper before reapplication.
• Short-circuit protection tripping: Use a current-limited power supply (set to 10% above normal load) to test recovery. If the unit latches, replace the regulator IC; no repair exists for internal protection faults.
• Intermittent drops: Scrape solder joints under the regulator with a scalpel to remove hidden oxidation. Reflow with no-clean flux at 350°C for 3 seconds. Test with a thermal camera; hotspots above 85°C indicate dry joints.
