Complete Guide to Wiring an Electric Clothes Dryer Step-by-Step
To safely install a vented tumbler unit, ensure the supply line supports 240V with a dedicated 30-amp breaker. Connect the red and black conductors to the dual-pole switch terminals, pairing each with a 10-gauge copper wire for optimal current handling. The neutral (white) and ground (green/bare) wires must terminate at separate bus bars in the service panel. Skipping this risks overheating at junctions.
Verify local codes before proceeding–some regions mandate GFCI protection for laundry circuits, especially in basements or damp areas. Use a clamp meter to confirm voltage between hot legs (should read 240V) and from each hot leg to neutral (120V). If readings deviate, check for loose connections or incorrect breaker sizing.
For units with electronic controls, add a surge protector rated for 40,000A to prevent damage from power spikes. Label each conductor at both the appliance and panel ends with heat-shrink tubing–this prevents misidentification during future maintenance. A torque screwdriver (set to manufacturer specs) ensures terminal tightness, reducing fire hazards from high-resistance points.
If the unit shares a circuit with other devices, relocate it to a standalone line. Overloaded circuits degrade performance and trip breakers. For stacked washer-dryer combos, a 50-amp circuit with 6-gauge wire accommodates higher power demands. Always cap unused wires with wire nuts–exposed conductors corrode over time and may short.
Connecting a Laundry Heat Pump: Key Circuit Layouts
Always verify the appliance’s voltage requirements before installation–most modern heat pump tumble units operate on 240V circuits with a 30-amp breaker and require 10-gauge copper conductors. The neutral wire (white) connects to the terminal block’s center screw, while the hot wires (black and red) attach to the outer screws; ground (bare or green) secures to the designated grounding point. Label each cable before disconnecting an old system to avoid miswiring, and use a multimeter to confirm zero volts at the outlet before handling wires.
For configurations with a four-prong plug, ensure the receptacle matches the NEMA 14-30 standard–two hot slots, one neutral, and one ground. If upgrading from a three-wire setup, replace the cord with a UL-listed 10/4 cable (3 conductors + ground) and update the wall outlet to comply with NEC 2020 code, which mandates separate grounding. Terminate the ground wire to the metal chassis of the unit, never to the neutral terminal, to prevent shock hazards during faults.
Avoid splicing wires inside the device housing–use butt connectors or terminal blocks rated for 90°C and tightened to 12-15 inch-pounds of torque. For dual-voltage models (e.g., 120V/240V), consult the manufacturer’s data plate to select the correct tap setting on the internal transformer. Test the circuit after installation by running a full cycle and monitoring for unusual noise, overheating, or breaker trips–symptoms of loose connections or undersized wiring.
Key Elements of a Laundry Appliance Circuit Setup
Begin by verifying the power source meets the unit’s voltage requirements–most domestic units require a 240V outlet with a dedicated 30-amp breaker. Use 10-gauge copper conductors for standard installations; aluminum wiring demands one size larger due to resistance differences. Confirm compatibility with local building codes–some regions mandate arc-fault breakers for added safety.
Identify the terminal block inside the appliance’s rear panel, typically labeled L1, L2, N, and G. Connect the two hot wires (red and black) to L1 and L2, the neutral (white) to N, and the ground (green or bare) to G. Miswiring neutral and ground can cause stray current paths, risking equipment damage or shock hazards.

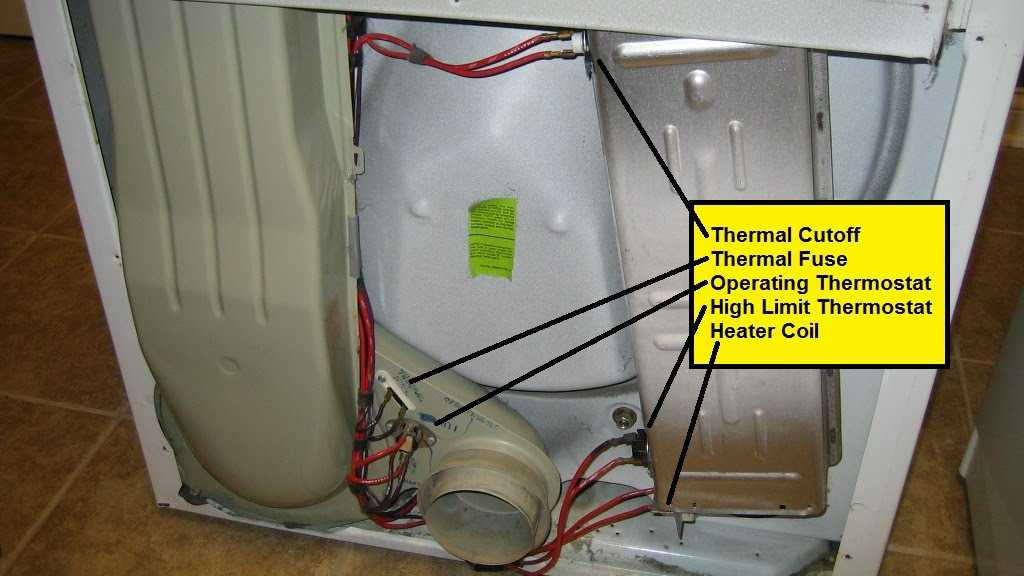

Inspect the thermal fuse–a one-time safety device that cuts power if overheating occurs. Locate it near the blower housing or heating element assembly; test for continuity using a multimeter. Replace if faulty–do not bypass it, as this compromises fire protection.
Examine the motor relay and centrifugal switch. The relay controls the drum’s rotation, while the switch disengages start windings once operational speed is reached. Listen for unusual humming; prolonged starter engagement (beyond 10 seconds) signals relay or capacitor failure. Test capacitors with an analog meter–the needle should jump then settle to near zero.
Check the heating coil resistance: set the multimeter to ohms and probe the element’s terminals. Expect readings between 10-50 ohms for functional units; infinite resistance indicates an open circuit requiring replacement. Ensure proper airflow–restricted vents force the element to run hotter, shortening its lifespan.
Verify the door switch interrupts power when opened. Press the switch manually while running; drum rotation and heater should stop instantly. Weak switches create dangerous conditions–replace if hesitation exceeds 2 seconds. Use a non-contact voltage tester to confirm power is fully isolated before servicing.
Label all conductors before disassembly for accurate reassembly. Twist stranded wires ¼ turn clockwise before inserting into terminal screws–this prevents fraying and loose connections. Torque screws to 12-15 in-lbs; overtightening strips threads, while under-torque causes heat buildup at connections.
After reassembly, perform a 15-minute test cycle on “high heat.” Monitor current draw with a clamp meter–fluctuations above 20% of rated amperage suggest motor or bearing issues. Listen for irregular bearing noises; humming combined with vibration often precedes failure within 50-100 cycles.

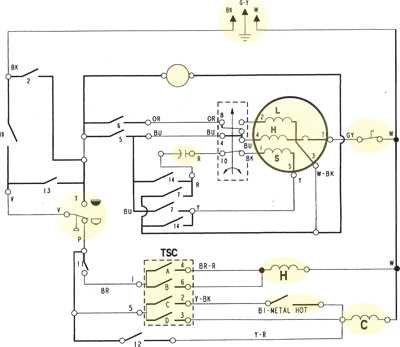

Step-by-Step Guide to Reading a 240V Appliance Circuit Schematic
Locate the power source terminals first–typically marked L1 and L2–on the left side of the schematic. These denote the two 120V legs originating from the breaker panel, combining to deliver 240V to the heating element. Verify their placement against the manufacturer’s color-coding: red (L1) and black (L2) wires are standard in North American installations, while blue/brown may appear in other regions.
Trace the neutral line (N or white wire) next, if present. Unlike standard 120V circuits, many modern high-voltage appliances omit this unless internal components require 120V (e.g., timers, motors). Confirm whether the schematic shows a separate grounding conductor (green/bare), bonding the chassis to earth–critical for safety in metal-enclosed units.
Interpreting Component Symbols
| Symbol | Component | Voltage Behavior |
|---|---|---|
| ⏚ (triangle) | Ground | 0V reference |
| ⚡ (zigzag) | Heater coil | 240V across L1/L2 |
| ⊡ (square) | Thermal fuse | Opens at >190°F |
| ⚙ (circle) | Motor | May use 120V (L1/N) |
Identify switches–door latches, start buttons, or timer dials–by their schematic position bridging live conductors. A thermal cutoff (TCO) often appears in series with the heater element, interrupting current at ~200°F. Use a multimeter to test continuity across these before assuming failure: resistance should read 0Ω when closed, infinite when tripped.
For dual-voltage models (e.g., 3-wire vs. 4-wire setups), note the jumper configuration where the neutral intersects the grounding terminal. Mislabeled schematics frequently misrepresent this connection–cross-reference with the terminal block diagram. If upgrading older 3-wire systems, replace the neutral-ground bond with a dedicated ground wire to comply with NEC/CEC codes and reduce fire risk.
How to Safely Attach a 3-Prong vs. 4-Prong Appliance Power Cable
Before handling any high-voltage appliance, shut off the breaker at the main panel. Verify power is dead using a non-contact voltage tester on the outlet and terminal block. Failure to confirm zero voltage risks severe shock or arc flash.
For 3-prong cables, the configuration includes two hot wires (typically red and black, 120V each) and one neutral (white). The ground is bonded to the neutral at the terminal block. Follow these steps:
- Remove the access panel to expose the terminal block.
- Connect the hot wires to the outer terminals (L1 and L2), tightening to 15–20 lb-in torque.
- Attach the neutral to the center terminal, ensuring no stray strands touch adjacent terminals.
- Secure the strain relief clamp over the cable jacket, not the individual wires.
This setup complies with pre-2000 NEC codes but lacks a dedicated grounding path, increasing fault risk. Never remove the neutral bond jumper–it violates safety standards and creates a fire hazard.
4-prong cables add a separate ground wire (green or bare copper), improving fault protection. Here’s the correct procedure:
- Locate the ground screw or bar on the appliance chassis–often marked with a green label.
- Disconnect the neutral-ground bond (usually a metal strap or green wire) from the neutral terminal.
- Connect the two hot wires to L1/L2 (order doesn’t affect function).
- Attach the neutral to its designated terminal and the ground to the chassis ground point.
- Torque all connections to 20 lb-in–loose terminals cause arcing and overheating.
If retrofitting from a 3-prong to 4-prong cord, confirm the outlet matches. A NEMA 14-30 receptacle (four slots) is required; a mismatched plug will not fully insert and risks shorting. Test continuity between neutral and ground with a multimeter–there should be infinite resistance. If continuity exists, the neutral-ground bond remains intact, violating NEC 250.140.
Test the installation by running an empty cycle. Watch for:
For 240V appliances, the neutral carries only imbalanced current during tumbling. Ground carries fault current only–never current under normal operation. If the ground wire shows voltage above 1V relative to a known ground, cease use and inspect the supply wiring.
Critical Safety Checks
- Use 10 AWG copper wire minimum–aluminum is prohibited for new installations per NEC 210.14.
- Outlet boxes must be rated for 30A–check for a “30” stamp on the device.
- Avoid extension cords–dedicated circuits are mandatory for high-draw units.
- Replace cords if the jacket is cracked, wires are discolored, or terminals show corrosion.
Store the owner’s manual accessible for torque specifications and wiring diagrams specific to your model. Manufacturers like Whirlpool and LG provide updated literature for cord-swap procedures–consult it before modifying terminal blocks.
