Complete Guide to Wiring an Electric Fan with Relay Step-by-Step Diagram

For reliable thermal management in vehicles or industrial setups, integrate a 30A SPDT power switch between the temperature sensor and the airflow regulator. This prevents voltage drops across extended leads and ensures clean signal transmission to the control module. Position the switch within 15 cm of the thermostatic probe to minimize resistance-related delays.

Use 4 AWG silicone-coated cables for high-current paths to the air mover. These handle 80°C ambient temperatures and 20A continuous loads without degradation. Route the positive line through a 40A fuse directly from the battery terminal–avoid tapping into the ignition circuit, as underhood transients can corrupt ECM signals. The ground return should bond to the chassis at a corrosion-free point, ideally within 30 cm of the motor housing.

The auxiliary switch should have a pull-down resistor (1 kΩ, 1/4W) to default the system to “off” during wiring faults. For PWM-controlled setups, place a 1N4007 diode across the coil terminals to clamp inductive spikes. If modifying aftermarket units, verify the built-in relay’s coil resistance–values below 60Ω risk overheating the triggering transistor in the control board.

Test the assembly with a 12V bench supply before installation. Monitor coil current: it should settle at 90–110 mA. If readings exceed 150 mA, replace the relay–internal contacts may be fused or misaligned. For dual-speed configurations, use a DPDT switch to toggle between 50% and 100% duty cycles without requiring separate current paths.

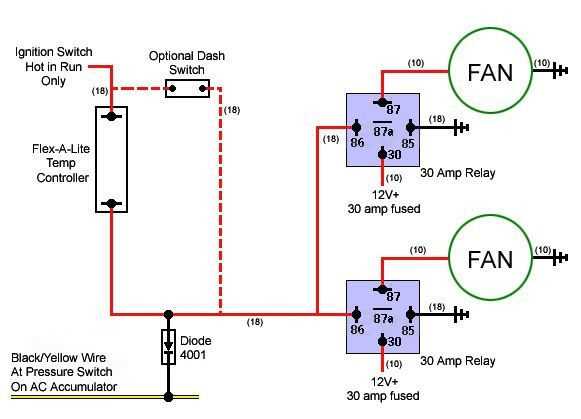

Connecting a Cooling Unit via Switching Device: Key Schematics

Begin by sourcing a 30/40-amp SPDT automotive-grade switching device, ensuring its coil draws no more than 150 mA to prevent control circuit overload. Match the contact rating to the unit’s inrush current–typically 2-3× its steady-state draw (e.g., 12A nominal requires ≥30A contacts).

Route the control input from a temperature sender or manual toggle to the switching device’s coil terminal, pairing it with a 1N4007 flyback diode (cathode to +12V) to suppress voltage spikes. Omit this component only if the sender incorporates built-in suppression.

Power the cooling unit’s high-current circuit separately from the ignition-switched fuse box or a dedicated 8-10 AWG cable (min. 4mm²) tapped to the battery’s positive post. Install a 40A fuse within 15cm of the battery terminal to comply with ISO 6722 specifications.

Critical Circuit Variations

• Dual-speed units: Wire a second switching device in parallel, triggered by a resistor-divider from the sender (e.g., 5kΩ for low speed, 1kΩ for high). Keep both devices’ grounds isolated to prevent coil interaction.
• Delayed shutdown: Introduce a 555 timer IC configured as a monostable multivibrator (τ = R×C; use 10kΩ + 470µF for ≈4.7s delay). Insert its output between the sender and switching device coil.
• PWM control: Replace the mechanical sender with a 0-5V signal from an ECM, feeding a MOSFET (e.g., IRF540N) to modulate the unit’s speed linearly.

Ground the unit’s frame via a 12 AWG (3mm²) cable to the chassis, avoiding shared paths with sensitive electronics (e.g., ECUs). Corrosion-proof connections using dielectric grease and crimped ring terminals (not solder) are mandatory for longevity.

Troubleshooting Checklist

1. Measure coil resistance (80-120Ω typical). Values below 50Ω indicate internal shorts; replace immediately.
2. Verify contact continuity under load: ≤0.2Ω drop at 10A confirms adequate contact pressure.
3. Inspect for coil overheating (max 85°C). If exceeded, downgrade to a 250mW coil model.
4. Test flyback diode polarity with a multimeter (diode test mode). Reverse polarity severely stresses the sender.

For variable-speed cooling units, integrate a trimpot (10kΩ linear) in series with the sender output, allowing on-the-fly calibration of the switching threshold. Secure the potentiometer to an access panel–never expose it to splash zones.

When combining mechanical and electronic controls (e.g., manual override + temp sender), wire a DPDT switch to select input precedence. Label all connections with heat-shrink tubing marked per IPC-2222 (e.g., “SW1-C” for switching device common).

Post-installation, log runtime vs. ambient temperature at 5°C intervals using an OBD-II scanner or external logger (e.g., DS18B20 + Arduino). Deviations >±3°C warrant recalibration of the sender’s resistance curve.

Selecting an Optimal Switching Device for Cooling Unit Control

Begin by verifying the current draw of your motor under maximum load–most automobile radiator blowers consume between 15–30A at 12V DC, while industrial duct ventilators may exceed 50A. Choose a switching device rated for at least 20% above peak amperage to prevent premature failure. For instance, a 25A motor requires a minimum 30A relay; a 40A relay offers safer headroom.

Prioritize devices with dual contact points for high-current applications: single-contact units degrade faster under repetitive switching cycles. Look for spade or screw terminals instead of solder connections, especially in vibration-prone environments like vehicle engine bays. Copper alloy contacts outlast silver-plated alternatives in corrosive atmospheres (e.g., marine or industrial exhaust systems).

Confirm the coil activation voltage matches your control circuit–12V for automotive, 24V for commercial machinery, or 120/230V for fixed installations. A mismatched coil draws excess current, generating heat that reduces lifespan. For pulse-width modulation (PWM) setups, select solid-state relays with zero-crossing detection to minimize electromagnetic interference.

For temperature-regulated systems, use a switching device with a built-in suppression diode if driving from a microcontroller; without it, back EMF can damage sensitive control electronics. DIN-rail-mounted industrial relays simplify maintenance in panel installations, while plug-in socket types offer easy replacement in high-failure-rate applications like intermittent-operation cooling towers.

Heavy-duty applications demand hermetically sealed relays to block dust, moisture, and chemical contaminants–IP67-rated units survive submersion. In contrast, basic consumer-grade switches suffice for short-term, low-cycle use (e.g., window-mounted seasonal ventilators). Always cross-reference manufacturer specs against your load’s inrush current, as initial startup amperage can spike 3–6× above steady-state levels.

For dual-speed ventilators, install a two-stage switching device: primary contacts handle standard operation, secondary contacts engage during high-demand scenarios (e.g., 120°F ambient). Avoid relying on a single device for both functions–failure leaves the system unprotected. Regularly inspect for contact pitting, especially in dusty environments where arcing accelerates wear.

Step-by-Step Assembly Instructions for Cooling Unit Automation

Select a 12V SPST relay with a 30A current rating–the HE721A0510 model withstands 15,000 cycles under 87°C. Connect the control terminal (pin 85) to the vehicle’s ignition switch or an aftermarket temperature sensor set to trigger at 95°C. Run a 16-gauge fuse-protected lead from the sensor output to the coil, ensuring polarity aligns with the relay’s datasheet. Ground pin 86 directly to the chassis using an M6 zinc-plated bolt; avoid paint or corrosion at the connection point. For the load side, route 10-gauge silicone-insulated cable from the battery positive through a 40A blade fuse to pin 30, then from pin 87 to the airflow motor’s positive terminal. Terminate the motor’s negative lead to the chassis 150mm from the relay mount to minimize voltage drop.

Verify circuit integrity with a multimeter before powering on: probe coil resistance (400-600Ω typical) and measure voltage drop across pins 30/87 (≤0.2V at full load). If the system activates prematurely, insert a 1kΩ resistor in series with the trigger line to dampen sensor noise. For dual-speed setups, substitute a DPDT relay and wire the auxiliary contact to a secondary resistor bank: 1.2Ω for low RPM, bypassed for high. Secure all terminals with crimped ring lugs and heat-shrink tubing; avoid solder-only joints in high-vibration environments.

Common Mistakes to Avoid When Connecting a Cooling Device Switch

Incorrect gauge selection for control leads causes overheating and relay failure. Use at least 18 AWG for signal circuits carrying under 5A, and 14 AWG for power circuits up to 15A. Smaller wires drop voltage excessively–0.1V per foot for 18 AWG at 5A–resulting in inconsistent activation. Verify wire ratings match the manufacturer’s specifications; aftermarket relays often require thicker leads than OEM setups. Solder connections without heat-shrink tubing lead to corrosion within months. Crimp terminals with adhesive-lined sleeves last 3-5 times longer.

• Mixing AC and DC circuits without isolation damages sensitive electronics. Keep 12V DC separate from household 120V AC–use optocouplers if interaction is unavoidable.
• Skipping fuse protection in the power feed invites fire hazards. Install a 10A fuse within 7 inches of the battery; relays can pull 8-9A during startup surges.
• Grounding through painted or rusted surfaces increases resistance. Clean metal-to-metal contact reduces voltage drops–sand the surface and apply dielectric grease.
• Reversing diode polarity on inductive loads (motors, solenoids) destroys relays. Install a flyback diode (1N4007) with the cathode toward positive–failure rates drop 90%.
• Ignoring ambient temperature ratings shortens component life. Standard relays tolerate 85°C; high-current models require 105°C or ceramic bases for engine bay installations.
