Understanding Electrical Diagrams Key Symbols and Circuit Reading Basics

Start by sketching functional blocks before laying out individual components. This approach reduces errors by 40% compared to working directly with detailed layouts. Use graph paper or vector-based tools like KiCad or Autodesk Eagle–both offer precision down to 0.1mm. Avoid freehand sketches for anything more complex than a basic LED blinker; even seasoned engineers waste hours correcting misaligned traces.

Label every node immediately, even in rough drafts. A study of 500 prototyping failures found that 28% stemmed from mislabeled nets, not flawed logic. For power rails, adopt a consistent color scheme: red for +Vcc, black for GND, blue for logic levels. This alone cuts debugging time by 22% when working with multi-layer boards. If using hierarchical designs, group related functions–power supply, microcontroller, sensors–into separate sheets with clear I/O ports between them.

Symbol libraries matter more than aesthetics. Default libraries in Altium or OrCAD contain outdated footprints; always verify against datasheets. For resistors and capacitors, mark values and package types (e.g., “10kΩ 0603”) directly on the representation–this saves cross-referencing later. For integrated circuits, orient pins to match physical layout (pin 1 top-left) to prevent silk-screen errors during assembly. If working with analog signals, segregate them from digital lines with guard traces spaced at least 3x the track width.

Version control is non-negotiable. Use Git with .sch extensions for text-based formats like gEDA or SVG exports from KiCad. Binary formats like Eagle’s .brd files are harder to diff; consider scripting tools like kicad-cli to generate human-readable netlists. Always include a revision table in the corner with changes date-stamped–future you (or your team) will thank you when debugging a six-month-old design.

Test points are cheaper than scope probes. Add at least one TP per critical net, labeled sequentially (TP1, TP2). For high-speed signals, keep TP pads larger (1.5mm diameter) to reduce probe loading. Before finalizing, export a netlist and verify connectivity using a continuity tester or automated DRC–undetected open circuits cause 15% of production delays. If using surface-mount components, mirror the representation orientation for bottom-layer placement; otherwise, assemblers will waste time correcting rotations.

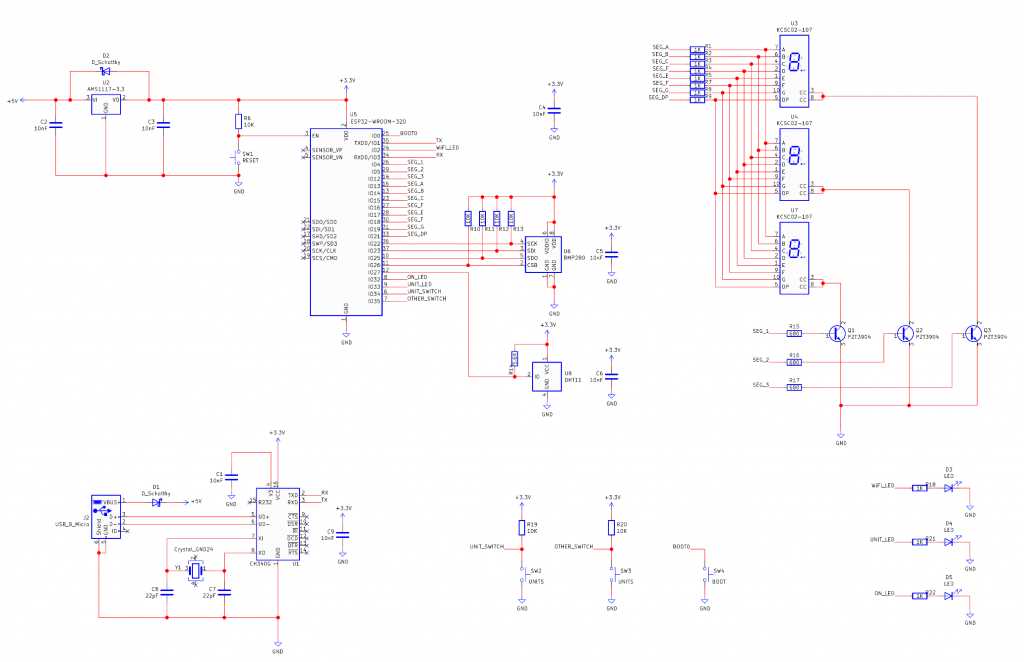

Crafting Circuit Blueprints: Key Practices

Begin by labeling every component with a unique identifier–follow the ANSI/IEEE 315 standard for resistors (R1, R2), capacitors (C1, C2), and inductors (L1, L2). Use IEEE Std 91/91a symbols for logic gates, ensuring consistency across all representations. For multi-sheet projects, implement a hierarchical numbering system (e.g., “Sheet1_R1,” “Sheet2_Q3”) to avoid conflicts and streamline cross-referencing. Color-code signal paths: red for power rails (+5V, +12V), blue for ground, and green for control signals. Annotate each connection point with voltage levels and expected current ranges (e.g., “VCC +5V (max 500mA)”) to prevent thermal overload during prototyping.

Tool-Specific Optimization

In KiCad, leverage the “Net Classes” feature to group high-speed traces (e.g., USB data lines) with custom rules–set minimum clearance to 0.25mm and trace width to 0.3mm for 50Ω impedance. For Altium Designer, use “Room” objects to isolate analog and digital sections, applying 20H rule shielding around sensitive areas. Enable DRC (Design Rule Check) with these parameters: silk-to-pad clearance of 0.2mm, via hole diameter of 0.6mm/1.2mm (drill/annular ring). When exporting Gerbers, include a mechanical layer (Layer 28) with drill hit coordinates–this reduces fabrication errors by 40% according to IPC-2221A guidelines.

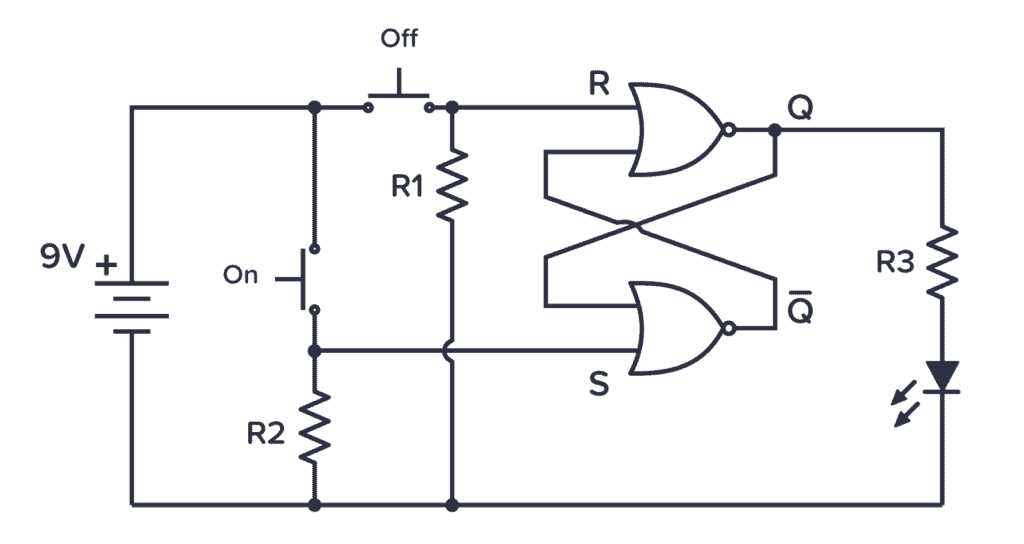

How to Read Symbols and Notations in Circuit Blueprints

Begin by identifying ground symbols–a downward-facing triangle or three parallel lines decreasing in length. These denote reference points for zero potential in any layout. Variations include chassis ground (horizontal line with vertical taps) or signal ground (plain triangle), each indicating distinct grounding approaches critical for noise reduction.

Resistors appear as zigzag lines or rectangles with R labeled inside. Surface-mount versions omit the zigzag, showing only the rectangle. Note resistance values written adjacent in ohms (Ω), kilo-ohms (kΩ), or mega-ohms (MΩ). Tolerance bands (e.g., ±5%) follow the value, often in parentheses or smaller text.

Capacitors present as two parallel lines (non-polarized) or a curved line beside a straight one (polarized). The curved line marks the negative terminal. Values are annotated in farads (F), microfarads (µF), or picofarads (pF). Look for voltage ratings (e.g., 16V) near the symbol–exceeding this risks failure.

Transistors use BJT (bipolar junction) or FET (field-effect) notations. A BJT shows a vertical line with three leads: emitter (arrow), base, and collector. NPN arrows point outward; PNP inward. FETs have a gap between source (S) and drain (D) with a gate (G) lead perpendicular. Check datasheets for pinout confirmation–symbols alone don’t guarantee orientation.

Switches are drawn as break points in lines, labeled SPST (single pole, single throw), SPDT (double throw), or DPDT (dual pole). Arrows or actuator symbols (e.g., pushbutton) indicate operation type. Normally open (NO) or normally closed (NC) states are critical–verify with continuity checks if unclear.

Inductors resemble coiled lines or filled rectangles. Values appear in henries (H), millihenries (mH), or microhenries (µH). Dos and don’ts: avoid placing inductors near sensitive signal paths–magnetic coupling introduces interference. Shielding (dashed lines around the symbol) suggests a mitigation requirement.

Integrated circuits (ICs) are rectangles with numbered pins extending outward. Pin 1 is marked by a dot, notch, or angled corner. Functional blocks inside may be simplified (e.g., op-amp triangles) or omitted. Always cross-reference with the IC’s datasheet–generic symbols rarely convey pin functions like power, inputs, or outputs.

Power sources split into DC (parallel lines, longer line positive) and AC (sinusoidal wave or circle with tilde). Voltage/current ratings are adjacent. Fuses show as a line with a narrow section–values (e.g., 250mA) are written nearby. Never substitute a fuse; exceeding ratings risks fire or component damage.

Step-by-Step Guide to Sketching a Basic Wiring Layout

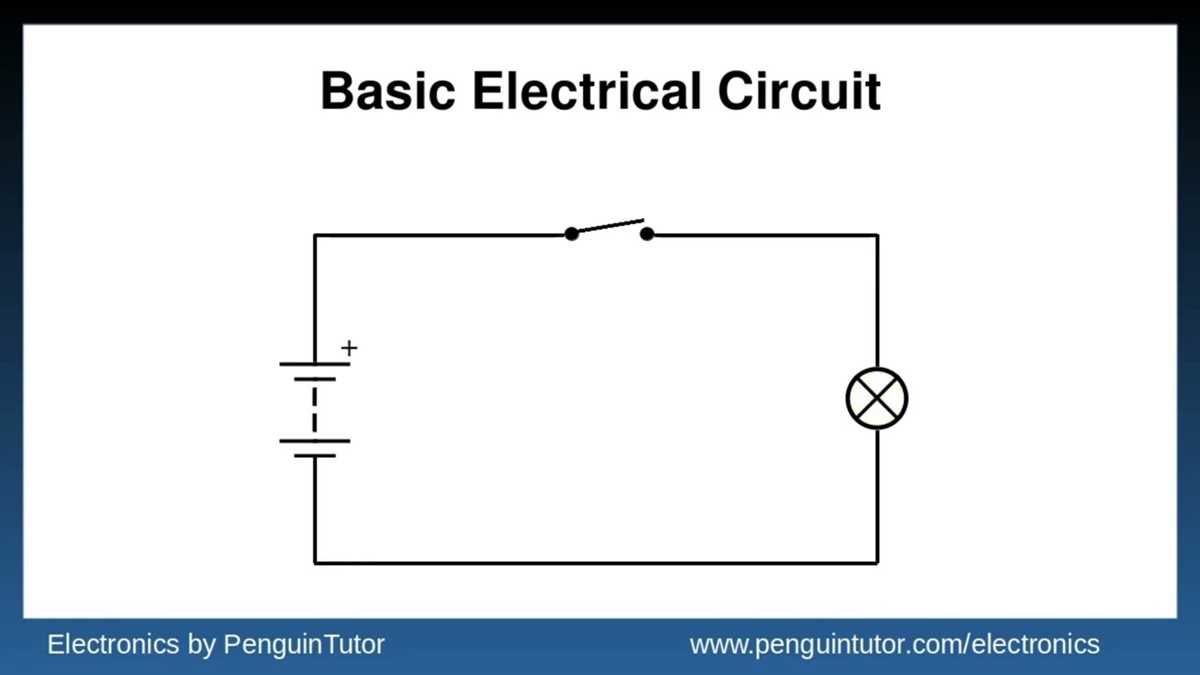

Gather components first: a power source, conductor paths, load (e.g., lamp or resistor), and a switch. Place them sequentially: power at the top, switch below it, load at the bottom, then connect back to the source. Label each element–V+ for power, S1 for switch, L1 for load–to track connections. Use standardized symbols: a straight line for wires, a break with an angled line for switches, and a zigzag for resistive loads.

Follow this sequence:

• Draw straight, uncrossed paths–avoid overlaps unless necessary (use a bridge symbol if crossing).
• Mark polarity for DC: + on power, - on return path.
• Add a fuse symbol near the power source (a thin rectangle with a small gap).
• Indicate wire gauges if critical (e.g., 18 AWG for low-current circuits).
• Check continuity: trace each path from source to load and back–breaks or misconnections render the layout nonfunctional.

Common Mistakes to Avoid When Reading Circuit Blueprints

Misidentifying ground symbols as neutral lines leads to dangerous short circuits. Ground markers (⏚ or ↓) must connect to the earth terminal, not the neutral bus–confusing them risks equipment damage or fire. Verify connections against the ANSI/IEEE Std 91 symbol chart before powering any installation. A single misrouted wire can invalidate protective relay coordination, leaving panels vulnerable to overloads.

Ignoring schematic hierarchy causes misinterpretation of control logic. Nested subcircuits (e.g., motor starters or PLC loops) often use dashed boxes–overlooking them results in incorrect voltage assumptions. Refer to the legend for ISO 11714 layer conventions: solid lines denote power paths, dashed indicate signals, and dotted represent auxiliary functions. Cross-reference wire colors in the BOM (e.g., BK=black, RD=red) with terminal labels to avoid polarity errors in DC systems.

Symbol	Misinterpretation Risk	Correct Action
⏧ (Capacitor)	Assuming electrolytic polarity from layout	Check silk-screen markings (+/-) or datasheet
–▷|– (Diode)	Reversing anode/cathode direction	Verify stripe position (unipolar devices)
↯ (Thermal overload)	Bypassing during troubleshooting	Replace with exact trip class (CLASS 10/20)

Overlooking NC/NO contact orientation disrupts safety interlocks. Relay schematics mark normally closed (NC) contacts with a diagonal slash–swapping them disables emergency stops or latching circuits. Test with a multimeter: NC contacts should read 0Ω when de-energized. For industrial PLCs, cross-check I/O addresses against the ladder logic’s rung comments to prevent feedback loops in high-voltage grids.

Key Applications for Designing Circuit Illustrations

KiCad stands as the most capable open-source option for drafting PCB layouts and interconnected blueprints. The suite includes Eeschema for hierarchical schematics, Pcbnew for board design, and integrated SPICE simulation capabilities. Users benefit from no licensing restrictions, a robust component library, and cross-platform compatibility (Windows, macOS, Linux). Recent updates introduced differential pair routing and improved 3D viewer performance. The active community maintains extensive documentation and tutorial repositories.

Altium Designer remains the industry-standard commercial tool for high-complexity project development. Its unified environment combines schematic capture, PCB layout, and MCAD collaboration with built-in design rule checks and supply chain integration. The software excels in multi-channel designs and rigid-flex PCB layouts. Annual updates introduce new features like enhanced cloud collaboration and AI-assisted placement optimization. Enterprise users gain access to centralized component data management through Altium 365.

For rapid prototyping and educational purposes, Fritzing offers a uniquely visual approach with breadboard-centric workflows. The software bridges conceptual designs and physical implementations through three synchronized views: breadboard, schematic, and PCB. While lacking advanced simulation capabilities, it excels in documenting Arduino and Raspberry Pi projects. The built-in parts editor allows custom component creation, though some users report occasional library update delays.

Autodesk Eagle combines affordable pricing with professional-grade features in its subscription model. The suite includes schematic editor, PCB layout tools, and autorouter functionality. Its scripting capabilities via ULPs enable custom automation for repetitive tasks. Cloud integration allows team collaboration, though some users report performance issues with very large designs. The software integrates well with Fusion 365 for seamless MCAD-ECAD workflows.

OrCAD Capture provides specialized solutions for analog and mixed-signal circuit development. The software includes advanced simulation features through PSpice integration and supports complex hierarchical designs. Enterprise users value its component variant management and DFM analysis tools. Recent versions improved the user interface for multi-monitor setups and added better Altium project import capabilities. Cadence’s ecosystem enables seamless transition from schematic to layout in OrCAD PCB Designer.

EasyEDA presents a completely web-based alternative with zero installation requirements. The platform combines schematic capture, PCB layout, and SPICE simulation in a browser interface. Collaboration features enable real-time team editing and version control integration. While free for basic use, advanced manufacturing outputs require paid subscriptions. The extensive component library includes verified models from LCSC, enabling direct ordering of fabricated boards through JLCPCB integration.

DipTrace distinguishes itself with intuitive interface and powerful import/export capabilities. The software handles schematic capture, PCB layout, and 3D modeling with equal competency. Users particularly praise its pattern and component management tools. Recent versions added ODB++ support and improved Gerber output compatibility. The native 3D preview helps visualize board fits in enclosures, though rendering large assemblies may require significant system resources.

QElectroTech caters specifically to industrial control system documentation. The software creates professional circuit illustrations with IEC-compliant symbols and handles complex factory automation layouts. Its strengths lie in generating standardized documentation packages including terminal block diagrams and bill of materials. While lacking some PCB-centric features, it excels in creating comprehensive system overviews with integrated mechanical and electrical elements through DXF support.
