Complete Guide to Wiring Electrical Switches Step-by-Step Diagrams
Start with the power source at the circuit breaker. Verify voltage between live (typically black or red) and neutral (white) wires before handling any connections. Use a multimeter set to AC voltage; readings should match the system’s rated voltage (120V for US residential, 230V for EU). Incorrect readings indicate faults upstream–address these first or risk damaging components.
Map the path: power feed → control device → load. For single-pole configurations, the live wire connects to the common terminal (often labeled “COM” or marked with a darker screw). The switched leg (returning to the fixture) attaches to the remaining terminal. Miswiring here creates either a dead circuit or a live load that can’t be isolated–both hazardous scenarios.
Neutral wires bypass the control mechanism entirely. They splice directly to the load’s neutral terminal, reducing voltage drop and ensuring stable operation. In multi-way setups (e.g., three-way or four-way), assign traveler wires to designated terminals (usually brass-colored screws). Confusing travelers with common terminals leads to erratic behavior–test continuity to confirm.
Grounding is non-negotiable. Connect the bare or green wire to the metal box (if present) and the control device’s grounding screw. Omitting this invites shock hazards and code violations. For metal boxes, ensure the grounding wire bonds tightly–loose connections defeat its purpose.
Label every wire before disconnecting. Use masking tape with clear, permanent markings: “L” for live, “S” for switched, “T” for traveler, “N” for neutral. Reassembling without labels increases reinstallation time tenfold and raises the risk of reversed connections.
Test after wiring but before closing the box. Activate the breaker, then operate the control device–listen for humming or sparking (audible faults). If the load fails to energize, recheck common/switched leg polarity. If the breaker trips, look for shorts: stripped wire ends touching metal or the bare grounding wire contacting a live terminal.
Use wire nuts rated for the conductor size. Twist clockwise until snug, then tug each wire to confirm grip. For 12-gauge wire, red nuts handle three to four conductors; yellow nuts handle up to five. Loose connections oxidize over time, creating heat and intermittent failures.
Document the final layout. Sketch a simple line schematic showing wire colors, terminal labels, and breaker position. Store this with the panel directory–a future reference that saves hours during troubleshooting or modifications.
How to Map Out a Toggle Circuit for Safe Installation

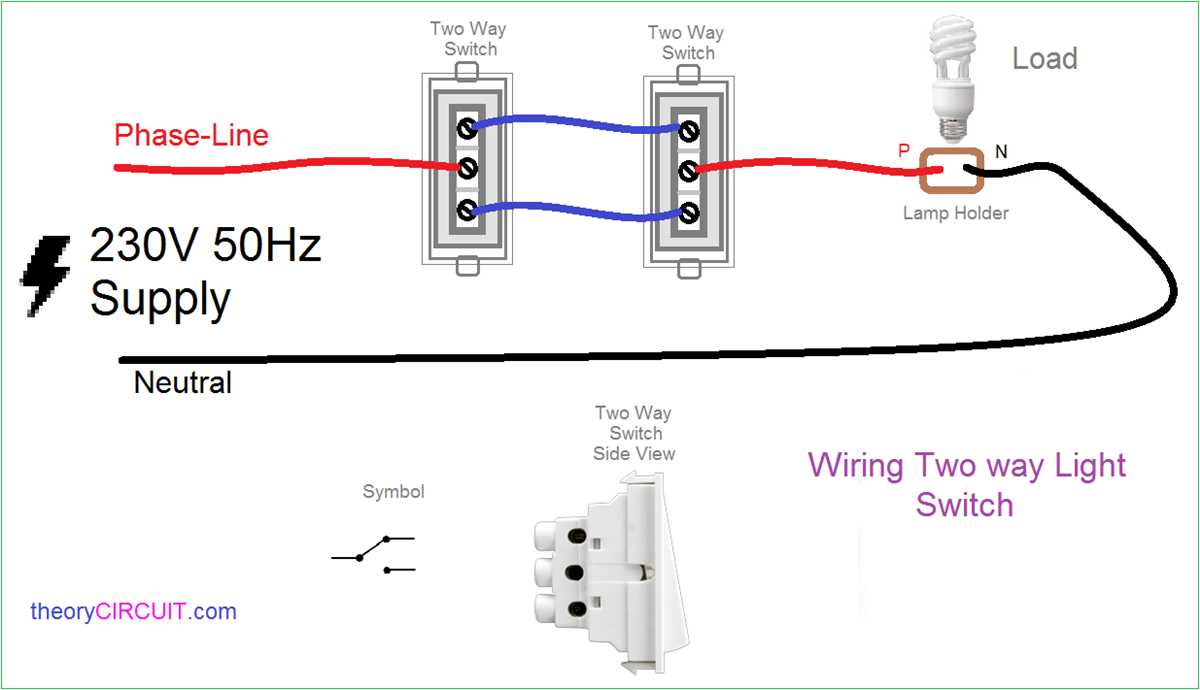

Start by identifying the live conductor–typically color-coded brown or red–and connect it to the common terminal of your control device. Use a multimeter to verify voltage before handling: readings should show 230V between live and neutral, and 0V between live and earth. Failure to confirm this risks short circuits or equipment damage. For two-way setups, label the travelers (often grey, yellow, or blue) clearly at both ends to avoid mixing them with constant power lines.
Grounding the mechanism is non-negotiable. Attach the earth wire (green/yellow) to the metal casing if present, or to the dedicated earthing screw on plastic enclosures. In older installations lacking an earth, install a residual current device (RCD) upstream–it cuts power in under 30 milliseconds if a fault is detected, preventing fatal shocks. Always isolate the circuit at the fuse box before touching any connections; lock the breaker if possible to prevent accidental reactivation.
Test the installation with a non-contact voltage detector before restoring power. If the fixture doesn’t respond, check for loose terminals–a torque screwdriver set to 0.5Nm ensures secure connections without stripping threads. For dimmers or smart toggles, consult the manufacturer’s schematic; some require neutral connections (white wire) for stable operation, while others function without it. Document your layout with timestamped photos for future reference.

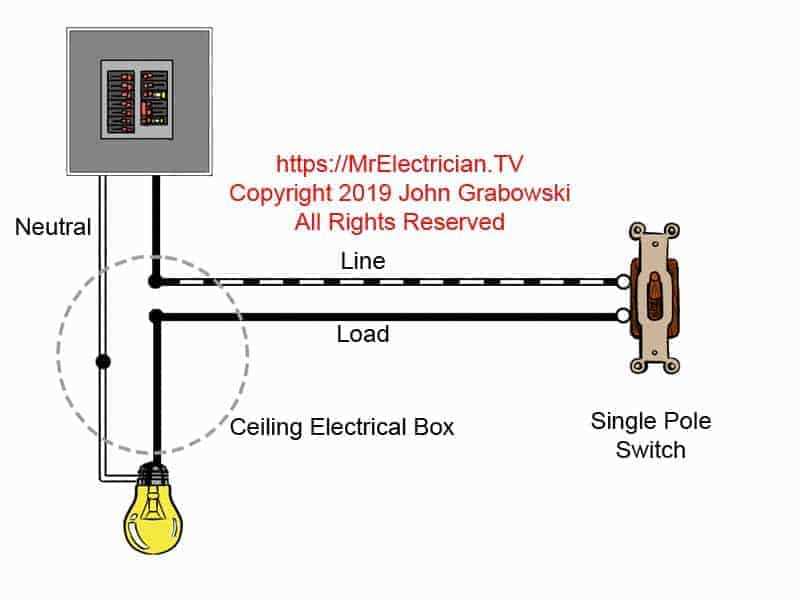

Core Parts of a Single-Control Circuit Installation
Ensure the power feed originates from a dedicated breaker matching the conductor gauge. For 14 AWG copper, pair it with a 15-amp fuse; for 12 AWG, use a 20-amp fuse. Verify the fuse rating on the panel before proceeding–overloading risks overheating.
The primary control device requires three critical connections: incoming live lead, outgoing live lead, and a grounding terminal. Misrouting either live connection disrupts flow, while omitting the ground exposes users to shock hazards. Mark conductors with tape at both ends to prevent confusion during termination.
Common conductor colors follow these standards:
- Black or red: live conductors (hot)
- White: neutral (unused in basic setups but required for advanced configurations)
- Green or bare: ground (mandatory)
Deviations from this scheme introduce safety risks and violate most building codes.
Conductor Securement Methods
Twist bare copper ends with pliers to prevent strand spreading under screw terminals. For back-wired clamping mechanisms, strip exactly 5/8″ (15.9 mm) of insulation–excessive length reduces grip strength, while insufficient length fails to make contact. Confirm tightness by pulling firmly; loose strands cause arcing.
Junction enclosures must be accessible and rated for the environment. Plastic boxes suit indoor dry areas, while metal boxes with gasket seals are mandatory for damp or outdoor locations. Never bury connections behind permanent fixtures–code requires 6″ of slack for future servicing.
Safety Protocols Before Activation
Test continuity with a multimeter after installation:
- Set meter to ohms (Ω) at 200k range
- Probe the live and ground terminals–open circuit readings should exceed 1MΩ
- Probe neutral (if present) against ground–should read 0.5Ω or lower
- Any reading below 100kΩ between live and ground indicates a fault
Faulty readings necessitate immediate disassembly and inspection.
For metallic enclosures, bonding the box to the ground conductor prevents floating potential. Use a dedicated ground screw or pre-installed bonding clip–never rely on drywall anchors for electrical bonding. Paint or corrosion on metal surfaces must be scraped away at contact points to ensure conductivity.
Finalize installation by securing the control device with mounting screws, ensuring no conductors are pinched under the flange. Attach approved cover plates with insulated screws–metallic screws in live terminals create short-circuit risks. Power restoration should follow this sequence:
- Verify all tools are removed from the work area
- Close the service panel
- Engage the breaker
- Test operation with a non-contact voltage detector
Failure to follow this order risks arcing or inadvertent re-energization.
How to Connect a Multi-Location Control System
Turn off the circuit at the breaker panel and verify power is off using a non-contact voltage tester on both terminals of the current mechanism. Failure to confirm disconnection risks severe injury.
Identify the common terminal on each control unit–it’s usually marked differently (darker screw, labeled “COM,” or positioned apart from the traveler screws). Misidentifying this terminal will prevent the system from functioning.
Run a 14/3 or 12/3 NM cable between the two units, ensuring the red and black conductors serve as travelers while the white is capped with a wire nut unless repurposed as a neutral (code-dependent). The bare ground must bond to each device’s grounding screw.
- At the first unit, attach the incoming hot wire to the common terminal.
- Connect the traveler wires (red and black) to the remaining terminals.
- If using a smart unit, connect the neutral to the designated terminal.
Repeat the traveler connections at the second unit but attach the outgoing hot wire to its common terminal. Label all wires with masking tape to avoid confusion during future maintenance.
Secure the units into their boxes with provided screws–ensure no wires are pinched or exposed outside the box. Tuck excess length neatly to prevent interference with device installation.
Restore power at the breaker and test both units by toggling each multiple times. If one unit fails to control the load, recheck the common terminal connections first–this is the most frequent point of failure.
Install wall plates last. Use a voltage tester to confirm no live parts remain exposed before finalizing the cover. Store a spare 14/3 or 12/3 cable segment for troubleshooting or upgrades.
How to Identify Hot, Neutral, and Ground Wires in a Circuit
Start by using a non-contact voltage tester to locate the live conductor–it will be the one emitting a signal when the power is on. In most modern setups, this wire is encased in black or red insulation, but older systems or specific configurations may use other colors, so verify with a multimeter set to AC voltage (typically 120V or 240V, depending on the region). Place one probe on the suspected live wire and the other on a known neutral or ground; a reading close to the expected voltage confirms its identity.
Color Coding and Exceptions
| Wire Type | Standard Colors (US/EU) | Exceptions/Notes |
|---|---|---|
| Live | Black, red (US); brown (EU) | White with black tape (US); blue in multi-phase EU systems |
| Neutral | White (US); blue (EU) | Gray (US alternate); rare but possible in older wiring |
| Ground | Green, bare copper, or yellow-green striped | Never used as a current carrier; connects to metal boxes or earth |
Neutral conductors typically return current and are usually white (US) or blue (EU), but don’t assume–test with a multimeter between the suspected neutral and ground; a reading near 0V indicates a correct identification. Ground wires are either bare copper or marked with green/yellow stripes, connected to metal enclosures or earth rods. If color codes are non-standard (e.g., in renovated buildings), label each wire after testing to avoid confusion during future work. For three-way or multi-phase systems, prioritize testing over color reliance, as conventions vary.
