Creating Electro-Pneumatic Schematic Diagrams A Step-by-Step Guide

Start by mapping airflow paths with 4-6 mm polyurethane tubing–color-coded red for pressure lines and blue for exhaust. Avoid nylon: its rigidity causes microfractures under 8+ bar cyclic loads. Label every branch within 3 cm of connectors using laser-printed adhesive markers–handwritten tags peel in high-humidity environments. For valves under 10 W, opt for 24 VDC solenoids; 110/220 VAC units create interference spikes in adjacent sensors.

Place pressure regulators upstream of secondary branches–this prevents downstream oscillations when multiple actuators cycle simultaneously. Install needle valves with a Cv range between 0.01–0.08 for fine adjustment of actuator speed; anything below 0.01 clogs within 50 hours of particle-laden air. Use quick-exhaust valves on single-acting cylinders to halve return time without increasing compressor load.

Integrate 3-port limit switches at both piston stroke extremes–optical encoders fail under oil mist, and mechanical triggers corrode after 18 months in ISO Class 7 environments. Sequence valves with logic intervals of 20–50 ms; delays under 20 ms cause backpressure surges, while delays over 100 ms reduce throughput by 12%. Ground all metal frames to a common busbar with 6 AWG stranded copper–bonding straps introduce resistance over time.

Test every loop with 1.5× working pressure sustained for 2 hours; leaks above 5 cc/min at 6 bar indicate faulty seals or improperly seated fittings. Document each path in a vector-based editor with distinct layers for power, pneumatic and control lines–raster files blur at zooms below 10%. Label tie-points with unique identifiers incorporating pinout references, e.g., “V2-C3-P4” for valve 2, connector 3, pin 4.

For fail-safe redundancy, deploy spring-return actuators on critical valves and verify reset torque matches ISO 5211 spec within ±2%. When selecting flow sensors, prefer thermal dispersion types in ranges up to 500 L/min–they avoid moving parts that jam with lubricant buildup. Update system diagrams within 48 hours of any modification–legacy paper copies degrade alignment after three revisions.

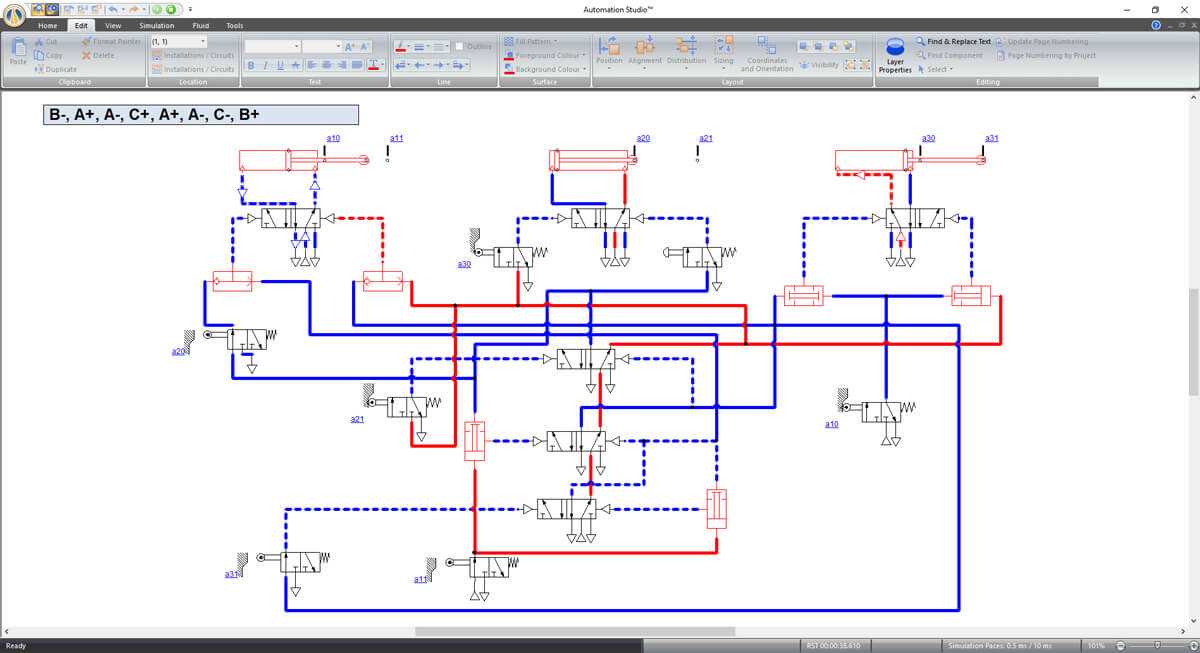

Designing Automated Pneumatic Circuit Blueprints

Begin by labeling every component with a consistent naming convention: valves as V[number], cylinders as A/B[number], and sensors as S[number]. This removes ambiguity when troubleshooting or modifying layouts. For industrial setups, use ISO 1219-2 symbols–ensure directional arrows on valves match actual airflow paths to prevent misalignment during assembly.

Place pressure regulators just after the air supply and before distribution lines. A 0.6 MPa regulator prevents damage to solenoid valves, which typically tolerate 0.8 MPa max. Install a 5-micron filter upstream to capture contaminants–fine particles accelerate wear on seals and pistons.

Use modular sub-circuits for complex sequences. Isolate logic sections with shut-off valves (manual or electric) to simplify diagnostics. For multi-cylinder systems, add quick-connect fittings at each branch–this lets you isolate faults without depressurizing the entire rig. Always include a bleed valve at the end of each branch to ensure safe depressurization before maintenance.

Route electrical wiring away from pneumatic lines–keep solenoid wires bundled in separate conduits to avoid electromagnetic interference. Use PLC tags that mirror mechanical labels (e.g., V1 = Solenoid1); cross-referencing prevents errors when mapping I/O points. Ground all metal components, including valve manifolds, to prevent static discharge from disrupting sensors.

Test each cylinder stroke with a pressure gauge on the exhaust port to verify speed control valves are tuned correctly. Uneven movement often stems from improper flow rates–adjust restrictors incrementally (0.5 L/min changes) while monitoring cycle times. Log all adjustments in a revision table attached to the finalized drawing for future calibration.

For remote monitoring, embed pressure transducers at critical nodes. Send data via 4-20 mA loops to a SCADA system–real-time tracking reveals leaks before they trigger failures. Store backup copies of all circuit plans in vector format (SVG/DXF) to maintain scalability; bitmap files lose clarity when zoomed for detailed inspections.

Core Elements of a Hybrid Air-Powered Control System

Prioritize solenoid valves with a response time under 15 ms for high-speed applications, as delays here cascade through the entire setup. Opt for 5/2 or 3/2 way valves with spring return for fail-safe positioning–never rely solely on double-acting solenoids in safety-critical paths. Include manual overrides on every valve bank to allow isolated troubleshooting without depressurizing the full line. Pressure regulators should be set 10-15% above operational peak to compensate for line losses, but avoid exceeding compressor capacity limits listed in the manufacturer’s performance curve.

• Compressor: Choose oil-free or lubricated based on contamination tolerance of downstream tools–oil-free avoids filter maintenance but requires larger cooling capacity.
• Air preparation: Mount coalescing filter (0.1 micron) upstream of regulator; add desiccant dryer if ambient humidity exceeds 50%.
• Actuators: Use double-acting cylinders for precise force control, but match bore size to load–oversized bores waste energy and slow response.
• Limit switches: Install inductive proximity sensors (IP67 rated) at both cylinder ends to prevent false triggers from vibration.
• Piping: Route polyamide tubing for flexibility or stainless steel for chemical resistance; never exceed 50 m between compressor and farthest valve to maintain pressure consistency.

Step-by-Step Guide to Reading Electro-Pneumatic Symbols

Identify power sources first–compressed air lines appear as solid arrows, while electrical connections use dashed or dotted lines with clear termination points. Check for directional flow markings (triangles inside valves) to determine pressure paths without relying on color coding, which varies between manufacturers.

Deciphering Valve Configurations

Locate actuator symbols: a solenoid coil (zigzag line) paired with a spring (wavy line) indicates spring-return functionality. A double-solenoid setup lacks the spring symbol–observe the plunger position (solid rectangle inside the valve body) to confirm normally open or closed states. Push buttons or manual levers replace solenoids in some cases, marked by a distinctive T-shaped handle.

Trace pneumatic cylinders next: single-acting types include one supply port and a spring symbol, while double-acting models show two ports without springs. Stroke length annotations (e.g., “50mm”) appear adjacent to the cylinder body–ignore generic labels like “ACT1,” cross-reference with the legend for precise dimensions.

Interpreting Control Logic

Follow ladder logic representations: vertical rails denote power buses, horizontal rungs connect switches (NO/NC contacts) and relays (rectangles). A slash across a contact indicates normally closed; its absence means normally open. Counters and timers include numeric values inside circles–”T1:0.5s” specifies a 500ms delay.

Match sensors to their symbols: proximity switches (inductive/capacitive) use a sideways “C” shape, while pressure switches appear as a diaphragm symbol with threshold markings (e.g., “≥6 bar”). Limit switches merge a roller or lever icon with the contact symbol–identify traveled cam paths by arrow directions.

Verify interlocks by tracing dashed lines linking mechanical linkages to valves or actuators. A dashed cross (×) denotes a mechanical stop; overlapping triangles signal a safety interlock. Confirm redundancy by checking mirrored symbols in fail-safe configurations–missing connections here often cause cascading failures in sequenced operations.

Building a Fundamental Automated Air-Control Setup

Start by mapping each actuator to its function: solenoid valves manage airflow direction, cylinders execute motion, and sensors confirm position. Assign unique identifiers (e.g., SV-1 for solenoid valve 1, CYL-A for cylinder A) and match them to control outputs. For a single-acting cylinder, one valve suffices; double-acting requires a 5/2 or 3/2 valve with spring return. Document this in a component table:

Component	ID	Function	Port Connections
Solenoid valve	SV-1	Directs air to CYL-A extend	1 → Supply, 2 → CYL-A port 1, 3 → Exhaust
Cylinder	CYL-A	Linear actuator	1 → SV-1 port 2, 2 → Exhaust or pressure
Limit switch	LS-1	Detects extended position	NO → PLC input I0.0, COM → 24V

Wire solenoid coils to 24V DC directly or through relays if current exceeds 0.5A. Use DIN rail terminals for secure connections; label each wire with its destination (e.g., “SV-1 coil +”). For cylinders over 50mm bore, add speed controllers on both ports to regulate movement. Install filters on the air supply line to remove particulates above 5 microns; moisture separators prevent valve corrosion. Pressure regulators should be set to 6 bar for standard setups, adjustable per actuator specs.

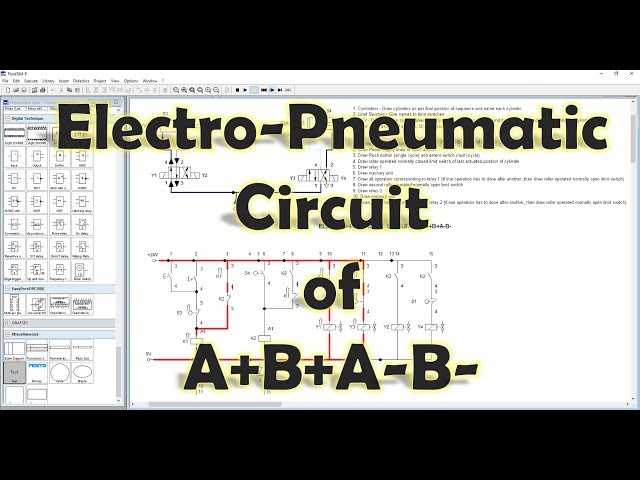

Program logical sequences in the controller using ladder logic or function block diagrams. A basic extend/retract cycle for a double-acting cylinder requires two rungs: one for each solenoid. Add interlocks to prevent simultaneous activation of opposing valves, and use timer blocks for dwell periods between steps. Test each rung individually by forcing outputs on the controller before full automation. Integrate emergency stops that cut power to all valves while maintaining cylinder pressure to avoid sudden drops.

Common Pitfalls and Adjustments

Avoid undersized tubing–use 6mm OD for flows under 50 L/min, 8mm for higher. Mount valves vertically to prevent debris accumulation in ports. If cylinders creep during idle, add pilot-operated check valves to lock positions. For noise reduction, install silencers on exhaust ports, and use pulse-width modulation for proportional control of valve opening times. Validate the entire system with a pressure gauge at the furthest actuator; drop should not exceed 0.2 bar from the regulator output.
