DIY Electromagnetic Pulse Generator Circuit Schematic and Design Guide

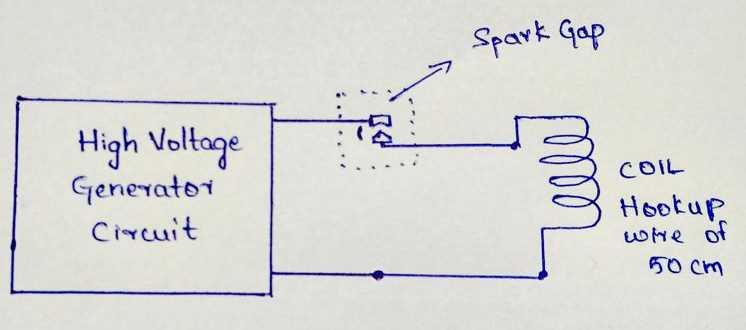

For rapid deployment, use a Marx bank configuration with twelve 0.1µF ceramic capacitors rated at 5kV. Charge them via a flyback transformer pulling 12V DC–this avoids complex power supplies while ensuring 3kA peak discharge. Trigger the cascade with a spark gap made from two 3mm tungsten electrodes spaced 4mm apart; breakdown occurs at ~8kV, driving the output into a single-turn copper coil (10 AWG, 20cm diameter).
Keep component spacing under 15mm on a FR-4 PCB to prevent corona losses. Ground the return path through a 50Ω resistor bank–this shapes the waveform rise time to 20ns, critical for maximizing induced voltage in nearby conductors. Avoid silicon-controlled rectifiers; they limit rep-rate and thermal-load capacity. Instead, use a thyratron tube or pressurized air gap for sub-microsecond recovery.
To validate performance, probe the coil with a 1GHz bandwidth oscilloscope at 1m distance. Expect a damped sinusoid peaking at 40kV, decaying within 120ns. If amplitude drops, reduce coil diameter or add a second stage using a Tesla transformer core (ferrite 4C65) to step up the voltage without increasing charge voltage beyond 10kV. Replace semiconductor switches with vacuum relays if long-term stability is required.
Secure all high-voltage nodes with polyimide tape and flood with insulating gas (SF₆ at 2 bar) to suppress arcing. Power draw at full rep-rate (5Hz) reaches 200W–plan for forced-air cooling. For portable builds, substitute capacitors with high-energy-density polymer films (1.2µF at 4kV) and shrink the coil to 12cm; this trades peak voltage for reduced weight.
Designing a High-Impact Energy Burst System
Begin with a Marx bank configuration for scalable voltage amplification. Use 10–12 high-voltage capacitors rated at 450V–600V each, arranged in parallel-series stages to achieve a minimum output of 5kV. Trigger the discharge via a spark gap filled with pressurized nitrogen (1.5–2 atm) for consistent breakdown. Ensure the gap spacing is adjustable–0.5mm per kilovolt of target output–to prevent premature arcing.
A primary coil should consist of 3–5 turns of 8 AWG copper wire, wound around a ferrite core with a permeability of 2000–3000. Position it coaxially within a secondary coil of 200–300 turns (30 AWG), spaced 10–15mm apart. This transformer ratio (1:40–1:60) maximizes pulse intensity while minimizing back emf. Ground the secondary coil through a low-inductance path–braided copper straps or silver-plated busbars reduce rise time losses.
| Component | Specification | Tolerance | Notes |
|---|---|---|---|
| Capacitor | 450V–600V, 100µF | ±5% | Polypropylene dielectric for fast discharge |
| Spark gap gas | Nitrogen at 1.8 atm | ±0.1 atm | Prevents oxidation of electrodes |
| Coil wire | Primary: 8 AWG / Secondary: 30 AWG | n/a | Enamel-coated to avoid shorting |
| Core material | Ferrite (µ=2500) | ±20% | Avoid saturation; air gap may be needed |
Incorporate a crowbar diode (e.g., STTH200L06TV1) across the output to clamp reverse voltage spikes. Without this, the load may experience destructive oscillations exceeding 800V within 50ns of discharge. For transient suppression, add a 5W metal oxide varistor (MOV) rated at 470V across the capacitor bank.
Use a triggered vacuum relay (e.g., Jennings RJ1A) for switching instead of a thyristor. While costlier, relays handle higher dv/dt rates (1000V/µs vs. 200V/µs for silicon switches) and reduce jitter to under 10ns. Drive the relay coil with a 24V isolated gate driver (e.g., ISO5500) to avoid ground loop interference.
Test the assembly in an anechoic chamber lined with 1-inch pyramidal foam (carbon-loaded polyether) to contain radiated emissions. Measure field strength at 1m using a calibrated loop antenna (e.g., Rohde & Schwarz HFH2-Z2) connected to a spectrum analyzer set to peak hold. Expected bandwidth: 5MHz–500MHz with a peak amplitude of 30V/m at 30MHz.
For mobile applications, power the system from a lithium-thionyl chloride battery (e.g., Saft LS33600) rated at 3.6V/17Ah. This chemistry provides the necessary current density (10A pulse) without voltage sag. Avoid lithium-ion–its internal resistance rises sharply under repetitive high-current loads.
Document all test waveforms using a scope with a bandwidth ≥500MHz (e.g., Tektronix MDO3104). Key metrics to record: rise time (target: <20ns), pulse width (target: 100–500ns FWHM), and ring-down amplitude (target: <10% of peak). Failure to meet these may indicate parasitic inductance–recheck all connections for solder joints or oxidized terminals.
Critical Parts for Assembling a Simple High-Energy Disruptor
Start with a high-voltage capacitor rated between 470µF and 2200µF at 400V or higher. Lower voltage models risk catastrophic failure under rapid discharge cycles, while higher capacitance stores more charge but demands thicker wiring to handle current spikes. Brands like Cornell Dubilier or Vishay offer industrial-grade units with reinforced terminal connections–avoid generic capacitors with thin leads.
Pair the capacitor with a xenon flash tube or triggered spark gap as the discharge trigger. Xenon tubes require a 150V to 300V trigger pulse, typically generated by a small ignition coil or flyback transformer scavenged from CRT monitors. Spark gaps, whether gas-filled or air-based, need precise electrode spacing (1–3mm for optimal breakdown) and should be mounted on ceramic or phenolic bases to prevent arcing to adjacent components.
Power delivery hinges on a robust charging system. A variac or adjustable bench supply (0–300V DC) allows controlled voltage increments, but a 12V to 230V inverter with a rectifier bridge (KBPC3510 or similar) yields faster charging for portable builds. Fuse the input line with a fast-blow 10A fuse to halt runaway currents before the capacitor ruptures.
Induction coils amplify the disruptive output. A multi-layer air-core coil wound on a 50mm PVC pipe (20–30 turns of 12AWG magnet wire) creates a broad field, while a single-layer solenoid (100–200 turns of 18AWG) focuses the burst into a tighter radius. Experiment with coil diameter–wider coils increase range but reduce intensity.
Grounding demands a dedicated path. Use a 1.5m copper rod driven into damp soil or a heavy metal plate submerged in water. Connect the capacitor’s negative terminal and the coil’s output via braided 8AWG grounding cable–thin wires melt under the transient surge. Isolate the grounding system from household wiring to prevent feedback damage.
Switching mechanisms dictate reliability. A high-current relay (e.g., Omron G7L or TE Connectivity V23105) handles 20A+ loads but introduces mechanical delay. For near-instantaneous discharges, use a thyristor (SCR) like the C182N or a MOSFET (IRFP460), triggered by a 12V pulse via optocoupler (4N35). Mount semiconductors on heatsinks even for brief operations–they dissipate heat poorly during microsecond spikes.
Enclosure materials affect performance. Non-conductive polymers (PVC, acrylic) prevent unwanted eddy currents, while aluminum shields external devices from stray emissions but attenuates the output by 20–30%. If using metal, line the interior with 2mm rubber or fiberglass sheeting to insulate components and contain explosive failures.
Test with a sacrificial target before deployment. A small AM/FM radio (powered by 1.5V AA batteries) placed 1–2 meters away confirms functional disruption–expect complete signal loss for 5–10 seconds post-trigger. For field use, add a bleeder resistor (2W, 10kΩ) across the capacitor to safely drain stored energy within 30 minutes after operation.
Building a Miniature Disruptor Unit on a Prototype Board
Select a 470μF capacitor rated for at least 40 volts–the higher the voltage tolerance, the safer the initial jolt tests. Place it upright on the breadboard’s top-left corner, aligning its negative lead with the blue power rail and the positive lead into any free row. Verify polarity with a multimeter before proceeding; reversed connections will destroy the component instantly.
Solderless tip: use a 9-volt battery snap connector wired directly to the rails instead of a standard battery holder. The snap’s red wire feeds the positive rail; black connects to ground. This simplifies voltage swaps without disturbing the fragile inductor placement later. Check continuity with a quick beep test to avoid false starts.
Wind 22-gauge enameled wire around a 10 mm diameter ferrite rod–20 tight turns yield roughly 10 μH inductance. Scrape both ends with fine sandpaper to remove insulation, then thread each end into adjacent breadboard rows six columns apart. Secure the coil with a dab of hot glue so vibration doesn’t shift the turns and ruin the resonant peak.
Insert a 2N2222 NPN transistor; emitter to ground, base through a 4.7 kΩ resistor to the capacitor positive rail, and collector to one end of the coil. A 10 kΩ potentiometer replaces the fixed resistor if tunable timing is desired–twist it clockwise to shorten burst duration, counter-clockwise to stretch it.
Add a push-button switch between the capacitor’s positive terminal and the battery snap. A single momentary press charges the capacitor and triggers the discharge through the coil. For repeatable tests, solder a 10 μF timing capacitor across the push-button so brief taps still dump full voltage.
Precaution: shield the board with a grounded aluminum foil enclosure whenever the battery is connected. Emissions leak through even small gaps, risking interference with adjacent digital devices. Clip a grounding wire from the foil to the breadboard’s ground rail to suppress stray signals.
Test the arrangement by powering the 9-volt source, pressing the switch once, then immediately measuring coil voltage with an oscilloscope. Expect a dampened sine wave peaking around 30 volts within 20 μs; deviant waveforms indicate loose wires or misaligned coil turns. Record peak amplitude at meter probes for comparison after component swaps.
For heightened effect, swap the 470 μF capacitor with a 1000 μF low-ESR electrolytic. Keep the same transistor and wiring; the larger reservoir simply extends decay time without altering the fundamental sequence. After three consecutive tests, discharge remaining energy through a 1 kΩ bleeder resistor across the capacitor pads to prevent accidental shocks.
