How to Build and Analyze an Electroplating Circuit Schematic Guide
Begin with a 12V DC power source rated for at least 5A–cheaper adapters may overheat under prolonged use. Connect the anode (plating metal, e.g., copper or nickel) directly to the positive terminal via thick-gauge wire (14 AWG or thicker) to prevent voltage drop. The cathode (workpiece) requires the same robust connection to the negative terminal, ensuring minimal resistance. Avoid alligator clips for anything beyond prototyping; use bolted or soldered joints for stability.
For solution conductivity, sulfate-based baths (e.g., CuSO₄ for copper) demand 0.1–0.5M concentration, while cyanide-free alternatives like Watts nickel bath require precise pH balancing (4.5–5.0) using boric acid buffers. Measure current density: 30–50 mA/cm² is optimal for most metals, but excess current causes rough deposits. A multimeter in series validates consistency–fluctuations above ±5% indicate poor connections or depleted bath.

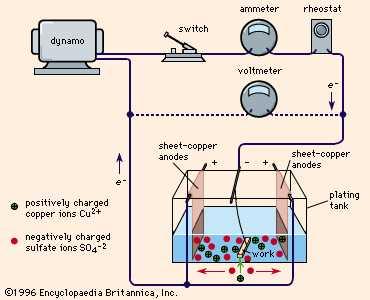

Add a 200Ω variable resistor between the power source and anode to fine-tune current. For pulse plating, integrate a 555 timer IC with adjustable duty cycles (typically 20–50%) to improve adhesion. Include an inline fuse (1A for small setups, 5A for industrial) to prevent shorts from damaging components. Submerge a stainless-steel stirrer (not immersible motors) at 60–100 RPM to maintain uniform ion distribution and prevent localized depletion.
Ground the workpiece holder to a common earth point to avoid stray currents, which create uneven layers. Use a glass or acrylic tank with volume ≥2L per 100cm² surface area to stabilize temperature fluctuations. For rectifier selection, prioritize full-wave units with ripple ≤5%–half-wave models introduce hydrogen embrittlement risks. Test deposits with a micrometer; thickness should match Faraday’s law calculations (±10% tolerance).
Designing a Precise Metal Coating Electrical Layout

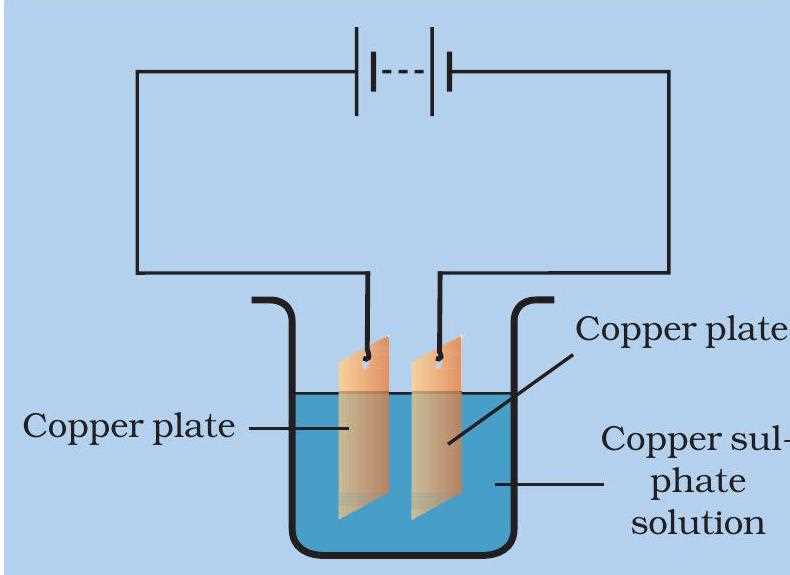

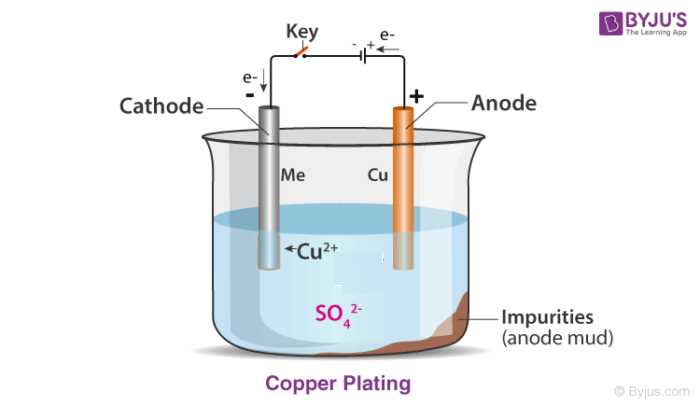

Begin with a DC power source delivering 1–10 volts, adjusted via a variable resistor to control current density. For optimal adhesion, maintain 0.5–5 amperes per square decimeter; deviations cause uneven deposits or weak bonds. Place the anode (often the plating metal) on one side of the bath and the cathode (target object) opposite, ensuring both are fully submerged to prevent oxidation.
Use a multimeter in series to monitor voltage drop across the solution, calculating resistance with Ohm’s law. Pure electrolytes (e.g., copper sulfate for copper coating) yield consistent results; impurities skew conductivity. For small-scale setups, connect wires with alligator clips; industrial systems require welded terminals to handle higher currents.
- 12-gauge copper wire for currents up to 20A; risk overheating beyond.
- Titanium anode baskets for nickel plating–resist corrosion longer than steel.
- Platinum-coated anodes for gold/silver to avoid contamination.
Insulate connections above the electrolyte level with heat-shrink tubing or silicone seals. Even minor exposure to air accelerates corrosion, disrupting current flow. For mixed-metal coatings (e.g., zinc-nickel), layer anodes sequentially–simultaneous use causes alloy imbalance.
Add an agitation mechanism: a magnetic stirrer at 300–600 RPM or compressed air bubbles near the cathode. Without movement, ions deplete locally, creating pitted surfaces. Over-agitation, however, removes fresh deposits before bonding occurs.
- Submerge parts vertically; horizontal placement traps gas bubbles.
- Timing varies: 10 minutes for thin decorative films, 6+ hours for structural layers.
- Rinse cathodes in distilled water post-plating to remove acidic residue.
Include a fuse rated for 125% of expected current to prevent short circuits. Faulty wiring risks arcing, which melts insulation and damages workpieces. For automated systems, integrate a timer relay to standardize duration; manual monitoring introduces human error.
Key Components of a Precision Metal Coating Power Supply Setup
Select a DC rectifier with adjustable output voltage ranging from 1V to 24V to match coating thickness requirements. For gold deposition, maintain 6V–12V; silver demands 3V–9V due to lower resistivity. Current density must fall between 10–100 A/ft²–exceeding this risks uneven deposits or dendrite formation. Use a transformer with a 120V/240V input capacity to handle variations in industrial mains supply without voltage sag.
| Metal | Optimal Voltage (V) | Current Density (A/ft²) | Max Thickness (μm/min) |
|---|---|---|---|
| Copper | 3–8 | 20–80 | 1.2 |
| Nickel | 4–10 | 15–60 | 0.8 |
| Zinc | 2–6 | 30–90 | 1.5 |
Integrate a pulse-width modulation controller to regulate duty cycles between 10% and 90%. Short pulses (50–500 μs) enhance grain uniformity, while longer bursts (1–10 ms) accelerate bulk layer growth. For critical applications like aerospace components, limit rise/fall times to under 1 μs to prevent porosity. Overcurrent protection must trip within 2 ms to avoid substrate damage from sudden shorts.
Include a dual-range ammeter with 0.1A resolution for low-current phases (under 5A) and a 1A resolution for high-current modes. Position the shunt resistor directly in the cathode line, ensuring a maximum 75mV drop to preserve measurement accuracy. Heat sinks on power semiconductors should dissipate 1W per 5A output; oversized aluminum extrusions prevent thermal runaway during prolonged cycles.
Ground the anode rack with a braided copper strap (min. 25mm² cross-section) to eliminate stray voltage drops. Use a high-frequency noise filter (10kHz–1MHz) to suppress harmonics that distort layer adhesion. Keep cabling under 1Ω resistance per meter; stranded copper wire with tin plating minimizes oxidation at connection points.
Step-by-Step Wiring of a DC Rectifier for Metal Coating Processes
Begin by securing a dual-secondary transformer with an output rated between 5V and 12V AC at 10A–50A, depending on the workpiece size. Connect the primaries to a mains voltage selector switch (110V/220V) using 14–12 AWG wire, ensuring strands are tightly twisted to minimize impedance. Verify the transformer’s core grounding connection–attached to a dedicated earth bolt–before energizing the system to prevent stray currents.
Bridge the secondary outputs to a four-diode full-wave rectifier or a single-phase bridge module (e.g., GBPC3510), observing polarity: AC inputs to the outer terminals, DC outputs (+/-) to the center. Use heat-sink-mounted diodes for currents above 20A, pre-applied with thermal compound. For smoother regulation, wire a capacitor bank (4700µF–10,000µF, 25V) across the DC terminals, placing a bleeder resistor (1kΩ, 5W) parallel to discharge stored energy when idle.
Fine-Tuning Current Delivery
Integrate a PWM controller (e.g., TL494) or a rheostat (0–10Ω, 100W) between the rectifier’s positive terminal and the anode to adjust current density. Ensure wiring thickness matches the expected load–8 AWG for 30A, dropping to 10 AWG for 15A. Connect the cathode (workpiece) via a flexible braided lead (copper or titanium) to reduce resistance. Test the setup with a multimeter in DC amps mode, confirming ripple voltage stays below 5% at full load.
Avoid direct mains connection to the DC side–insert a double-pole contactor (24V coil) controlled by a footswitch or timer for safety. Mount all high-current components on a non-conductive panel (e.g., phenolic), spacing parts to allow airflow. Label terminals clearly: AC IN, DC OUT (+/-), and GROUND. For failsafe operation, add a current-limiting fuse (slow-blow, 125% of max rating) inline with the positive lead.
Selecting Optimal Anode and Cathode Metals for Galvanic Deposition
For most industrial coatings, copper anodes deliver consistent dissolution rates when paired with acidic electrolytes like sulfuric or fluoro boric acid baths. Their low overpotential minimizes hydrogen evolution, reducing pitting defects on the substrate. Use phosphorus-deoxidized copper (Cu-DHP) for high-purity layers; avoid oxygen-free copper if brightness isn’t critical, as it dissolves 12–18% faster, shortening anode lifespan.
Zinc serves as the standard anode for protective coatings on ferrous metals, particularly in alkaline cyanide-free baths. Opt for special high-grade zinc (99.99% purity) to prevent sludge formation–impurities like lead or cadmium increase roughness by 30–40%. For barrel plating, rolled zinc anodes outperform cast variants, maintaining uniform current distribution at densities above 2.5 A/dm².
When depositing nickel, electrolytic nickel pellets in titanium baskets eliminate shape constraints while ensuring 99.98% purity. Sulfur-activated nickel (0.01–0.03% sulfur) reduces anode polarization by 60–70% compared to pure nickel, enabling stable operation at 4–5 A/dm². Avoid using nickel rounds in chloride-heavy baths–chloride ions accelerate dissolution, doubling consumption rates.
For chromium deposition, lead-antimony alloys (6–8% Sb) resist corrosion in hexavalent baths while sustaining current densities up to 20 A/dm². However, lead-free alternatives like platinized titanium or mixed-metal oxide anodes are mandatory in trivalent chromium systems–lead contamination here causes catastrophic bath instability. Replace anodes when thickness drops below 3 mm; thinner sections overheat, warping and reducing throw power.
Tin anodes demand strict attention to surface oxide layers. Use phosphorized tin (0.04–0.06% P) in sulfate baths to prevent sludging; oxide buildup increases resistivity, dropping cell voltage by 15–20%. For alkaline stannate baths, pure tin anodes dissolve uniformly only below 2 A/dm²–exceeding this threshold triggers disproportionation, forming colloidal tin that fouls the solution.
Platinum-group metals (PGMs) excel as insoluble anodes for precision coatings. Platinized titanium handles aggressive electrolytes (e.g., gold sulfites) at 50–100 A/dm² without degradation, while iridium oxide coatings extend lifespan in acidic media. Ruthenium oxide offers cost savings but delaminates in chloride solutions above 60°C–impose strict temperature limits (≤55°C) to prevent premature failure.
Cathode selection hinges on substrate reactivity. Steel requires activated strike layers (e.g., cyanide copper or Wood’s nickel) to prevent immersion deposits–bare steel develops 5–8 µm of loosely bonded iron-zinc intermetallics when directly immersed in alkaline baths. For aluminum, use zincate or stannate treatments followed by fluoride electrolytes to suppress oxide regeneration. Titanium alloys need vacuum-deposited palladium strike layers; conventional pre-treatments fail, yielding adhesion strengths below 1 kg/mm².
Match anode-cathode pairs to bath chemistry to avoid contamination. Chloride baths tolerate nickel or cobalt cathodes but corrode zinc anodes within hours–substitute with insoluble graphite or dimensionally stable anodes (DSAs). For pulse plating, soluble anodes must dissolve uniformly at 1–10 kHz; DC rectification exacerbates uneven consumption by 40%. Batch-plate stainless steel cathodes in sulfuric-peroxide solutions weekly to remove passive films–fouled surfaces extend plating time by 25–35% due to increased resistance.
