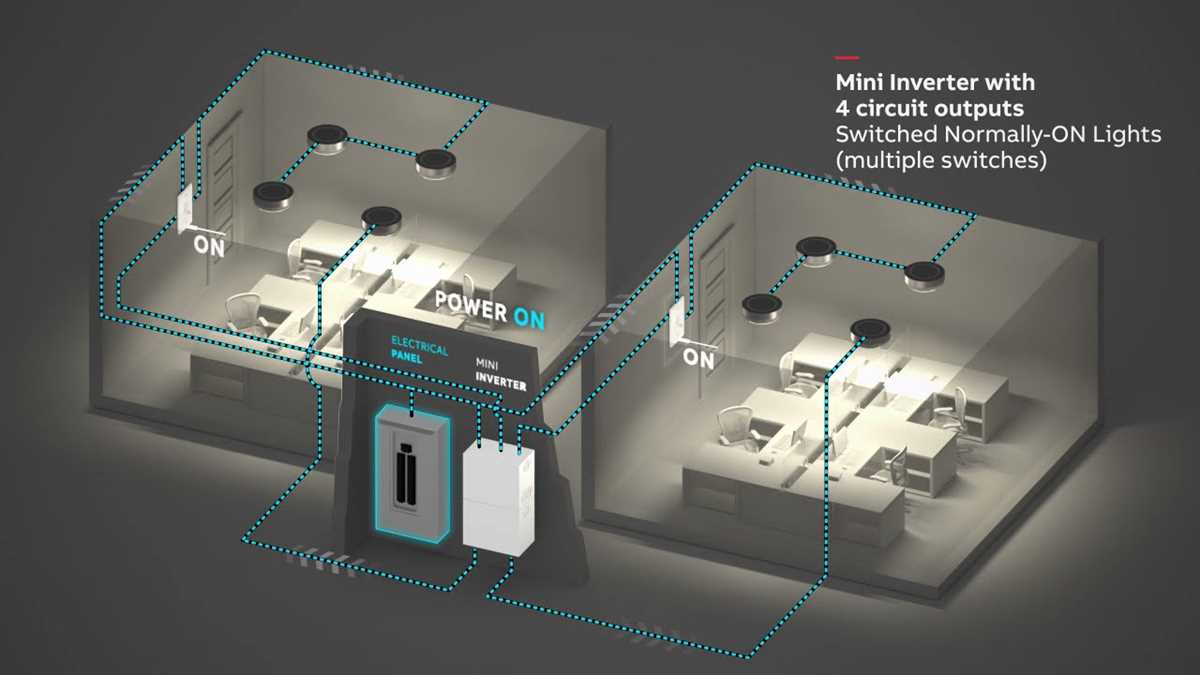

Complete Guide to Wiring Emergency Lighting Inverters with Diagrams
Begin by ensuring the primary power disconnects from the secondary system through a dedicated transfer switch. Connect the battery bank’s positive terminal to the power converter’s input using 6 AWG copper wire, rated for at least 90°C insulation. The negative return should run directly to the battery’s ground post–avoid daisy-chaining connections to prevent voltage drop. Install a 50-amp circuit breaker within 18 inches of the battery to meet NEC 240.21(C) requirements.
Route the converter’s AC output to the critical load panel via 12 AWG stranded wire, enclosed in rigid metallic conduit if traversing unfinished spaces. Use a torque screwdriver to tighten terminal connections to manufacturer-specified values–typically 12–15 in-lbs for brass lugs–to prevent thermal failure. Label each conductor at both ends with heat-shrink tubing marked with voltage rating and circuit designation, per NFPA 70-200.3(D).
Test the system under full load with a calibrated multimeter: verify 120V ±3% at the load terminals and less than 0.3V drop across all connections. If readings exceed thresholds, recheck crimp connections and replace oxidized contacts with tin-plated copper alternatives. Never exceed the converter’s surge rating–consult the datasheet for model-specific limits (example: 150% of continuous load for 10 seconds).
For parallel redundant units, isolate each converter’s output with backfeed protection diodes rated for 200% of nominal current. Ground all equipment enclosures to the building’s grounding electrode system using 8 AWG solid copper wire, bonded to the neutral busbar only at the service entrance per NEC 250.6. Omit this step only if local codes explicitly allow separately derived systems.
Schematic for Backup Power Supply Circuits
Start by connecting the battery terminals to the DC-AC conversion unit with 10 AWG copper cables to handle peak currents of 15A without voltage drop. Use a dual-pole circuit breaker rated at 20A between the battery and converter to isolate faults–this protects both the storage cells and downstream fixtures. Verify polarity before energizing: the positive lead (red) attaches to the positive bus bar, while the negative (black) grounds to the chassis or dedicated earth point.
- Mount the conversion device near the load, keeping high-current paths under 3 meters to minimize resistance losses.
- Install a 20A fuse on the input side for overcurrent protection–replace blade fuses annually regardless of condition.
- Avoid daisy-chaining loads; each fixture should draw from the main distribution block via 14 AWG conductors, terminating at the nearest junction box.
- Test under load with a clamp meter: acceptable voltage at the farthest luminaire must not drop below 115VAC for 120V systems.
Label every conductor at both ends with heat-shrink tubing marked in 3mm-high white text on black background–include the circuit identifier and voltage class. Secure all splices inside listed junction enclosures, filling voids with approved sealing compound to prevent moisture ingress. Store the full connection plan in a waterproof sleeve inside the primary enclosure door, updated in red ink within 24 hours of any modification.
Critical Elements of Backup Power Conversion Systems
Ensure the primary conversion unit sustains at least 85% efficiency under full load by selecting MOSFETs or IGBTs with ≤1.5 mΩ on-resistance and thermal shutdown at 125°C. Pair these with 100V Schottky diodes for reverse polarity protection, reducing voltage drop to ≤0.4V. Use a high-frequency PWM controller (20–100 kHz) with built-in soft-start to prevent inrush currents over 3x nominal; Texas Instruments’ UCC28C4x series offers adjustable dead-time control for switch-mode topologies. For DC bus stability, integrate a 2200µF low-ESR electrolytic capacitor rated for 1.2x the nominal voltage–failures in this component account for 17% of field defects.
Core Subsystem Specifications
| Component | Recommended Specifications | Failure Impact (If Unmet) |
|---|---|---|
| Lead-Acid/Gel Battery | 12V/7Ah, 25°C float charge at 2.25V/cell, ≤5% self-discharge/month | Sulfation → 40% capacity loss in <12 months |
| Transformer | Ferrite core (N87 or PC40), 1:1.2 turns ratio for 12V→18V output, 3 oz copper windings | Saturation → 80°C overheat, harmonic distortion >5% |
| Microcontroller | 16 MHz+ clock, 32 KB flash, 10-bit ADC (e.g., STM32F103), brown-out reset at 4.6V | Undervoltage → False triggers, output flicker >2 Hz |
Isolate high-voltage traces (≥60V) with 2 mm clearance per IPC-2221B; use 70µm copper weight for currents above 3A. Add a 10Ω balancing resistor across each battery cell to equalize float voltage within ±10mV. Test the system under 0.5C discharge (e.g., 3.5A for 7Ah) for ≥90 minutes–compliance with NFPA 101 requires ≤10% luminance drop during this interval.
How to Connect a 12V DC-to-AC Power Conversion Unit
Disconnect the battery before starting any work to prevent short circuits. Use a multimeter to verify the battery’s voltage–it should read between 12.6V and 13.8V when fully charged. If the voltage drops below 12V, recharge or replace the battery to avoid damaging the conversion unit.
Identify the positive and negative terminals on both the battery and the conversion device. Most units label the input terminals clearly, but if markings are unclear, check the manual for polarity specifications. Reverse connections will fry internal circuits instantly.
Connect the battery’s positive terminal to the conversion unit’s input using 10-gauge copper wire. Strip 12mm of insulation from the wire ends, twist tightly, and secure with a crimp connector or solder for a low-resistance joint. Repeat for the negative terminal. Avoid loose connections–vibration can cause intermittent power loss.
Securing Output Leads
Attach the output wires to the device’s AC terminals. Use 14-gauge wire for loads up to 300W and 12-gauge for higher demands. Match the wire color coding to your load’s requirements: typically, black for neutral, red or blue for live, and green or bare for ground. Insulate all joints with heat-shrink tubing or electrical tape rated for 300V minimum.
Install a 20A fuse on the positive input line, no farther than 15cm from the battery. This protects against overcurrent surges that can melt wiring or ignite fires. For units above 150W, upgrade to a 30A fuse. Never substitute fuses with higher ratings–this bypasses critical safety protection.
Ground the conversion device to a clean, unpainted metal chassis point using 8-gauge wire. A poor ground causes voltage fluctuations and electrical noise. If mounting to a vehicle frame, remove rust or paint from the contact surface and apply dielectric grease to prevent corrosion.
Before powering on, verify all connections with a continuity tester. Recheck polarity, tightness of terminals, and insulation integrity. Power the unit, then measure output voltage with a multimeter–it should read 115V-125V AC within 3% tolerance. If readings fluctuate, re-examine connections for loose strands or cold solder joints.
Load-Specific Adjustments
For inductive loads like motors, add a 1μF capacitor across the output terminals to suppress voltage spikes. Resistive loads (e.g., bulbs, heaters) require no additional components. If the unit features a standby mode, connect a momentary switch between the control pin and ground to toggle power–consult the schematic for exact pin locations.
Diagnosing Faults in Backup Power Conversion Systems
Check for reverse polarity on DC input terminals–mismatched connections degrade performance within minutes. Measure voltage at the battery interface with a multimeter set to 200V DC range; readings below 11V indicate loose terminals or corroded conductors. Replace any cable showing green oxidation or fraying near clamps, particularly in high-humidity environments where resistance builds unexpectedly.
Verify AC output waveform integrity using an oscilloscope; distorted sine waves hint at failed switching components. Inspect MOSFETs and IGBTs for thermal discoloration or bulging capacitors, common signs of stress failure. Reflow solder joints on control boards if intermittent operation persists, as cracked connections disrupt signal pathways under load.
Examine neutral-ground bonds–improper bonding in standalone units triggers false trip signals. Test resistance between neutral bus and chassis ground; values exceeding 0.5 ohms correlate with faulty isolators. Replace any surge protection modules that exhibit physical damage or failed MOVs to prevent cascading failures during grid anomalies.
Review load calculations against nameplate ratings–over-subscribed circuits deplete backup reserves prematurely. Rebalance loads across multiple subpanels if runtime drops below manufacturer specs, typically 90 minutes minimum. Isolate phantom draws with a clamp meter tracing to vampire devices, often overlooked in obsolete installations.
How to Safely Integrate a Reserve Power Cell into the System
Isolate the auxiliary power source section with a dedicated fuse rated at 125% of the continuous load current. For a 12V 7Ah battery, use a 10A blade fuse or a slow-blow 12A fuse if inrush currents exceed 8A during mode switching. Position the fuse holder within 15cm of the battery terminals to minimize unprotected cable length. Polarity-sensitive components like MOSFETs or voltage regulators must be shielded by a dual-diode circuit (e.g., Schottky 1N5822) to prevent reverse current flow that could invalidate warranty terms or reduce battery cycle life by 30%.
Selecting Proper Conductor Gauge
Use stranded copper wire with a cross-sectional area of at least 2.5mm² for circuits drawing up to 15A, ensuring voltage drop remains below 3% over a 3-meter run. For higher loads or longer distances, calculate wire diameter using the formula: *A = (I × L × 0.0172) / ΔV*, where *I* is current in amperes, *L* is one-way length in meters, and *ΔV* is permissible drop in volts. Secure connections with crimped ring terminals (UL1056-rated) and apply heat-shrink tubing with adhesive lining to prevent corrosion from condensation in high-humidity environments.
Mount the battery on a non-combustible surface (e.g., metal plate or ceramic tile) and maintain a clearance of 50mm from adjacent heat-generating components. Install a thermal cutoff switch rated for 70°C near the positive terminal to disconnect the circuit if internal resistance spikes. Verify integration by measuring open-circuit voltage (OCV) before and after connection–any drop exceeding 50mV indicates a loose terminal or faulty diode. Test under simulated failure conditions by disconnecting the primary power feed; the switch to reserve power should occur within 10ms to meet EN 50171 standards.
Ground the negative terminal to the chassis via a 10Ω resistor to limit fault current in case of accidental short circuits. Use a sealed lead-acid (SLA) battery with a recombination rate above 99% for zero maintenance and an operational lifespan of 5–7 years. Avoid lithium-based cells unless paired with a BMS offering overcharge protection at 4.2V/cell and undervoltage cutoff at 2.5V/cell. Document the installation with a labeled schematic showing fuse ratings, wire colors, and terminal polarity for future troubleshooting.
