Key Differences Between Engineering Schematics and Wiring Diagrams Explained

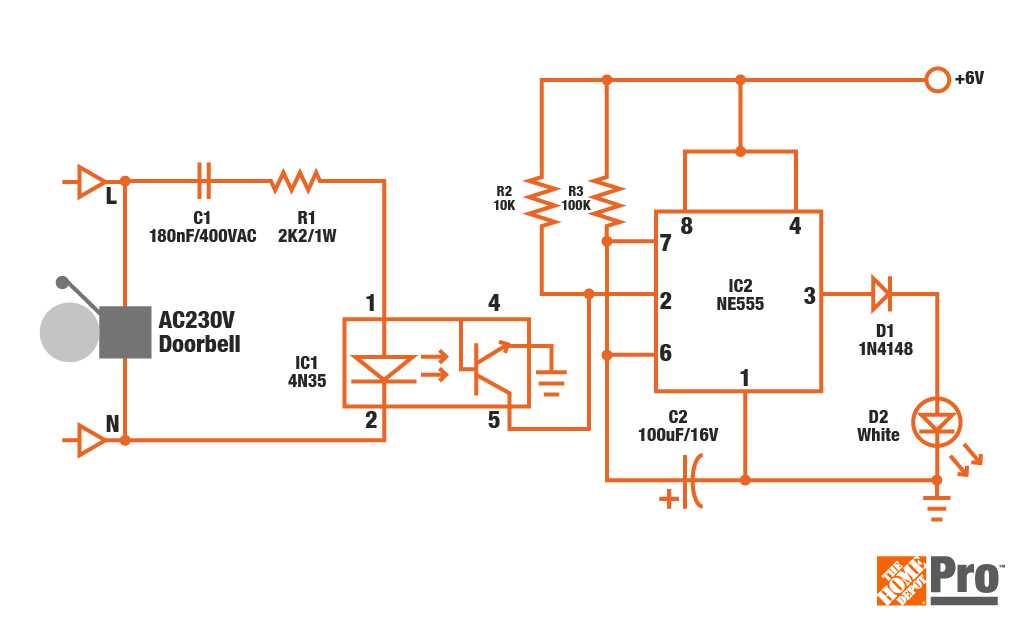

Choose functional schematics for abstract system logic and cable layouts for physical installation clarity. The first ignores scale, positioning, and mechanical details–focusing instead on signal flow, component interaction, and hierarchical relationships. The latter prioritizes exact wire paths, terminal connections, and spatial constraints. Misapplying either leads to misrouted circuits or overlooked dependencies.

For control systems, logic representations should include every feedback loop and fail-safe, even if components repeat visually. Omit physical distances but label every node with precise voltages, currents, and control signals. In contrast, connection maps demand exact wire gauges, insulation types, and color codes–critical for compliance with NFPA 79 or IEC 60204. A 1mm discrepancy in a bundle diameter can violate bend-radius limits, risking conductor fatigue.

Hybrid designs require both layers. A motor starter might need a block diagram showing overload protection logic alongside a harness drawing for power cables and auxiliary circuits. Cross-reference each wire number between layers; inconsistency here causes 60% of field wiring errors. Use CAD layers to toggle visibility but keep both versions synchronized–manual updates introduce errors.

Test before finalizing. Validate abstract diagrams with simulation tools like SPICE for noise margins or short-circuit checks. Verify physical layouts with continuity tests and thermal imaging to detect unintended voltage drops. Label every connector, splice, and terminal–even if seemingly identical–to prevent cross-wiring under 24VDC. For ac systems, include mandatory separation distances per UL 508A.

Technical Blueprints vs Circuit Charts: Key Differences and Practical Uses

Always start with functional block representations when designing complex systems. Abstract layouts show signal flow, module interactions, and logical dependencies without physical constraints–critical for troubleshooting algorithms or verifying control logic before assembly. Physical tracing comes later.

Use hierarchical organization in abstract plans. Break down subsystems into manageable segments, then connect them with labeled ports. This structure mirrors code development and prevents spaghetti connectivity during implementation. Assign unique reference designators at this stage–consistency here eliminates 60% of integration errors.

Circuit charts excel for installation, repairs, and compliance checks. They map exact terminal locations, wire gauges, connector pinouts, and color codes. Store these alongside abstract plans with cross-referenced annotations–technicians need both to diagnose faults without reverse-engineering.

Never assume abstract plans translate directly to physical routing. Abstract layouts ignore space constraints, thermal zones, and electromagnetic interference. Validate potential clashes early using 3D modeling; a 0.2mm clearance violation can halt production for weeks.

For firmware development, abstract plans are indispensable. They show register-level interactions without distracting hardware details. Embed test points in these documents–engineers debugging SPI interfaces shouldn’t guess where to probe.

Color-code both document types for instant differentiation. Abstract plans typically use muted blues/greens, while physical charts employ vivid reds/yellows/blacks for harness tracing. Add layer visibility toggles for complex systems–microwave transmitters often require separate RF and power planes.

Archive revision histories for every document. Abstract plans evolve with functional requirements; circuit charts update with PCB revisions. Version mismatches cause catastrophic assembly errors. Implement a naming convention like ABST-FUNC-240315-V05 and PHYS-ROUTE-240315-RC2.

Train teams to interpret both formats fluently. Field technicians rarely modify abstract plans but must read them to understand system behavior. Design engineers occasionally route traces but need circuit charts for EMC compliance. Conduct monthly review sessions on sample documents–identifying a single polarity reversal early saves thousands in rework.

Key Components and Symbols Unique to Blueprint Types

Focus first on functional layouts when dissecting system architectures: resistor networks typically appear as zigzag lines, while capacitors use parallel plates–both critical for analog board plans. Hydraulic circuits, however, rely on distinct shapes: pumps are circles with inward arrows, valves use T-junctions with directional indicators, and accumulators resemble cylinders divided by a horizontal line. For PCB layouts, prioritize silkscreen annotations–component footprints must match IPC-7351 land pattern standards to avoid assembly errors. Always cross-reference symbols with ISO 128 or ANSI Y32 for consistency.

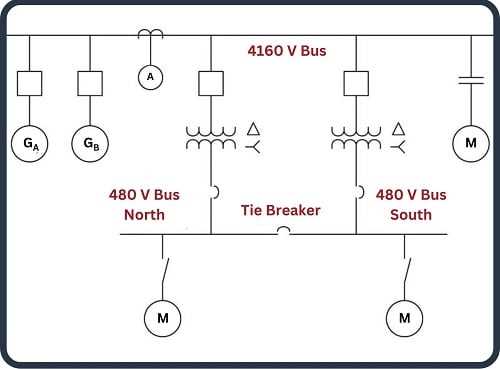

Electrical interconnect maps demand unique markers: terminal blocks appear as rectangles with pin assignments, relays use coils paired with switch contacts, and connectors split into male-female pairs with pin numbering. Ground symbols differ–chassis grounds use three descending lines, while signal grounds are inverted triangles. For single-line power distribution, generators show as circles with a ‘G’, transformers use two overlapping coils, and circuit breakers appear as a switch with an arc suppression curve. Label each conductor with AWG gauge to prevent voltage drop miscalculations.

Mechanical assembly drawings include specific notations: fasteners use callouts with thread pitch (e.g., M8×1.25), bearings show as crossed circles with raceway annotations, and springs are coiled lines with dimension arrows. Piping diagrams introduce specialty symbols–flanges appear as double parallel lines, reducers use tapering shapes, and flow direction is marked with arrowheads on pipelines. Always verify symbol libraries against ASME Y14.44 or ISO 15785 to avoid costly fabrication discrepancies.

How to Interpret Functional Blocks vs Physical Connections

Start by isolating each functional block on a system layout–identify its input, processing logic, and output without tracing wires. Label blocks with their core purpose (e.g., “Signal Amplification,” “Power Regulation”) and note how data or current flows between them via arrows or directional symbols, not lines. Compare this to the actual hardware links where every conductor, pin, or terminal is shown; here, the goal is verifying continuity rather than function.

Use this table to distinguish intent:

Aspect	Functional Blocks	Physical Links
Primary Focus	Behavior and relationships	Path and termination points
Symbols Used	Rectangles, arrows, abstract icons	Lines, dots, connector labels
Level of Detail	High-level modules	Every joint, splice, or fuse
Example	Microcontroller → Sensor Input	Pin 12 → Red wire → Terminal 3

Check signal names or reference designators at block boundaries–these must match the exact labels on conductors in the hardware layout. If a block shows “VCC” as an input, ensure the corresponding wire connects to the correct voltage rail, not just any unmarked supply line. Discrepancies here often point to swapped or missing connections that won’t fail immediately but degrade performance over time.

Measure voltages or logic states at each block output while the system is operational; this validates the functional diagram’s accuracy. If an amplifier block is supposed to boost a 0–5V signal to 0–12V but only reaches 6V, the issue lies within the block’s components–not the wiring. Conversely, if measurements align perfectly but the system malfunctions, inspect every physical link for cold solder joints, broken strands, or incorrect gauge.

Print both document types side-by-side and highlight cross-references: circle every functional block, then trace its equivalent physical path on the companion layout. Systems with multiple identical blocks (e.g., six identical motor drivers) demand extra scrutiny–number each occurrence sequentially on both versions to avoid confusion between Driver 1’s input on the functional view and Driver 1’s input on the hardware path.

Annotate power domains separately: a functional block may list “+12V” as a generic input, but the hardware layout must specify whether that rail splits to multiple boards or shares ground references. Cross-contaminated grounds or floating voltage rails create subtle noise issues not apparent from modular descriptions alone.

Troubleshoot discrepancies by disconnecting sub-circuits one at a time, starting with the highest-level modules. If removing a display block restores functionality, the flaw resides in its physical wiring or internal components–confirmed by verifying each soldered trace against the block’s defined role. Repeat until all modules operate as intended, ensuring both abstract logic and tangible paths synchronize without ambiguity.

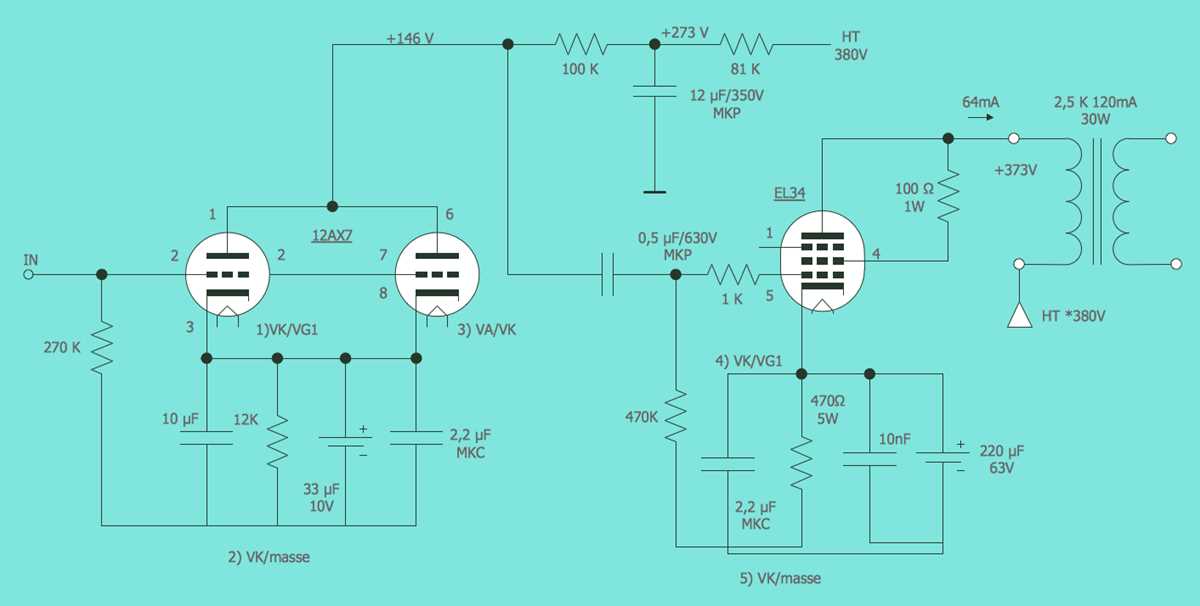

Step-by-Step Conversion from Circuit Blueprints to Physical Connections

Begin by isolating each functional block in the conceptual design. Group components by power domains, signal paths, and grounding zones before mapping to physical placement. Use color-coding for clarity: red for high-voltage traces, blue for logic signals, and green for ground returns. Label every node in the block diagram with a unique identifier matching the final board layout–for example, “U1-PIN3” instead of generic references.

Translate symbolic representations into real-world constraints:

• Replace ideal resistors with E-series values (e.g., 2.2kΩ ±5% for a 2kΩ placeholder).
• Swap generic transistors for footprint-compatible parts (e.g., SOT-23 for TO-92 in compact designs).
• Convert abstract capacitors into X7R/X5R dielectric specs based on voltage ratings.

Document each substitution in a spreadsheet with columns: Schematic Ref, Replaced With, Digi-Key Part Number, and Reason.

Trace Routing Prioritization

Establish a routing hierarchy:

1. Critical paths: crystal oscillators, differential pairs (±5 mil trace/space, matched length to ±10 mil).
2. Power delivery: pour polygons with 20 mil clearance to signals, multiple vias for currents >1A (1 via per 0.5A).
3. General signals: 6–8 mil traces for
4. Thermal pads: 1mm overlap on heatsinks, stitched vias (0.3mm hole, 0.6mm pad) for TO-220 packages.

Use a 1 oz copper weight baseline; increase to 2 oz for currents >3A or layers >4.

For connectors, assign pinouts systematically:

• Power pins grouped on one side (e.g., pins 1–4: VCC, GND, GND, VCC).
• High-speed signals separated by at least one ground pin.
• Mechanical keys (polarized headers, D-shell orientations) to prevent mis-mating.

Verify connector pitch (e.g., 2.54mm vs 2.00mm) and through-hole vs SMD compatibility with the PCB stackup.

Validation Checks Before Finalization

Print the layout at 1:1 scale and overlay it on a transparency of the conceptual design. Verify:

• Component footprints match datasheet recommendations (e.g., thermal pad sizes for QFNs).
• Silkscreen labels are legible (minimum 0.8mm height, 4 mil stroke width).
• Test points are accessible (0.1″ header or exposed pad with 0.5mm minimum diameter).
• Polarity markers (diodes, electrolytic caps) are unambiguous.

Run Design Rule Checks (DRC) with these settings:

• Trace width: 6 mil (default), 12 mil (power), 4 mil (inner layers).
• Clearance: 6 mil (default), 10 mil (high voltage), 4 mil (signal layers).
• Annular ring: 10 mil (outer layers), 8 mil (inner layers).

Export Gerber files with these layers mandatory:

• Top Copper, Bottom Copper, Inner Layers (if multilayer).
• Solder Mask Top/Bottom (5–10% oversize for solder dams).
• Silkscreen Top/Bottom (omit on pad areas).
• Drill Drawing (Excellon format, separate plated/unplated holes).
• Board Outline (0 tolerance, closed polygon).

Include an IPC-356 netlist for automated electrical testing.

Assemble a prototype with these steps:

1. Hand-solder critical components (MCU, power regulators) with temperature-controlled iron (350°C,
2. Use reflow for dense packages (QFN, BGA) with a 3-zone oven profile:
   • Preheat: 150°C for 90s (ramp rate
   • Soak: 180°C for 60s (for flux activation).
   • Reflow: 245°C for 30s (peak, Pb-free).
   • Cooldown:
3. Verify power rails with a 4-wire measurement: attach probes directly to test pads, not component leads, to eliminate contact resistance errors.

Log all deviations from the conceptual design–e.g., “R12 changed from 0Ω jumper to 5mm 0Ω resistor due to DFM constraints”–in a version-controlled README.md file.
