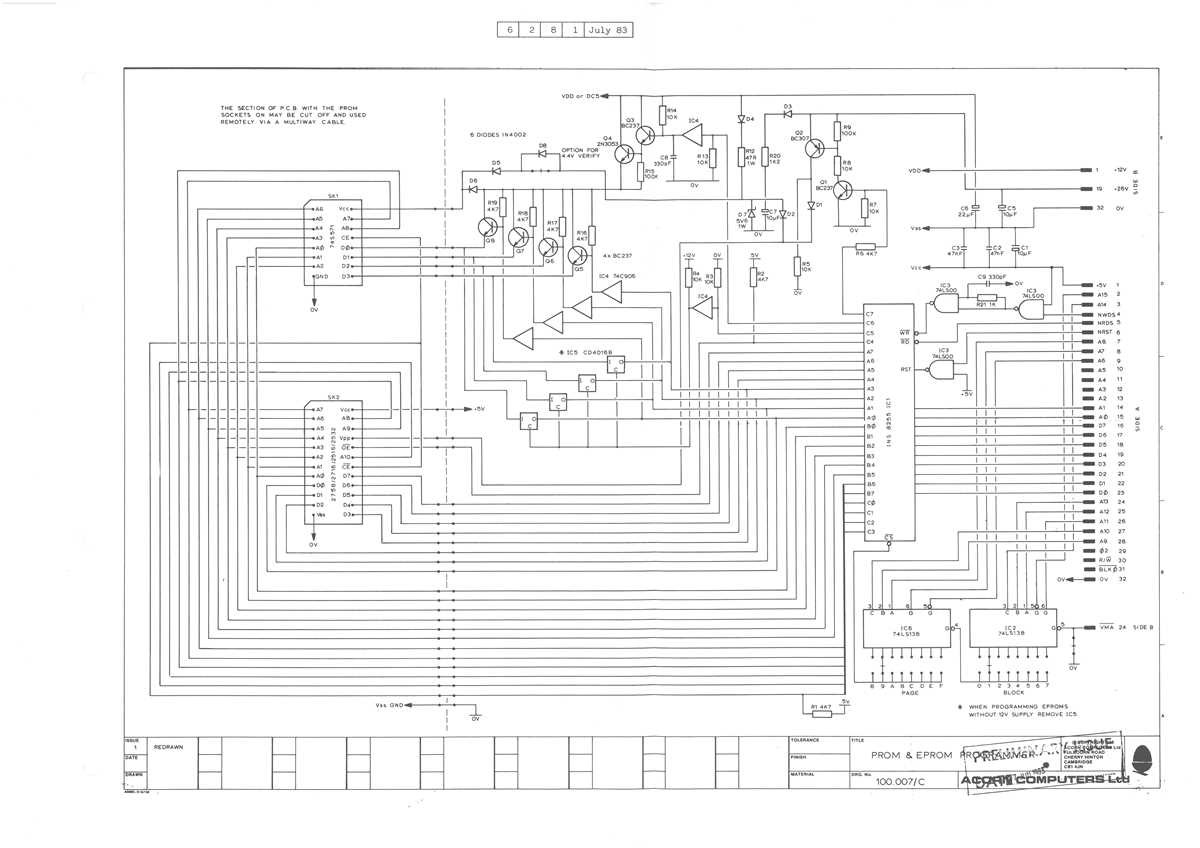

Build Your Own EPROM Programmer with This Detailed Circuit Diagram Guide

Begin with the TL866II Plus reference design–its bus architecture balances speed and signal integrity while minimizing external components. Use a level-shifting network combining 74HC245 transceivers for 5V TTL interfacing; this avoids voltage overshoot that degrades NOR-type storage cells. Isolate address and data lines with 100Ω series resistors to suppress reflections during high-speed writes.

Avoid generic USB-UART bridges like CH340; opt for FT2232H in MPSSE mode for precise timing control on up to 32 parallel I/O channels. Configure the gate array (e.g., XC9572XL) with pin-specific slew rate settings–20ns rise/fall times prevent latch-up during erase cycles. Decouple VCC pins with 10μF tantalum + 0.1μF ceramic caps directly at each IC to stabilize transient currents.

For legacy 27-series devices, integrate a 3.3V/12V switching regulator (e.g., LM2596) with dedicated enable lines for programming voltage generation. Route critical traces–address (A0-A16), CE, OE–as impedance-matched pairs: 50Ω single-ended or 100Ω differential on outer layers of a 4-layer PCB. Keep stubs under 3mm to prevent timing skew.

Verify signal paths with a 1GS/s logic analyzer–validate setup/hold margins against datasheet specs for maximum clock speed. Add debug headers for SPI (MOSI/SCK) and I²C (SDA/SCL) to support in-circuit firmware updates. Test performance across temperature ranges (0–70°C) to expose latent thermal coupling issues.

Building a Reliable Memory Writer Circuit Layout

Select a 27-series UV-erasable chip as the core–27C256 or 27C512 models cover most retro computing needs. These ICs require a 12.5V to 21V programming pulse, distinct from the standard 5V logic supply. Integrate a dedicated DC-DC boost converter module, such as an adjustable MT3608, set to 13V. Avoid linear regulators; they waste excessive power during pulse generation and risk insufficient voltage under load.

Split the address bus into two sections: lower and upper bits. The lower byte connects directly to a parallel port or microcontroller, while the upper bits route through a 4-bit binary counter, like a 74HC4040. This reduces wiring complexity by automatically cycling through memory pages during write operations. Include 10kΩ pull-down resistors on all address lines to prevent floating states during power-up.

Data Line and Voltage Switching

Switch data lines between input and output modes using a bidirectional buffer, such as a 74HC245. Control direction via a GPIO pin–high for reading, low for writing. Add 220Ω series resistors on data pins to limit current during voltage transitions. For 12.5V pulses, use a high-side switch like an IRFZ44N MOSFET, triggered by a 555 timer in monostable mode, configured for 50ms pulses. Ensure proper grounding: connect the pulse circuit’s ground to the chip’s VPP pin only during programming to prevent feedback into the logic system.

Verify timing with an oscilloscope before writing. The critical parameters: address setup time (minimum 1µs), data hold time (at least 500ns after pulse end), and pulse width precision (±1ms tolerance). Calibrate the 555 timer’s RC network to 50ms using a 47kΩ resistor and a 1µF capacitor–deviations risk corrupting the stored image. Test with known binary patterns: alternate 0x55/0xAA sequences reveal stuck bits or weak cells better than random data.

Erasing and Verification Workflow

Expose the chip to a 254nm UV lamp at 12mW/cm² intensity for 15–20 minutes–shorter exposures leave residual charge, longer degrade the oxide layer. Position the lamp 2cm above the window, centered. Post-erase, conduct a blank check: scan every byte; any non-FF value indicates incomplete erasure. For post-write verification, read the chip at 1MHz and compare against a golden image–discrepancies often manifest in the first or last 64 bytes, signaling voltage drop or timing drift.

Isolate programming voltage using optocouplers on the control lines for microcontroller-based designs. A PC817 isolates the 13V rail from 3.3V/5V logic, preventing ground loops during high-voltage pulses. Add a 1N4148 diode in series with the VPP pin to block reverse current. For standalone operation, include a 3-pin header (VPP enable, pulse trigger, ground) to permit manual triggering without a host system–useful for field repairs.

Core Elements for Assembling a Memory Writer Build

Start with a ZIF socket compatible with the target chip’s pin count–28-pin for common variants like 27C256 or larger 40-pin for flash derivatives. Ensure the socket’s lever mechanism secures the device firmly without bending pins during insertion or removal. Avoid low-quality sockets with worn contacts; they introduce intermittent errors during data transfer.

A 5V to 12V adjustable regulator is mandatory–most legacy chips require precise voltage levels for erasing and writing cycles. Use an LM317 or equivalent, paired with decoupling capacitors (0.1µF ceramic, 10µF electrolytic) at both input and output to suppress noise. Verify the regulator’s heat dissipation needs; active cooling may be necessary for prolonged burn sessions.

Include a parallel or USB interface module to bridge the hardware with control software. FTDI FT232RL adapters work reliably for USB, while older builds may rely on LPT ports. Ensure drivers are explicitly matched to the interface chip–generic drivers often fail to handle bit-banging protocols efficiently.

For address and data line management, 74HC595 shift registers or equivalent latch-based ICs simplify wiring by serializing parallel signals. These reduce pin congestion on microcontrollers while maintaining signal integrity over short PCB traces. Keep clock and latch lines under 30 cm to prevent skew-induced errors.

Add pull-up resistors (4.7 kΩ) on control lines–WE, OE, CE–to prevent floating inputs during high-impedance states. CMOS chips are particularly sensitive to undefined logic levels, which can corrupt writes or locks. Include a small SPST switch to manually enable/disable the write voltage during debugging.

A current-limiting circuit protects the chip from over-voltage during erasure. A simple 100Ω resistor in series with the programming voltage line prevents catastrophic failures if the regulator fails. For high-density devices (>1 Mbit), consider a dedicated high-voltage transistor like MPSA42 to isolate the write pulse from the logic supply.

Use ribbon cables or individual stranded wires (26–30 AWG) for connections between the controller and the socket. Bundled cables reduce crosstalk but add capacitance; for 16+ MHz clocks, twisted pairs or shielded cables are superior. Ground loops must be minimized–connect all grounds at a single point near the regulator.

Verify the timing requirements of the target chip’s datasheet before finalizing traces. Write pulses typically range from 1–50 ms, while address setup/hold times demand

Step-by-Step Wiring Guide for Parallel Port Memory Device Writer

Begin by verifying the voltage requirements of your target chip–common variants like the 27C256 operate at 5V, while older 2716 models may need 12V or 21V for programming pulses. Connect the parallel port’s pin 2 (D0) to the chip’s address line A0, pin 3 (D1) to A1, and continue sequentially up to pin 9 (D7) for A7. For larger capacity chips, extend wiring to higher address pins (e.g., A8–A14) using port pins 14 (Auto Feed), 16 (Init), and 17 (Select) after checking their voltage levels to avoid backfeeding.

Signal Pin Assignments

Parallel Port Pin	Function	Target Chip Pin	Notes
2	Data Bit 0 (D0)	A0	Start with LSB
3	Data Bit 1 (D1)	A1	Verify pull-down resistors if unstable
4	Data Bit 2 (D2)	A2	Optional 1kΩ series resistor for noise immunity
14	Auto Feed	A8	Check port voltage; may need level shifter
16	Initialize	VPP	21V for 2716, 12V for 27CXXX
17	Select Printer	/CE	Active low; connect via 74HC04 if inversion needed

Wire the chip’s data lines D0–D7 to parallel port pins 2–9 directly only for 5V-tolerant devices. For 3.3V chips (e.g., modern flash), insert 74LS245 or similar bus transceivers with OE tied to GND and DIRECTION to VCC. Ground the transceiver’s VCC pin to the chip’s logic supply and use its 5V-tolerant side for the port. Skip this step if working exclusively with 5V devices.

Attach /OE (Output Enable) to parallel port pin 1 (Strobe) via a 1kΩ resistor to limit current. /CE (Chip Enable) must connect to pin 17 (Select Printer) with an inverter if the port’s idle state is high–use a 74HC04 hex inverter or a single NPN transistor (e.g., 2N3904) with a 10kΩ pull-up resistor to VCC. Verify the voltage on both sides before applying power to avoid latch-up.

For VPP programming voltage, use a dedicated adjustable regulator (e.g., LM317) set to the chip’s required level–typically 12.5V for CMOS variants or 21V for NMOS. Connect the regulator’s output to the chip’s VPP pin through a 100Ω resistor to soften the pulse. Ground the chip’s VCC pin during programming to ensure clean voltage transitions; a DPDT switch with a common ground simplifies toggling between read (5V) and write (VPP) modes.

Insert 100nF decoupling capacitors between VCC and GND as close to the chip’s pins as possible, and add a 10µF bulk capacitor near the voltage regulator’s input. Test continuity with a multimeter before powering up–shorts on data lines or address buses can fry the port hardware. Use a sacrificial parallel port card or USB-to-LPT adapter for testing until wiring is confirmed error-free.

Troubleshooting Checklist

If data corruption occurs, verify:

• All address/data lines toggle between 0V and VCC when probed with a logic analyzer or oscilloscope–floating pins cause erratic behavior.
• The parallel port’s BIOS settings disable EPP/ECP modes; use SPP mode only to ensure predictable signal levels.
• VPP rises cleanly without ringing (add a 10µF capacitor across VPP/GND if unstable).
• /CE and /OE timing overlaps correctly during read cycles–use a 74HC125 to buffer signals if latency is observed.
• Ground loops; connect the PC’s chassis ground to the target circuit’s ground plane with a thick wire (≥18 AWG).
