Understanding Electric Vehicle Circuit Schematics Design and Functionality

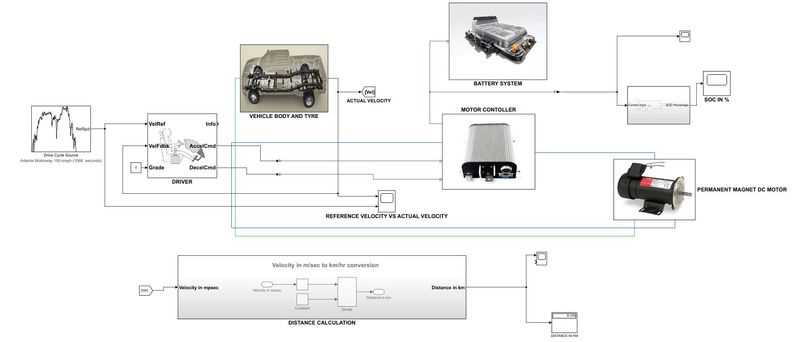

Start with a clear block layout separating high-voltage (HV) and low-voltage (LV) segments. Place the battery pack at the center with direct busbars to the inverter and onboard charger. Use 120 mm² copper conductors for HV connections between the battery and inverter to handle currents up to 400A. LV circuits should route separately through a 15A fuse before distributing to controllers, sensors, and lighting.
Label every connector with its function and voltage rating. For example, mark the inverter-to-motor cable as HV+ (400V DC) and the signal wire to the BMS as 5V LV. Include polarity indicators on all battery terminals and phase wires to prevent reverse connection errors during assembly.
Add surge protection at critical points: install 800V TVS diodes across the HV bus and 60V MOVs on LV supply lines. Connect the chassis ground through a 50A relay controlled by the BMS. Use twisted-pair wiring for CAN bus signals with 120Ω termination resistors at both ends to reduce electromagnetic interference.
Test continuity and insulation resistance before finalizing traces. Use a 500V megohmmeter to verify insulation values above 100MΩ between HV conductors and ground. Check voltage drop across HV connections–values above 0.1V per meter indicate excessive resistance requiring thicker cables or shorter runs.
Document every wire gauge, fuse rating, and connector type in a bill of materials. Group components by subsystem (e.g., traction, charging, lighting) to simplify troubleshooting. For converters, specify the input/output ratios: a DC-DC unit might step 400V down to 12V at 20A, while the charger accepts 230V AC and outputs 400V DC at 10A.
EV Electrical Blueprint: Practical Guide
Start by isolating the high-voltage (HV) bus sections before tracing current paths. Use color-coded wires: orange for HV (400V+), red for 12V auxiliary, and blue for data lines. Label every wire with its function and gauge (e.g., “HV+ 2AWG, Chassis GND 4AWG”) directly on the wiring plan–this prevents misconnections during assembly. For lithium-ion battery packs, include fuses rated at 1.5x the continuous current draw (e.g., 300A for a 200A system) on both positive and negative terminals. Mount HV contactors within 30cm of the battery pack to minimize inductive spikes.
Integrate a pre-charge circuit with a 50Ω resistor and a 0.5s delay relay to limit inrush current to 8A during system startup–this protects capacitors from thermal stress. Use Anderson SB50 connectors for HV links; they handle 250A continuously and are polarized to prevent reverse polarity. For CAN bus communications, place 120Ω termination resistors at both ends of the network and keep wiring under 5m to avoid signal reflection. Verify all ground connections with a megohmmeter: readings below 0.1Ω indicate corrosion or loose fasteners.
Include ISO 26262 ASIL-C compliant isolation monitoring (e.g., Bender IR155) to detect HV leaks to chassis–trigger an emergency shutdown at 2mA. For traction inverters, specify IGBT modules with a 10kHz PWM frequency to balance efficiency (target 95%) and switching losses. Plot thermal zones on the layout: keep battery packs below 45°C, power electronics below 85°C, and motors below 120°C. Use thermal interface material with 5W/m·K conductivity for heatsinks. Document every component’s IP rating (e.g., IP67 for outdoor wiring, IP6K9K for high-pressure wash zones).
Key Components to Include in an EV Electrical Blueprint
Start with a high-voltage battery pack specification table detailing nominal voltage, capacity in kWh, and cell chemistry (e.g., NMC, LFP). Include minimum and maximum charge currents for both AC and DC charging to prevent overheating during fast-charge scenarios. Below is an example for a 77 kWh pack:
| Parameter | Value |
|---|---|
| Nominal Voltage | 400 V |
| Capacity | 77 kWh |
| Cell Chemistry | NMC 811 |
| AC Charge Current | 16 A (3.7 kW) |
| DC Charge Current | 250 A (up to 100 kW) |
Isolate traction inverter and converter sections with clear signal paths for gate drivers, current sensors, and temperature probes. Label each MOSFET/IGBT module with switching frequency (typically 10–20 kHz) and maximum junction temperature (150 °C for SiC). Add a secondary fuse rating table for both DC link and AC output protection:
| Protection Circuit | Fuse Rating |
|---|---|
| DC Link (Pre-Inverter) | 350 A |
| AC Output (to Motor) | 150 A |
Integrate a dedicated 12 V DC-DC converter section converting high-voltage input (400 V) to low-voltage output (13.5–14.5 V). Specify efficiency (>90%), input voltage range, and maximum output current (40–60 A). Include reverse polarity protection diode and output capacitor bank values for transient response (e.g., 2 × 2200 µF).
Auxiliary Power and Safety Loops
Draw separate loops for electric power steering (EPS), AC compressor, and cabin heater. EPS should list torque sensor resistance range (1–4 kΩ), motor inductance (0.5–1.5 mH), and peak current (80 A). AC compressor section must include refrigerant type, compressor speed range (1000–7000 RPM), and required inverter gate voltage (15 V).
Add a collision detection circuit interrupting main contactor coil voltage upon receiving a signal from crash sensors. Specify contactor coil resistance (10–20 Ω), pull-in voltage (9–11 V), and hold voltage (5–7 V). Include a fail-safe redundancy path activating within 50 ms of primary contactor failure.
Step-by-Step Wiring for High-Voltage EV Systems
Begin by isolating the battery pack’s main positive and negative terminals using Class II insulated tools rated for at least 1,000V DC. Verify isolation with a megohmmeter, targeting a minimum resistance of 500MΩ between high-voltage conductors and chassis ground. Route 50mm² orange-sheathed cables–standardized for HV EV applications–from the battery to the inverter, securing every 20cm with flame-retardant zip ties or semi-rigid conduit. Maintain a 50mm clearance between high-voltage lines and low-voltage signals (e.g., CAN bus, sensor wires) to prevent inductive coupling; where unavoidable, use orthogonal crossings with a 90-degree separation.
- Strip cable ends precisely to 12mm; crimp with a hydraulic crimper applying 12kN of force, verified by pull-testing at 150% of rated current (e.g., 450A for 300A systems).
- Terminate at copper busbars using M10 stainless steel bolts torqued to 60Nm ±5%; apply conductive grease on both contact surfaces to reduce oxidation.
- Install pyrotechnic disconnects between the battery and inverter–triggered at 600A–with redundant mechanical switches tested under 1,200V DC conditions.
- Ground the inverter chassis directly to the battery negative terminal via a 35mm² braided strap, avoiding reliance on vehicle subframes to prevent potential loops.
- Label every connection with laser-etched polyimide tags: “HV+ 800V”, “HV– 800V”, “Pre-Charge”, and “Chassis GND”, including date and technician initials (e.g., “CM-2024”).
- Prior to power-up, perform a 5-minute pre-charge sequence via a 1kΩ resistor to limit inrush current to 800mA; monitor voltage rise on the inverter’s DC link capacitor (target: 95% of nominal voltage).
Best Practices for Labeling and Organizing EV Circuits
Use alphanumeric identifiers with a consistent prefix convention: high-voltage components (e.g., “HV_Battery1_Pos”) and low-voltage controls (e.g., “LV_BMS_Sense_A”). Include unit specifications (volts, amps) and functional context (e.g., “CHG_Inlet_Temp_Sensor_1.2kΩ”). For cables, embed the wire gauge (AWG) and color code in the label (e.g., “10AWG_ORANGE_HV_Charger_In”). Store metadata in a separate sheet linking labels to pinouts, connector types (e.g., “TE 1-1437712-2”), and torque values for terminals (e.g., “5 Nm for M6 bolts”).
Group related circuits into modular blocks with clear boundaries–separate power distribution, charging interfaces, and auxiliary systems (e.g., thermal management). Color-code blocks: red for high-voltage paths, blue for low-voltage signals, and green for ground references. Use hierarchical naming (e.g., “PDU>Main_Contactor>LV_Coil”) to mirror physical routing, and add flags for critical paths (e.g., “_INTERLOCK_REQ_” for safety circuits). Validate labels against physical wire harnesses using a continuity tester to confirm no mismatches exceed 0.1Ω.
Common Pitfalls When Designing EV Power Distribution
Oversizing cables by more than 20% beyond calculated current ratings wastes space, increases weight, and adds unnecessary cost–especially in high-voltage systems (400V–800V). A 6 AWG cable rated for 65A continuous may handle 75A transiently, but exceeding this reduces lifespan due to thermal stress. Use IEC 60228 or UL 486E wire gauge tables, accounting for ambient temperatures above 50°C, where derating factors apply. For example, a 10 mm² copper wire rated at 85A in 30°C drops to 68A at 60°C. Verify derating curves from manufacturers like TE Connectivity or Lapp Group before finalizing selections.
Ignoring Voltage Drop Over Long Runs
- A 1% voltage drop at 400V equals 4V; at 800V, it’s 8V. Over a 10-meter run with 2 AWG copper wire, a 100A load drops 0.5V (0.125% at 400V) but rises to 1% with 4 AWG wire. Calculate using
V = I × R × L × 2(round-trip), whereRis wire resistance per km (e.g., 0.822 Ω/km for 2 AWG copper). Pre-configured calculators (e.g., Southwire’s Ampacity Chart) simplify this, but cross-check with manual calculations for DC systems, where AC derating factors don’t apply. For traction inverters, maintain drops below 0.5% to avoid efficiency losses. - Aluminum wire (5 AWG) at 100A and 10 meters drops 1V (0.25% at 400V), but its 60% conductivity vs. copper requires larger gauges–verify bonding and termination reliability, as oxide layers increase resistance over time. Use tin-plated lugs for aluminum to prevent galvanic corrosion.
- Transient loads (e.g., accelerations) spike cable stress. Simulate using LTspice or PSIM, modeling cable inductance (typ. 0.5–1 μH/m) and capacitance (typ. 50–100 pF/m). Neglecting these causes overshoot during rapid current changes, risking insulation breakdown.
Misaligned fuse ratings with cable ampacity creates fire hazards. A 30A fuse on a 4 AWG wire (rated 95A) won’t blow during a 60A overload, but the wire reaches 75°C–accelerating insulation degradation. Match fuses to cable ratings with a 15–20% safety margin, per ISO 6469 or SAE J1128. For lithium-ion battery packs, use Class T or Semiconductor fuses (e.g., Littelfuse 175 Series) reacting in
