Complete Guide to Wiring Your Evaporative Cooler Step by Step
Begin by identifying the power source’s capacity–most portable cooling units require a dedicated 120V circuit with a 15–20 amp breaker. Verify the manufacturer’s label on the unit’s motor housing for exact specifications; deviations riskmotor burnout or fire hazards. Route the supply cable through a sealed conduit if installing outdoors to prevent moisture ingress, which accelerates corrosion on terminals.
Use stranded copper wire (14–12 AWG) for all internal connections–solid wire fractures under vibration from fan blades. Secure each splice with heat-shrink tubing rated for 90°C; electrical tape degrades within months in high-humidity environments. Label wires at both ends before disconnecting existing leads to avoid miswiring fans, pumps, or float switches during reassembly.
Mount the control panel on an insulated, non-combustible surface–plywood treated with fire retardant or metal junction boxes meet NEC 310.15(B) standards. Separate high-voltage lines (pump motor) from low-voltage sensors (thermostat, humidity gauge) by at least 2 inches; induced interference disrupts pulse-width modulation signals in digital controllers.
Ground the entire system via an 8 AWG bare copper wire connected to a driven ground rod at least 8 feet deep, bonded to the main service panel. Test continuity with a multimeter (resistance < 1Ω) before energizing to confirm fault protection. Omit this step and stray currents corrode galvanized steel components within weeks.
Install a surge suppressor (2,000 joules minimum) across all motor contacts to clamp transient voltages caused by on/off cycling of compressors or nearby lightning strikes. Opt for models with thermal fuses–cheaper MOV-based units fail silently after a single event, leaving equipment exposed.

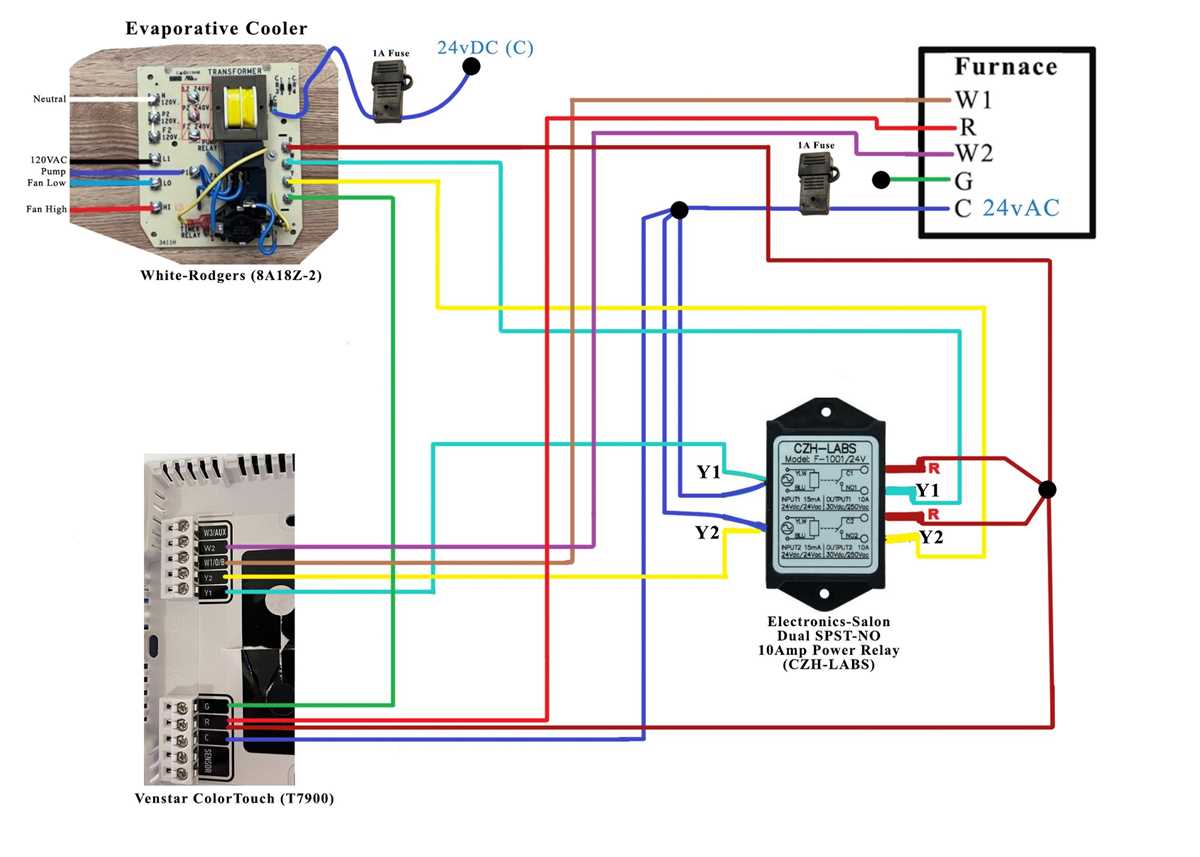

Swamp Air Conditioning Electrical Layout Manual
Begin by identifying the power source location. Most residential units draw from a 120V household circuit, though larger industrial setups may require 240V. Verify the voltage rating on the motor nameplate–mismatches risk overheating or component failure. Install a dedicated 15-20A breaker for standard units; for models exceeding 1HP, opt for a 30A breaker with 10-gauge wire minimum.
- Capacitor connections: Fasten the run capacitor between the motor’s “common” and “run” terminals–typically a dual 5μF and 30μF setup for single-phase motors.
- Float switch integration: Wire the switch in series with the pump to prevent dry operation; connect the NO (normally open) terminal to the pump relay coil.
- Thermostat placement: Mount the control device on the cool air discharge side, not near intake vents, to avoid false readings.
Route all conductors through liquid-tight conduits if exposed to outdoor elements–use THHN wire for indoor runs, transitioning to UF cable for outdoor segments. Label each conductor at both ends with heat-shrink tubing or permanent markers: L1 (hot), L2 (neutral for 120V; second hot for 240V), GND (green/bare), and auxiliary wires for pump or solenoid valves. For three-speed fan motors, connect the high-speed terminal directly to the power source, while medium and low speeds feed through the controller selector switch.
- Test continuity of all connections with a multimeter before energizing–resistance between 20-60 ohms across motor windings is typical.
- Apply dielectric grease to all terminals to prevent corrosion in humid environments.
- Seal conduit openings with silicone to block moisture ingress.
- Once powered, verify pump operation first–water should circulate within 30 seconds; fan engagement follows via the relay.

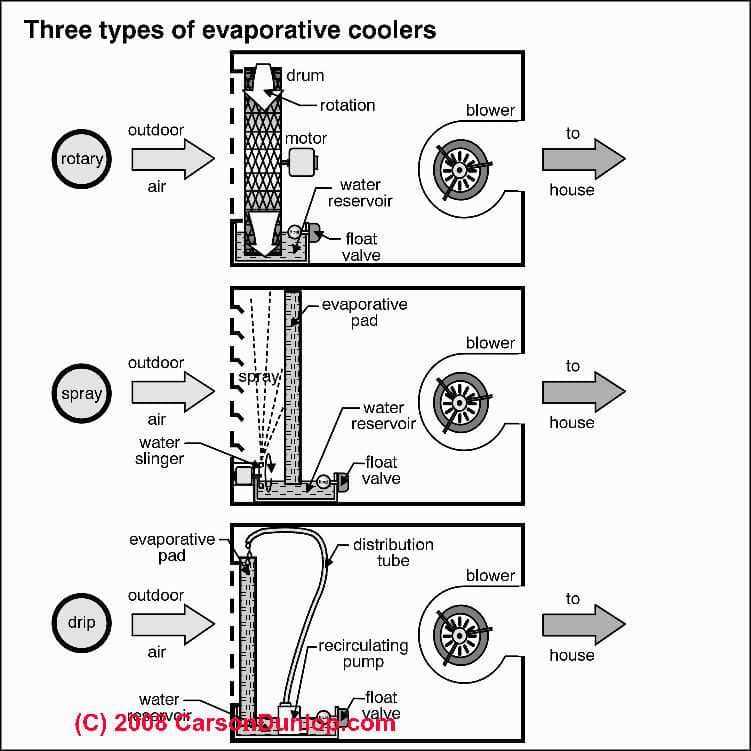

Key Components of a Swamp Cooler Electrical System
The power switch must handle at least 15A at 120V for residential units and 20A at 240V for commercial models. Double-pole breakers prevent nuisance trips during motor startup surges, which can exceed running amperage by 300-400%. Install the breaker in a dedicated circuit to avoid voltage drops that cause premature pump failure.
Capacitors store 200-450V and release it during motor startup, momentarily boosting torque. Dual-run capacitors combine start and run functions in a single canister, rated by microfarads (µF) – 45-70µF for most blower motors and 5-10µF for pumps. Replace swollen or leaking capacitors immediately; they degrade faster in high-humidity environments, losing 2-3% capacitance per year.
Motor overload protectors use bimetallic strips to break the circuit at 150-175°C. Manual-reset protectors require physical intervention after cooling, while auto-reset types cycle on/off indefinitely, risking winding burnout. Verify protector specs match motor nameplate data – fractional-horsepower motors (1/4-1/2HP) typically use L120-140°F protectors.
Pump and Float Assembly
The water pump operates on 115V/230V AC, drawing 0.8-1.2A. Magnetic-drive pumps eliminate brush wear but require flawless alignment – misalignment causes shaft wobble within 100-150 hours, leading to premature seal failure. Adjustable floats should trigger at 1.5-2 inches of water depth; deeper settings cause overflow, shallower settings burn out pumps.
Terminal blocks labeled L1, L2, N, G simplify field connections. Use #12 AWG copper wire for runs under 50 feet and #10 AWG for longer distances to prevent voltage drop exceeding 3%. Secure connections with star washers – vibration from blower motors loosens standard hardware within 6-9 months. Label each wire at both ends to avoid miswiring, which can void manufacturer warranties.
Control Panel Integration
Digital controllers sample air temperature every 1-2 seconds, adjusting blower speed via triac switching. Analog thermostats use mercury switches with ±2°F hysteresis; replace them if contacts stick, a sign of oxidized surfaces. For remote monitoring, ensure the current-sensing relay has 0.1A resolution – cheaper models misread motor load during startup surges.
Step-by-Step Wire Connection Process for Single-Speed Units
Disconnect power at the circuit breaker before handling any electrical components. Verify the absence of voltage using a non-contact voltage tester on the terminal block and all incoming leads. Label each conductor with masking tape–mark the hot (black or red), neutral (white), and ground (green or bare copper) wires for clarity.
Terminal Installation
Strip 3/8 inch of insulation from each wire end. Insert the hot wire into the L terminal, neutral into the N slot, and ground into the designated grounding screw. Tighten terminal screws to 8-10 in-lbs torque–loose connections cause overheating and failure. For units with a pump, connect its dedicated leads directly to the motor’s auxiliary terminals, ensuring polarity matches the pump manufacturer’s specifications.
Recheck all connections against the schematic provided in the installation manual. Cap unused wires with wire nuts, tucking them safely inside the junction box. Restore power only after confirming no exposed conductors or tools remain inside the housing. Test operation by setting the thermostat to the lowest setting; the fan should activate within 5 seconds, and airflow should be consistent without unusual noise or vibration.
Connecting a Two-Stage Swamp System: Switch and Fan Motor Setup
Use a three-position selector switch (OFF-LOW-HIGH) for dual-speed control–terminal 1 to power (L1), terminal 2 to the fan motor’s low-speed wire (typically blue or yellow), and terminal 3 to the high-speed wire (usually red). Confirm the motor’s color coding with its data plate; mismatches risk overheating or improper airflow. A 120V system requires a 20A double-pole breaker with 12-gauge copper conductors, while 240V setups demand 10-gauge wire and a matched breaker.
A capacitor-rated motor (commonly 10–25 µF for low, 25–40 µF for high) must pair with the correct winding taps to prevent torque failure. Test continuity between the run and start terminals before energizing; infinite resistance indicates a broken winding. For motors lacking built-in thermal protection, install an external overload relay calibrated to 125% of the motor’s full-load amperage (FLA). Below are typical FLA values by motor size:
| Motor HP | FLA (120V) | FLA (240V) | Overload Relay Amps |
|---|---|---|---|
| 1/4 | 4.8 | 2.4 | 6.0 |
| 1/3 | 6.0 | 3.0 | 7.5 |
| 1/2 | 8.0 | 4.0 | 10.0 |
Wire the selector switch’s OFF position to a dedicated neutral bus if using a digital thermostat for automated speed changes; otherwise, neutral bypasses the switch entirely. Bond the motor frame to the grounding conductor with a green or bare wire, sized no smaller than the circuit conductors. Terminal strips rated for 60°C minimum prevent corrosion at connection points–tin all stranded wires before insertion to reduce resistance.
After installation, verify operation at both speeds: low should draw ~70% of high current; divergence beyond 15% suggests incorrect capacitor pairing or mislabeled motor leads. Measure voltage drop across the switch contacts–anything above 3% of supply voltage warrants replacement of the switch or tightening of connections. Keep a clamp meter on the feed wires during startup; inrush current peaks at 6–8 times FLA for 2–3 seconds, but sustained readings above FLA signal a failing motor.
Common Pitfalls in Swamp Fan Electrical Connections and Fixes
Reversing the power and ground lines on a thermostat or pump motor will cause immediate failure. Verify polarity with a multimeter before connecting terminals–mislabeling or loose wires often lead to this error. The red wire typically carries 120V AC, while the black or blue serves as neutral; swapping them will trip breakers or damage the control board.
Omitting a dedicated circuit for high-load components like the blower or secondary pump invites overheating. Check the manufacturer’s amp rating–most residential units require a 15-20A breaker. Daisy-chaining multiple devices on a single circuit, especially in humid environments, risks voltage drops and nuisance trips. Use 12-gauge wire for runs under 50 feet to prevent resistance buildup.
Incorrect Terminal Tightening
Loose terminals create arcing, which corrodes contacts and increases resistance. After securing connections, tug each wire firmly–if it pulls free, strip an additional 1/8″ of insulation and reattach. Copper oxide forms quickly in damp conditions; apply dielectric grease to terminal screws to inhibit corrosion. Torque should match the component’s specs–typically 15-20 inch-pounds for standard fasteners.
Skipping the float switch bypass setup during installation can strand users when the water reservoir runs dry. Test the switch by manually lifting the float–a non-responsive unit suggests a broken reed switch or misrouted wires. If the system requires continuous operation, install a jumper wire across the switch terminals, but add an inline fuse (3-5A) to prevent short circuits. Label the bypass clearly to avoid accidental activation.
Using solid-core wire for movable connections (e.g., damper actuators) guarantees eventual breakage. Strand at least 16-gauge flexible wire for these components, and secure them with nylon clamps every 12 inches to prevent vibration fatigue. Avoid zip ties–UV degradation in outdoor settings makes them brittle within months.
Grounding Oversights
Connecting the ground wire to a painted or rusted surface defeats its purpose. Scrape away corrosion or paint until bare metal is exposed, then secure with a star washer to ensure low-resistance contact. For metal housings, run a continuous ground wire back to the main panel rather than relying on chassis bonding–this prevents ground loops in multi-stage units. Test continuity with a megohmmeter; readings above 1 ohm indicate a faulty path.
Cross-wiring low-voltage controls (e.g., 24V thermostat lines) with high-voltage lines (120V/240V) will fry the control board. Separate these circuits using distinct conduits and clearly mark all cables. If control signals fail, check for voltage at the transformer secondary–absence suggests a blown fuse or reversed primary connections (180° phase error). Replace the transformer if output drops below 22V under load.
