Complete 48V Ezgo TXT Wiring Diagram Schematic Guide for Golf Carts
Start by verifying the main solenoid connections. The activation coil for a 48-volt configuration must link directly to the ignition switch output and the forward/reverse micro-switch terminals. Cross-check the color coding: yellow (key switch), red (battery positive), and black (ground) at the solenoid base. Incorrect wiring here disrupts current flow, leading to intermittent power loss or failure to engage.
Trace the motor controller inputs next. The controller on these vehicles splits into three primary feeds: field coils (A1/A2) and armature (F1/F2). A common mistake involves reversing F1/F2 polarity, causing erratic acceleration or motor stalling. Confirm the wiring harness attaches securely–loose contacts oxidize rapidly, increasing resistance and reducing voltage efficiency by up to 15%.
For troubleshooting, isolate the 48-volt circuit using a multimeter. Measure between the battery pack’s positive terminal and each major component’s input: solenoid (+48V expected), motor controller (+46-47V due to line loss), and accessories (+12-14V via voltage reducer). Readings below these thresholds indicate corroded terminals, frayed wires, or a failing voltage reducer–clean terminals with a wire brush and dielectric grease, then retest.
Upgrade potential-down resistors if throttle response lags. Factory resistors (typically 500-1000 ohms) degrade over time; replacing them with 25-watt ceramic units stabilizes signal integrity. Route wiring away from sharp edges and moving parts–chafing exposes copper strands, shorting the system. Secure bundles with zip ties every 12 inches, particularly near the suspension and steering components.
For persistent issues, inspect the speed sensor alignment. Hall-effect sensors in these setups require precise gap calibration (0.5–1.0mm) to detect wheel rotation accurately. Misalignment triggers false RPM readings, confusing the controller and forcing safety shutdowns. Adjust sensor positioning by loosening the mounting bracket and recalibrating before retightening.
Always disconnect the battery pack before servicing. Even with the key off, residual current in capacitors can deliver 20+ amps through exposed terminals–use an insulated screwdriver to short capacitors if accidental contact occurs. Label each wire segment with heat-shrink tubing markers during disassembly to prevent reassembly errors.
48-Volt Electric Golf Cart Electrical System: Field-Tested Setup Tips
Start by disconnecting the main battery pack before touching any connections–this prevents accidental shorts that can damage controllers or burn out fuses. Use a multimeter set to continuity mode to verify each cable’s integrity; corroded terminals on the solenoid or motor often cause intermittent failures. Replace frayed wires with marine-grade 4 AWG copper conductors, rated for 250 amps, to handle the 400-amp surge during acceleration.
Trace the high-current loop from the battery positive to the solenoid, then to the speed controller’s B+ terminal. Confirm the controller’s ground connects directly to the frame via a braided 2/0 AWG cable–this path must carry peak loads without voltage drop. Install a 250-amp ANL fuse between the battery and solenoid; many stock setups omit this, risking fire under heavy load.
Inspect the Microprocessor Control Unit (MCU) harness for pinched insulation near the accelerator pedal–common corrosion sites here disrupt signal flow. Clean potentiometer contacts with electrical cleaner, then apply dielectric grease to prevent oxidation. For regenerative braking systems, ensure the field coil resistance reads between 0.4 and 0.6 ohms; values outside this range indicate coil degradation requiring replacement.
Route auxiliary circuits–lights, horn, accessories–through a 30-amp circuit breaker tapped from the main 48-volt bus. Avoid daisy-chaining accessories off the ignition switch; this overloads the switch and causes erratic operation. Use waterproof connectors (Deutsch DT series) for all exterior connections; standard spade terminals corrode within months in humid climates.
Program the Alltrax or Curtis controller with a laptop to match the motor’s torque curve–factory defaults often limit performance. Adjust the throttle response curve to 50% ramp speed for smoother acceleration on inclines, reducing battery strain. Test the system under full load (two passengers plus cargo) for 10 minutes; monitor battery voltage–it should not drop below 44 volts at peak demand.
Label every fuse, relay, and cable with heat-shrink tubing markers; this saves hours during troubleshooting. Store spare parts–a solenoid, 50-amp diode, and controller fuse–onsite for quick repairs. Replace the main contactor every 2–3 years; worn contacts increase resistance, creating heat and reducing range.
Mapping Critical Elements in the Golf Cart Electrical Framework
Locate the main power relay near the battery bank–typically mounted adjacent to the controller housing. Verify its terminals: B+ connects directly to the positive battery cluster, M- links to the motor, and S interfaces with the solenoid. Failure at this junction disrupts current flow even if batteries register full charge. Test continuity between B+ and M- using a multimeter set to 200Ω; readings exceeding 1Ω indicate corrosion or faulty contacts.
Check the speed controller’s heat sink for discoloration–bluish tint signals overheating. Remove dust accumulation with compressed air blown at 45° angles to avoid damaging internal fins. Inspect the power cables connecting the controller to the motor; frayed strands under 10% total wire diameter necessitate immediate replacement. Secure crimp connections with solder rated for 60A minimum; avoid twisting wires–this invites resistance spikes.
Trace the direction switch circuitry next. The forward/reverse toggle connects via two 18-gauge wires to the control module–yellow and blue standard. If cart hesitates switching directions, probe the blue wire for voltage drop when engaged; values below 36V suggest a weak contactor coil. Replace defective components with equivalent 12VDC relays to prevent solenoid burnout.
| Component | Location | Failure Symptoms | Test Method |
|---|---|---|---|
| Potentiometer | Steering column base | Erratic acceleration | Check resistance 0.5kΩ–4.7kΩ |
| Fuse Block | Under dashboard | Entire system dead | Confirm 40A fuse continuity |

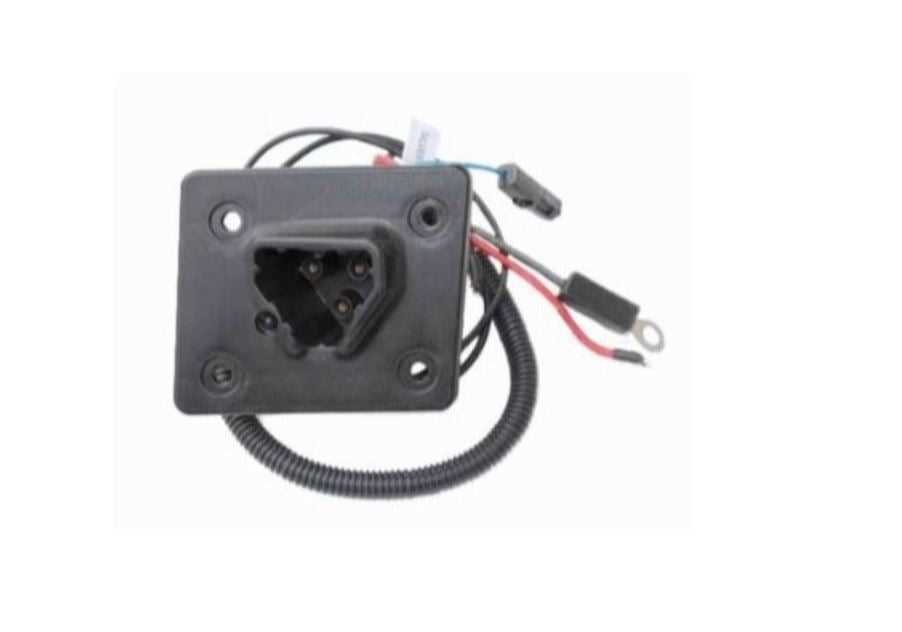

| Charger Port | Rear fender well | Slow charging | Measure DC voltage at port >50V |
Inspect the batteries’ inter-cell connectors monthly. Corrosion visible as white powder warrants cleaning with a baking soda solution and wire brush–ensure connections dry completely before reassembly. Apply dielectric grease to terminals to inhibit future oxidation. For failing cells, measure individual voltages; differences over 0.3V between cells mandate equalization charging or replacement.
Ensure the motor brushes maintain at least 1/4 inch length–worn brushes cause arcing and uneven torque. Remove the motor cover plate; replace brushes as a matched pair even if only one appears compromised. Secure mounting screws with thread-locking compound to prevent vibration-induced loosening. Regrease bearings using lithium-based high-speed grease every 200 operating hours.
Connecting High-Voltage Power Sources: A Precise Guide
Begin by identifying the main power terminals on your vehicle’s controller–these are typically marked with bold red (+) and black (-) indicators. Confirm the system’s voltage regulator is compatible with a 48-volt power pack by checking the manufacturer’s specifications for current handling (minimum 200A continuous rating). Strip ½ inch of insulation from the battery cables, ensuring copper strands remain untwisted to prevent resistance buildup. Connect the positive lead first, securing it with a stainless-steel bolt and lock washer to eliminate vibration-induced loosening; torque to 12-15 Nm. The negative lead should attach to a grounded chassis point, ideally within 12 inches of the controller to minimize voltage drop.
Verify connections with a multimeter before energizing the circuit:
- Set the meter to DC voltage mode and probe the battery pack terminals–expect 51.2V fully charged (4x 12.8V lithium cells).
- Measure across the controller’s input terminals; readings should match within 0.5V of the battery output.
- Check each auxiliary connection (key switch, solenoid, motor) for continuity; resistance should not exceed 0.1Ω.
If discrepancies arise, re-tighten all terminals and inspect for corroded contacts, particularly in aluminum components. Use dielectric grease on connections exposed to moisture. Once verified, power on the system and monitor for unusual heat at junctions–a temperature rise above 50°C indicates poor contact requiring immediate correction.
Diagnosing Frequent Power Problems in Golf Cart 48-Volt Systems
First, inspect the solenoid for signs of corrosion or overheating. A failed solenoid often clicks repeatedly without engaging the motor. Remove the cover and check for burnt contacts or loose connections. Replace the solenoid if the internal coil resistance exceeds 0.5 ohms when tested with a multimeter–any higher indicates degradation. Clean terminals with a wire brush and apply dielectric grease to prevent future oxidation.
Test battery voltage under load. Fully charged cells should read between 49.2V and 50.4V when idle. If voltage drops below 42V during acceleration, one or more batteries may have sulfated plates or faulty cells. Use a hydrometer to check specific gravity in flooded batteries–readings below 1.225 in any cell signal a need for replacement. Equalize charging at 2.5A for 4-6 hours if gravity varies by more than 0.03 across cells.
Motor Controller Faults and Resets
Check error codes by depressing the accelerator pedal while turning the key to RUN with the brake applied. A steady or blinking LED on the controller reveals fault types: 3 flashes mean a throttle signal error, 5 flashes indicate overvoltage. Reset the controller by disconnecting the main positive battery cable for 30 seconds. Reconnect and test–persistent errors require controller diagnostics with a scan tool like the Curtis 1311.
Inspect throttle potentiometer linearity. A worn potentiometer causes erratic acceleration or surging. Access the throttle assembly and measure resistance across the outer terminals–values should smoothly transition from 1KΩ to 4KΩ as the pedal moves. Replace if readings jump or skip. Lubricate pedal linkage pivots with dry Teflon spray to eliminate binding, which mimics electrical faults.
Verify fuses and circuit breakers near the charger port. A tripped 200A main breaker often resembles battery failure but resets with a push button. Check smaller 30A fuses for charger input circuits–blown fuses typically melt cleanly, while explosive failure suggests a short in wiring harnesses. Use a thermal camera or touch test to locate hotspots in connections, focusing on battery interconnects and key switch terminals.
