Complete Wiring Guide for Federal Signal Micropulse Controllers and Modules

Begin by identifying the power distribution block – its label typically starts with “B+” or “IGN” on most central processor layouts. Trace the red cable (usually 10-12 AWG) from the battery terminal to the input fuse (rated 20-30A) before it reaches the control unit’s main relay. A common failure point lies in corroded crimp connections; replace any splices with heat-shrink butt connectors rated for automotive use. The ground path must terminate at a dedicated chassis point, never shared with high-current accessories like compressors or lighting arrays.

For pulse-modulated outputs, note the differentiation between high-side and low-side drivers – the former uses a dedicated MOSFET or smart FET (drain-to-load, source-to-ground), while the latter switches the ground path. Verify current draw with a clamp meter during operation; nominal values range between 150-350mA per channel. If exceeding 500mA, isolate the output by disconnecting peripherals sequentially to identify shorted actuators or solenoid coils.

Signal integrity relies on twisted-pair wiring for data lines, especially if CAN bus communication is present. Keep these pairs at least 3 inches away from power conductors to prevent induced noise. Termination resistors (typically 120Ω) must be installed at both ends of the bus; missing resistors cause intermittent communication errors detectable via an oscilloscope as distorted waveforms or voltage spikes.

When terminating sensor inputs, ensure pull-up resistors (1–5 kΩ) are present on analog inputs if the module expects a 0-5V signal; floating inputs trigger false fault codes. For digital pulses (e.g., wheel speed sensors), confirm the correct polarity – reversing the wires drops the frequency count, leading to incorrect RPM calculations. Use a frequency generator during bench testing to validate input thresholds (typically 500Hz–2kHz).

If integrating aftermarket components, account for voltage drop over cable length – every 10 feet of 14 AWG wire incurs approximately 0.2V loss at 10A. Pre-solder components to terminal blocks rather than relying on crimped ferrules, as vibration loosens connections over time. Always enclose splices in waterproof heat-shrink tubing with adhesive lining to prevent moisture ingress, a primary cause of intermittent faults in outdoor installations.

Connecting the 200-Series Controller: Key Pathways

Start by identifying the labeled terminals on the control module: “B+” (battery positive), “GND” (ground), “TRG” (trigger), and “LMP” (load output). Use 18-gauge stranded copper wire for all connections, twisted-pair for trigger and output lines to reduce interference. Route the “B+” wire directly to the vehicle’s fused ignition circuit–avoid splicing into accessory circuits to prevent voltage drops during engine cranking. Ground the “GND” terminal to a clean, unpainted chassis point within 18 inches of the module; sand the contact area to bare metal and secure with a star washer. For “TRG,” connect to a switched 12V source (e.g., door triggers, alarm outputs, or OEM flasher wires) with a 1A fuse inline if the source exceeds 500mA. The “LMP” terminal powers the load–use a relay if the current draw exceeds 10A (e.g., for strobe lights); otherwise, link directly to the light’s positive terminal.

Common Pitfalls and Validation Steps

• Avoid shared grounds: Dedicate a separate path for module grounds; shared grounds with inductive loads (e.g., motors) cause erratic behavior.
• Test polarity: Reverse polarity on “B+” or “LMP” destroys the module instantly. Use a multimeter in diode mode to confirm correct voltage before connecting.
• Trigger voltage range: Modules require 9–16V on “TRG” for activation. Use a resistor divider or optocoupler to step down 24V systems.
• Load testing: After wiring, use a dummy 12V/21W bulb on “LMP” to verify output. Flash patterns should match presets; if they don’t, recheck trigger voltage.
• Environmental sealing: Water ingress causes corrosion on terminals. Apply dielectric grease to connectors and heat-shrink all splices.

For fault diagnosis, measure voltage at “TRG” during activation–the module should draw <5mA. If no output occurs, swap the module before rewiring. Keep wires bundled and away from moving parts (e.g., hood struts) to prevent chafing. Document wire routes with labels or photos for troubleshooting.

Decoding Critical Elements in the Controller Circuit Blueprint

Begin by locating the main power input terminals–typically labeled L1, L2, and ground on the left side of the layout. Verify voltage ratings match the system’s supply (e.g., 120VAC, 240VAC) to prevent overheating or component failure. Use a multimeter to confirm live connections before proceeding.

Trace the control module, often a rectangular block with multiple pin headers at the schematic’s center. Note the dedicated pins for input triggers (e.g., activation switches, sensor feeds) and output relays. Cross-reference pin assignments with the manufacturer’s documentation to avoid miswiring actuated outputs like strobes or auditory alerts.

Examine the internal fuse placement, usually near the power entry point. Select fuse ratings based on the downstream load–typically 3A to 10A for low-power devices. Understand that bypassing fuses risks damaging sensitive logic boards during transient spikes.

Identify the feedback loop components: resistors, capacitors, and diodes adjacent to the processor. These regulate signal stability and prevent backfeed into trigger circuits. Replace any marked “varistor” or “TVS diode” if the system has experienced frequent surges–these are sacrificial and degrade over time.

Highlight the grounding paths–both chassis and signal grounds must converge at a single point to eliminate noise interference. Use star grounding principles: separate high-current returns (e.g., motors) from low-level control lines (e.g., sensor inputs).

Scrutinize the communication interfaces if the system supports remote activation. CAN bus or RS-485 ports will appear as paired terminals with terminating resistors (often 120Ω). Ensure shielded cables are used and grounded at one end only to avoid ground loops.

Label all connectors by function before disconnecting wires during troubleshooting. Use heat-shrink tubing on reconnected joints to prevent corrosion, especially in outdoor installations. Document deviations from the standard blueprint–modifications like aftermarket relays or custom triggers can alter expected behavior.

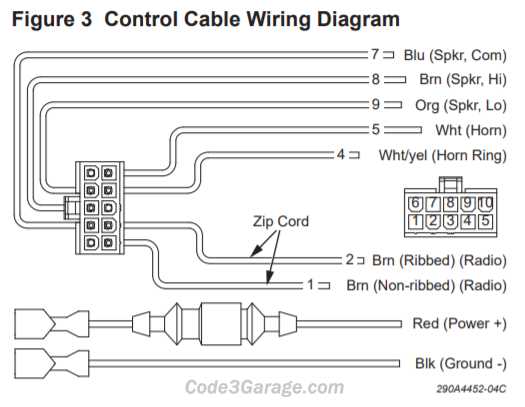

Step-by-Step Guide to Connecting Control Module Wires

Identify the controller’s power input terminals marked +12V and GND before proceeding. Use a multimeter set to 20V DC to verify the voltage at the source (battery or fused circuit) – readings below 11.5V indicate a weak power supply requiring replacement. Connect the red wire to the positive terminal using a 16 AWG or thicker stranded copper cable, securing it with a crimp connector or solder joint tested for tensile strength of at least 3 kg. The ground (black) wire must terminate directly to the chassis or engine block, avoiding painted surfaces; scrape off 1 mm² of coating if necessary and secure with a star washer to prevent corrosion.

Signal and Output Connections

Refer to the specific terminal layout for trigger inputs (e.g., Ignition, Park, Aux). Strip 5 mm of insulation from each wire, twist strands tightly, and insert into the corresponding connector slot. Use a non-insulated butt splice for extensions, pressing with a crimp tool calibrated for 0.5–1.0 mm² wires – avoid overheating by keeping soldering iron below 350°C. For pulse outputs (e.g., strobe or siren), connect the blue output wire to a relay coil (rated 30A/12V) and route the load side to the external device. Verify polarity with a logic probe or oscilloscope; a reversed connection will damage the module’s output stage.

Wire Color	Terminal	Function	AWG Min.
Red	B+	Primary power	16
Black	GND	Chassis ground	14
Blue	Output 1	Strobe/siren trigger	18
White	Ignition	Key-switch input	20

Test each connection under load: activate the system and measure voltage drop across the red power wire – values above 0.2V indicate excessive resistance. For ground integrity, check for continuity between the black wire and chassis with a resistance meter; readings above 0.1Ω require re-termination. Label all wires with heat-shrink tubing or adhesive tags to simplify future diagnostics.

Resolving Frequent Electrical Problems in Compact Strobe Setups

Check voltage consistency across power input terminals with a multimeter set to DC 20V range. Fluctuations exceeding ±0.5V often indicate corroded connectors or inadequate terminal tightening. Replace any terminal showing oxidation or discoloration; a 10mm brass spade connector with a tin-plated finish typically resists corrosion longest. For temporary fixes, apply dielectric grease sparingly to prevent moisture ingress without compromising conductivity.

Inspect ground paths by tracing continuity from the control unit’s negative terminal to the chassis. A broken or intermittent ground wire–often hidden beneath insulation or chafed by sharp edges–causes erratic flashing patterns. For systems using multiple flash heads, ensure each unit shares a common ground reference; separate grounds can introduce voltage disparities leading to uneven brightness or sequential errors. Use 12-gauge stranded copper for ground runs longer than 6 feet to minimize resistance.

Verify sequence timing by observing flash intervals under both daylight and low-light conditions. Inconsistent timing frequently stems from overheated resistors or capacitors on the control board. If flashes occur faster than specified (e.g.,

Examine the harness routing for pinched, frayed, or melted conductors. Sharp bends near heat sources–such as exhaust manifolds or halogen lights–can degrade insulation, causing short-circuits or voltage drop. Replace any segment showing melted PVC sleeves; silicone-jacketed cables tolerate 180°C and resist abrasion better than standard PVC. Secure all runs with nylon straps at 12-inch intervals to prevent vibration-induced fatigue.

Test output load by disconnecting flash heads one at a time. If a single disconnected unit restores normal operation, the removed unit likely has an internal short. For dual-head setups, confirm symmetry: both heads should draw

Confirm fuse ratings match the control module’s specifications. Slow-blow fuses rated 10% above the system’s max current (typically 15A for 12V setups) prevent nuisance trips while protecting against surges. If fuses blow repeatedly, isolate the circuit by disconnecting auxiliary loads (e.g., dashboard indicators) before retesting. Persistent issues indicate a failing control board requiring inspection of surface-mount diodes and MOSFETs for heat damage.

Use a thermal camera to identify hotspots on power distribution blocks. Temperatures above 60°C under normal load signal excessive resistance; clean terminal surfaces with an abrasive pad and re-torque to 8Nm. For systems in high-ambient environments, upgrade to gold-plated connectors or add a cooling fan rated for 80°C operation. Avoid crimping tools not calibrated for the specific wire gauge–crimp force for 14 AWG should not exceed 800N to prevent conductor breakage.

Component-Specific Checks

• Control Module: Remove the cover and inspect for bulging capacitors or scorched traces. Reflow any visibly cracked solder joints with a 60W iron; use 60/40 leaded solder for better thermal cycling resistance.
• Flash Heads: Measure tube continuity with a megohmmeter; readings below 1MΩ indicate contamination or moisture ingress. Submerge suspect units in distilled water for 24 hours, then dry at 50°C to identify microfractures.
• Switches: Test momentary switches with a continuity tester under actuation. If resistance exceeds 2Ω, disassemble and clean contacts with 99% isopropyl alcohol. Replace toggle switches showing pitting or oxide buildup.

Diagnostic Flowchart

1. Measure battery voltage at rest (12.6–12.8V). Low voltage? Recharge or replace battery.
2. Activate system; recheck voltage drop (
3. Observe flash pattern: single flash missing? Isolate and test individual heads.
4. Irregular timing? Test resistors and capacitors on control board; replace faulty components.
5. System fails to activate? Check for 5V at microcontroller pin 12; no voltage? Replace regulator IC.
