Step-by-Step Guide to Wiring a Felling Trailer with Diagrams

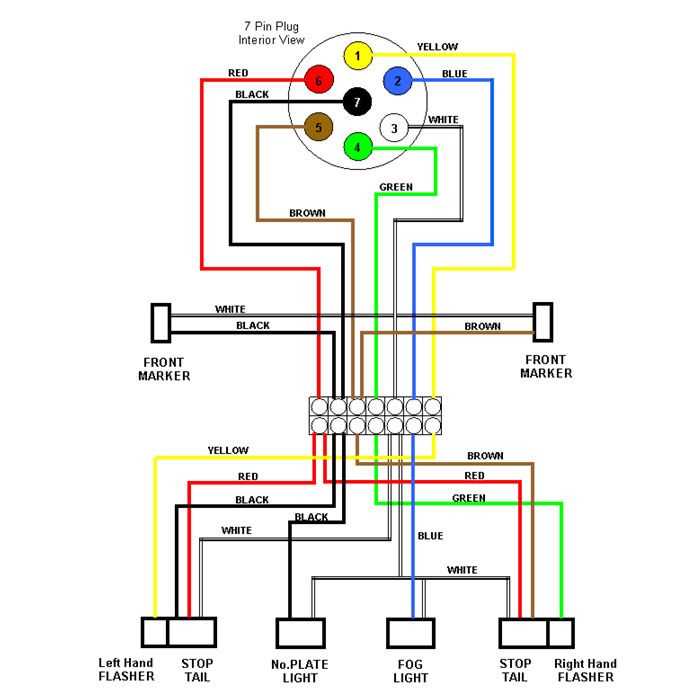

Begin by identifying the seven-core cable configuration on your transport unit. The standard setup includes colors: yellow (left indicator), green (right indicator), brown (tail/marker lights), white (ground), blue (brake controller signal), red (auxiliary power), and black (reverse light if applicable). Verify voltage with a multimeter–each circuit should register 12V under load.

Use heat-shrink butt connectors for all splices, ensuring corrosion resistance. Avoid twist-and-tape methods; they fail under vibration. For modular plugs, match pins precisely–swap ISO 1185 (European) for SAE J560 (US) adapters if crossing standards. Test continuity before final assembly to prevent short circuits that can fry the tow vehicle’s fuse box.

Route cables through a flexible conduit if exposed to abrasion. Secure with zip ties every 12 inches, avoiding sharp edges. Ground the frame directly to the main bolt–paint acts as an insulator. For LED lighting, add a load resistor (50W, 6Ω) if hyper-flashing occurs, as LEDs draw minimal current.

Label each wire at both ends with military-grade tags. Store a backup schema in a waterproof pouch taped under the chassis. Replace all connectors every 3–5 years, regardless of appearance, due to microscopic oxidation.

Electrical Schematics for Heavy-Duty Hauling Equipment

Start with a 7-way round connector for towing setups handling over 10,000 lbs; it supports essential circuits like brake controls, auxiliary power, and reverse lights. Match the vehicle’s electrical system by cross-referencing the tow rig’s manual with the connector pinout–common standards use pin A for ground, pin C for tail/running lights, and pin E for electric brakes. For hydraulic lift systems, ensure a dedicated 12V circuit with a 20A fuse to prevent voltage drops during operation.

Use 12-gauge copper wire for all lighting circuits, upgrading to 10-gauge for brake or lift functions to handle inrush currents. Solder all connections and cover with adhesive-lined heat shrink tubing; this prevents corrosion in wet conditions. If integrating a winch, run a separate relay-controlled circuit from the battery to avoid overloading the main harness, using a 40A fuse for protection.

Verify circuit continuity with a multimeter before final assembly–test each function (turn signals, marker lights, brakes) under load. For LED lights, add a 6-ohm load resistor if the bulb check system triggers false warnings due to low current draw. Label every wire at both ends with its function (e.g., “RT STOP”) to simplify future diagnostics.

Ground connections should attach directly to the frame using star washers; avoid relying on bolted joints alone, as rust or paint can create resistance. For systems with ABS, maintain a dedicated pin (typically pin G) and route wiring away from high-vibration areas to prevent chafing. If the setup includes a backup camera, use shielded twisted-pair wire to minimize interference.

Color-code wiring per SAE J560 specs: white for ground, brown for tail lights, yellow for left turn/brake, green for right turn/brake, blue for electric brakes, and black for auxiliary power. Deviate only if local regulations require otherwise, but document all changes. For trailers with air brakes, integrate a pressure switch into the stoplight circuit to ensure brake lights activate regardless of hydraulic or pneumatic actuation.

Install a breakaway kit for towed loads exceeding 3,000 lbs; battery-powered units must have a separate fused line with a minimum 8-gauge wire. Test the breakaway function monthly by pulling the pin and confirming the brakes engage within 0.5 seconds. For dual-axle setups, split the brake circuit evenly across both axles to prevent uneven wear.

Use waterproof junction boxes at connection points prone to moisture, such as near the coupler or undercarriage. Seal box entries with dielectric grease to repel water. For auxiliary lighting (e.g., strobes or work lamps), employ a separate switch in the cab, wired through a relay to avoid drawing excessive current through the dash circuit.

Final inspection should include a 30-minute test with all systems operating simultaneously; monitor for voltage drops exceeding 0.5V between the battery and any light or accessory. Keep spare fuses, connectors, and wire strippers onboard–repairs in remote conditions often fail due to lack of basic tools.

Matching Your Heavy-Duty Hauler’s Electrical Connector: A Precise Guide

Begin by locating the vehicle-side plug–typically a 7-pin round (SAE J560) or a flat 4-pin connector (SAE J1128). Compare pin count and arrangement: older models use 4 pins (ground, tail/marker, left turn/brake, right turn/brake), while newer rigs incorporate auxiliary circuits for reverse lights (pin 5), electric brakes (pin 6), or 12V hot lead (pin 7). Verify pinout against a multimeter; misaligned circuits risk shorting or non-functional lighting.

Check the harness length–Powder River, B&W, or gooseneck setups demand extended runs (12–20 ft) to bridge pivot joints, while bumper-pull frames require shorter leads (8–12 ft). Measure from the tongue junction box to the tow vehicle’s socket; coiled sections handle articulation, but insufficient slack risks tension fractures at stress points.

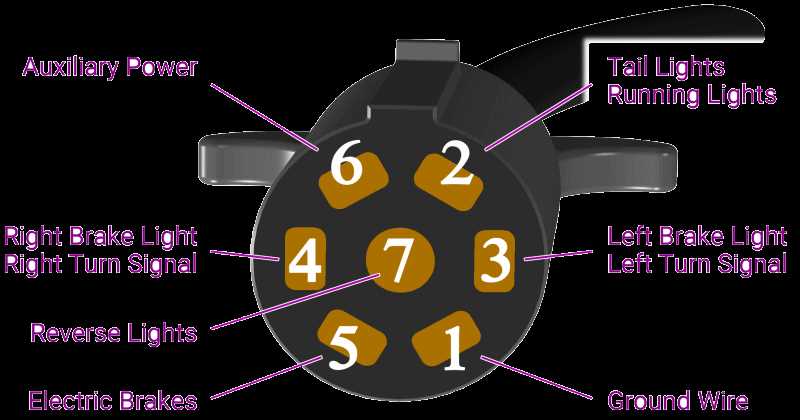

Pin Configuration Cross-Reference for Immediate Verification

Use this table for rapid identification:

• Pin 1 (White): Ground–confirm continuity with chassis; corrosion here disrupts all signals.
• Pin 2 (Brown): Tail/marker lights–illuminates when headlights activate.
• Pin 3 (Yellow): Left turn/brake–blinks with left signal, solid with brakes.
• Pin 4 (Green): Right turn/brake–mirrors yellow functionality.
• Pin 5 (Blue): Electric brakes–activates brake controller; absence mandates manual adjustment.
• Pin 6 (Red): 12V hot–powers dome lights or winches; fuse inline to prevent overload.
• Pin 7 (Purple): Reverse light–back-up camera trigger or auxiliary circuits.

Replace mismatched connectors immediately–adapters introduce resistance, causing voltage drop and premature LED failure. For ABS-equipped rigs, prioritize a dedicated CAN bus harness (Deutsch DT series) to interface with anti-lock sensors; generic plugs disrupt onboard diagnostics.

Test under load: connect a 12V battery directly to the harness and verify each function–brake controller engagement, light sequencing, and ground integrity. Temporarily bypass the tow vehicle to isolate faults; corroded terminals or frayed wires often mimic ECU errors.

For modular pivot-docking systems (e.g., RAM Gooseneck or F-450 fifth-wheel), select a pigtail with weatherproof boots (IP67-rated) covering the junction block. UV-resistant sheathing (XLPE or TPE) prevents cracking; standard PVC degrades within 18 months. Secure strain relief with nylon clamps–zip ties compromise under vibration.

Log pinouts and voltage readings pre-hookup; discrepancies between 4- and 7-way setups (e.g., missing auxiliary circuits) require custom splicing–never splice brake or ABS lines. Document all modifications; homologated harnesses simplify future diagnostics.

Step-by-Step Guide to Connecting a 7-Way Plug on Your Heavy-Duty Hauler

First, verify the voltage and wire gauge match between the tow vehicle’s connector and the hauler’s harness. Most 7-way plugs require 12-14 AWG wires for lighting circuits and 10-12 AWG for brakes or auxiliary power–consult the manufacturer’s specifications for exact requirements. Strip 5-7mm of insulation from each wire end, ensuring no frayed strands remain, then twist tightly for a secure splice. Use heat-shrink butt connectors instead of electrical tape for long-term corrosion resistance; crimp firmly with a ratcheting tool for uniform pressure.

Matching Circuits to Pin Functions

Connect wires in this order: yellow (left turn/brake), green (right turn/brake), brown (tail/running lights), white (ground), blue (electric brakes/auxiliary), red (12V hot lead), and black (reverse lights, if applicable). Label each wire at both ends before feeding through the frame or conduit–missteps here can cause short circuits or non-functional signals. For dual-axle brakes, the blue wire must handle up to 20 amps; solder and seal all joints to prevent moisture intrusion, especially in high-vibration environments.

Test each function individually using a multimeter or dedicated plug tester before finalizing the connection. Check ground integrity by probing between the white wire and the hauler’s frame–voltages above 0.5V indicate a poor ground requiring cleaner metal-to-metal contact. For brake controllers, ensure the blue wire’s voltage drops to near zero when the manual override is engaged. Secure loose wires with zip ties every 12-18 inches, routing away from moving parts or sharp edges to prevent abrasion.

Finalize by coating all exposed connectors with dielectric grease and wrapping junction points in self-fusing silicone tape. Recheck after 50 miles of operation; temperature changes can reveal hidden faults. Store spare fuses (typically 20-30A) in the tow vehicle’s glovebox–corroded pins are the leading cause of intermittent failures, and replacements should be on hand for immediate troubleshooting.

Solving Frequent Electrical Problems in Heavy-Duty Haulers

Inspect connectors for corrosion or loose pins–start by disconnecting the power source and probing each terminal with a multimeter. A reading below 10.5V on the 12V circuit or irregular resistance (above 5Ω) suggests a break in continuity. Replace frayed cables immediately; temporary fixes like electrical tape degrade within weeks under vibration. Ground faults often mimic dead circuits–test by connecting a direct jumper from the battery negative to the chassis ground point and rechecking voltage.

Symptom	Diagnosis Steps	Corrective Action
Lights flicker when brakes applied	Check brake switch for proper activation timing; measure voltage drop across switch (>0.2V indicates failure)	Replace switch if drop exceeds spec; upgrade to a sealed unit if moisture ingress is detected
Intermittent signal loss	Scan for chafing near suspension or pivot points; perform a continuity test while flexing cables	Reroute cables away from pinch zones; use heat-shrink connectors with adhesive-lined sleeves
Tongue jack fails to extend	Verify 7-way plug pinout matches OEM specs; test auxiliary power circuit at fuse block and motor terminals	Bypass corroded pin connections with a pigtail harness; ensure motor brushes are intact before replacement

For persistent phantom shorts, isolate circuits by unplugging modules one at a time. Use a thermal camera to detect overheating junctions–hotspots above 60°C signal imminent failure. Always match gauge sizes when splicing; 12AWG wires handling brake circuits must never be paired with 16AWG signal lines. Store surplus lengths in spiral looms to prevent abrasion, and coat exposed terminals with dielectric grease rated for -40°C to 120°C.
