Understanding H Bridge Motor Control Schematic and Circuit Design

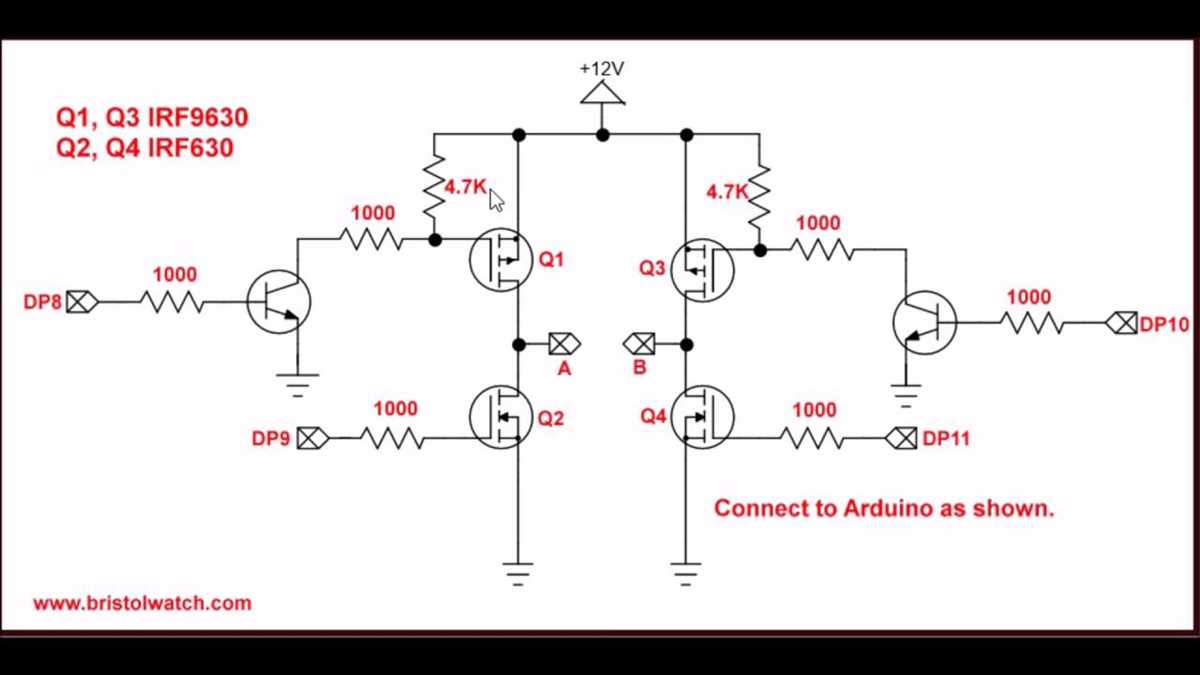

For optimal performance in bidirectional motor control or DC-DC conversion, a four-transistor H-configuration using power MOSFETs is the most practical solution. Each transistor must have a complementary pair–N-channel devices for the low-side and P-channel or N-channel with bootstrap for the high-side–to ensure full voltage swing across the load. The dead-time interval between switching transitions is critical: values between 50–200 nanoseconds prevent shoot-through while maintaining efficiency above 95% at frequencies up to 100 kHz.
Gate drivers should deliver peak currents of 2–4 A to charge MOSFET input capacitance within 20–50 ns. Opt for isolated gate drivers for the high-side switches to eliminate ground reference issues–galvanic isolation with coupling capacitance ensures noise immunity. Snubber circuits across each transistor, typically 10–100 Ω resistors in series with 1–10 nF capacitors, dampen voltage spikes caused by parasitic inductances.
Current sensing requires precision: a low-value shunt resistor (0.01–0.1 Ω) placed on the return path provides accurate measurements without significant power loss. For PWM control, use a dead-band generator to prevent simultaneous conduction–I²C or SPI interfaces simplify microcontroller integration, but standalone PWM ICs like the IR2104 reduce software overhead. Thermal management demands copper pours under MOSFETs or direct attachment to a heatsink, targeting junction temperatures below 125°C for long-term reliability.
Layout guidelines enforce a star ground configuration to minimize ground loops–keep high-current paths short and wide (>2 mm traces for currents above 10 A). Bypass capacitors (10 µF ceramic near each MOSFET source) and bulk capacitance (100–1000 µF electrolytic at the input) stabilize voltage under dynamic loads. Test the design with an oscilloscope, verifying rise/fall times () and absence of ringing–adjust gate resistor values if overshoot exceeds 10% of the supply voltage.
Designing High-Efficiency Solid-State Motor Drivers
Select power transistors with low RDS(on) values under 10 mΩ for minimal conduction losses–examples include Infineon IPB017N06N or Toshiba TPH2R00CZ. Pair them with fast-recovery antiparallel diodes like Vishay VS-10MQ100N to suppress voltage spikes during switching transitions.
Implement dead-time control between opposing switches to prevent shoot-through conditions. A 50-100 ns delay works for most applications, adjustable via microcontroller timers or dedicated gate drivers such as Texas Instruments’ DRV8301.
- Use separate high-side and low-side gate drivers for better isolation
- Opt for bootstrap capacitors rated at 2.2 µF or higher for high-side drive stability
- Avoid PWM frequencies above 50 kHz unless using GaN devices to limit switching losses
Route trace paths asymmetrically–keep high-current paths thick (minimum 3 oz copper) and symmetrical to reduce parasitic inductance. Ground plane separation between logic and power sections prevents noise coupling.
Monitor junction temperatures with thermistors or on-die sensors. Shutdown thresholds should trigger at 80% of the transistor’s maximum rating, such as 120°C for silicon devices or 150°C for SiC variants.
For bidirectional control, use complementary PWM signals with a 2-5% deadband between state changes. Example logic for a 16MHz microcontroller:
- Set PWM frequency to 20 kHz
- Initialize complementary outputs with phase-correct mode
- Apply dead-time via software delays or hardware dead-time generators
- Verify no overlap through oscilloscope analysis of gate signals
Include overcurrent protection via series sense resistors (0.01 Ω) and comparators like Analog Devices LT1016. Trip currents should be 1.5× the maximum stall current of the load.
Test the driver under full load with varying input voltages. Key waveforms to verify:
- Drain-source voltage during switching for ringing suppression
- Gate charge/discharge curves to confirm proper drive strength
- Load current symmetry in both directions
Critical Elements for Constructing a Semiconductor Switching Array
Select power MOSFETs with drain-source resistance below 10 milliohms for motor loads exceeding 5A. IRLZ44N handles 47A continuous current at 25°C with 22 milliohms RDS(on), while IRLB8743 drops to 3.7 milliohms at 10V gate drive. Temperature coefficients matter: RDS(on) rises 0.7%/°C above 25°C–calculate derating for heatsink sizing.
Gate drivers must deliver 10V-15V with rise/fall times under 50ns. TC4427 outputs ±1.5A peak current, switching 1000pF gate capacitance in 25ns. Isolated drivers like ISO5852 separate logic ground from motor ground at 5kV RMS isolation–critical for 48V+ systems. Bypass 0.1µF ceramic caps directly between driver VDD and GND pins to prevent false triggers.
Shoot-through protection requires dead time between complementary signals. Generate 1µs-2µs delays with RC networks (e.g., 10kΩ + 1nF) or dedicated ICs like UCC27211. For adjustable delays, use diode-clamped AND gates with cross-coupled feedback. Absent dead time, even 10ns overlap causes 100A+ spikes through MOSFETs melting bond wires.
Heat dissipation dictates PCB layout. Allocate 100mm² copper pour per 10A load, 2oz thickness minimum. Thermal vias (0.3mm diameter, 1.2mm pitch) transfer heat to internal planes–fill with solder for 30% better conduction. TO-220 packages need 2.5°C/W heatsinks for 25W dissipation; for 50W, switch to D²PAK with direct die attach.
Logic Integration for Seamless Control
Optocouplers like HCPL-3120 provide 2A peak output while isolating 3750V RMS. For faster response, digital isolators such as TI ISO7740 propagate signals in 10ns with 4kV isolation. Logic inputs should accept 3.3V-5V CMOS levels; use voltage translators like TXS0104E if interfacing 1.8V FPGAs. Implement pull-downs on unused inputs to prevent floating gates.
Current sensing demands Hall-effect sensors for galvanic isolation. ACS712 outputs 185mV/A, accurate to ±1.5% over -40°C to 125°C. For lower noise, shunt resistors with INA240 amplifiers offer 50V/V gain and 50kHz bandwidth–place shunts on the low-side to avoid common-mode errors. Sample at 100kHz minimum to capture PWM ripple.
EMI suppression starts with snubber networks across motor terminals: 10Ω + 10nF RC pairs cut ringing at 100kHz. Ferrite beads (e.g., BLM21PG471SN1L) on supply lines attenuate 1MHz-1GHz noise. Keep high-current traces short and wide (1mm width per 1A), route signals away from switching nodes, and shield analog signals with uninterrupted ground plane.
Microcontroller selection hinges on PWM resolution. STM32F334 offers 170ps resolution at 170MHz timer clock, enabling 16-bit duty cycle accuracy. Dedicate hardware timers to complementary output pairs; use DMA for smooth transitions between speed profiles. Upload pre-calculated sine tables to flash to avoid runtime computation delays.
Step-by-Step Assembly of an N-Channel MOSFET Power Switching Matrix
Select four IRF540N transistors for their 100V/36A rating and 44mΩ RDS(on) at 10V gate drive. Arrange them in an X-pattern on a 7x9cm perfboard with 2.54mm pitch, leaving 8mm clearance between adjacent heatsink tabs. Secure each MOSFET with M3 nylon spacers to prevent shorts, ensuring the drain tabs face outward for direct solder connections to 12AWG stranded wire.
| Component | Value | Quantity | Placement Note |
|---|---|---|---|
| IRF540N | 36A/100V | 4 | Gate-source: 1kΩ ¼W resistor (pulldown) |
| 1N5822 | 3A/40V Schottky | 4 | Solder across DS terminals (reverse polarity) |
| TC4427 | 1.5A peak driver | 2 | VDD decoupling: 10µF + 0.1µF ceramic |
Route control signals via twisted pairs (Cat5e) with separate ground returns for each driver to minimize crosstalk. Apply 15V to the TC4427 VDD rail, verified with a 20MHz scope to confirm
Common Errors in Transistor-Based Motor Driver Wiring
Failing to include appropriate flyback diodes across switching elements leads to destructive voltage spikes when inductive loads are switched off. A 1N4007 diode rated for at least twice the supply voltage prevents avalanche breakdown in MOSFET bodies, even during fast current decay in 24V DC motor applications. Neglecting this step burns out channels within milliseconds under load.
Incorrect gate resistor values cause slow turn-on times, increasing power dissipation in linear mode. A 10Ω resistor suits standard logic-level MOSFETs, while high-power variants require 2.2Ω for sub-100ns switching. Omitting series resistors creates gate ringing exceeding ±20V, triggering false turn-on during transient events.
Thermal bonding mismatches between transistor cases and heatsinks introduce hotspots. Uneven pressure from improperly torqued screws–typically 5-6Nm for TO-220 packages–creates air gaps reducing dissipation efficiency by 40%. Microscopic surface imperfections amplify thermal resistance, forcing channels into overtemperature shutdown even at moderate 3A continuous loads.
Ground loops through shared return paths distort control signals, causing partial turn-on in opposing half-bridges. Dedicated star grounding eliminates cross-talk, ensuring clean PWM transitions up to 100kHz without shoot-through. Floating gate drivers exacerbate noise coupling, requiring isolated 3.3V regulators for stable operation.
Improper dead-time insertion between complementary pairs invites direct short circuits. Optimal delays–typically 100ns for 10kHz PWM–prevent both transistors conducting simultaneously, even during temperature-induced threshold shifts. Failing this, peak currents exceeding 30A weld internal bond wires within seconds.
