Step-by-Step Flasher Relay Circuit Connection Guide with Wiring Schematic
Connect the control module’s power lead directly to the fuse box using a 15-amp fuse link–not a circuit breaker. Locate the ignition-switched terminal on the box (labeled IGN or ACC) and strip 10 mm of insulation from the red wire. Crimp a female spade connector onto the end, then attach it to the corresponding slot. This ensures the unit energizes only when the ignition is on, eliminating parasitic drain that can discharge a battery in under 48 hours.
Avoid splicing into the hazard light circuit. These pathways often route through a separate flasher unit or body control module, introducing voltage drop and erratic blinking rates. Instead, run a dedicated 2.5 mm² wire from the control module’s output terminal to the turn signal switch. Use a four-pin relay (ISO 7588-1) mounted within 20 cm of the switch to minimize interference; secure both coil and load contacts with 0.5 Nm torque to prevent vibration loosening.
Ground the module’s black wire through a M6 bolt tapped into bare metal chassis rail–clean the surface with a wire brush and apply dielectric grease before tightening. If the bolt passes through painted sections, countersink a star washer to break through the coating. Verify continuity with a multimeter; resistance should read below 0.2 Ω. Higher readings cause signal lag, especially in LED-equipped vehicles where low current draw exacerbates timing inconsistencies.
Route all conductors away from moving components and heat sources. Keep wires at least 50 mm from exhaust manifolds, power steering lines, and suspension struts. Bundle wires every 15 cm with spiral wrap, securing with zip ties spaced no farther than 30 cm apart. Label each bundle at both ends with heat-shrink tubing printed with wire gauge and function: “1.5 mm² – Right Output” prevents misconnections during future diagnostics.
Test functionality before final assembly. With ignition on, cycle the turn signal lever. The indicator lamps should pulse at 90 ± 5 cycles per minute, and warning light on the dashboard must mirror the external lamp activity without flickering. If response exceeds tolerance, replace the relay immediately–internal contacts likely exhibit pitting from arcing, commonly triggered by improper load matching or capacitor failure in aftermarket LED bulbs.
Connecting the Turn Signal Control Module: Key Guidelines
Identify the power input, signal lead, and ground connections on the electromechanical switching unit before proceeding. Most automotive signaling modules require a 12V DC supply from the fuse box–locate an ignition-switched circuit to prevent battery drain when the vehicle is off. Connect the input terminal directly to this source, ensuring the wire gauge matches the system’s current load (typically 18-20 AWG for stock installations, 14-16 AWG for aftermarket high-output bulbs). For European or CAN-bus equipped vehicles, verify compatibility with the existing network to avoid triggering error codes.
Attach the output leads to the appropriate lamp circuits, observing polarity if the module includes a polarity protection feature. For incandescent bulbs, no additional components are needed, but LED upgrades often require load resistors (6-ohm, 50W) across each lamp terminal to simulate bulb resistance and prevent rapid flashing. Route the ground wire to a clean, bare metal chassis point–avoid areas prone to oxidation or painted surfaces, as poor grounding causes inconsistent operation. Secure all connections with crimp connectors and heat-shrink tubing; soldering is optional but improves long-term reliability.
Test the assembly by activating the hazard function. Monitor for proper timing (typically 60–120 cycles per minute) and confirm both sides illuminate evenly. If one side flashes erratically, check for loose wiring, corroded bulb sockets, or mismatched bulb wattage. For complex setups–such as trailer lighting or auxiliary indicators–add a dedicated sub-module or diode-isolated circuit to prevent feedback into the primary system.
Step-by-Step Guide to Connecting Your Signal Control Module
Disconnect the vehicle’s battery terminal first to prevent shorts during installation. Identify the turn indicator circuit fuse–check the owner’s manual for its exact location. Remove the fuse using a puller tool; this cuts power to the existing system.

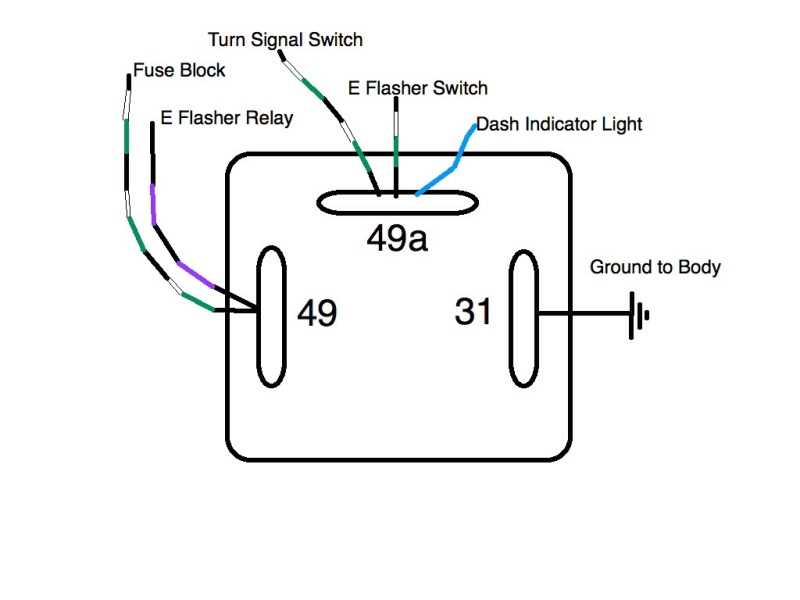

Locate the signal actuator socket under the dashboard, typically left of the steering column. It’s a rectangular plug with three or four pins–pin arrangement varies by model. Note the pin functions: power input (usually marked 49), output to bulbs (49a), and ground (31).
- Pin 49: Power from ignition (12V when switched on)
- Pin 49a: Load side–connects to front/rear lights
- Pin 31: Ground (bare wire or chassis connection)
- Pin C (if present): Auxiliary control for LED compatibility
Trace the existing actuator’s wiring harness to the main connector. Use a multimeter in continuity mode to verify each wire’s purpose–match colors to the manual. Cut only the wires needed; splice them using butt connectors for a secure join. Avoid twisting wires–this causes intermittent faults.
Mount the new signal modulator near the original location, ensuring it’s accessible but protected from moisture. Secure it with a zip tie or adhesive pad. Route the new harness along the factory bundle, avoiding sharp edges or moving parts. Keep wires at least 10cm from the exhaust manifold or rotating shafts.
Connect the modulator’s input wire to the power source–use a fused tap spliced into the ignition circuit (typically the 15A turn indicator fuse). Strip 5mm of insulation, crimp a ring terminal, and bolt it to the chassis for ground. Verify polarity with a test light before finalizing connections.
Attach the output wires to the light assembly. For bulbs under 21W, use the standard output pin (49a). For LED arrays or higher loads, connect the auxiliary pin (C) if the modulator supports it–consult the product sheet for load limits. Solder joints for LED setups to prevent voltage drop.
Reinstall the fuse, reconnect the battery, and test each direction signal. Check for rapid flashing (hyper-flash) or slow pulsing–this indicates load mismatch. Adjust by adding a load resistor (10W 6Ω) in parallel to bulbs if needed. Finalize by securing all loose wires with cloth tape, ensuring no exposed copper remains.
Identifying Correct Terminals on a Signal Control Unit
Locate the component’s terminal markings first–most modern units have labels like “49,” “49a,” “C,” “L,” or “31” stamped near connection points. If markings are absent, check the manufacturer’s specifications or the vehicle’s repair manual for pin assignments. Use a multimeter in continuity mode to trace connections: the “49” terminal typically links to the ignition switch, while “49a” supplies power to the bulb sockets during activation.
Test for ground terminals by setting the multimeter to resistance mode (200Ω range) and probing between suspected ground and a known chassis point. A reading below 5Ω confirms proper grounding–usually the “31” or “E” terminal. For polarity-sensitive models, verify battery-positive terminals (“C” or “15”) by measuring voltage against ground with the ignition on; expect 12V (±0.5V). Any deviation indicates a faulty circuit or incorrect terminal identification.
Common Terminal Configurations
| Terminal Code | Function | Expected Voltage (Ignition ON) | Key Connection |
|---|---|---|---|
| 49 | Input from ignition | 12V | Fused power source |
| 49a | Output to indicators | Pulsing 12V | Bulb sockets |
| C / 15 | Battery-positive | 12V | Direct battery link |
| 31 / E | Ground | 0V | Chassis frame |
| L | Side-specific output | Pulsing 12V | Left/right bulb circuit |
For three-terminal units, connect the input (e.g., “B”) to a fused 12V source, the output (e.g., “S”) to the bulb circuit, and the remaining terminal to ground. Five-terminal models often include a dedicated side output–use a test light to confirm pulsing voltage on both “L” and “R” terminals when the system is active. If the unit clicks but no voltage pulses appear, check for corroded connectors or improper ground.
Isolate non-functional terminals by disconnecting the harness and testing each pin individually. Measure resistance between output terminals (“49a” and “L/R”) and ground–a reading above 10Ω suggests an open circuit or failed internal switch. Replace the unit if resistance remains infinite after cleaning contact points. For intermittent failures, apply dielectric grease to terminals after verifying connections to prevent oxidation.

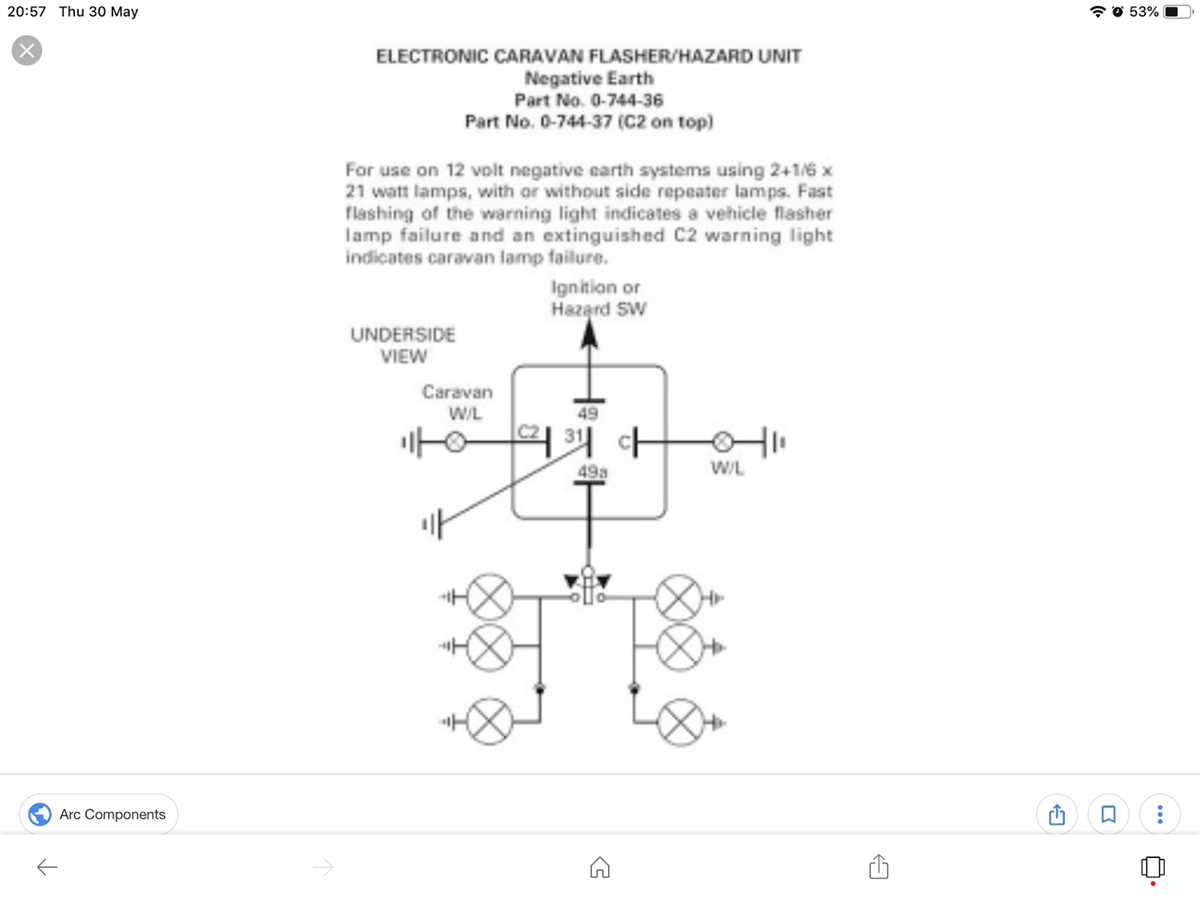

Mark verified terminals with heat-shrink tubing or labels to simplify future troubleshooting. On European vehicles, prioritize terminals marked “C2” (input) and “C1” (output) if using Bosch-type units. For motorcycles or ATVs, confirm if the system uses a combined brake/indicator setup–this often requires additional diodes to prevent backfeed into the brake circuit.
Critical Errors in Turn Signal Electrical Connections
Reversing polarity when connecting the signal unit is a frequent misstep that instantly disables functionality. Most indicator modules require a strict positive-to-positive and ground-to-ground alignment with the vehicle’s circuit. Swapping these leads often triggers a fuse blow or, worse, damages the internal circuitry of the module. Always verify terminals with a multimeter before finalizing connections–manufacturer labels may vary, and blind trust leads to costly repairs.
Overlooking load resistance causes premature failure of the blinker mechanism. Each LED assembly draws significantly less current than traditional bulbs, creating an imbalance that forces the control unit into erratic cycles or complete shutdown. Installing a load resistor in parallel with LED clusters restores the expected current draw. Ignoring this adjustment results in hyper-flashing or non-operation, signaling an underlying electrical mismatch.
Improper grounding ranks as a leading cause of intermittent signal behavior. A corroded, loose, or undersized ground wire introduces resistance, disrupting the smooth flow of current. Sand contact points to bare metal, use dielectric grease, and ensure the ground wire is at least the same gauge as the power feed. A single weak ground point can manifest as flickering, non-synchronized blinking, or total system failure.
Using incorrect fuse ratings compromises both the indicator module and the vehicle’s wiring loom. A fuse rated too low blows under normal operation, while an oversized fuse fails to protect against short circuits, risking wire melt or fire. Match the fuse value exactly to the spec listed in the service manual–typically 10-15 amps for most turn signal circuits. Deviations invite either nuisance tripping or catastrophic thermal events.
Disregarding harness compatibility between aftermarket units and OEM connectors creates unnecessary splicing and signal degradation. Adapters exist for most common interface mismatches; bypassing them with loose wire twists or tape invites corrosion and signal loss. Verify connector pinouts using manufacturer schematics before any installation–forced connections often damage pins, leading to erratic operation or permanent module failure.
