Step-by-Step Fluorescent Ballast Wiring Guide with Circuit Layout

Start by identifying the input voltage on your control gear–typically 120V, 220V, or 277V AC. Mismatches here will fry the circuitry. Use a multimeter to confirm live wires before handling; even low-wattage starters store residual charge. For single-tube setups, connect the hot lead to one coil terminal, then run the neutral to the opposite side of the starter unit. Double-check polarity–reversed connections reduce lifespan by 30-40%.

For tandem configurations, bridge the second tube’s coil in parallel to the first, but ensure the starter’s wattage rating matches the combined load. Overloaded starters emit a telltale hum and thermal shutdown within minutes. Ground the housing–mandatory for metal enclosures–to prevent stray voltage hazards. Use 18-gauge solid copper wire for fixtures under 40W; thicker 14-gauge for 50W+ loads to avoid voltage drop.

Instant-start starters require a capacitorless design: link the lead wire directly to the tube’s cathode pins, skipping intermediate coil taps. Rapid-start variants need both cathode heating and a dedicated starting electrode–consult the manufacturer’s manual for pinouts, as layouts vary. For dimmable setups, add a triac-based controller on the power side; standard starters fail under variable loads. Always terminate unused wires with wire nuts or heat-shrink sleeves–they pose arc risks if left exposed.

Thermal cutouts (if present) must be wired in series with the power feed. Bypass them only for emergency repairs; overheated units degrade tube efficiency by 15%. LED retrofit starters simulate the original circuit but often omit safety features–label these clearly to avoid mixing with genuine gas-discharge components. Test each connection with a non-contact voltage pen before energizing; false readings from inductive loads are common.

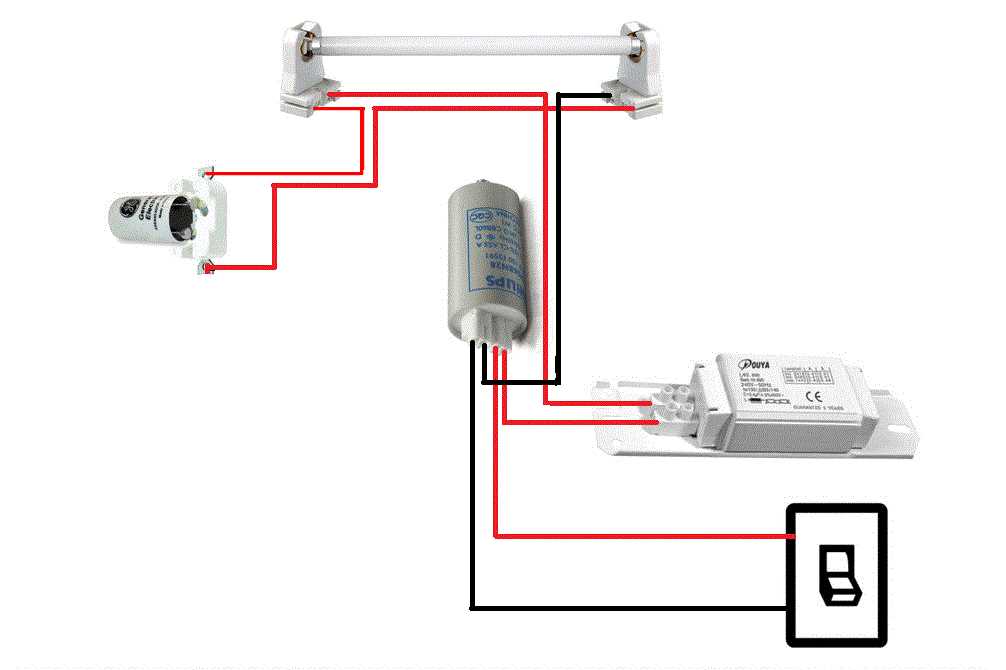

Connecting Gas-Discharge Tubes with Magnetic Chokes: A Practical Schematic

For immediate installation, identify the choke’s input terminals first–typically marked L (line) and N (neutral). Connect the mains supply directly to these points: 230V AC to L, ground to the chassis (if applicable), and neutral to N. Verify polarity with a multimeter to prevent reverse current that degrades electrodes prematurely. The choke’s output pairs (often labeled 1 and 2 for rapid-start systems or A/B for instant-start) attach to the tube pins without crossing wires–follow the fixture’s silkscreened arrow or pilot holes to avoid misalignment. For *T8* sizes, use push-in connectors; *T12* variants may require screw terminals due to higher inrush currents. Always isolate power via a dedicated circuit breaker (10A for single-tube, 16A for dual-tube setups) to manage start-up surges up to 650mA.

Fault Detection in Series-Parallel Lamps

If the arc fails to ignite, measure voltage across the starter socket: 0V indicates a shorted choke, 120-277V suggests an open circuit in the bimetallic switch. Replace starters rated for the same tube diameter–using a *T5* starter on a *T8* tube will cause flickering within 400 hours. For tripped breakers, inspect filaments with a continuity tester; a reading above 2Ω confirms intact electrodes, below 0.5Ω signals burnout requiring full tube replacement. Evaluate capacitor health by checking for leaks or bulging–swap with a unit matching the original µF (±5%) and voltage rating (minimum 450V DC for 230V systems).

Essential Equipment for Installing a Gas-Discharge Tube Starter

Begin with a non-contact voltage detector (1000V rating minimum) to verify circuit de-energization. Test all conductors–including neutral and ground–before handling; false readings from capacitive coupling can occur with bundled cabling. For circuits exceeding 277V, use a tester with audible alerts to avoid false negatives during bright ambient conditions.

Select wire strippers matched to conductor gauge: AWG 12–14 for standard 20A circuits, AWG 10 for 30A setups. Ratcheting strippers reduce insulator damage on stranded wire; non-ratcheting models risk nicking conductors, leading to hot-spot failures under load. Include a crimping tool for insulated terminals (blue/yellow sizes) if replacing factory splices–twist-and-tape joints degrade under high-frequency harmonic currents.

Use a torque screwdriver (0.4–0.6 Nm range) for securing terminal blocks; under-tightened screws oxidize, over-tightened ones strip threads or crack ceramic bases. A digital multimeter with 0.1Ω resolution helps verify low-resistance ground paths (under 0.5Ω) and ballast output continuity. For troubleshooting, add a non-polarized capacitor tester to check run/start capacitors–escaped dielectric fluid leaves crystalline residues detectable under magnification.

Keep flame-retardant junction boxes (plastic for weight savings, steel for EMI shielding) and UL-listed wire nuts (gray for 18–14 AWG, orange for 12–10 AWG). For retrofit projects, stock shunted socket connectors; non-shunted types require jumpers for instant-start tubes. Include heat-shrink tubing in dual-wall epoxy-lined variant for outdoor installations–standard polyolefin melts at arc temperatures.

Step-by-Step Connections for Legacy Current Regulators

Begin by disconnecting power at the circuit breaker to prevent accidental energization. Identify the regulator’s input terminals–typically marked L (line) and N (neutral)–and connect the supply hot wire (black or red) to L and the neutral (white) to N. For dual-tube setups, locate the second set of N and L terminals; these must mirror the first pair. Secure all connections with wire nuts, ensuring no exposed copper remains.

Lamp Holder Hookup Sequence

• Attach the first lamp’s starter wires (if present) to the regulator’s designated S terminals–polarity does not apply.
• Link one tube pin to the 1 terminal on the regulator, the opposing pin to 2. Repeat for any additional tubes, pairing 3 with 4.
• Verify connections by tracing each wire from the regulator to the holder–crossovers will cause flickering or failure.
• Restore power and test; if the tube glows erratically, recheck the starter connections or replace it.

Ground the assembly by attaching the green or bare wire to the regulator’s grounding screw or chassis. Use 14 AWG copper wire for all connections; thinner wires risk overheating. Cap unused terminals with insulating tape to prevent shorts.

Electronic Starter Integration for Single and Twin Bulb Setups

Identify the input and output terminals on the electronic control module before making connections. Most units feature labeled pairs: typically, two red and two blue wires for output, with one black and one white wire serving as power supply inputs. For safety, disconnect the circuit breaker or remove the fuse feeding the fixture before proceeding.

Attach the power source cables to the module’s input side. The black (live) cable connects to the labeled “L” or “Hot” terminal, while the white (neutral) cable secures to the adjacent “N” or “Neutral” slot. Ensure tight, secure contact by twisting exposed wire strands clockwise before inserting them into the terminal screws. Avoid overtightening, which may strip threads or damage the conductor.

Route the module’s output cables to the lamp sockets based on the configuration. For a single-bulb assembly, pair one red and one blue wire to opposite ends of the socket. Twin-bulb arrangements require both red wires connected to one socket row and both blue wires to the remaining sockets. Verify compatibility with the specific starter model, as some high-frequency variants use yellow and violet markers instead.

Ground the setup by connecting the fixture’s chassis (usually a green or bare wire) to the electronic module’s grounding screw if present, or directly to the metal casing. This step prevents stray voltage buildup and reduces interference with nearby electronics. Check continuity with a multimeter set to ohms–measure between the grounded point and neutral to confirm a resistance below 1 ohm.

Test the configuration with a known-working bulb before finalizing installation. Energize the circuit and observe startup behavior. A properly connected high-efficiency starter should ignite the tube within one second, maintaining steady operation without flickering or buzzing. If issues arise, recheck polarity and ensure no stray wire segments touch adjacent terminals.

Secure all connections with twist-on caps or terminal blocks rated for the current load (typically 600V for commercial setups). Avoid using electrical tape as the sole insulator, as it degrades over time. For recessed fixtures, coil excess wire neatly and tuck it behind the mounting bracket to prevent contact with hot surfaces or moisture ingress.

Preventing Short Circuits in Gas-Discharge Circuit Assemblies

Always match component ratings to mains voltage. A 120V starter connected to 277V will arc instantly, melting insulation before triggering protection. Verify labels: UL-listed devices show max voltage, not just nominal. Sketch connections on paper first–misrouted neutral wires crossing live terminals create parallel paths that bypass safety fuses.

Use twist-lock splices instead of wire nuts for high-vibration fixtures. Vibrations loosen nuts over time, exposing bare strands that fray and touch chassis or adjacent conductors. Secure each splice with heat-shrink tubing rated for 90°C minimum–budget shrink tubing (60°C) softens under load, sliding off during transient currents.

Fault Type	Symptom	Safe Fix
Reversed polarity	Bulb flickers, capacitor hisses	Swap L & N at terminal block
Ground missing	Fixture hums, metal housing shocked	Bond bare copper to junction box
Incorrect phase sequencing	Lamp starts then extinguishes	Confirm L1/L2 sequence matches control gear spec sheet

Test continuity between live terminals and metal chassis before applying power. A reading below 0.5 MΩ indicates compromised insulation–replace cable immediately. Multimeter probes must be sharp; dull tips puncture jacket insulation on fine-stranded wires, causing latent shorts.

Route high-voltage leads perpendicular to signal wires, maintaining 25 mm clearance. Crossing at acute angles increases capacitive coupling, inducing noise that erodes ballast components. Tie wraps should clamp every 10 cm; loose bundles sway, eventually chafing against zinc-coated mounts, exposing copper.

Replace any damaged CEE 7/7 plugs showing cracked plastic or deformed pins. Corroded pins increase contact resistance–measure resistance across plug blades; values above 0.2 Ω indicate imminent failure. Apply dielectric grease to pins after cleaning with 600-grit sandpaper to prevent future oxidation.
