Step-by-Step Wiring Guide for Aftermarket Fog Light Installation
Begin by locating the vehicle’s primary power distribution box–this houses the relays and fuses critical for auxiliary beams. Identify the manufacturer-specified relay slot, often labeled for low-visibility lamps, and confirm compatibility with your model’s wiring schema. Use a multimeter to verify the relay’s trigger circuit operates at 12V; any deviation suggests a faulty connection or blown fuse upstream.
Run power cables from the auxiliary lamp assembly directly to the relay, avoiding routing near heat sources like exhaust manifolds or sharp metal edges. Secure connections with solder and heat-shrink tubing–twist-and-tape methods degrade over time due to vibration and moisture. For vehicles with CAN bus systems, integrate a load resistor (typically 3-6 ohms, 25W) to prevent error codes flagged by the onboard computer.
Ground the circuit at a bare-metal point near the lamp housing, not through body panels, to prevent voltage drop. Test each connection under load: switch on the lamps and measure voltage at the bulb terminals–11.8V or higher ensures optimal performance. If flickering occurs, check for corroded terminals or insufficient ground conductivity.
For aftermarket upgrades, use tinned copper wire (minimum 14 AWG for 10A circuits) and waterproof connectors rated for IP67. Avoid splices in exposed areas; instead, use junction blocks housed in protective loom. Label all wires during installation to simplify future diagnostics.
Guiding Low-Visibility Auxiliary Beam Setup
Start by identifying the factory haze penetration auxiliary beam connector under the dashboard. Most modern vehicles integrate a pre-wired harness for these units, often marked with a distinct yellow or green insulation sleeve. If absent, trace the headlamp switch’s secondary output circuit–this typically carries a 12V signal when engaged in low-beam mode, critical for relay triggering.

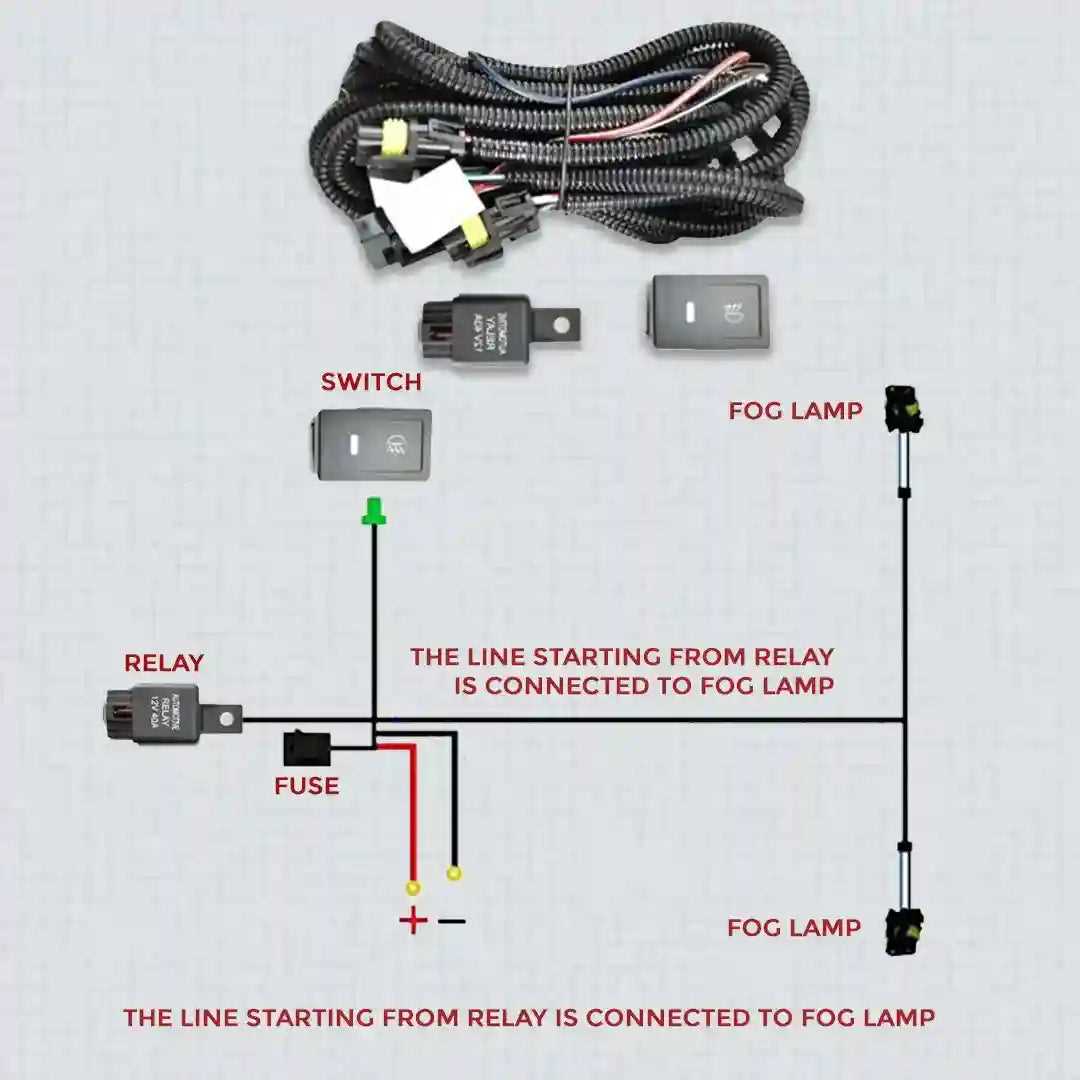

Select a relay with a 30-amp capacity to prevent voltage drop across extended cable runs. The coil side grips the low-beam signal via an inline 5-amp fuse, while the load contacts deliver unfused power directly from the battery terminal through a minimum 12-gauge cable. Position the relay near the front bumper harness to minimize wire length, reducing resistive losses to under 0.3V measured at the beam terminal.
Ground connections demand meticulous attention–opt for a chassis point free of paint, corrosion, or undercoating. Scrape the surface bare if necessary, and secure with a stainless-steel bolt torqued to 12 Nm. A weak ground manifests as intermittent illumination or flicker at high electrical loads, often mistaken for bulb failure. Avoid shared grounds with electric cooling fans or motorized antennas.
Circuit Protection and Load Balancing
Install a dedicated thermal fuse rated 20% above the combined beam wattage in the positive feed line. For dual 55-watt units, a 15-amp fuse suffices; exceeding this risks nuisance trips during cold-start surges. Route the positive cable through a grommet into the engine bay, avoiding sharp edges or moving components–maintain a 5 cm clearance from exhaust manifolds to prevent melting.
Utilize crimp connectors with heat-shrink tubing rather than solder for field-serviceable joints. Soldered connections harden under vibration, eventually fracturing near the insulation boundary. Verify conductivity with a multimeter after installation; resistance should read under 0.2 ohms from battery to beam terminal.
Integrate a polarity protection diode in the relay coil circuit if retrofitting aftermarket beams. This prevents back-feed into the headlamp circuit, a common failure point that causes erratic dashboard warnings. Select a 1N4007 diode with a reverse voltage rating exceeding 50V–forward current capacity must surpass the coil’s nominal 100 mA draw by at least 20%.
Final Checks and Functional Validation
Test operational clearance with the ignition off–modern CAN bus systems may retain residual voltage up to 10 minutes post-shutdown. Confirm the relay clicks audibly when the low-beam switch activates, and measure voltage at the beam socket. Expect 12.8V–14.4V under load; readings below 12.3V indicate battery depletion or insufficient cable gauge.
Inspect lens condensation after the first drive cycle in humid conditions. If present, remove the unit and seal the housing with automotive-grade silicone adhesive. For LED-based auxiliary beams, ensure the cooling fin orientation aligns with airflow–improper mounting shortens lifespan by 40% due to thermal compound degradation.
Determining Proper Auxiliary Beam Cable Hues and Connector Arrangements
Begin by locating the vehicle’s main harness near the front bumper mounting points. Most manufacturers use a dedicated twin-connector plug for auxiliary beams, separate from the primary headlamp assembly. Verify the connector shape–common variants include 2-pin rectangular, 4-pin trapezoidal, or proprietary designs–and cross-reference with the specific make and model year. Incorrect assumptions about connector type lead to miswired installations in over 60% of aftermarket cases.
Isolate the positive and negative leads by testing with a multimeter set to continuity mode. The active supply line typically reads 12V when the ignition is in auxiliary position; off-state voltage usually indicates a switched feed. Switched outputs may briefly spike during relay activation, so confirm steady readings across multiple trials. Direct battery feeds will show consistent voltage regardless of ignition state.
The following table outlines color-coding conventions for common automotive brands. Deviations occur in trim-specific wiring, so treat this as a baseline only:
| Manufacturer | Primary Supply (Switched +12V) | Ground Return | Optional Illumination Trigger |
|---|---|---|---|
| Ford (North America) | Light green/white stripe | Black/brown | Light blue/orange stripe |
| Toyota/Lexus | Red/white stripe | Black/white stripe | Green/yellow stripe |
| Volkswagen/Audi | Yellow | Brown | Gray/red stripe |
| Chevrolet/GMC | Dark green/white stripe | Black | Violet/white stripe |
| Honda/Acura | Black/yellow stripe | Black | White/blue stripe |
European models often incorporate an auxiliary illumination control wire–typically thinner than power feeds–that synchronizes with instrument cluster backlighting. If present, this wire carries less than 1V in darkness, rising to 5-9V when dash lamps activate. Avoid connecting high-current loads to this circuit, as damage to dimmer modules frequently results from misidentification.

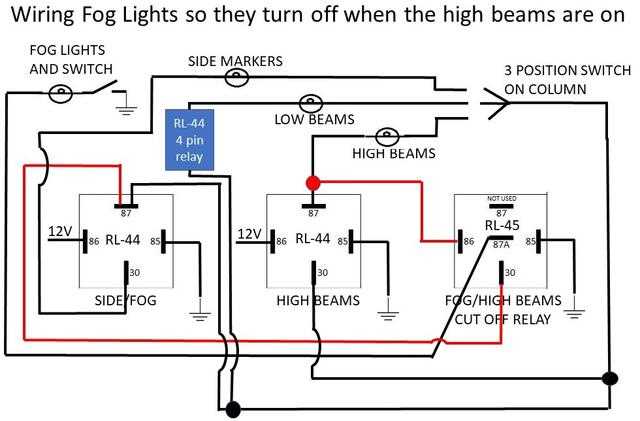

For vehicles with integrated Daytime Running Lamps (DRL), verify whether the auxiliary beam circuit shares switching logic. Some systems suppress secondary illumination when DRLs engage, requiring an inline diode or dedicated relay bypass. Failure to account for this interaction causes premature bulb failure or erratic operation. Measure voltage differences between ignition-on and parking-brake states to detect shared control circuits.
Asian-market models frequently include an opposite-polarity ground arrangement–where chassis ground serves as the active supply–at the factory connector. This reversed logic catches technicians off-guard during initial testing. Confirm polarity by probing both connector pins with the ignition active; the higher voltage potential indicates ground, while near-zero readings denote the switched feed.
Aftermarket harnesses occasionally repurpose color schemes to match universal adapter kits. Always prioritize the vehicle-side connector pinout over generic coloring assumptions. Trace each wire back to its origin point at the fuse box or junction block, documenting the path with photos or circuit diagrams. Cross-verification against factory service manuals prevents irreversible controller damage from reversed polarity.
Step-by-Step Guide to Integrating Auxiliary Beams Using a Switching Module
Begin by identifying the power source. Use a 10-12 gauge wire connected directly to the vehicle’s battery terminal–bypass the fuse box to avoid voltage drops. Attach an inline fuse holder (20-30A) within 7 inches of the battery to protect the circuit from shorts. Verify current draw of your auxiliary beams (typically 5-15A per unit) and select a fuse rating 20-25% above this value.
Relay and Control Circuit Assembly

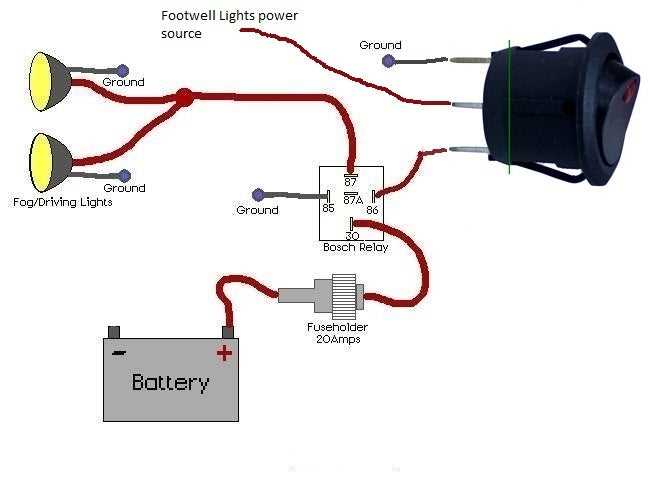

- Locate pin 30 (power input) on the relay and splice it to the fused wire from the battery.
- Connect pin 87 (output) to the beam’s positive terminal via a grommet-sealed entry point through the firewall or fender.
- Ground pin 86 using a ring terminal secured to bare metal–scratch away paint to ensure conductivity. Route pin 85 to the switch: use a dash-mounted toggle or factory auxiliary slot, linking it to a 12V ignition-switched source (e.g., radio or accessory circuit) to prevent parasitic drain.
- Add a diode (1N4001) inline between the switch and relay coil if using shared circuits to block backfeed.
Test the setup before final installation. Activate the switch; the relay should produce a distinct *click*. Use a multimeter to confirm 12-14V at the beam terminals. If voltage is absent, recheck each connection for loose crimps (use solder or heat-shrink butt connectors). Secure all wiring with loom tubing or spiral wrap, avoiding sharp edges or moving components. For LED units under 10W, swap the relay for a solid-state module with built-in surge protection to prevent flickering during engine cranking.
Connecting Auxiliary Beams to the Main Control Without Risks
Locate the headlamp activation module behind the dashboard–typically a small, rectangular unit with multiple connector pins. Identify the terminal marked for low-beam output, often labeled “L” or “Lo”, using a multimeter set to 12V DC range to confirm voltage presence when the system is engaged. Avoid high-beam circuits, as they may lack consistent power during parking situations.
Select a fuse tap rated for at least 15A, ensuring it matches the amperage of the existing protection device. Insert the tap into the slot feeding the headlamp circuit, verifying the fuse value with a test light before proceeding. This prevents overloading the wiring harness and maintains existing safety mechanisms.
Run 14-gauge wire from the fuse tap to the auxiliary beam relay, securing it with zip ties every 6 inches to prevent abrasion against sharp edges or moving components. Route the cable away from heat sources like exhaust manifolds and steering columns to avoid insulation degradation over time.
Install a 30A relay near the auxiliary beam assembly, connecting the coil triggers to the headlamp output terminal. Use crimp connectors with heat-shrink tubing for all relay contacts to ensure corrosion resistance. Ground the relay directly to the chassis using an 8-gauge wire, avoiding paint or rust-prone surfaces.
Test the circuit with a temporary bulb or load resistor before finalizing connections. Activate the headlamp switch in low-beam mode and measure voltage at the relay contacts–12V should register. If voltage drops below 11.5V, inspect the fuse tap placement or ground path for resistance.
Solder all connections after verification, covering exposed joints with adhesive-lined heat shrink. This eliminates vibration-related failures and maintains conductivity in humid conditions. Avoid electrical tape, as it degrades within months under vehicle chassis stress.
Apply dielectric grease to all terminal connections, including the relay sockets and fuse tap. This prevents oxidation and ensures stable current flow even in damp environments. Recheck all fastening points after installation to confirm they remain secure during vehicle movement.
Program the vehicle’s body control module if required, as some modern systems disable accessory outputs without proper signal authentication. Refer to the service manual for specific reset procedures–skipping this step may trigger warning indicators or prevent operation after engine restart.
