Complete Ford 7-Pin Trailer Wiring Diagram Guide for Easy Installation

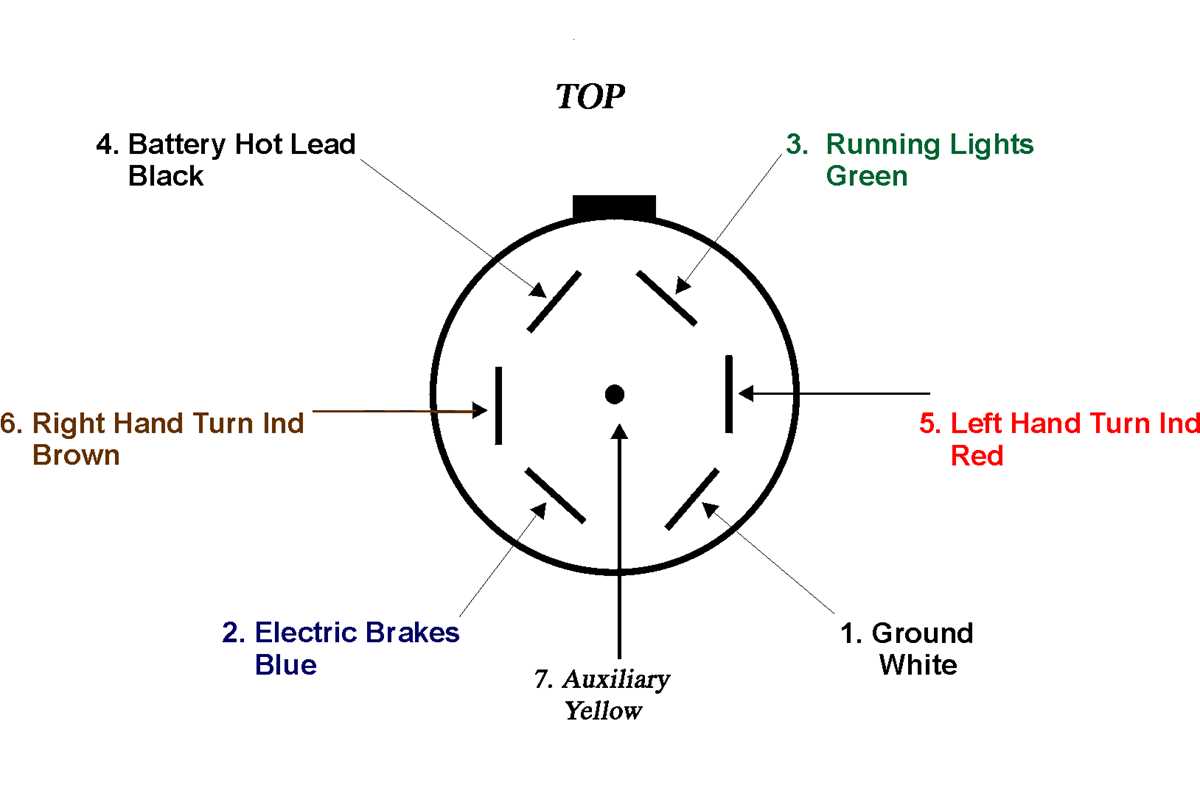

Start by identifying pin positions on the standard round connector used for towing applications. Pin A (typically at the 12 o’clock position) carries constant 12V power from the battery–use 10-gauge wire for a 30-amp circuit to prevent voltage drop under load. Pin B (center right) handles brake control signals; splice this wire directly to the brake controller output terminal without intermediate connections. Verify the controller’s ground integrity before proceeding.

Ground (pin C, bottom center) requires the thickest wire–minimum 8-gauge–to handle combined lighting and brake currents. Attach it directly to the vehicle’s frame or chassis near the connection point, avoiding painted surfaces; corrosion-resistant ring terminals prevent intermittent failures. The remaining pins (D-G) correspond to left turn/brake, right turn/brake, tail/marker lights, and auxiliary power respectively. Use 14-gauge wire for all lighting circuits and heat-shrink tubing to seal splices against moisture.

Test each function with a multimeter before connecting to the towed unit. For turn signals, set the meter to AC voltage range (typically 10-14V). Brake outputs should read 12V DC when engaged. If voltage diverges by more than 0.5V from battery readings, inspect for loose connections or frayed wires. Replace the vehicle-side connector if pins show pitting or discoloration–aftermarket replacements often lack proper plating, leading to premature failures.

Route harness wires through a dedicated grommet in the vehicle’s rear panel, away from moving components and exhaust heat. Secure harnesses every 18 inches with nylon zip ties, not electrical tape, which degrades over time. Apply dielectric grease to all connections before final assembly to inhibit corrosion. For diesel applications, verify the alternator output exceeds 120 amps to support additional electrical loads without battery drain.

Understanding Vehicle-Connector Pin Assignments for Towing

Begin by matching the connector’s pin layout to your vehicle’s harness specification–standard configurations vary, but the most reliable setup follows this arrangement: the main power feed occupies the center terminal (typically 12V), ground sits directly opposite, and remaining contacts handle left turn, right turn, tail lamps, and auxiliary circuits in descending order. Failure to adhere to this sequence risks electrical mismatches, leading to system malfunctions or safety hazards. Verify each connection with a multimeter before finalizing, ensuring voltage stability across all engaged pins.

Terminal Position	Function	Wire Color (Standard)	Voltage (Expected)
Center	Battery charge line	Yellow/Red stripe	12V constant
Bottom	Ground reference	White	0V
Upper-left	Left turn signal	Yellow	12V pulsed
Upper-right	Right turn signal	Green	12V pulsed

For vehicles equipped with integrated brake controllers, prioritize the blue auxiliary wire–its absence voids electronic braking capabilities, forcing reliance on manual override. Connect this wire directly to the controller’s output, avoiding splices that degrade signal integrity. Solder joints perform better than crimped connections, especially under dynamic loads. Post-installation, test under load conditions (e.g., turning on all lamps simultaneously) to confirm no voltage drop exceeds 0.5V across any circuit. Document every modification for future diagnostics.

Mastering Pin Layouts in Heavy-Duty Connector Systems

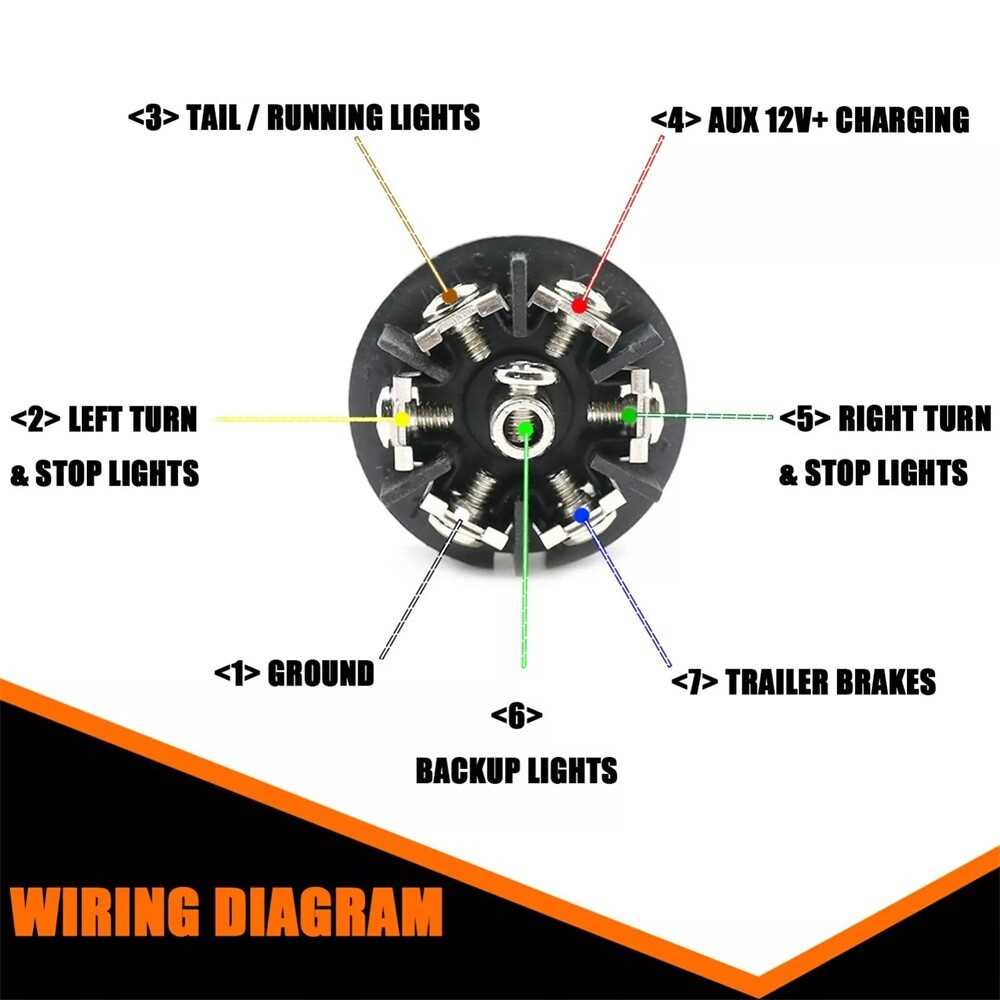

Always verify pin assignments with a multimeter before connecting auxiliary equipment. The standard arrangement for most North American vehicle adapters includes seven critical terminals, but variations exist–especially in models manufactured after 2015. Pin 1 typically handles charging current for batteries in auxiliary devices, while Pin 4 delivers primary lighting power (left turn/brake). Misfiring connections here create unsafe voltage drops or reverse polarity scenarios, risking damage to LEDs or incandescent bulbs.

Check resistance values across each circuit under load conditions. Pin 6 (often a 12V auxiliary feed) should maintain steady voltage between 13.8V–14.2V when the alternator engages. If readings fluctuate, inspect the fuse box: a blown 30A fuse is common culprit, but corrosion inside the connector body can mimic this failure. Clean contacts with electronic-grade solvent and a fiberglass brush–never use sandpaper, which removes anti-corrosion plating.

Troubleshooting Common Pin Failures

• Pin 7 (ground return): Measure continuity to chassis ground using a low-ohm setting. Resistance above 0.5 ohms indicates poor bonding–clean mating surfaces or replace mounting hardware (use stainless steel to prevent galvanic corrosion).
• Center pin (back-up lights): Activate reverse gear and verify 12V presence. If absent, trace wiring loom for chafing near suspension components or inspect the reverse light switch cluster under the dash.
• Pin 5 (right turn/brake): Test with both signals active–brake pedal depressed and right lever toggled. If dimming occurs, the towing module prioritizes brake current; swap LED markers for incandescent units to balance load.

Advanced Modifications for Specialized Use

For overlanding setups, reroute Pin 2 (electric brake output) through a dedicated brake controller and install a 10A relocating diode array to isolate surge currents from winch operations. When adding auxiliary heaters or air compressors, use Pin 3 (12V constant hot) only with a 30A circuit breaker–never splice directly into the harness. Label each branch circuit with heat-shrink tubing imprinted with load type and amperage rating to simplify future diagnostics.

Guide to Connecting a Vehicle’s Electrical Coupler: Detailed Walkthrough

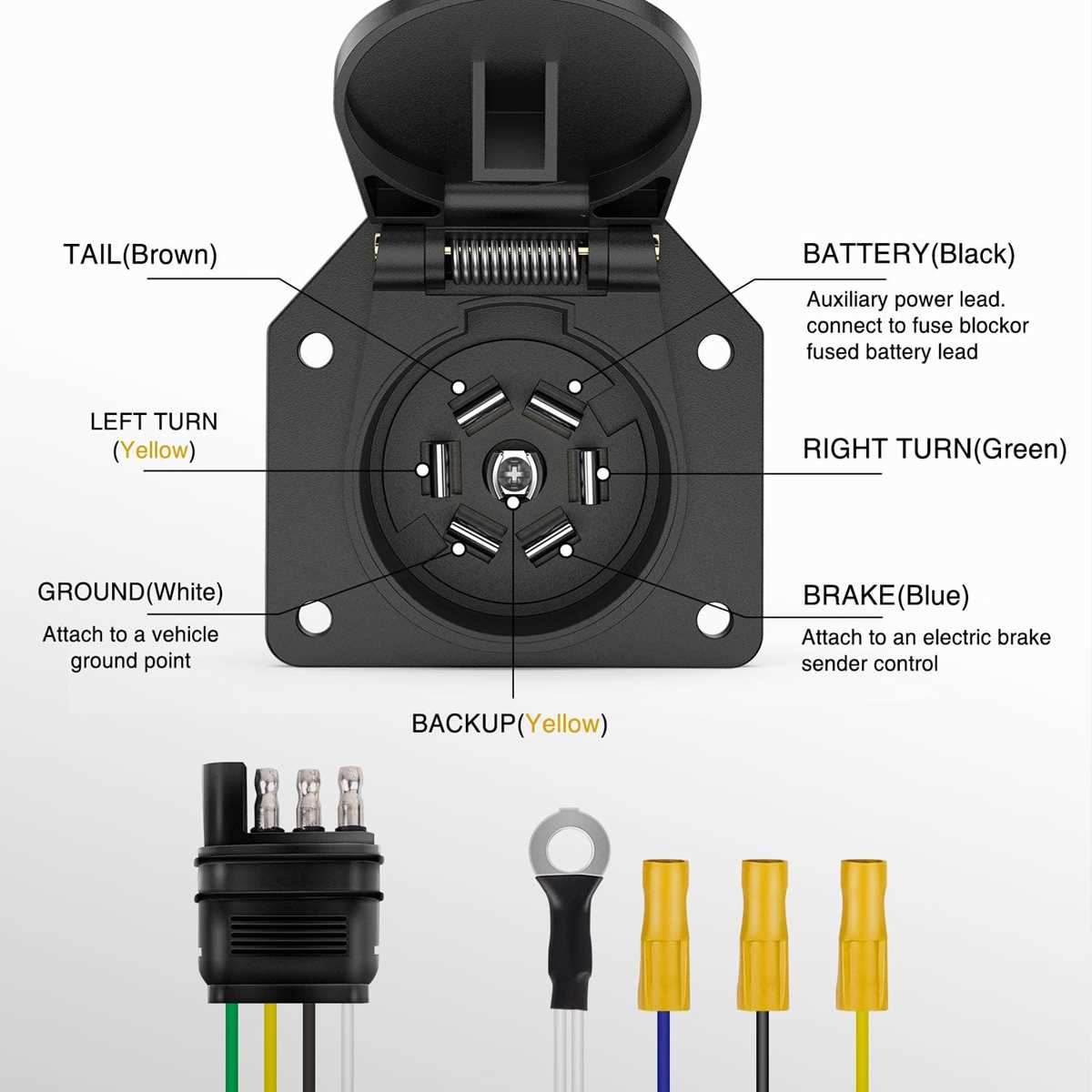

Start by stripping ¼ inch of insulation from each wire on the harness using precision strippers–avoid nicking copper strands, as this weakens conductivity. Match the color-coded conductors to their designated terminals: yellow for left turn/brake, green for right, brown for running lamps, white for ground, blue for auxiliary power, black for battery charge, and red for reverse lights if equipped. Verify compatibility with the tow vehicle’s lighting system by checking voltage at the socket with a multimeter before splicing.

Secure all connections with crimp connectors rated for 20-amp circuits–soldering is optional but provides corrosion resistance in wet climates. Use heat-shrink tubing to seal splices, applying 15–20 seconds of heat per sleeve until a tight seal forms. Route excess wiring through a convoluted loom to prevent chafing against sharp edges, especially near the hitch assembly where vibration is highest.

Grounding Requirements

Attach the white conductor directly to the chassis using a self-tapping screw–avoid painting over the contact point, as this reduces conductivity. For vehicles with aluminum frames, use a grounding strap linked to a zinc-plated surface to prevent galvanic corrosion. Test continuity by touching one multimeter probe to the ground terminal and the other to a bare chassis spot within 12 inches of the attachment point; acceptable resistance is under 0.5 ohms.

Affix the harness to the undercarriage using zip ties spaced every 6–8 inches, ensuring no slack sags below the lowest point of the tow package. For rear-mounted couplers, drill a ½-inch hole (if absent) sealed with a rubber grommet to protect ingress–PVC tape wrapped around the entry point prevents wire abrasion. Label each connection with a permanent marker during final assembly to simplify future diagnostics.

Functional Testing Protocol

Activate each circuit sequentially–turn signals should pulse at 60–120 flashes per minute, brake lights must illuminate brightly without dimming when combined with running lamps, and auxiliary functions (e.g., electric brakes) require direct battery voltage with under 0.3-volt drop. If reverse lamps flicker, check for a weak ground or excessive resistance in the red conductor; re-strip and re-crimp suspect joints.

Reinstall the junction cover, ensuring the rubber O-ring is seated properly to keep moisture out–condensation causes intermittent failures. Coat exposed terminals with dielectric grease to inhibit oxidation, especially in coastal regions. Store any unused adaptors (e.g., for campers or cargo carriers) in a sealed container with silica gel packets to prevent terminal corrosion during off-season storage.

Perform a final road test under load–simulate towing conditions by engaging both turn signals simultaneously while towing a dynamic load; voltages at the connection should remain stable. Document all results, including voltage drop measurements, for warranty claims or troubleshooting later.

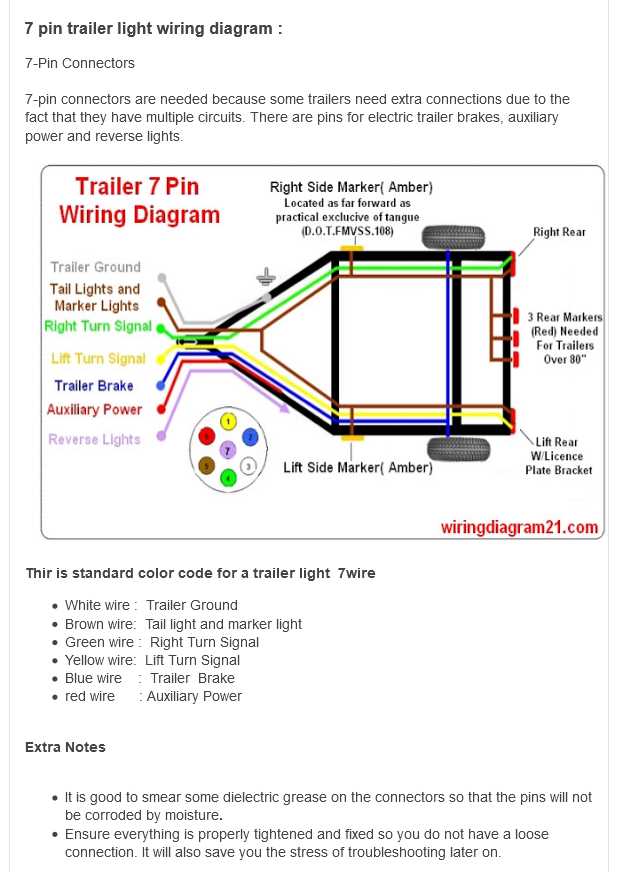

Decoding Connector Pin Colors and Their Roles in Vehicle Towing Harnesses

Begin by locating the brown cable on the vehicle-side harness–this is the marker for tail lamps, running lights, and side markers. Confirm its function by activating the headlights; all exterior low-intensity lights on the towed unit should illuminate simultaneously. If any remain dark, inspect for breaks or corrosion at splice points before proceeding.

White is always the ground reference, connected directly to the chassis via a dedicated stud. Use a multimeter to verify continuity between this lead and bare metal–resistance should read near zero ohms. High readings indicate a faulty connection or oxidized terminals requiring immediate cleaning or replacement.

Critical Circuit Verification

The green and yellow leads control right and left turn signals respectively. Test each by engaging the corresponding stalk on the dash–confirm the LEDs flash at a consistent rate. Mismatched timing often points to a bulb failure or poor ground, while complete silence suggests an open in the circuit.

Blue designates the electric brake controller output. With a compatible brake unit installed, this line should deliver 12V pulsed voltage during activation. Measure with a test light or voltmeter while pressing the manual override; absence of power indicates a faulty relay or blown fuse.

Auxiliary Feed and Reverse Lamps

Black typically carries a 12V auxiliary power supply for accessories like winches or interior lights. Ensure this circuit is fused within 18 inches of the battery to prevent fire hazards. Voltage should match the battery’s output when tested under load.

Purple is reserved for reverse lamps on heavier rigs. Verify its function by shifting into reverse; the backup lights must activate. This circuit often shares a ground with the white lead, so corrosion here can simultaneously disable both systems.

Trace each colored conductor back to its origin at the fuse block, marking junctions with heat-shrink labels to prevent future misidentification. Use crimp connectors rated for 10 AWG or larger–solder alone degrades under vibration. Always apply dielectric grease to terminals before final assembly for long-term corrosion resistance.
