Complete Guide to Forest River RV Cable TV Wiring Setup and Troubleshooting

Begin by locating the main distribution panel near the vehicle’s entry or utility center–most models integrate coaxial inputs here. Trace the primary feed line from the external hookup point to this panel, ensuring no sharp bends or kinks restrict signal flow. Condensation or moisture buildup in connectors disrupts reception, so apply dielectric grease to threaded fittings during installation.

Splitters should handle at least 1 GHz bandwidth to accommodate all channel tiers without degradation. Avoid daisy-chaining more than two splitters; excess connections introduce impedance mismatches, weakening the output. Label each branch circuit at the splitter using color-coded tape–blue for bedroom outlets, red for living area modules–to simplify troubleshooting.

For HD streaming, run RG-6 quad-shield cable with solid copper core conductor; aluminum variants lose signal strength over distances exceeding 50 feet. Secure runs along structural framing with nylon straps spaced every 18 inches to prevent sagging and vibration damage during transit. When routing behind cabinetry, maintain a 1-inch clearance from 120V electrical lines to prevent interference.

Grounding is non-negotiable–attach the grounding block to the chassis using a stainless-steel braid strap, not wire. Test continuity with a multimeter after installation; resistance should not exceed 2 ohms. For satellite readiness, install an additional dedicated line terminating at the roof mount–do not share this feed with terrestrial inputs.

Terminate connections using compression fittings, not crimp-on or twist types. Stripped conductors should extend exactly 1/4 inch beyond the connector collar to ensure proper captive engagement. After securing, wrap each termination with self-amalgamating tape to seal against corrosion.

Signal amplifiers require regulated power–use a dedicated 12V outlet sourced from the coach’s power distribution block, not a shared lighting circuit. Position the amp within 10 feet of the first splitter to minimize noise ingress. Include a lightning arrestor upstream of the external feed if parking in open areas during storms.

Connecting Entertainment Systems in Mobile Lodging Units

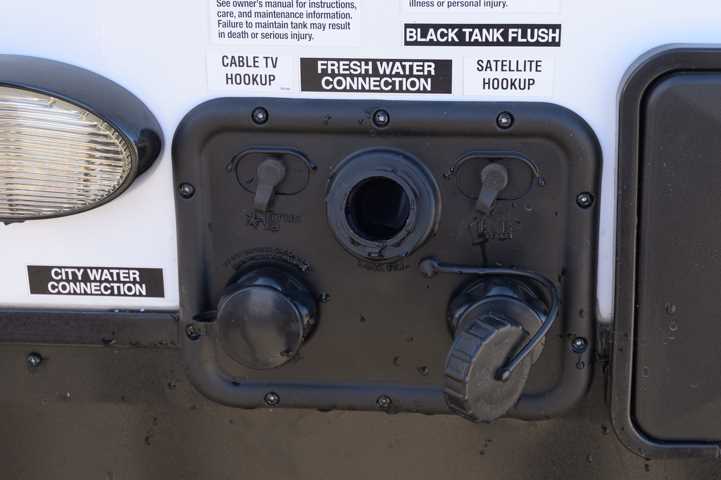

Begin by locating the external coaxial port–typically positioned near the utility hookup panel on the side of your vehicle. This port is often labeled “TV” or marked with an antenna symbol. Use a high-quality RG-6 coaxial cable with compression fittings to ensure minimal signal loss, particularly for long runs or weak broadcast areas. Avoid splicing cables unless absolutely necessary; instead, opt for pre-terminated cables to maintain integrity.

Inside the unit, trace the pathway from the exterior port to the primary distribution point, usually a splitter or amplifier mounted near the entertainment console. If signals weaken across multiple screens, consider installing a powered distribution amplifier (e.g., Winegard MS-2002 or Channel Master CM-7777). Position it as close to the splitter as possible, ensuring the power inserter connects to a 12V DC source or a dedicated outlet from the converter.

Key Connection Points and Troubleshooting

• Exterior Port to Interior Splitter: Measure the cable run before cutting–excess length increases resistance. Secure cables with plastic clamps every 18-24 inches to prevent sagging or pinching in moving structures.
• Splitter Selection: For 2-3 screens, use a 4-way splitter with a -3.5dB rating per output. For larger setups, opt for an 8-way unit (-7dB per output) but pair it with an amplifier to compensate for signal division.
• Grounding: Attach the splitter’s grounding lug to the vehicle’s chassis using a 10-gauge bare copper wire. This prevents interference from nearby electronics and reduces static during travel.

For satellite feeds, route the dish’s RG-11 cable separately from broadcast coaxial lines. Use a dual-input multiswitch (e.g., DIRECTV SWM 13) to combine satellite and OTA signals without degradation. Label all cables at both ends–color-coding helps during future adjustments. If installing a motorized dish, ensure the cable run avoids sharp bends (minimum 10-inch radius) to prevent signal reflection.

1. Test each connection with a signal meter before finalizing mounts. Weak spots often occur at crimps or poorly tightened F-connectors–recheck these first.
2. Seal exterior connections with silicone-filled coaxial caps to prevent moisture ingress, which degrades performance over time.
3. For HDMI distribution to multiple screens, use a powered HDMI splitter (e.g., Orei HDA-935) to avoid distance limitations. Route these cables perpendicular to power lines to minimize interference.

Choosing the Correct Coaxial Lines for Your Mobile Vehicle Entertainment System

Start with RG-6 quad-shielded coaxial lines for outdoor connections in recreational vehicles. Their 75-ohm impedance maintains signal integrity over extended runs, resisting interference from power lines, generators, or adjacent electronics. Quad shielding–comprising two foil layers and two braided layers–blocks up to 95% of signal leakage, critical when parked near crowded campgrounds or urban areas. Avoid RG-59; its thinner center conductor increases signal loss by 20% per 100 feet at 1 GHz frequencies, rendering it unsuitable for HDTV or satellite feeds.

For indoor setups, use RG-6 with a solid copper center conductor. Copper-clad steel cores, common in budget options, degrade performance by 15% over 50 feet due to higher resistance. Solid copper ensures consistent signal strength across 4K streams and higher frequency bands (e.g., 18–24 GHz for Ka-band satellites). Verify the jacket type: CMX-rated cables resist UV degradation and moisture, lasting 10+ years outdoors, while CM-rated variants may crack within 2–3 years under direct sunlight or temperature fluctuations.

Connectors demand equal attention. Compression fittings outperform crimp or twist-on types, reducing signal loss by 3 dB at 3 GHz. Use gold-plated F-type connectors to prevent corrosion–nickel-plated alternatives oxidize, increasing resistance by 0.5 ohms annually. For satellite dishes, opt for weatherproof “hardline” connectors with rubber O-rings; standard F-connectors allow moisture ingress, corroding the interface within months. Tools required: a ratcheting compression tool (e.g., Ideal 30-799) and a coaxial stripper with depth guides to avoid damaging the dielectric insulator.

• RG-11: Thicker core (0.047″ vs. RG-6’s 0.027″) reduces signal loss by 30% over 300 feet, ideal for extended runs from rooftop antennas to interior decoders. Drawback: inflexible, requiring a 6″ bend radius–plan routing around sharp corners.
• Triaxial: Used in military-grade systems, adds an extra shield for signal-to-noise ratios below -80 dB. Overkill for consumer setups but useful for amplifying weak signals in remote locations.
• Low-loss cables (e.g., Times Microwave LMR-400): Optimized for 50-ohm systems (Wi-Fi, cellular boosters), not 75-ohm TV systems. Using them causes impedance mismatches, reflecting up to 10% of the signal.

Prioritize cable length precision. Each additional 10 feet of RG-6 introduces 1.2–1.5 dB of loss at 1 GHz; pre-cut lengths eliminate splices, which double attenuation at connection points. For temporary setups, use snap-and-seal twist connections with dielectric grease to prevent water intrusion, but replace with permanent compression fittings for long-term use. Measure twice: excess length coiled behind TVs creates inductive loops, distorting digital signals into “ghosting” artifacts.

Avoid “flexible” or “highly flexible” cables advertised for tight spaces. Their tightly wrapped braid and thinner dielectric increase attenuation by 40% compared to standard RG-6. For hidden runs (e.g., under floorboards), use rigid RG-6 in protective conduit–Schedule 40 PVC suffices unless burying, where Schedule 80 prevents crushing. Test each segment with a signal meter (e.g., Bird 43) before finalizing routes; aim for

Step-by-Step Guide to Setting Up TV Signal in Your Mobile Home

Locate the exterior coaxial port on your recreational vehicle–typically positioned near the utility hookups. If it’s absent, check the sidewall compartment labeled “Entertainment” or “Satellite Prep.” Use a 75-ohm RG-6 cable with compression fittings to prevent signal loss, as cheaper alternatives degrade over time due to UV exposure and vibration.

Identify the campground’s service pedestal. Before connecting, inspect the outlet for corrosion or damage. If the port is weathered, clean it with contact cleaner and a wire brush. Pedestals marked “CATV” provide 30–60 channels, while unmarked ones may deliver fewer–verify with the park office. Connect your cable directly to the pedestal without adapters unless absolutely necessary, as each connection point introduces ~3 dB of attenuation.

Route the cable through the undercarriage or sidewall conduit to the interior distribution panel. Avoid sharp bends–maintain a 10x cable diameter minimum bend radius to preserve signal integrity. Secure the cable every 18 inches with nylon zip ties to prevent wear from road vibration. If threading through existing conduits, use a fish tape to avoid kinking.

Interior Hookup Procedure

Access your mobile home’s signal splitter–usually mounted behind an access panel in the main living area. Most units include a 2- or 4-way splitter pre-installed. Replace the factory splitter if it lacks a “power-pass” feature for future satellite upgrades. Label each output with dry-erase marker (e.g., “Living Room,” “Bedroom”) to streamline troubleshooting.

Component	Recommended Specifications	Common Pitfalls
RG-6 Cable	Quad-shield, solid copper core, 75-ohm impedance	Using RG-59 (higher loss), aluminum core (corrodes faster)
Splitter	2-4 way, power-pass, 5–1000 MHz range	Cheap splitters with poor shielding (causes pixelation)
F-Connectors	Compression-type, nickel-plated	Twist-on connectors (loosen over time), bare copper (oxidizes)

Connect the input side of the splitter to the exterior cable using an F-connector. Tighten it with a torque wrench to 20–25 in-lbs–over-tightening risks damaging the connector’s dielectric, while under-tightening causes intermittent signal loss. Run separate cables to each television, keeping lengths balanced (

Final Checks and Optimization

Power on your television and run auto-programming to scan available channels. If signal strength reads below 60% (check in the TV’s settings menu), perform these steps:

• Ensure no knots or tight bends exist in the cable run–even a 90-degree bend cuts signal by ~1.5 dB.
• Swap cables with known-good ones if interference persists (horizontal lines or freezing).
• Test the pedestal outlet with a signal meter–campgrounds often provision lower bandwidth for transient users.

For weak signals, install an inline amplifier (

Seal all exterior connections with rubber boots or butyl tape to prevent moisture ingress–water in connectors causes ghosting and erratic signal drops within weeks. Label cables permanently with engraved tags, as ink fades in sunlight. Store spare connectors and tools in a labeled tackle box mounted in the storage compartment for quick repairs during travel.
