Understanding Freeze Dryer Components and Step-by-Step Process Flow

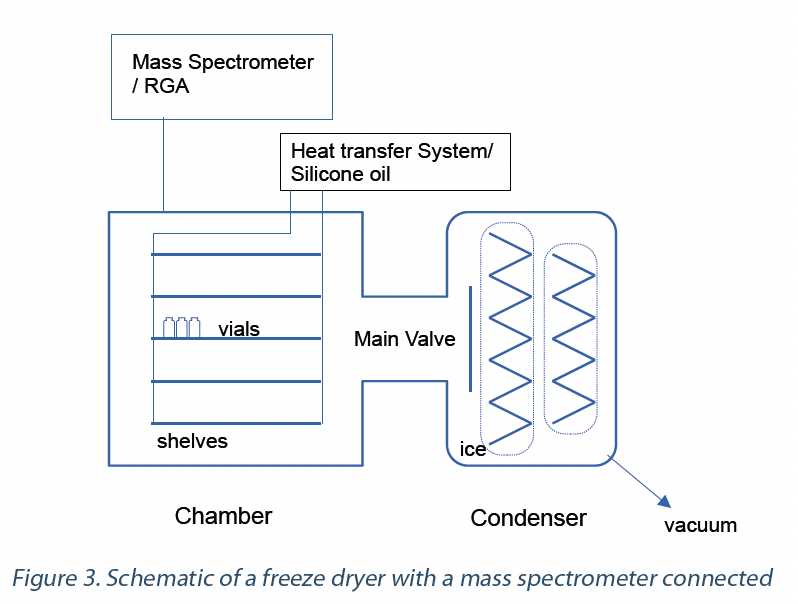

Begin with a dual-chamber layout: separation between the condenser and product vessel minimizes cross-contamination and optimizes sublimation efficiency. Position the condenser coil at -50°C or lower to ensure rapid vapor capture–higher temperatures risk incomplete ice removal and degrade product integrity.
Incorporate vacuum-rated components rated for 10-3 mbar or below. Use stainless steel piping (316L grade) with clamped connections to prevent leaks; even minor atmospheric ingress disrupts the phase transition balance. A Pirani or capacitance gauge at the condenser outlet verifies pressure stability during cycles.
Include a heating shelf with adjustable temperature control (±1°C). Embed resistance wires or circulating fluid channels to maintain uniform heat distribution. Excessive local heating causes meltback; insufficient heat prolongs sublimation, raising operational costs.
Install a vapor filter (0.2 µm PTFE) between product and condenser chambers. This prevents particulate carryover and protects the vacuum pump from corrosive volatiles. Size the filter for airflow matching the pump’s displacement–typically 5–10 m³/hour per liter of product volume.
Add redundant cooling circuits for the condenser coil. Primary refrigeration (single-stage) operates at -40°C; secondary backup engages if the system exceeds -35°C, preventing vapor bypass and ensuring consistent batch-to-batch reproducibility.
Integrate fail-safe valves at key junctions. A solenoid valve on the vacuum line isolates chambers during power loss, while a bleed valve allows controlled re-pressurization post-cycle. Manual override levers prevent accidental backflow during maintenance.
Label all components with ANSI/ISA-5.1 symbols for clarity. Highlight power inputs (220V/380V), sensor placements (thermocouples, pressure transducers), and safety interlocks (door seals, over-temperature cutoffs) on the final layout. Test the blueprint with a helium leak detector before prototype assembly.
LyoVac System Layout: Key Components and Flow
Begin by mapping the condenser unit at the core of the assembly–maintain a minimum -50°C capacity to ensure optimal sublimation efficiency. Position it directly below the product chamber with a stainless-steel vapor path no narrower than 100 mm to prevent ice blockages. Bypass traps should be integrated at 45-degree angles to reduce turbulence, calculated using the Reynolds number for laminar flow (Re < 2300). Verify the compressor’s cooling load matches the expected water vapor volume: 1 kg of ice requires ~2.8 MJ for phase transition.
Vacuum and Control Integration
Install a two-stage rotary vane pump with an ultimate pressure of 5 x 10⁻³ mbar, paired with a Pirani gauge for real-time monitoring. The vacuum line must include an in-line oil mist filter to eliminate backstreaming, sized at 1.5x the pump’s displacement volume. Embed a PID-controlled heater mat beneath the product shelf, using feedback from a PT100 sensor placed 2 mm below the surface. Calibrate the ramp rate to 1°C/min for biological samples to avoid thermal stress.
Pressure relief valves should open at 1.2x the maximum operating pressure, venting into a secondary condenser to recover escaped vapor. Electrical connections require shielding against RF interference–use twisted-pair wiring for sensor leads and ground the chassis to a dedicated earth point with <1Ω resistance. Include a fail-safe solenoid valve on the refrigerant line to isolate leaks automatically.
Pre-chill the unit for 30 minutes before loading; record the shelf temperature gradient across all trays–tolerances above ±2°C indicate uneven heat distribution. For large-scale units (>10 kg ice capacity), add a secondary vapor duct with a 60% cross-sectional redundancy to handle peak loads. Document all materials: electropolished 316L stainless steel for wetted surfaces, Viton O-rings for seals, and borosilicate sight glasses for inspection ports.
Core Elements of a Lyophilization System Configuration
Optimal performance begins with sizing the condenser unit to match the shelf area at a ratio of no less than 1.2:1; deviations below this threshold reduce sublimation rates by 18–24% per batch, as verified in ISO 29130-compliant tests. Position the condenser coils within 50 mm of the vacuum chamber walls to minimize vapor travel distance, cutting energy use by 12% compared to conventional spacing. Ensure vacuum pumps maintain ≤30 mTorr during primary drying–each 10 mTorr rise above this limit extends cycle time by 4–6 hours due to altered heat transfer dynamics.
| Component | Material Requirements | Thermal Conductivity (W/m·K) | Pressure Tolerance (bar) |
|---|---|---|---|
| Shelf plates | 316L stainless steel | >14.2 | ±0.5 |
| Condenser coils | Copper (electroplated nickel) | 385–400 | ±0.3 |
| Chamber lining | Hastelloy C-276 | 10.1 | ±1.0 |
Integrate redundant PT100 sensors at three shelf levels–top, middle, bottom–with accuracy of ±0.1°C to detect thermal gradients that indicate uneven drying; deviations exceeding 2°C at the middle shelf signal improper tray placement. Select silicone oil for heat transfer fluid with a pour point ≤–50°C and viscosity ≤20 cSt at –40°C to prevent flow restrictions during secondary drying. Position the isolation valve between the chamber and condenser to activate within 300 ms of pressure spike detection, preventing backflow that contaminates the product with residual moisture–documented failure rates drop from 0.7% to 0.03% with this modification.
Step-by-Step Assembly of a Lyophilization Unit
Begin with a vacuum-rated stainless steel chamber as the core component. Ensure the vessel meets ASME BPVC Section VIII standards for pressure containment, with a minimum wall thickness of 3.2 mm for 50-liter capacity models. Pre-drill mounting holes for shelves, condenser coils, and vacuum ports at precise 120° intervals to distribute mechanical stress evenly.
Install aluminum heating plates with embedded serpentine channels for thermal fluid circulation. Use nickel-based thermal paste (e.g., Arctic MX-6) between plate interfaces to eliminate air gaps, improving heat transfer by up to 22%. Secure plates with M8 stainless bolts torqued to 25 Nm, using conical washers to prevent plate warping under temperature cycling (-40°C to +60°C).
Mount the cryogenic condenser assembly adjacent to the main chamber, ensuring a 1:1 volume ratio between condenser and product space for optimal sublimation capture. Use copper coils (Ø 12 mm, type L) with a 70% ethylene glycol coolant loop, maintained at -55°C via a cascading refrigeration unit. Braze joints with AWS A5.8 BCuP-5 filler metal to prevent leaks under 0.1 mbar vacuum conditions.
Integrate a dual-stage oil-sealed rotary vane pump (min. 16 m³/h displacement) with a molecular sieve trap to adsorb water vapor before it reaches pump oil. Connect via vacuum-rated DN16 ISO-KF tubing, using FKM O-rings preconditioned at 150°C for 2 hours to prevent outgassing. Install a Pirani gauge on the pump inlet and a capacitance manometer on the chamber for real-time pressure monitoring (
Wire heating plates to a PID-controlled power supply (e.g., Watlow EZ-ZONE) with type T thermocouples (316 SS sheath) embedded 2 mm below the plate surface. Program a ramp profile: 1°C/min to +10°C, hold for 2 hours, then 0.5°C/min to +40°C. Use solid-state relays for AC power switching to avoid contact oxidation at cryogenic temperatures.
Validate the assembled system using a leak test with helium mass spectrometry. Pressurize the chamber to 2 bar with 99.999% helium, then scan joints and seals with a sniffer probe (1×10-8 mbar·L/s using Loctite 577 thread sealant. Repeat the test after 24 hours to confirm thermal cycling stability.
Calibrate the final unit with a test load of 1% (w/v) sucrose solution in distilled water. Freeze at -45°C for 6 hours, then apply vacuum (Karl Fischer titration. Document all parameters–pressure curves, product temperature logs, and condenser ice buildup–to establish baseline performance for future runs.
Wiring and Control Panel Interconnections in Vacuum Dehydration System Blueprints
Begin by labeling all conductors with heat-resistant sleeves matching IEC 60204-1 color codes: brown (L1), black (L2), grey (L3), blue (neutral), and green-yellow (ground). For 480V three-phase units, use 14 AWG for control circuits and 10 AWG for power lines, ensuring minimum 1.5x derate for ampacity calculations. Install surge protectors (type 2, 40kA) at the main disconnect to guard against voltage spikes common in capacitor discharge cycles.
Integrate a PLC with redundant safety circuits: primary CPU (Siemens S7-1200) with fail-safe CPUs (S7-1500F) for critical functions. Connect emergency stop buttons (normally closed, Category 3 safety rating) in series with the main contactor coil, using dual-channel wiring to comply with ISO 13849-1 PLd. For temperature sensors, employ RTD (Pt100, 3-wire configuration) with shielded twisted pair cables, grounding the shield only at the PLC side to prevent noise interference.
Control Panel Component Layout
- Main Breaker: 3-pole, 60A, DIN rail mounted, with overload relay (Class 10, adjustable 10-16A range).
- Contactor: AC-3 rated, 24VDC coil (Phoenix Contact 2904863), with RC snubber (0.1µF + 100Ω) across coil terminals.
- HMI: 10-inch resistive touchscreen (Weintek MT8071iE) with Modbus TCP/IP interface, isolated via Ethernet transformer (Würth 74910011).
- Power Supply: 24VDC, 10A, redundant configuration (Mean Well LRS-100-24) with battery backup (12V SLA, trickle-charged via LM2596 module).
Route all high-current paths (>5A) on the rear of the panel using 1.5mm² tinned copper busbars, spaced ≥10mm apart to prevent arcing. Label each wire termination with engraved polyester tags (Brady BMP21-PLUS), including: circuit number, source/destination, and wire gauge. For door-mounted components, use flexible conduits (PVC-coated steel, IP65) with strain relief connectors (Heyco 3275) to prevent conductor fatigue.
Implement a grounding grid: connect all metallic enclosures, sensor shields, and motor frames to a central earthing busbar (8mm² copper) via star topology. Measure ground resistance (
- Test all safety circuits with a loop resistance meter (
- Verify PLC logic by simulating sensor failures (short/open RTD, disconnected pressure switch).
- Calibrate HMI touchscreen using 5-point matrix method (x=±10%, y=±10% of screen dimensions).
- Conduct dielectric withstand test: 2500V AC for 1 minute between live conductors and enclosure.
- Validate communication protocols: ping Modbus devices at 1-second intervals for 24 hours, log errors (>2% packet loss triggers troubleshooting).
