Build a Precision Frequency Counter Circuit Step-by-Step Guide
Build a pulse rate measurement setup using a dual decade counter IC (CD4026) paired with a microcontroller for accuracy. The core components should include a crystal oscillator (4 MHz) for stable timing, a Schmitt trigger gate (74HC14) to clean noisy inputs, and a prescaler (CD4017) to divide high-rate signals down to measurable levels. Wire the input signal through a 10 nF coupling capacitor to block DC offset, then feed it into the first CD4026’s clock pin. Connect the carry-out of each stage to the clock-in of the next to cascade counts.
For signals above 1 MHz, add a divide-by-10 stage (74LS90) before the counters to avoid overflow. Use a 16×2 LCD module (HD44780) to display readings, interfacing via 4-bit mode to save pins. Power the circuit with a regulated 5V supply; decouple each IC with 0.1 µF ceramic capacitors near the VCC pins to prevent glitches. Test with a function generator sweeping from 1 Hz to 10 MHz to verify linearity.
To reduce parasitic capacitance, keep traces under 5 cm between the input buffer and first counter. For pulsed signals, add a monostable multivibrator (74LS123) to stretch narrow pulses to ≥200 ns for reliable counting. Calibrate using a frequency standard (e.g., GPS-disciplined oscillator); adjust the software loop delay if the microcontroller polls the final carry-out pin. Shield the input section with a grounded copper pour to block EMI from nearby switching circuits.
Log readings to an SD card via SPI for long-term analysis, using a real-time clock (DS3231) to timestamp each sample. For low-power applications, replace the 4 MHz crystal with a 32.768 kHz watch crystal and redesign the prescaler chain. Always validate the schematic in SPICE before breadboarding–simulate with a 1 Vpp sine wave at 1 kHz to confirm the counter increments match expected values.
Building a Precise Signal Measurement Tool
Select an accurate time-base oscillator as the foundation for your measurement setup. A 10 MHz crystal oscillator with ±10 ppm stability ensures reliable reference pulses for counting intervals. Pair it with a low-noise splitter to distribute the signal without introducing jitter, critical for high-precision readings.
Use a high-speed decade divider IC like the 74HC4017 to segment incoming pulses into manageable ranges. Its 10-stage Johnson counter design handles signals up to 100 MHz with minimal propagation delay, preventing missed counts during rapid transitions. Decouple power pins with 0.1 µF ceramic capacitors to suppress voltage spikes.
Avoid parasitic capacitance by keeping trace lengths under 15 mm between the comparator and logic ICs. Even a 2 pF stray capacitance can shift rise times at 50 MHz, distorting results. For signals above 20 MHz, employ differential pairs with controlled impedance (50 Ω) to maintain signal integrity.
Integrate a Schmitt-trigger input stage–such as the 74LVC1G14–to clean noisy waveforms before counting. Its hysteresis (typically 0.5 V) filters out ringing from inductive loads or poor grounding, ensuring only valid transitions trigger the logic gates. Adjust the threshold voltage via a trimpot if working with non-standard amplitude signals.
For multiplexed displays, use a 4-digit LED driver like the MAX7219. Its serial interface reduces wiring complexity while supporting refresh rates up to 800 Hz. Each segment current (3–40 mA) can be tuned to balance brightness against power consumption, especially in battery-operated devices.
Ground shielded cables at a single point near the measurement front end to prevent ground loops. Twist signal wires around their return paths at a ratio of 1 turn per 2 cm for frequencies above 1 MHz, reducing electromagnetic interference by up to 20 dB. Test with a spectrum analyzer to verify noise suppression before final assembly.
Calibrate the system using a known reference source, such as a signal generator with ±1 Hz accuracy at 10 MHz. Compare readings across temperature ranges–thermal drift in the oscillator can introduce errors up to 0.2% per 10°C change. Store calibration constants in EEPROM for automatic compensation during operation.
Selecting the Optimal Microcontroller for Precision Signal Measurement
The ATmega328P remains the most cost-effective choice for 8-bit applications, handling input pulses up to 8 MHz reliably when clocked at 16 MHz. Its built-in 16-bit timer/counter modules eliminate external components for basic setups, while SPI and I2C support streamline display and EEPROM integration.
For 16-bit precision, the PIC24FJ64GA002 delivers consistent sampling at 40 MHz with its dedicated input capture peripherals. Key advantages include:
- Low-power 3.3V operation suitable for portable devices
- Two independent capture channels for simultaneous signal analysis
- 48 KB flash for firmware expansion without external memory
STM32F103C8T6 outperforms alternatives in real-time signal processing, offering:
- 72 MHz core for sub-microsecond pulse resolution
- Nine 16-bit timers scalable to 32-bit modes via software
- Native USB 2.0 connectivity for data logging without additional ICs
When evaluating power consumption, consider the MSP430G2553–drawing just 220 µA/MHz in active mode. Its 16-bit sigma-delta ADC enables direct measurement of analog waveforms while maintaining accuracy within 0.1% at 1 kHz to 10 kHz ranges. The integrated comparator eliminates external triggers for zero-crossing detection.
ESP32-S3 distinguishes itself with dual-core processing and Wi-Fi/Bluetooth LE integration. Critical specifications include:
- 240 MHz clock for complex waveform analysis
- RMII interface for direct Ethernet connectivity
- 448 KB ROM and 520 KB SRAM for advanced algorithms
- Hardware encryption for secure remote data transmission
For high-voltage applications (up to 60V), the dsPIC33CK256MP505 provides 1.1 ns resolution with its 150 MHz PWM module. The device includes:
- Six independent capture inputs with 1 ns edge detection
- Dedicated DSP engine for FFT calculations
- Integrated Op-Amp for signal conditioning without external ICs
Budget-constrained projects benefit from the RP2040’s dual Cortex-M0+ cores at 133 MHz. Unique features:
- 6 dedicated state machines for programmable I/O operations
- 264 KB on-chip RAM supporting large ring buffers
- USB-C connectivity with UF2 bootloader for simplified updates
For extreme environments, the ATSAMV71Q21 delivers -40°C to 125°C operation while sampling at 150 Msps via its 12-bit ADC. Additional capabilities:
- Ethernet AVB support for synchronized networking
- Hardware CRC for data integrity verification
- 2 MB flash for extensive waveform storage
Step-by-Step Assembly of a Basic Signal Meter on a Prototyping Board

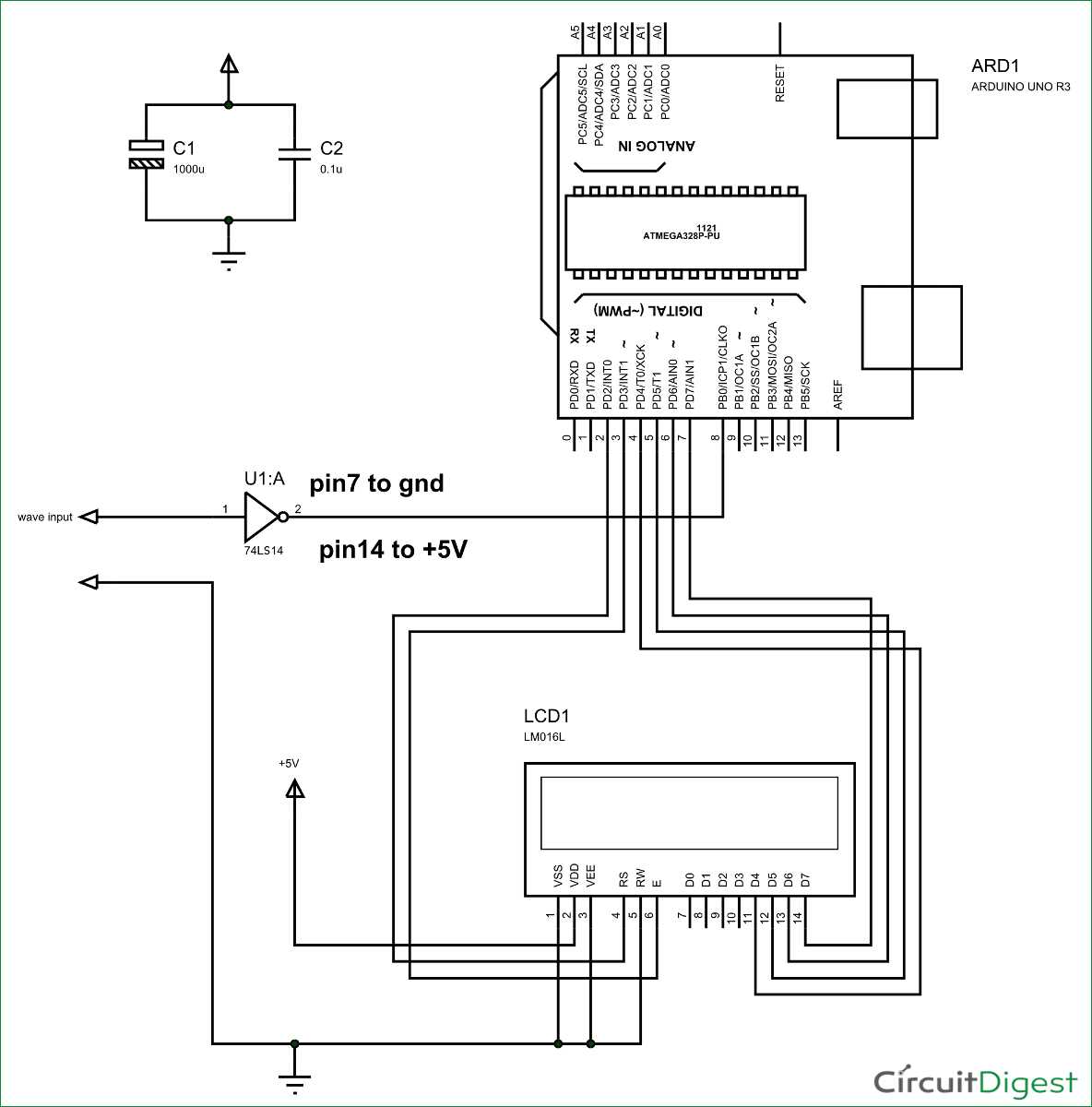

Select a microcontroller with at least one timer/counter module. The ATmega328P (Arduino Uno’s heart) works well for signals up to 8 MHz. Verify its clock speed matches expected input ranges–16 MHz handles most low-voltage pulses accurately, but higher speeds may require prescalers.
Gather components: a 16×2 LCD (HD44780-compatible), 10 kΩ potentiometer, 220 Ω resistor, 1 μF capacitor, jumper wires, and a breadboard. Arrange them in a U-shape–microcontroller (MCU) centered, display left, input connector right–to minimize interference from high-speed traces.
Wire the display first. Connect RS to MCU pin 12, EN to 11, D4-D7 to 5-2. The potentiometer adjusts contrast–attach its middle pin to Vo (display pin 3) and outer pins to Vcc and GND. Skip backlight resistors unless dimming is critical; most 5V systems drive it directly.
| MCU Pin | Display Pin | Function |
|---|---|---|
| 12 | 4 (RS) | Register Select |
| 11 | 6 (EN) | Enable |
| 5 | 11 (D4) | Data Bit 4 |
| 4 | 12 (D5) | Data Bit 5 |
| 3 | 13 (D6) | Data Bit 6 |
| 2 | 14 (D7) | Data Bit 7 |
Route the input signal through a 220 Ω resistor to MCU pin 8 (T1, Timer1 input). This protects against voltage spikes. For signals >5V, add a voltage divider–use two resistors (e.g., 10 kΩ and 4.7 kΩ) to scale inputs to 0-5V. Connect the capacitor between the input pin and GND to filter noise.
Upload code configuring Timer1 in normal mode with no prescaler. For Arduino IDE, use:
void setup() {
TCCR1B = 0x06; // External clock source, rising edge
lcd.begin(16, 2);
}
void loop() {
unsigned long pulses = TCNT1;
TCNT1 = 0;
lcd.setCursor(0, 0);
lcd.print("Pulses: ");
lcd.print(pulses);
delay(1000);
}This counts pulses per second. For kilohertz ranges, reduce the delay to 10 ms and multiply results by 100.
Test with a function generator. Set it to 1 kHz, 5V square wave. The display should show ~1000 ±1%. If readings drift, check ground loops–tie MCU ground to the generator’s ground. For accuracy
For signals below 100 Hz, switch to timer overflow interrupts. Modify the code to increment a counter on each timer overflow, then calculate the rate by dividing the interrupt count by the elapsed time (divide by 2 if using both edges). Example:
ISR(TIMER1_OVF_vect) {
overflowCount++;
}
void loop() {
float rate = (overflowCount * 65536 + TCNT1) / millis();
// Display rate
}This improves resolution for slow pulses without sacrificing speed for fast ones.
Expand functionality by adding a 7-segment display for standalone use. Use a MAX7219 driver–daisy-chain four digits, connect CLK/DIN to MCU SPI pins (SCK=13, MOSI=11), and update the code to push serial data. For dual-range capability, add a switch to toggle between Timer1 and Timer2 inputs, or modify prescalers dynamically based on measured rates.
