Building a Frequency Mixer Circuit Step-by-Step Schematic Guide

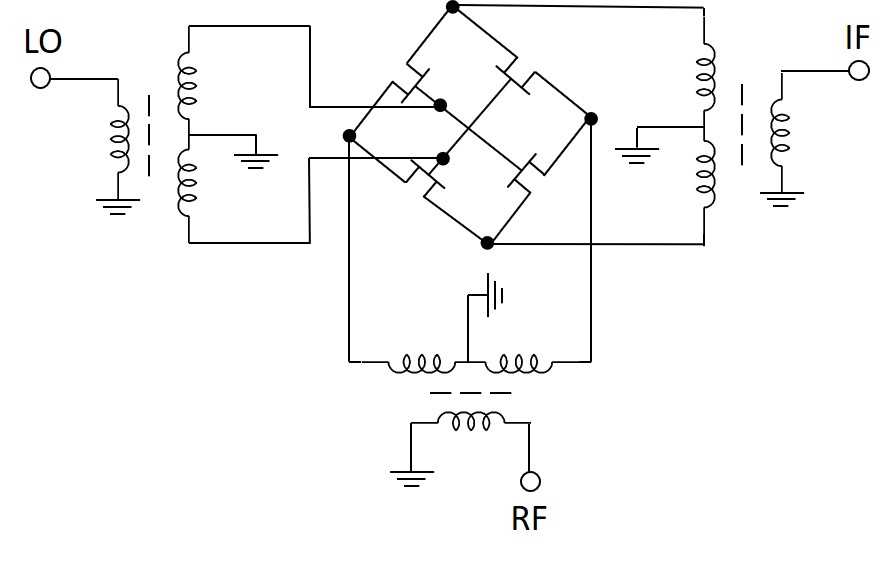

Start with a double-balanced configuration for minimal output distortion. Use four matched diodes (1N4148 or Schottky variants like BAT54) arranged in a ring to suppress unwanted components. Ground isolation between input and output ports must exceed 40 dB to prevent feedback loops–employ ferrite beads on signal lines if crosstalk persists.

Bias the diodes at 0.7–1.2 mA per device using a current source. A resistor network (e.g., 2.2 kΩ to 4.7 kΩ) paired with a Zener diode (5.1 V) stabilizes operating conditions across temperature swings. For LO drive levels, target 7–10 dBm; insufficient power degrades conversion loss (aim for <8 dB at 10 MHz).

Filter the IF output with a π-section network: inductors (e.g., 10 µH) and capacitors (e.g., 100 pF) tuned to the desired band. Avoid ceramic capacitors in high-IF paths–parasitic effects distort phase linearity. For wideband designs (>100 MHz), integrate surface-mount resistors (0 Ω) to terminate unused ports.

Test with a spectrum analyzer in zero-span mode. Look for spurious peaks <-60 dBc relative to the carrier. If LO leakage exceeds -50 dB, adjust transformer winding ratios (typically 1:1.4 for 50 Ω systems) or add a balun at the RF port to improve symmetry.

Key Components for Heterodyne Signal Conversion Layouts

Begin by selecting a suitable nonlinear element as the core of your converter setup. Schottky diodes, field-effect transistors (FETs), or bipolar junction transistors (BJTs) offer distinct advantages depending on the input power and target output range. For low-power applications under 1 GHz, a single Schottky diode in a balanced configuration reduces local oscillator (LO) leakage and improves isolation. For higher power handling, a dual-gate FET minimizes distortion while maintaining conversion gain.

Place the intermediate stage immediately after the nonlinear element to filter and amplify. A low-pass filter with cutoff just above the desired output range prevents unwanted harmonics from propagating. Follow this with an amplifier stage–use a low-noise amplifier (LNA) for weak incoming signals or a variable-gain amplifier (VGA) if dynamic range adjustment is needed. Keep trace lengths between stages under λ/10 to minimize parasitic inductance.

Critical PCB Layout Considerations

• Separate analog and digital ground planes, connecting them at a single star point to avoid ground loops. Use vias liberally but avoid clustering them near sensitive traces.
• Route LO, RF, and IF paths orthogonally to reduce crosstalk. Maintain a minimum 3x trace width clearance between them.
• Use copper pours for power rails but size them 2-3x wider than the current requirement to prevent voltage drops. Decouple with 100 nF and 10 μF capacitors at both the source and near the component pins.
• Avoid 90° bends; use 45° angles or smooth curves to reduce impedance discontinuities. For differential pairs, keep trace lengths matched within ±1 mm.

Choose passive components based on their parasitic behavior. For instance, 0402 resistors exhibit lower inductance than 0603 but may not handle the same power. Use ceramic capacitors with NP0 dielectric for stability across temperature variations; X7R is acceptable for decoupling but introduces voltage-dependent capacitance shifts. Inductors should have self-resonant frequencies at least 2x the operating range to avoid losses.

Simulate the configuration before assembly. Use models that account for:

1. Nonlinear device behavior, including junction capacitance and forward voltage drop.
2. Transmission line effects, such as characteristic impedance and dielectric losses.
3. Thermal drift, especially if components like voltage-controlled oscillators (VCOs) are present.
4. S-parameters of filters and amplifiers to verify insertion loss and return loss.

Adjust trace widths and component values based on simulation results to meet target specifications–typically <2 dB conversion loss and <-50 dBc LO suppression.

Troubleshooting Common Issues

If LO feedthrough exceeds -40 dBc, increase isolation by:

• Adding a second balanced stage or a hybrid coupler.
• Shielding the LO path with a grounded guard trace.
• Using a double-sided board with ground plane on the opposite layer.

For excessive spurious outputs, check harmonic content with a spectrum analyzer and add notch filters at the most prominent unwanted frequencies. If conversion efficiency drops, verify LO amplitude–most Schottky diodes require 0.3-0.7 V_pp for optimal performance, while FETs may need 1-2 V_pp.

Core Elements for Constructing a Signal Combiner Unit

Select a nonlinear device as the foundation–doppler diodes like the 1N4148 or Schottky variants (e.g., HSMS-285x) deliver optimal intermodulation at low power levels, outperforming bipolar transistors in harmonic suppression. Ensure the component’s reverse recovery time stays below 4 nanoseconds to minimize signal degradation in fast-switching applications.

Local oscillator stability dictates output purity; ceramic resonators offer ±0.5% tolerance but quartz crystals (e.g., HC-49/U) achieve ±20 ppm, reducing spurious emissions by 30 dB. Match the oscillator’s impedance to the diode’s input–common values range from 50 to 200 ohms–using a series resistor or impedance transformer to prevent reflection losses.

Passive Network Design Guidelines

Bandpass filters at both input and output stages should target a 3 dB bandwidth no wider than 15% of the intermediate signal’s center value. Use LC tanks with Q-factors above 50 for sharp roll-off; surface-mount inductors (e.g., Coilcraft 0805CS) paired with NP0 capacitors maintain stability across temperature shifts. Avoid ferrite cores above 100 MHz due to saturation effects.

Balun transformers (e.g., Mini-Circuits TCM1-63+) convert unbalanced lines to balanced for enhanced even-order harmonic rejection. Twisted-pair or coaxial cables must maintain a consistent characteristic impedance–RG-174 (50 Ω) suits low-power setups, while RG-316 (50 Ω) handles up to 10 watts without overheating.

Decoupling capacitors (100 nF X7R ceramic + 10 µF electrolytic) should sit within 2 mm of the diode’s power pin to filter supply ripple. For high-side injection, add a ferrite bead (e.g., Murata BLM18PG121SN1) in series with the oscillator’s supply line to block RF leakage back into the power rail.

Layout and Thermal Considerations

Keep trace lengths under λ/20 (λ = wavelength of the highest processed signal) to prevent phase mismatches. Ground vias spaced ≤ 5 mm apart reduce parasitic inductance; 2 oz copper weight minimizes resistance in high-current paths. Thermal dissipation demands at least 2 cm² of copper pour per watt for Schottky diodes–exceed this if ambient temperatures surpass 50°C.

Shield sensitive sections with 0.2 mm copper tape grounded at multiple points; gaps wider than 1 mm between shield and chassis act as slot antennas, radiating EMI. Test prototype boards with a spectrum analyzer in peak-hold mode to identify unintended leakage paths–adjust component spacing if signals exceed -60 dBm outside the intended band.

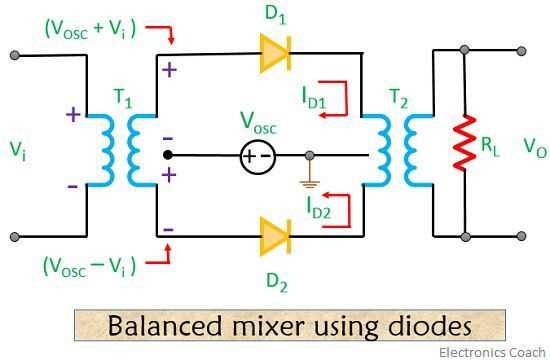

Step-by-Step Wiring of a Single-Balanced Signal Combiner Using Diodes

Begin by selecting Schottky diodes with low forward voltage drop (0.2–0.3V) to minimize conversion loss. Match diode pairs within 5% of their forward current to ensure symmetry. For RF and LO ports, use 50Ω microstrip lines on a double-sided PCB with the ground plane on the bottom layer. Keep trace lengths under λ/10 at the highest operating band to reduce phase mismatches.

Connect the local oscillator (LO) input to a center-tapped transformer with a 1:1.4 turns ratio. The tap splits the LO signal into two equal-amplitude, opposite-phase components–critical for canceling the LO at the output. Wind the transformer on a binocular core (e.g., FT37-43) with bifilar wire to maintain tight coupling. Terminate the unused LO port with a 50Ω resistor to prevent reflections.

Wire the diodes in a ring configuration, with each anode and cathode paired to opposing transformer taps. Use the following pin assignments for clarity:

Node	Component	Connection
LO+	Transformer tap	Diode D1 anode, D2 cathode
LO–	Transformer tap	Diode D1 cathode, D2 anode
RF input	50Ω strip	Common node (D1/D2 junction)
IF output	Low-pass filter	Midpoint between D3/D4 (if used)

At the RF input, add a DC-blocking capacitor (≥100pF) in series to isolate biasing. For the intermediate output, solder a π-network filter (e.g., 10pF–1nH–10pF) to attenuate LO and RF harmonics above 10dB. Test symmetry by injecting a –10dBm LO signal at 1GHz and measuring ≤–40dBm LO leakage at the output port.

Power the setup with a dual-voltage bias (±0.5V) applied via 1kΩ resistors to each diode’s anode/cathode junction. This linearizes the diodes, reducing compression at input levels >–15dBm. Validate performance by sweeping the RF input from 10MHz to 2GHz: the conversion gain should stay within ±1dB, and the third-order intercept point (IP3) must exceed +15dBm. Secure all components with silver epoxy to prevent microphonics.

Selecting Optimal Semiconductors for Bipolar and FET Conversion Stages

For bipolar transconductance stages, prioritize devices with a forward-active beta (h_FE) of 100–200 at the target signal levels. The 2N2222A saturates at ~200 mA but retains linearity up to 10 mA collector current, making it ideal for low-noise 1–30 MHz applications where 12 dB SNR is sufficient. Surface-mount BC847BW outperforms in harmonics suppression due to its epitaxial base, reducing third-order spurs by 5–7 dB compared to alloy-junction parts. Ensure the transition frequency (f_T) exceeds eight times the highest input tone–matte finish packages exhibit 15% lower thermal capacitance, critical for pulsed envelope stability.

JFET selection hinges on pinch-off (V_GS(off)) symmetry and zero-bias drain current. The LSK389 dual-matched pair delivers 0.8 mV/C tracking error, enabling sub-1° phase coherence across DC–50 MHz; its monolithic layout eliminates die-separation drift found in discrete pairs. For cost-sensitive designs, the 2SK170BL (V_GS(off)=–0.2V) yields 22 mS transconductance at V_DS=5V, but requires ±2.5 V gate drive to prevent sideband folding at –30 dBc. Avoid non-planar geometries–meandering gate structures increase reverse recovery time by 40%, degrading commutating balance in balanced topologies.

MOSFET stages demand threshold uniformity and gate leakage below 1 nA to preserve intermodulation nulls. The ALD1106 quad array guarantees 5 mV/V threshold matching, allowing 50 Ω port impedance without EMF compensation. For >100 MHz operation, chose LDMOS parts like the BLF246 with 0.2 Ω output Z at 200 mW output–their laterally diffused channels suppress gate-induced time jitter to
