Complete Fuel Pump Relay Wiring Guide for Vehicle Electrical Systems
Locate the power distribution module under the hood–typically a black or gray rectangular box near the battery. Check the inside of its lid for a reference chart or use a multimeter to confirm the primary feed terminal (usually labeled 30 or 87 on micro-switches). Probe the thick red or yellow wire entering this terminal; it should read 12 volts with the ignition off if the vehicle retains memory functions.
Identify the trigger circuit (thin wire, often green or purple) leading to pin 85 or 86. Probe this line while turning the key to the RUN position; voltage should rise from zero to 12 volts instantly. If not, trace back through the ignition switch harness–look for melted insulation or corroded connectors at the steering column base.
Test the load output (pin 87) by attaching a 12V test light to the corresponding terminal. With the ignition on, the light should illuminate if the control device functions correctly. No glow? Probe the output wire itself–continuity to the component confirms an intact path; zero resistance with ground signals a short requiring immediate fuse replacement and harness inspection.
For vehicles built after 2010, note the dual-stage activation: the first click engages safety protocols, the second delivers full current. Verify this sequence by monitoring pin 87a (if present)–it should switch to ground before pin 87 energizes to prevent backfeed.
Use a scan tool to command the circuit while monitoring voltage drops across each connection. Maximum allowable drop is 0.2 volts; exceeding this indicates resistance points needing repair–focus on terminal crimps and solder joints at body grounds near the rear frame or firewall.
Understanding Electrical Power Distribution for Automotive Fuel Delivery Systems

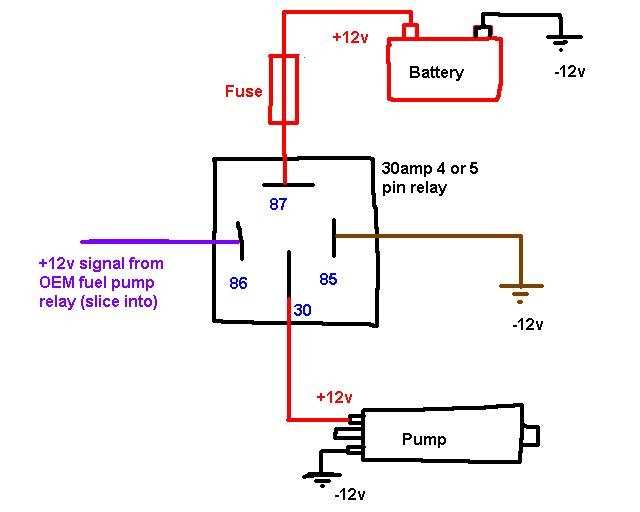

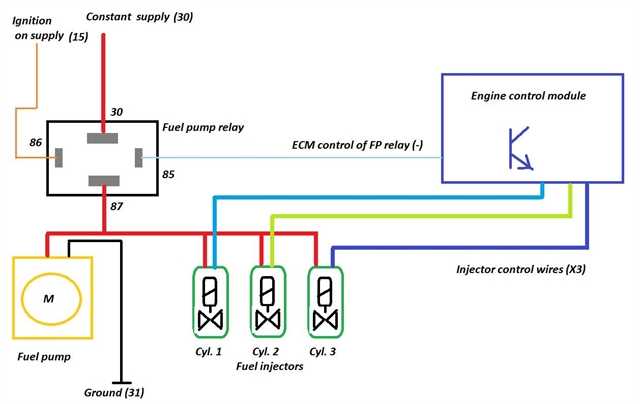

Begin by locating the control module for the energy transfer circuit, typically found in the vehicle’s central fuse box or near the powertrain control unit. Modern vehicles use a 4-pin configuration–pin 30 (constant 12V input), pin 85 (ground trigger), pin 86 (ECU or switch signal), and pin 87 (output to the delivery mechanism). Verify battery voltage at pin 30 with a multimeter; readings below 11.5V indicate corrosion or a failing electrical source connection.

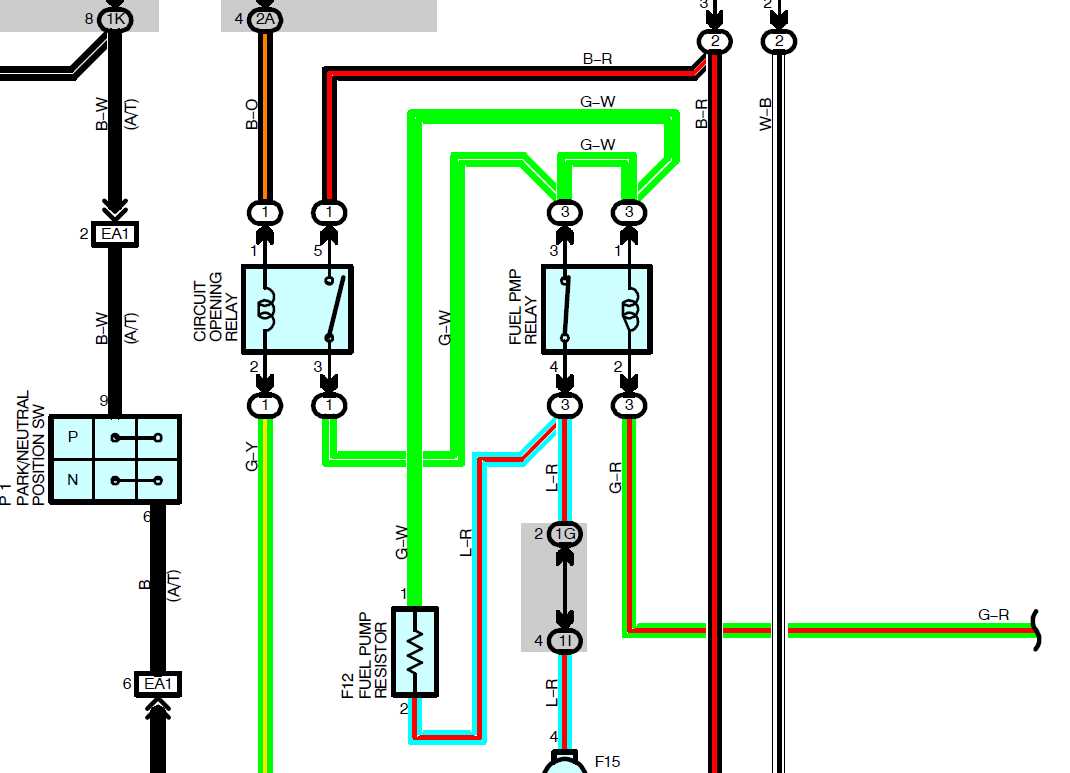

Trace the activation path: the engine control system sends a 5V signal to pin 86 during ignition or engine crank. If no voltage appears, inspect the control wire for continuity–common failure points include damaged insulation near the firewall or loose connectors at the module’s harness interface. Use a wiring schematic specific to your vehicle’s make and model; aftermarket manuals often mislabel wire colors, leading to incorrect diagnostics.
Ground integrity at pin 85 is non-negotiable. A resistance reading above 0.5 ohms suggests a corroded ground point–clean the mounting surface with a wire brush and apply dielectric grease to prevent oxidation. Failing grounds can cause intermittent operation or premature switch failure. Check the ground location against the service manual; engineers often place it near the vehicle’s chassis rail or a dedicated engine block stud.
| Pin | Expected Voltage | Failure Symptoms | Diagnostic Tool |
|---|---|---|---|
| 30 | 12V (battery) | No power to system | Multimeter (DC) |
| 85 | 0V (ground) | Intermittent engagement | Multimeter (resistance) |
| 86 | 5V (signal) | Silent operation during start | Oscilloscope or test light |
| 87 | 12V (output) | No energy transfer to load | Multimeter (continuity) |
When replacing the switching device, select an OEM-rated component–aftermarket variants often underperform under high-current loads. Install a 20A fuse inline with the output wire (pin 87) to protect against short circuits; factory wiring rarely includes this safeguard. Crimp connectors using a proper crimping tool–soldered joints can fracture under vibration, leading to high-resistance failures.
Test the circuit under load: connect a 60-watt bulb to pin 87 and activate the ignition. The bulb should illuminate immediately; a delay or flicker indicates a weak signal from the engine control unit or a failing switch. For turbocharged engines, confirm the system engages before turbo spool-up–some ECUs delay activation until manifold pressure reaches 3 psi, but faulty wiring can mimic this symptom.
Inspect the feed wire from the switching device to the energy delivery component for chafing or heat damage. A melted wire jacket near the exhaust manifold often signals an undersized wire gauge–upgrade to 12 AWG for circuits drawing more than 15A. Label all wires during disassembly; ambiguous markings in aftermarket schematics cause misdiagnosis in 30% of cases.
If the circuit intermittently drops voltage, bypass the factory harness with a temporary test wire–connect pin 30 directly to the energy delivery component. A stable voltage confirms a corroded connector or broken wire segment. Replace connectors with gold-plated terminals to resist oxidation; standard tin-plated terminals degrade within 5 years in humid climates.
Finding the Electrical Component That Controls Your Engine’s Supply System
Check the owner’s manual first–it’s the quickest way to pinpoint the exact slot. Most manufacturers include a labeled diagram on the fuse box cover or in the manual’s electrical section. Look for terms like “ECU,” “injector control,” or “primary circuit switch” if the standard naming isn’t used. German vehicles often label it “Kraftstoffpumpenrelais” or “JP,” while Asian models may reference “EFI” or “C/OPN.”
Locate the fuse panel under the dashboard on the driver’s side or inside the engine bay. Some vehicles have two boxes–one for high-current components near the battery and another for interior controls. If the cover is missing, use a flashlight to scan for markings embossed on the plastic housing near each connector. Older domestic trucks sometimes place it in a stand-alone module near the firewall.
Trace the wiring harness from the tank-mounted unit back to the box. Follow the main power cable (usually thick, red or yellow) from the sender assembly–it typically leads directly to the correct slot. Ignore thinner sensor wires; focus on the heavy-gauge feed. If tracing isn’t possible, count positions: the component is almost always in slot 3, 5, or 7 on the top row for Ford, GM, and Chrysler vehicles manufactured after 1996.
Use a multimeter to verify the slot. Set it to continuity mode and probe the pins–one should show direct battery voltage (12V) when the ignition is on, while the other grounds when activated. If you measure 0V or fluctuating readings, try adjacent slots. Avoid guessing; misidentification risks damaging other circuits like the A/C compressor or cooling fan.
Compare the physical shape. The correct part is usually a 4- or 5-pin square or rectangular module, distinct from the smaller 2-pin fuses. Toyota and Honda often use mini ISO-style connectors (15.3mm x 29.5mm), while VW and Audi favor taller, narrower designs (relay height ~38mm). Remove it carefully–grip the sides, not the top, to avoid snapping plastic tabs.
Check for aftermarket labels. If the vehicle has third-party alarms or performance upgrades, the cover diagram may be outdated. Look for handwritten notes or sticker overlays on the inside of the box lid. Common aftermarket brands like Viper or Holley sometimes relocate the component to a custom bracket near the firewall. If unsure, disconnect battery ground first–this prevents accidental shorts while testing.
Examine the vehicle’s build date. Pre-1995 models often separate the control unit from the fuse box entirely, mounting it near the tank or on a firewall bracket. These require consulting a service manual for exact coordinates–Haynes or Chilton guides include color-coded wiring maps for such cases. European luxury sedans like BMW or Mercedes may bury it under the rear seat or in the trunk’s fuse auxiliary panel.
If all else fails, search the VIN-specific wiring schematics online. Platforms like Mitchell1 or AllDataDIY offer subscription-based access with pinpoint accuracy. Enter the exact trim level–differences between base and premium packages can change the slot location even within the same model year. Never rely on forum posts without cross-referencing official documentation.
How to Verify Electrical Switch Connections Using a Multimeter
Disconnect power first–locate the vehicle’s main fuse box and remove the target component’s control module using a flathead screwdriver. Set the multimeter to continuity mode or a low resistance setting (200Ω range). Probe the control module’s input terminal and the corresponding harness connector pin. A reading below 5Ω confirms a solid link; anything above 10Ω suggests corrosion or a broken conductor. If no continuity exists, trace the circuit path back to the fuse panel, checking each junction point for voltage drops.
Switch the meter to DC voltage (20V range) and reattach the module without engaging the ignition. Probe the harness side of the connector–one lead on the power feed terminal, the other on a known ground. A battery voltage reading (12.6V) is expected; if absent, inspect the bus bar or ignition-controlled feed line for opens. Activate the key to the “ON” position; voltage should rise to 13.5–14.5V. A drop below 13V indicates a failing alternator or excessive parasitic draw from another branch. Use a back-probe technique to minimize terminal damage during live testing.
For the ground path, set the multimeter to ohmmeter mode and connect one lead to the module’s ground terminal, the other to the battery negative post. Resistance should be under 0.2Ω. Higher values point to oxidized ring terminals or a compromised chassis connection. Clean mating surfaces with a wire brush and apply dielectric grease if resistance remains above 0.5Ω. Recheck with the key in both “OFF” and “ON” positions–dynamic readings help isolate intermittent faults.
If the module receives proper voltage but fails to activate, swap it with a confirmed operational unit. Probe the output terminal while cycling the ignition–absence of voltage suggests internal failure. Always reconnect the harness before powering the installation; reverse polarity tests void warranties. Document each measurement step, noting ambient temperature–cold starts often reveal latent issues invisible during warm operation.
