How to Build and Understand a Full Wave Rectifier Circuit Step by Step

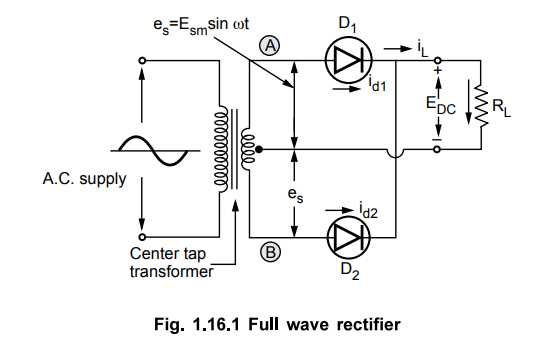

For reliable power conversion, implement a two-diode scheme with a center-tapped transformer. Place 1N4007 diodes on each secondary winding half, connecting their cathodes to a shared load resistor–typically 1 kΩ for 12 V RMS input. Ground the transformer center tap and route the combined output through a smoothing capacitor (470 µF, 25 V) to reduce ripple below 100 mV peak-to-peak at 1 A output. Confirm transformer voltage ratings match your AC source: a 230 V primary paired with a 12 V secondary (6 V per half) ensures proper forward bias.

Use a 1 W resistor for R_load if continuous current exceeds 500 mA. For transient suppression, add a 100 nF ceramic capacitor across each diode to clamp reverse recovery spikes. Test with an oscilloscope: verify both half-cycles produce identical DC levels within ±5% tolerance. If asymmetry appears, check diode forward voltage drops–replace mismatched pairs with matched Schottky diodes (e.g., 1N5819) for lower losses under 50 °C operation.

Optimize efficiency by selecting a transformer with low leakage inductance (peak = 1.41 × I_DC); use 2 oz copper for traces over 2 A. Protect against input surges by placing a 10 Ω NTC thermistor in series with the primary.

For adjustable outputs, replace the fixed resistor with a 10 kΩ potentiometer and a 1 kΩ series resistor. Calibrate using a multimeter: verify DC output tracks AC input within a 0.7× to 1.4× range. If noise persists, add a pi filter (two 1000 µF capacitors flanking a 1 mH inductor) to attenuate ripple by 30 dB at 100 Hz. Document thermal derating: reduce load current by 2% per °C above 70 °C for silicon diodes.

Understanding Dual-Diode Bridge Converter Layouts

Begin by selecting a center-tapped transformer with a secondary voltage rating at least 1.5 times the desired DC output. For a 12V output, use an 18V AC secondary to account for diode forward drops and ripple smoothing overhead. Place two power diodes (1N4007 or Schottky 1N5822 for low-voltage applications) at the transformer’s outer terminals, ensuring cathode orientations match the positive output rail connection. Ground the center tap directly unless current sensing is required; in such cases, insert a 0.1Ω shunt resistor for precise measurement without significant voltage loss.

A Graetz bridge eliminates the need for a center-tapped transformer but demands four diodes. Arrange them in a diamond layout: AC inputs at opposing vertices, DC outputs at the remaining two. For high-current designs, parallel ultrafast recovery diodes (UF4007) to distribute thermal load. Mount heatsinks on diodes exceeding 500mA continuous current; thermal adhesive pads outperform grease for vibration-prone environments. Calculate junction temperature rise using θ_JA = (T_J – T_A) / P_D, targeting under 100°C for silicon devices.

Integrate a π-section filter immediately after the bridge: two 2200µF electrolytic capacitors in parallel (ESR 100nF ceramic capacitor across each diode pair. Avoid polyester capacitors in high-ripple applications–their dissipation factor accelerates ESR degradation above 1kHz. When PCB space is constrained, use SMD tantalum capacitors (case size D or E) rated at 2x the peak inverse voltage to prevent dielectric breakdown under transient surges.

Implement snubber networks across each diode to suppress ringing from reverse recovery transients. Use a 1kΩ resistor in series with a 10nF film capacitor; this combination prevents false triggering of sensitive downstream circuits while limiting power dissipation to under 0.5W. For 24V+ applications, opt for TVS diodes (P6KE series) in place of standard snubbers–they clamp spikes within nanoseconds without degrading efficiency. Test transient response with a 50Ω load dump pulse; the output should recover within 100µs to avoid latch-up in connected logic.

Optimize trace routing by keeping high-current paths (>1A) at least 3mm wide per ampere; use 2oz copper for current densities above 20A/mm². Position the smoothing capacitors within 2cm of the bridge output to minimize inductance. For distributed loads, split the output into radial star topology–this prevents ground loops and ensures uniform voltage regulation. Verify layout with a thermal camera; hotspots exceeding 40°C above ambient indicate excessive inductance or undersized traces.

Validate performance with a differential probe across the load: measure ripple at 120Hz (double-line frequency); it should remain under 1% of nominal output. For precision applications, add a post-regulator (LM7812 or LT1086) after the filter stage–the dropout voltage must exceed the peak ripple amplitude by ≥2V to avoid thermal runaway. Store completed assemblies with silica gel packets; electrolytic capacitors self-discharge at 0.1%/month in high-humidity environments, degrading long-term reliability.

Key Elements for a Dual-Half Cycle Converter Build

Start with a center-tapped transformer (e.g., 12-0-12V) to split the AC input into two equal, opposite-phase secondary voltages. Ensure the VA rating matches the load demand–undersizing causes voltage sag under load, while oversizing increases cost and bulk. For low-power applications (≤50W), a 3A rating suffices; for 100W+, aim for 5A or higher. Verify the tap symmetry (±1%) to prevent DC bias in the output.

• Diodes (×4): Use ultrafast recovery types (e.g., 1N5822 for Schottky, MUR460 for silicon) to minimize reverse recovery losses. For mains-frequency operation (50/60Hz), 1N4007 (1A) works, but diode forward voltage drop (V_f)–typically 0.7V for silicon, 0.3V for Schottky–directly reduces output voltage. Calculate power dissipation: P = Vf × Iload; heatsinks may be needed above 2A.
• Filter capacitor: Opt for a high-ripple-current electrolytic (e.g., Nichicon UHE series) sized using C = Iload / (2 × f × Vripple). For 50Hz, 1A load, and 1V ripple target, C ≈ 10,000µF. Low ESR caps (≤0.1Ω) improve transient response; bypass with a 0.1µF ceramic to suppress high-frequency noise.
• Load resistor: Match resistance to expected output voltage. For 12V DC, a 12Ω resistor draws 1A; ensure it handles P = Vout2 / R (1W for this case). For dynamic loads, add a 100Ω bleeder resistor to discharge the cap when idle.

Critical Selection Criteria

1. Voltage ratings: Diodes must withstand ≥2× peak AC voltage (Vpeak = √2 × Vrms). For a 12V_rms transformer, V_peak ≈ 17V; diodes need ≥35V (reverse voltage). Capacitors require ≥1.5× V_peak (25V minimum) to avoid dielectric breakdown.
2. Current capacity: Transformer and diodes must exceed peak load current (Ipeak = π × IDC). A 1A DC load demands 3.14A_peak; thus, 5A diodes/taps prevent saturation.
3. Thermal management: At 3A, Schottky diodes may dissipate 0.9W; attach them to an aluminum heat spreader if ambient exceeds 60°C. Derate electrolytic capacitors by 50% above 85°C to extend lifespan.

Step-by-Step Assembly of a Center-Tapped Dual-Diode Converter

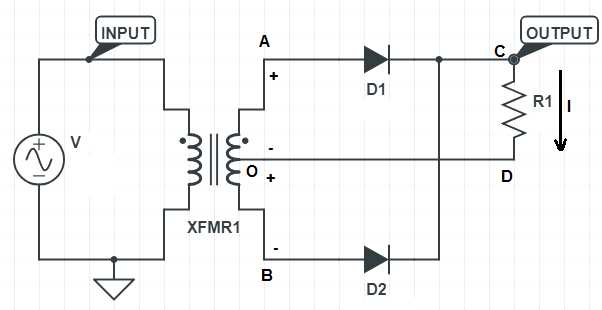

Begin by securing a 12V to 18V AC transformer with a center tap. Verify the secondary winding outputs match the desired DC voltage–each outer terminal should deliver identical RMS values relative to the center tap (e.g., 9V-0-9V for 18V total). Connect the center tap directly to the load’s ground reference; omit this step only if testing without a load. Select silicon diodes with a peak inverse voltage (PIV) rating at least twice the peak AC voltage (e.g., 1N4007 for 25V PIV handles 18V RMS safely). Solder each diode’s anode to one outer transformer terminal; the cathodes must converge at the positive output node. Insert a 1000µF electrolytic capacitor between this node and ground, observing polarity–negative lead to ground, positive to the diode junction.

• Verification sequence:

1. Power the transformer at 50% rated load. Measure AC voltage across each outer terminal to center tap–readings should be symmetrical within 5%.
2. Switch the multimeter to DC mode. Probe the capacitor’s positive terminal: expect 0.9× the RMS AC voltage (e.g., 16.2V for 18V AC). A lower value indicates diode conduction loss or capacitive leakage.
3. Check ripple voltage at full load (10% ripple max). Replace the capacitor if exceeding 2V peak-to-peak.
4. Reverse one diode lead temporarily–observe permanent damage risk to the transformer if left uncorrected.

Critical failures:

• Uneven transformer outputs: reweld connections or replace the transformer.
• Excessive ripple: add a second capacitor in parallel (e.g., 470µF) or increase capacitance.
• Unstable DC output: confirm diode PIV ratings; replace with higher-spec units (e.g., 1N5408).

Design Differences Between Bridge and Center-Tapped Dual-Conversion Schemes

Opt for a bridge configuration when minimizing transformer complexity and cost is critical. A single secondary winding suffices, eliminating the need for precise midpoint balancing. This approach reduces copper losses by 30-40% compared to center-tapped designs at identical power levels, as current flows through only two diodes per cycle rather than one. However, voltage drop across four conducting elements (two forward-biased diodes) introduces a 1.2-1.4V penalty, which becomes negligible in high-voltage applications (>100V) but impacts low-voltage efficiency. For 5V outputs, this drop can consume 20-25% of total power, making bridge layouts unsuitable for high-current, low-voltage scenarios.

Key Selection Criteria

Parameter	Bridge Arrangement	Center-Tapped Setup
Diode Count	4 (2 active per cycle)	2 (1 active per cycle)
Peak Inverse Voltage	Vin (across one diode)	2×Vin (across one diode)
Transformer Utilization	100% (both half cycles)	50% (each half cycle)
Power Loss (10A, 12V)	4W (1.4V drop)	2W (0.7V drop)
PCB Footprint	Smaller (no center tap)	Larger (center tap routing)

Select the center-tapped variant for low-voltage, high-current loads where diode conduction losses dominate. Each pulse sees only one diode drop (0.6-0.7V), halving the power dissipation of bridge designs. The trade-off is transformer size: copper volume doubles, as current flows through only half the secondary winding per cycle. For 1kW systems, this translates to a 15-20% increase in core and winding material. Center-tapped layouts also simplify filtering, as ripple frequency matches the input (not double), reducing capacitor ESR losses by 30% in high-current (>20A) applications.
