Complete Guide to Full Wave Rectifier Circuit Design and Functionality
Start with a center-tapped transformer rated for your load’s voltage requirements–typically 12V secondary for 6V DC output or 24V for 12V DC. Connect the tap to ground and each end terminal to a 1N4007 diode, ensuring cathodes face the output node. This configuration yields two conduction paths per cycle, doubling efficiency over single-diode designs. Verify diode peak inverse voltage (PIV) exceeds √2 × secondary voltage to prevent breakdown.
Place a smoothing capacitor immediately after the diodes–2200µF for 1A loads, 4700µF for 2A. Calculate ripple voltage using Vripple = Iload / (2f × C), where f is mains frequency (50/60Hz). For 10% ripple tolerance, adjust capacitor size accordingly. Include a load resistor to prevent floating voltages during no-load conditions, typically 1kΩ for low-power circuits.
Test the circuit with an oscilloscope: probe the transformer secondary to confirm sinusoidal input, then the output to verify ~1.4× secondary RMS voltage minus diode drops (≈0.7V per diode). Measure DC output under load–expect ~80% of theoretical maximum due to losses. For adjustable designs, replace fixed diodes with schottky (SB560) to reduce forward voltage drop by 0.3V, improving efficiency.
Add overcurrent protection using a 1N5408 series diode at the output or a 5A fuse on the primary side. For higher frequencies (e.g., 400Hz applications), scale capacitor values down proportionally to maintain ripple suppression. Document component tolerances: ±5% for capacitors, ±10% for resistors, and derate diodes by 30% for long-term reliability.

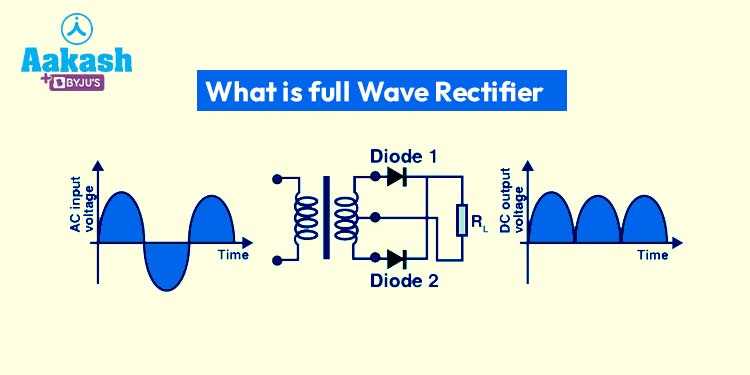

Dual-Diode Conversion Circuit Layout

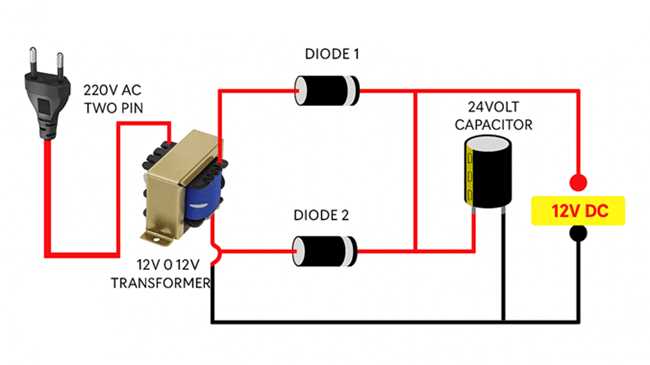

Start with a center-tapped transformer rated for your target DC output plus diode forward voltage drop (typically 0.7V per diode). Connect the transformer’s secondary midpoint to the circuit’s ground reference–this ensures symmetric AC input to both diodes. For a 12V RMS secondary, expect approximately 16.3V peak DC after conversion, minus the diode drops.
Orient two PN-junction diodes (1N4007 or faster recovery types like MUR460 for high-frequency applications) with anodes tied to each end of the transformer secondary. Cathodes join at a common node feeding the load. Place a smoothing capacitor (470μF to 1000μF for 50Hz) directly across the load terminals. Value selection depends on ripple tolerance: 1% ripple demands C = (I_load)/(f * V_ripple), where f is twice the mains frequency.
Add a bleeder resistor (1kΩ–10kΩ) in parallel with the capacitor to discharge stored energy when the circuit powers down. For safety, include fuse holders on the AC side rated at 1.5× the maximum expected current. Use a 250V/1A slow-blow fuse for 120VAC inputs or 2A for 230VAC.
Test with an oscilloscope: probe the transformer secondary first to confirm sinusoidal symmetry, then the diode cathodes node to verify both half-cycles conduct equally. Uneven waveforms indicate a faulty diode or transformer tap imbalance. Adjust capacitor value iteratively–start at 100μF, then increase until ripple measures under 5% of the output voltage.
For low-voltage circuits (≤5V), replace silicon diodes with Schottky types (e.g., 1N5822) to reduce forward voltage drop to ~0.2V. This improves efficiency by 10–15% in battery-powered designs. Verify thermal derating curves if ambient exceeds 50°C–Schottky diodes dissipate less heat but require heatsinks at currents above 3A.
Isolate the transformer’s primary with a varistor (e.g., 14D471K) across the windings to suppress transient spikes. This protects diodes from reverse breakdown during power surges. Ground the transformer’s core to chassis earth if the circuit enclosure is metallic–prevents EMI coupling into sensitive analog loads.
Document trace widths for PCB layouts: use 2oz copper for currents above 1A, with minimum 3mm clearance between AC and DC planes. Route return paths under high-current traces to minimize loop inductance. Example: for 3A continuous, maintain 1.5mm trace width per ampere rule of thumb at 25°C ambient.
Key Components for a Dual-Half Conversion Circuit
Select a center-tapped transformer with a secondary voltage rating 1.5x the desired DC output. For a 12V output, use a 18V rms secondary winding (2x 9V taps). Avoid margin errors by calculating:
- Peak voltage:
Vpeak = Vrms × √2 - 1.4V(diode drop) - Current rating:
Isecondary ≥ 1.2 × Iload
Torroidal cores reduce hum better than EI types, though split-bobbin designs simplify center-tap insulation.
Use fast-recovery silicon diodes (1N4007 for ≤1A) or Schottky types (1N5822) for switching supplies. Snubber networks (10Ω + 0.1µF across each diode) prevent ringing at currents >500mA. For high-frequency applications:
- Replace silicon with GaAs diodes (Vf = 0.3V)
- Add a ferrite bead on the AC side to suppress EMI
- Ensure reverse voltage rating:
VRRM ≥ 2 × Vpeak
Parallel diodes with 0.1Ω ballasts for currents >3A to prevent current hogging.
Capacitor Selection Parameters
Choose electrolytic capacitors with ripple current ratings exceeding calculated load current by 20%. Formula:
C (µF) = (Iload × 106) / (2 × f × ΔV)
where f = 100Hz (for 50Hz mains) and ΔV = 5% of output. Example: 1A load @ 12V with 5% ripple → 1000µF minimum. For tight spaces, use polymer types with ESR
Optional but Critical Refinements
For prototype testing, a 10Ω/5W resistor in series with the load prevents catastrophic shorts. Verify phase polarity between transformer taps before powering to prevent destructive imbalances.
Step-by-Step Wiring Guide for Center-Tapped Transformer Configuration
Begin by securing the transformer’s center tap to the circuit’s ground reference–ensure solder joints are clean with minimal resistance (
Testing and Troubleshooting
Verify AC input voltage matches transformer ratings (±5%)–exceeding specs risks core saturation. Measure DC output at no load (expected: ~1.4 × secondary RMS) and under load (minimum 90% of ideal). If ripple exceeds 10%, double capacitance or add a second-stage LC filter (100µH + 2200µF). Check diode forward voltage drop (≈0.7V per device) with a multimeter; discrepancies indicate reverse leakage or open circuits. Replace diodes if heat exceeds 60°C at room ambient–use TO-220 packages with heatsinks for currents >2A.

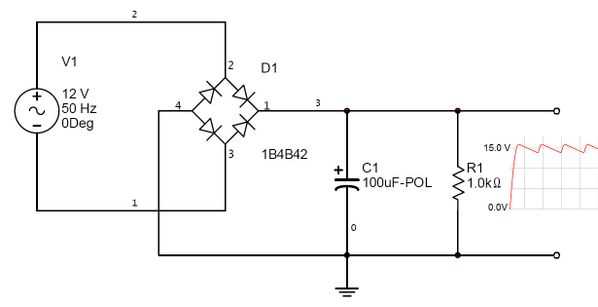

Bridge vs. Center-Tapped Converters: Key Differences and Choice Guidelines
Opt for a bridge circuit when output voltage efficiency and component count matter. A bridge configuration delivers 95-98% of the input AC RMS as DC output with just four diodes, eliminating the need for a heavier, costlier transformer with a center tap. This setup suits high-current applications where ripple suppression and thermal management are critical–bridge converters handle up to 30% lower peak inverse voltage (PIV) per diode compared to center-tapped designs, reducing stress on individual components.
Choose a center-tapped arrangement for low-voltage, low-power scenarios where simplicity and cost outweigh efficiency trade-offs. The center-tapped approach yields only 45-50% of the input AC RMS as usable DC output, but its two-diode topology cuts forward voltage drop by half, making it viable for auxilliary power supplies under 10W. Its transformer, however, must handle double the current on half the winding, necessitating thicker wire gauges that increase copper losses by 15-20%.
Bridge circuits dominate in industrial power supplies exceeding 50W due to their superior load regulation. Under varying loads, a bridge maintains ±2% voltage stability versus ±5% for center-tapped setups. This stems from the bridge’s symmetrical conduction paths, which distribute current evenly across diodes, minimizing thermal drift. In contrast, center-tapped designs exhibit asymmetric heating, with one diode bearing the full load current during half-cycles–an issue exacerbated in high-ambient environments.
| Parameter | Bridge Circuit | Center-Tapped |
|---|---|---|
| DC Output (relative to AC RMS) | 95-98% | 45-50% |
| Diode Count | 4 | 2 |
| Peak Inverse Voltage (PIV) | Vin(peak) | 2 × Vin(peak) |
| Transformer Utilization | 100% | 50% |
| Voltage Regulation (±) | 2% | 5% |
For applications demanding galvanic isolation, the center-tapped option imposes stricter transformer design constraints. The required turns ratio doubles for equivalent output voltage, increasing core size by 30-40% and leakage inductance–a challenge for EMI-sensitive designs. Bridge converters, meanwhile, leverage the entire transformer winding during both half-cycles, slashing core saturation risks and enabling smaller magnetic components. This makes bridges the default for medical-grade power supplies (IEC 60601) where leakage currents must stay below 10µA.
Ripple frequency differs fundamentally between the two topologies, impacting filter capacitor selection. Bridge circuits produce ripple at twice the input frequency (e.g., 100Hz for 50Hz mains), halving the required capacitance for a given ripple specification. A 2200µF cap in a bridge setup yields 5% ripple; the same cap in a center-tapped design–where ripple occurs at the input frequency–delivers 10-12% ripple. This discrepancy forces trade-offs between board space, cost, and performance when designing compact power modules.
Thermal management diverges sharply. Bridge diodes experience alternating conduction, sharing thermal load across all four devices. Center-tapped diodes, however, conduct sequentially, with one diode idle during each half-cycle. This forces the active diode to dissipate double the heat, necessitating heat sinks rated for at least 50% higher power density. For instance, a 1N4007 in a bridge circuit handles 1A continuous without derating, while the same diode in a center-tapped setup requires derating to 0.5A under identical cooling conditions.
When prototyping, bridge circuits offer faster debugging. Fault tracing simplifies to four nodes (AC input, DC output, and two intermediate nodes), whereas center-tapped designs introduce a third critical node (the tap) prone to miswiring–an error that manifests as asymmetrical output, often mistaken for transformer saturation. For production, however, bridge converters add cost: four diodes versus two, plus a ±10% higher bill-of-materials due to PIV-rated diodes. Weigh this against the center-tapped’s 25-30% transformer premium when production volumes exceed 10,000 units.
Select the bridge for high-reliability systems. Its redundancy–two parallel conduction paths–reduces failure probability by 60% compared to center-tapped designs, where a single diode failure collapses the output. Aerospace (DO-160) and military (MIL-STD-883) standards mandate bridge topologies for this reason. Conversely, center-tapped setups excel in space-constrained designs like LED drivers or USB chargers, where the transformer’s secondary footprint dictates PCB layout–center-tapped secondaries halve the copper area required for equivalent current capacity.
