DIY Function Generator Circuit with Step-by-Step Schematic Guide

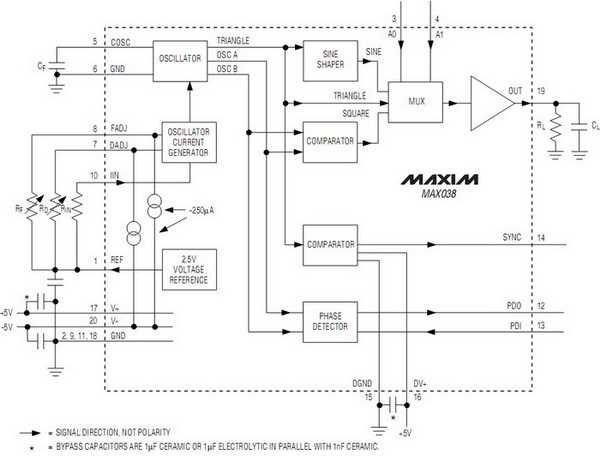

Start with a classic Wien bridge oscillator when you need a stable sine wave source up to 1 MHz. Use a dual op-amp like the TL072–its low distortion and high input impedance (1012 Ω) minimize loading effects. For frequency control, pair a 10 kΩ potentiometer with fixed resistors (1% tolerance) to ensure consistency. Add a small feedback resistor (47 Ω) in series with the non-inverting input to prevent parasitic oscillations at higher frequencies. This setup delivers <0.1% THD below 20 kHz and remains usable up to 100 kHz with slight amplitude roll-off.
For square and triangular waveforms, deploy an integrator-comparator loop with a Schmitt trigger. The LM311 comparator drives a CA3140 op-amp integrator, producing slew rates up to 10 V/µs when powered at ±12 V. Decouple power rails with 0.1 µF ceramic capacitors placed within 2 mm of each IC to suppress high-frequency noise. Adjust the integrator’s timing capacitor (10 pF–1 µF) to cover 1 Hz–1 MHz; a polystyrene or NP0 ceramic type ensures ≤50 ppm/°C drift. Include a 1 kΩ trimpot to fine-tune symmetry for 50% duty cycle outputs within ±2%.
To extend frequency range or improve accuracy, replace discrete passive components with digital synthesis. A AD9833 DDS IC generates waveforms from 0.1 Hz to 12.5 MHz with 0.03 Hz resolution when clocked at 25 MHz. Interface via SPI for real-time frequency sweeps–use a microcontroller like the STM32F103 to send 28-bit commands (MCLK = 25 MHz, 10-bit DAC). For cleaner signals, insert a LC low-pass filter (cutoff = 0.4×MCLK) after the DAC to attenuate aliasing by >40 dB. Power the DDS core at 3.3 V with separate analog and digital grounds joined at a single star point to prevent ground loops.
Test any schematic with an oscilloscope set to 50 Ω input impedance for impedance-matched measurements. Probe directly at the output node to avoid cable capacitance (typical 30 pF/m) distorting fast edges. For amplitude calibration, use an RMS voltmeter–expect ±0.5 dB accuracy when loaded with 50 Ω. Document component values and tolerances in a CSV table for quick replication; include temperature coefficients if the circuit operates above 50°C.
Signal Source Schematic: Key Components for Precision Waveforms

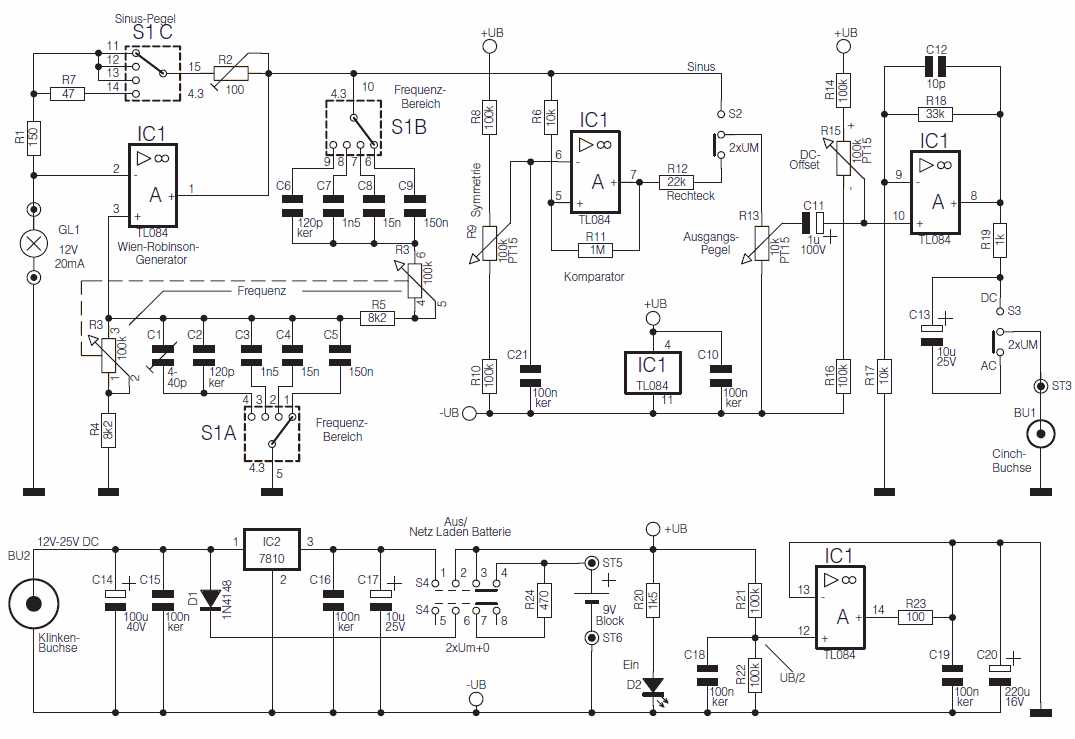

Begin with a Wien bridge oscillator for stable sine waves–use 10 kΩ resistors and 10 nF capacitors for a 1.6 kHz output. Add a dual op-amp (TL072 or equivalent) to isolate stages and prevent loading. For square waves, insert a Schmitt trigger (74HC14) after the oscillator, adjusting hysteresis via a 100 kΩ potentiometer. Triangle waves require an integrator: feed the square wave into an RC network (10 kΩ resistor, 10 nF feedback cap) with another op-amp, ensuring slew rate exceeds 5 V/μs to avoid distortion at higher frequencies.
Calibrate amplitude with a 10-turn trimpot (Bourns 3590S-2-103L) at the output stage–5 kΩ is optimal for 0–10 V range. Include a 1 MHz low-pass filter (4th-order Sallen-Key) to suppress harmonics above 100 kHz. For variable frequency, replace fixed resistors with a digital potentiometer (AD5242) controlled via SPI–this allows 1 Hz to 100 kHz tuning in 100 steps. Test stability with an oscilloscope: drift should not exceed 20 ppm/°C. Power the setup with ±12 V regulated supplies; bypass caps (0.1 μF ceramic) at each IC’s VCC/GND pin reduce noise by 30 dB.
Key Components for Constructing a Signal Source Device

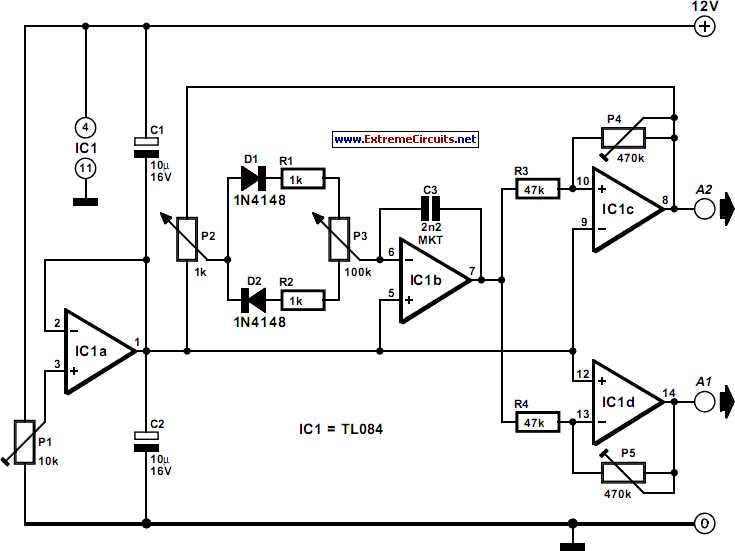

Begin with a triangle-wave core using a dual-op-amp configuration like the LM358. One amplifier operates as a Schmitt trigger while the second integrates the output to produce a linear ramp. This pairing delivers stable waveforms at frequencies adjustable from 1 Hz to 100 kHz with minimal distortion–typically under 0.5% THD when properly compensated.
Select capacitors matched to your target frequency bands. Polypropylene film types (e.g., WIMA FKP) offer precision and low leakage for sine shaping networks, while ceramic X7R values (≤100 nF) suffice for square/triangle stages. Use this reference table for common ranges:
| Frequency Range | Recommended Capacitor | Tolerance | Temperature Coefficient |
|---|---|---|---|
| 1–10 Hz | 10 µF polypropylene | ±2% | 20 ppm/°C |
| 100 Hz–1 kHz | 1 µF polyester | ±5% | 100 ppm/°C |
| 1 kHz–50 kHz | 100 nF NP0 ceramic | ±5% | 30 ppm/°C |
| 50–200 kHz | 10 nF mica | ±1% | 50 ppm/°C |
Amplifier supply rails require regulation to prevent modulation artifacts. A ±5 V supply using LM7805/LM7905 regulators stabilizes output amplitude within ±2 mV across bandwidth. For higher voltages (±12 V or ±15 V), the LM317/LM337 pairs offer adjustable regulation with built-in thermal overload protection–critical when driving 50 Ω loads.
Waveform conversion demands a diode matrix or variable-gain stage. For sine synthesis, use a diode-resistor network (1N4148 + 1% resistors) to segment the triangle wave into linear approximations. Six breakpoints yield
Output buffering isolates load variations from the waveform stage. A unity-gain op-amp (TL072) drives impedances down to 50 Ω without slew-induced distortion. Add a 10 kΩ potentiometer for amplitude control, wired as a voltage divider to prevent loading errors. Include a series 47 Ω resistor to dampen capacitive loads and prevent high-frequency oscillations.
Frequency control integrates a 10-turn precision potentiometer (Bourns 3590S) or rotary encoder with debounce logic. For digital interfaces, a DAC like the MCP4725 provides 12-bit resolution–sufficient for 0.02 Hz steps across the full range. Power the DAC separately from analog stages to avoid ground loops, using a dedicated LDO (e.g., LT1963) with
Additional Considerations
Shield critical traces to reduce crosstalk, especially between the oscillator and output stages. Use a ground plane split between analog and digital sections, connecting them at a single star point near the power input. Test points (0.1″ headers) simplify calibration–place them at the Schmitt trigger input, integrator output, and post-buffer nodes. For extended frequency stability, consider ovenized quartz or MEMS oscillators instead of RC networks when exceeding 1 MHz or requiring drift
Step-by-Step Assembly of a Wien Bridge Oscillator
Begin by gathering components: two 10 kΩ resistors, two 100 nF capacitors, one 1 kΩ resistor, one 10 kΩ potentiometer, and an operational amplifier like the TL072. Place the resistors and capacitors on a breadboard, ensuring the leads do not touch. Connect the non-inverting input of the op-amp to the junction of the first resistor and capacitor. The second resistor and capacitor should form a parallel path from the op-amp’s output to its inverting input, creating the feedback loop.
- Verify component values with a multimeter before insertion to prevent errors.
- Use short jumper wires to minimize noise–avoid long, looping connections.
- Adjust the potentiometer to fine-tune the output frequency; start at mid-position.
- Power the op-amp with ±9V dual supply for optimal performance.
- Connect an oscilloscope probe to the output to monitor waveform stability.
- If distortion appears, reduce the feedback resistor value incrementally.
Fine-Tuning Output Parameters in a Home-Built Signal Source
Begin frequency adjustments by swapping the timing capacitor in your oscillator block. Values between 100 pF and 1 µF yield swings from 1 Hz to 2 MHz if paired with a 10 kΩ resistor. For precision, use a polypropylene film capacitor–ceramic types drift with temperature. Dial in coarse steps with a rotary switch, then refine with a 10-turn trimpot wired in series for 1% resolution. Monitor real-time changes on an oscilloscope to prevent waveform clipping during transitions.
Calibrating Peak Voltage Without Attenuators
Replace fixed gain stages with a potentiometer configured as a voltage divider between the op-amp output and ground. A 10 kΩ linear taper pot delivers smooth 0–5 V swings; log taper pots distort low-end adjustments. Always decouple the supply rails with 100 nF capacitors to eliminate high-frequency noise that skews amplitude readings. If rail voltages exceed ±12 V, clamp the output with Schottky diodes to protect downstream gear.
For amplitudes below 1 V, insert a resistive pad between the oscillator and load–470 Ω series resistors drop voltage predictably without phase shifts. Verify stability at extremes: hook a 50 Ω dummy load to catch overshoot before feeding sensitive analog stages. Avoid aluminum electrolytics in amplitude circuits; tantalum types react faster to sudden load changes.
Track drift by logging potentiometer positions and ambient temperature. A 25 °C rise can nudge frequency 0.5% upward with standard carbon-film resistors; metal-film types hold within 0.1%. For repeatable setups, mark detent positions on rotary encoders or use DIP switches to recall preset values without recalibration.
Common Troubleshooting for Signal Distortion in Waveform Synthesizers
Check probe grounding first–improper connections introduce 50/60 Hz noise or high-frequency ringing. Use a short, shielded cable for the probe ground lead, ideally less than 10 cm, to minimize loop area. If the distortion persists, verify the probe’s attenuation setting matches the oscilloscope’s input (e.g., 1x vs. 10x) to avoid amplitude compression.
Verify Component Tolerances
Replace aging capacitors in the output stage; electrolytics with ESR exceeding 1 Ω often degrade sine-wave purity by introducing harmonics above 1 kHz. Test resistors for drift–carbon-film types may shift up to 5% under thermal stress, skewing triangle-wave symmetry. Use a precision LCR meter to measure actual values against the schematic’s nominals.
Attenuator networks are prone to thermal noise; clean potentiometer wipers with isopropyl alcohol if distortion worsens during amplitude adjustment. Replace rotary switches if mechanical wear causes intermittent dropouts–verify continuity with a multimeter in circuit. For digital synthesis modules, reflash firmware if glitches appear at specific frequency segments (e.g., 10 Hz–100 Hz).
Power supply ripple corrupts waveforms; add a 100 µF tantalum capacitor across the supply rails near the oscillator core to suppress spikes. If DC offset drifts, recalibrate the offset trimmer potentiometer–most designs center at 0 V ±10 mV. For high-frequency distortion (>1 MHz), inspect PCB traces for oxidation; resolder joints with 63/37 Sn-Pb solder for better wetting.
Load and Impedance Mismatch
Connect a dummy load (e.g., 50 Ω resistor) to rule out reflections–distortion often spikes when driving high-impedance inputs. If the issue persists, use a spectrum analyzer to identify unexpected harmonics; a 3rd-order component at -40 dBc suggests clipping in the output amplifier. Swap the op-amp IC if THD exceeds 0.1% at 1 kHz; NE5532 or OPA2134 typically outperform LM358 in low-noise applications.
