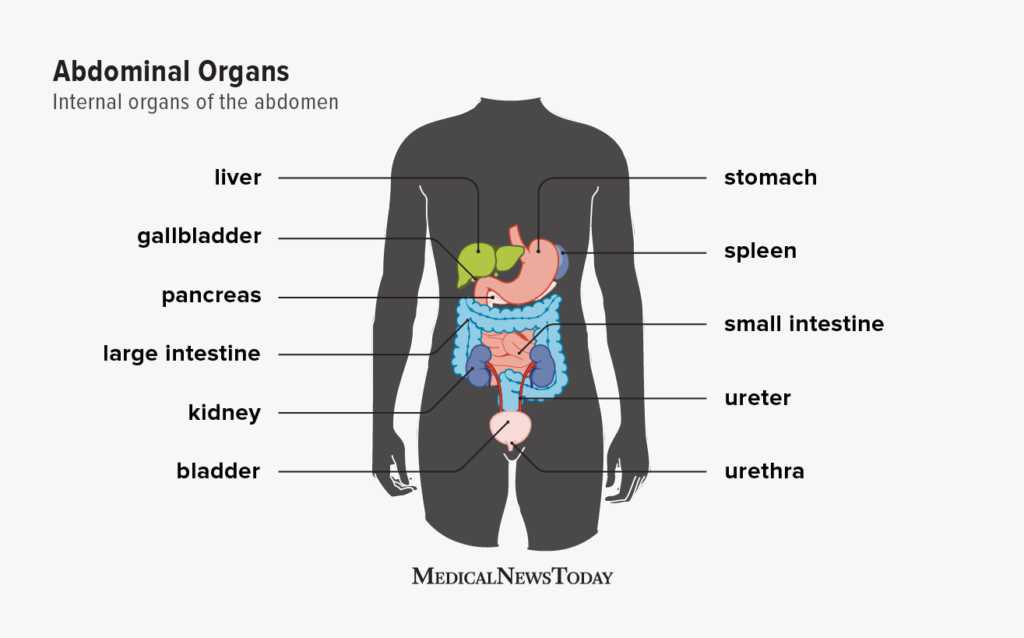

Human Digestive System Annotated Illustration with Key Organs

Begin by locating the oral cavity–this is where mechanical breakdown starts. Note the positioning of the teeth and tongue, both critical for food mastication and saliva secretion. The parotid, submandibular, and sublingual glands should be clearly labeled near the mouth, as their secretions initiate carbohydrate digestion. A common error in anatomical charts is misplacing these glands or omitting their ducts; verify their precise anatomical relations to avoid diagnostic misinterpretation.

Trace the esophagus next–a muscular tube connecting the throat to the stomach. Its peristaltic waves should be depicted as rhythmic contractions, not static lines. Look for the upper and lower esophageal sphincters; their inclusion is non-negotiable for understanding acid reflux and swallowing disorders. Omitting these structures compromises the schematic’s clinical utility.

The stomach’s anatomy demands specific attention: the cardia, fundus, body, and pylorus must be distinct. Gastric folds (rugae) should appear as irregular ridges, not smooth surfaces. Check for the pyloric sphincter–its improper depiction can lead to misunderstandings about gastric emptying disorders like gastroparesis.

Follow the small intestine, breaking it into duodenum, jejunum, and ileum. The duodenum’s C-shaped curve must wrap around the pancreas; its omission obscures conditions like duodenal ulcers. Look for the plicae circulares and villi–their presence validates nutrient absorption details. Absent these structures, the chart loses relevance for malabsorption syndromes.

Conclude with the large intestine–segment it into cecum, ascending, transverse, descending colon, and sigmoid. The ileocecal valve and appendix must be positioned correctly to explain appendicitis or bowel obstruction. Verify the haustra and teniae coli; their depiction affects interpretations of motility disorders like Hirschsprung’s disease.

Label the pancreas, liver, and gallbladder precisely. The pancreatic duct and bile ducts should merge into the hepatopancreatic ampulla, illustrating their role in digestive enzyme and bile release. Misalignment here complicates diagnoses of pancreatitis or biliary obstruction. Use color-coding to differentiate arterial, venous, and lymphatic vessels–consistency in hue prevents misinterpretation.

Cross-reference the schematic with radiological imaging like barium swallows, CT scans, or endoscopic ultrasounds. Verify anatomical proportions; a stretched esophagus or misplaced flexure can obscure structural anomalies. Prioritize schematics that include serosa, muscularis, submucosa, and mucosa layers–layer-specific details are indispensable for identifying tumors or inflammatory conditions.

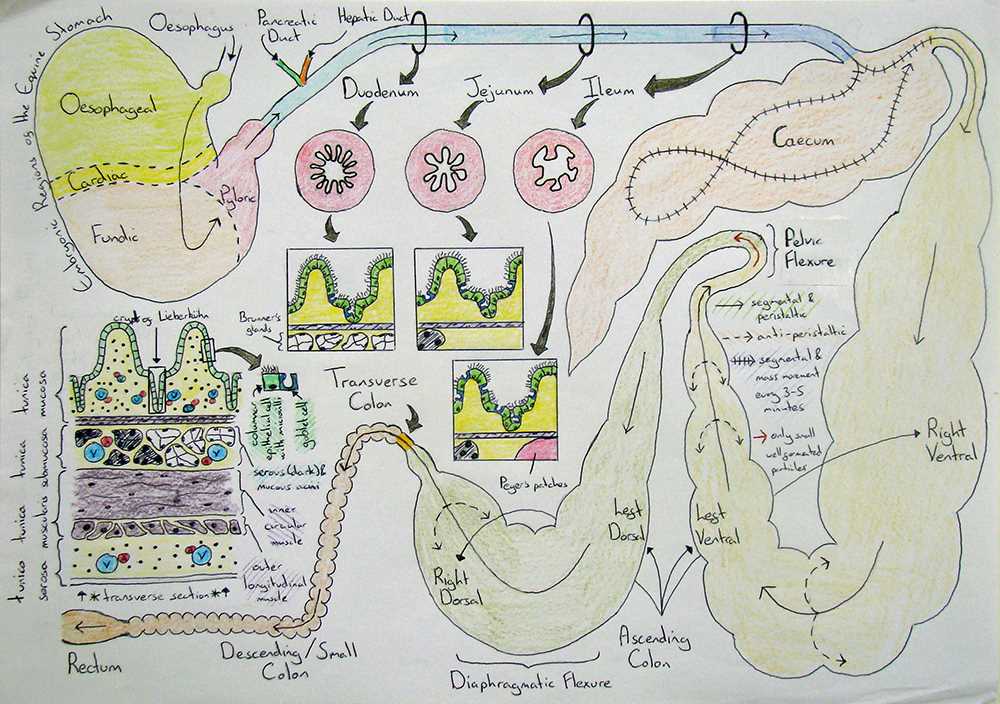

Visual Map of Digestive System Components: Critical Elements and Roles

Start by segmenting the illustrated pathway into four functional zones: ingestion, breakdown, nutrient absorption, and waste elimination. Label the esophagus with a clear peristaltic wave pattern–highlight its role as a transit channel without digestive enzymes. For the stomach, annotate three key regions: fundus (gas storage), body (acid and enzyme secretion), and antrum (mechanical grinding). Include the pyloric sphincter as a critical valve regulating chyme release into the duodenum. Use color-coding to distinguish secretory cells: parietal cells (HCl) in red, chief cells (pepsinogen) in blue, and mucous cells (alkaline mucus barrier) in green. Ensure the small intestine’s schematic shows circular folds (plicae), villi, and microvilli–each magnified 10x to demonstrate incremental surface area expansion (200m² total). Add arrows indicating directional flow of bile and pancreatic juices at the hepatopancreatic ampulla.

• Proximal colon: Include haustra (pouch-like segments) and taeniae coli (longitudinal muscle bands) to illustrate mechanical propulsion.
• Distal colon: Emphasize water absorption rates (1-1.5L/day) and solid feces formation.
• Rectum: Label internal and external anal sphincters, specifying voluntary (external) vs. involuntary (internal) control.
• Accessory organs: Overlay liver lobules (hexagonal units) with central veins, bile canaliculi, and sinusoids. Show pancreatic acini (exocrine) and islets of Langerhans (endocrine) in separate micro-diagrams.

Annotate nerve plexuses (Meissner’s and Auerbach’s) along the tract length to demonstrate autonomic regulation layers.

Critical Structural Markers for Digestive System Illustrations

Start with the oral cavity, clearly labeling the uvula, palatine tonsils, and lingual frenulum–these define swallowing mechanics and airway protection. Include the esophagus, segmenting it into cervical, thoracic, and abdominal portions, with annotations for the upper esophageal sphincter (UES) at C6 and the lower esophageal sphincter (LES) at T11, marking their role in bolus propulsion and reflux prevention. The Z-line (squamocolumnar junction) must be highlighted to distinguish mucosal transitions.

• Stomach:
  • Label the cardia, fundus (gas bubble visible on radiographs), body, and pyloric antrum.
  • Mark the pyloric sphincter at L1 and note its 1–3 mm diameter in resting state.
  • Include the rugae and greater/lesser curvatures for spatial orientation.
• Small intestine:
  • Divide into duodenum (C-shaped, 25 cm), jejunum (2.5 m, thicker wall), and ileum (3.5 m, thinner, Peyer’s patches).
  • Highlight the duodenojejunal flexure (DJF) at L2 and ileocecal valve at the right iliac fossa.
  • Annotate the plicae circulares (most dense in jejunum) and villi (absent in terminal ileum).
• Large intestine:
  • Label cecum, appendix (McBurney’s point), ascending/transverse/descending/sigmoid colon, and rectum (12 cm, Houston’s valves).
  • Mark hepatic (right colic) and splenic (left colic) flexures, noting their peritoneal attachments (retroperitoneal for ascending/descending).
  • Include taeniae coli, haustra, and epiploic appendages as distinctive features.
• Accessory organs:
  • Liver: Outline quadrate (between gallbladder and ligamentum teres) and caudate lobes (posteriorly), plus porta hepatis (portal triad entry).
  • Biliary tree: Trace right/left hepatic ducts → common hepatic duct → cystic duct (spiral valves) → common bile duct (4–8 mm), terminating at the major duodenal papilla (ampulla of Vater).
  • Pancreas: Segment into head (uncinate process), body (relations to SMA, splenic vein), and tail (extends to splenic hilum). Include main pancreatic duct (Wirsung) and accessory duct (Santorini).

For vascular/lymphatic accuracy, superimpose key arteries (e.g., celiac trunk at T12, SMA at L1) and veins (e.g., portal vein formation posterior to pancreatic neck). Note cisterna chyli (L2) and mesenteric lymph nodes (densest along SMA). Use color-coding: red for arteries, blue for veins, green for lymphatics, and yellow for nerves (e.g., vagus branches, pelvic splanchnics).

How to Sketch a Basic Digestive System Outline

Start by drawing a long, continuous tube with slight bends–this represents the alimentary canal. Keep the proportions loose: the esophagus should be narrow (about 1 cm wide), while the stomach widens into an irregular sac, roughly 5 times the width of the esophagus. Label it “stomach” immediately to avoid confusion later. Use light pencil strokes for all initial lines.

Extend the tube downward from the stomach into a coiled structure resembling a sideways comma–this is the small intestine. Make the coils tight but uneven, spanning three distinct sections: duodenum (short, C-shaped), jejunum (middle, more loops), and ileum (final, fewer bends). Draw two parallel lines for clarity, but don’t over-detail at this stage.

Attach the large intestine to the end of the ileum as a wider, frame-like border outlining the coiled small intestine. Mark the cecum (a pouch-like bulge near the junction), then trace upward as the ascending colon, across as the transverse colon, and downward as the descending colon. Add a slight S-curve at the end for the sigmoid colon. Use a ruler for straight sections to maintain consistency.

Include key organs adjacent to the main pathway. Sketch the liver as a large, wedge-shaped mass above the stomach, with the gallbladder as a small pear-shaped sac tucked beneath. Draw the pancreas as a thin, horizontal strip behind the stomach, labeling it “pancreas” to avoid mixing it with surrounding structures. Connect the gallbladder and liver to the duodenum with fine dotted lines representing bile ducts.

Refine the drawing by darkening primary pathways and erasing unnecessary guide marks. Add brief labels using straight lines without arrowheads–e.g., “mouth → esophagus” at the top, “rectum → anus” at the bottom. Use colored pencils sparingly: red for arterial supply (near intestines), green for bile-related ducts, and blue for venous drainage.

Finalize by checking anatomical accuracy–ensure the esophagus enters the stomach’s upper left, the small intestine coils are denser in the center, and the colon frames the entire lower structure. Scan for consistency in line weight; primary pathways should stand out, while secondary details remain subtle. Photocopy the sketch for future reference before making additional annotations.

Frequent Errors in Digestive Tract Illustration Annotations

Avoid placing the esophagus label near the trachea in medical charts. The esophagus runs posterior to the windpipe, not alongside it. Verify anatomical position by tracing its path behind the heart and through the diaphragm before labeling.

Misidentifying the small intestine sections ranks as a recurring issue. Use this reference:

Section	Length (approx.)	Key Features
Duodenum	25 cm	C-shaped, surrounds pancreas head, receives bile/pancreatic ducts
Jejunum	2.5 m	Thicker walls, wider lumen, prominent circular folds (plicae circulares)
Ileum	3.5 m	Thinner walls, narrower lumen, Peyer’s patches (lymphoid tissue clusters)

Confusing the hepatic and cystic ducts persists in liver area annotations. The cystic duct connects directly to the gallbladder, while the hepatic duct merges from liver lobes before joining it. Label them separately to prevent surgical planning errors.

Overlooking the appendix’s variable position creates inaccuracies. While typically attached to the cecum, it may sit retrocecal (behind the colon) or pelvic (near the bladder) in 60% of cases. Indicate its base, not the tip, for consistent reference.

Incorrectly labeling the colon’s flexures leads to misinterpretation. The hepatic flexure bends near the liver (right side), while the splenic flexure curves by the spleen (left side). Mark these with directional arrows to show ascending/transverse/descending flow.

Failing to distinguish between internal and external anal sphincters distorts rectal anatomy. The internal sphincter consists of smooth muscle (involuntary control), while the external sphincter contains striated muscle (voluntary). Use different shading or line weights in drawings.

Mixing up the pancreatic duct and accessory duct occurs frequently. The main duct (Wirsung) drains most enzymes, while the accessory duct (Santorini) joins higher up and is absent in 30% of people. Label both when present, or note its typical absence.

Neglecting mesentery orientation warps small intestine representations. The mesentery attaches along a diagonal line from the left upper abdomen to the right lower quadrant. Draw this first to anchor coil positions accurately, preventing floating intestines in charts.
