StepbyStep Guide Converting Generator Plug to Dryer Outlet Wiring

For a reliable temporary or emergency power interface conversion, prioritize a four-wire to three-wire adapter setup. The neutral conductor must be bonded to the grounding terminal at the source to prevent hazardous voltage shifts. Verify the circuit’s amperage rating–typically 30 amps–to match the corresponding overcurrent protection. Use 10 AWG copper wiring for consistent current handling, ensuring connections are crimped securely with heat-shrink insulation to eliminate moisture ingress.

Begin by isolating the supply: disconnect the primary power feed and confirm zero voltage with a multimeter. Label all conductors before detachment to avoid miswiring. The red and black leads correspond to the dual hot legs (L1/L2), while the white lead serves as the neutral return. If repurposing older two-phase equipment, note that the voltage between L1 and L2 should measure 240V, while each hot leg to neutral reads 120V. Deviations indicate incorrect phasing or a compromised conductor.

Grounding integrity is non-negotiable. The green or bare copper wire must terminate to an approved grounding bus, not the neutral bar, to prevent ground loops. For portable power units, use a twist-lock connector to maintain a locked engagement under load. Test the assembly with a dummy load (e.g., a 100W lamp) before connecting sensitive devices–this validates polarity and load stability.

If adapting a split-phase setup for heavy-duty appliances, confirm the accessory’s nameplate specifies dual-voltage compatibility. Some older models lack the internal jumper for neutral isolation, risking damage if improperly wired. In such cases, replace the terminal block or consult the manufacturer’s schematic for exceptions. Always torque terminal screws to specifications (typically 1.2 Nm for #10 lugs) to prevent high-resistance failures.

Connecting Portable Power to Appliance Outlets: A Practical Guide

First, verify the voltage and amperage requirements of your appliance outlet match the portable power unit’s output. Most heavy-duty household receptacles operate at 240 volts with 30 amperes, requiring a four-prong NEMA 14-30 configuration. Confirm the alternate energy source delivers compatible power–misalignment risks equipment damage or fire hazards.

Gather necessary tools: insulated screwdrivers, wire strippers, a multimeter, UL-listed 10-gauge copper conductors (black, red, white, green), a NEMA 14-30 receptacle, and a strain-relief clamp. Safety gear–gloves and goggles–is non-negotiable when handling live circuits or exposed wiring.

Disconnect all power sources before beginning. If the receptacle is hardwired, switch off the breaker and validate de-energization with a multimeter. For temporary setups, use a heavy-duty extension cord rated for 30A/240V with a NEMA 14-30 male connector on one end and matching female terminals on the other.

For permanent installations, remove the receptacle cover and unscrew the terminal screws. Connect the white (neutral) wire to the silver terminal, the green (ground) to the green terminal, and the black/red (hot) wires to the brass terminals–black to one, red to the other. Tighten screws securely, ensuring no exposed copper remains. Secure the cable with the strain-relief clamp to prevent pull-out damage.

For temporary power solutions, strip ¾ inch of insulation from each conductor. Insert the stripped ends into the female connector’s corresponding slots: white to neutral, green to ground, and hot wires to their designated terminals. Screw the connector cover tightly; loose connections generate heat and pose serious risks.

Test the setup with a multimeter before energizing. Set the meter to AC voltage mode and check between hot (black/red) and neutral (white)–readings should match the power unit’s output (e.g., 240V). Verify ground integrity by testing between ground and each hot wire; readings should match. If discrepancies appear, recheck connections.

Energize the power unit and monitor for the first five minutes. Listen for unusual noises, smell for burning odors, and feel the receptacle for excessive warmth–any of these warrant immediate shutdown. Ensure the appliance (e.g., heated air processor) cycles normally without tripping breakers or flickering lights.

For extended use, inspect connections weekly. Corrosion, vibration, or temperature fluctuations can loosen terminals. Periodically re-tighten screws and re-measure voltage output to confirm stability. Always store temporary cables indoors when not in use–UV exposure and weather degrade insulation integrity over time.

Essential Equipment and Supplies for Power Transfer Adapter Setup

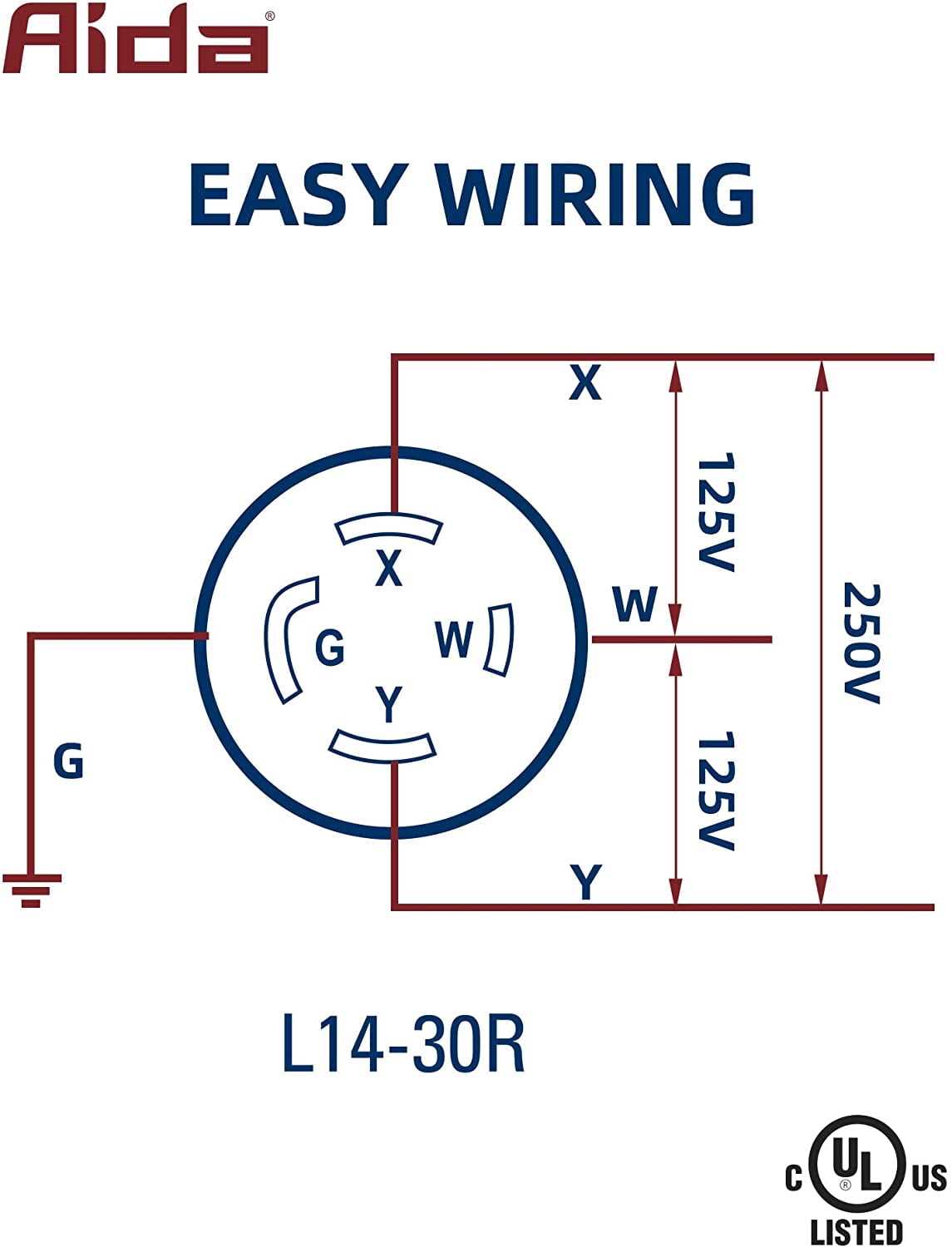

Begin with a 240-volt, 30-amp twist-lock connector matching your alternate power source’s output. Verify compatibility with the outlet configuration–NEMA L14-30 is standard for this setup, but confirm the pin arrangement before purchasing. Opt for 10-gauge copper wire rated for 30 amps; thinner gauges risk overheating under load.

• Crimping tool with insulated lugs for secure terminations–avoid generic pliers that crush connections.
• Wire strippers sized for 10-gauge to prevent nicking conductors during prep.
• Heat-shrink tubing (½-inch diameter) or electrical tape for sealing exposed terminals.

Use a multimeter (minimum 1000-volt AC/DC range) to verify voltage absence before handling conductors. A non-contact voltage tester adds an extra safety layer, but never rely solely on it. Include a torque screwdriver if terminal screws require precise tightening (e.g., 15 in-lbs for NEMA outlets).

Select a weatherproof junction box if adapting outdoors or in damp locations. Choose one with a gasketed lid and UL-listed clamps for strain relief. For indoor setups, a basic 4-inch square electrical box suffices, but ensure it’s anchored securely to studs or masonry.

Anti-oxidant compound (e.g., Noalox) should be applied to aluminum conductors only–copper doesn’t need it but won’t harm with light application. Skip generic greases; they degrade under heat cycles. For threaded connections, use steel locknuts (not nylon) if mounting boxes to metal studs.

A fish tape simplifies routing wire through walls, especially when bypassing insulation or existing conduit. For rigid installations, ½-inch EMT conduit and matching straps keep wires protected–measure runs beforehand to avoid excess bends (maximum 360° total per pull).

Prioritize arc-fault circuit interrupter (AFCI) protection if integrating this setup into a household distribution panel. Check local codes–some regions mandate dual-function AFCI/GFCI breakers for modified circuits. Label all breaker switches and junction boxes with permanent marker to prevent future misidentification.

1. Double-verify all tools’ voltage/amp ratings exceed the project’s requirements–under-rated equipment invalidates safety certifications.
2. Source components from reputable suppliers (e.g., IDEAL, Klein, Hubbell) to avoid counterfeit connectors with substandard insulation.
3. Stockpile spare red and black THHN wire (10-gauge, 6-foot lengths) for troubleshooting; copper prices fluctuate, so buy in bulk when costs dip.

How to Connect Portable Power Sources to Appliance Circuits

Shut off the main breaker panel before handling any electrical components. Verify absence of voltage at the outlet using a non-contact tester or multimeter–do not rely on visual checks alone. If the circuit feeds a 30-amp receptacle, confirm the wire gauge is 10 AWG copper or equivalent, rated for at least 75°C. For higher-capacity connections, use 8 AWG or thicker, ensuring compatibility with the overcurrent protection device (30A for 10 AWG, 40A for 8 AWG). Connect the bare or green grounding conductor first, securing it to the metal box or grounding busbar. Attach the neutral wire to the designated terminal, matching its insulation color (white) unless the system uses a non-standard color code.

• Cut power at the source before making or breaking any connections.
• Label all wires at both ends to prevent cross-wiring.
• Use torque screwdriver to tighten terminal screws to manufacturer-specified values (typically 12–18 in-lbs for residential devices).

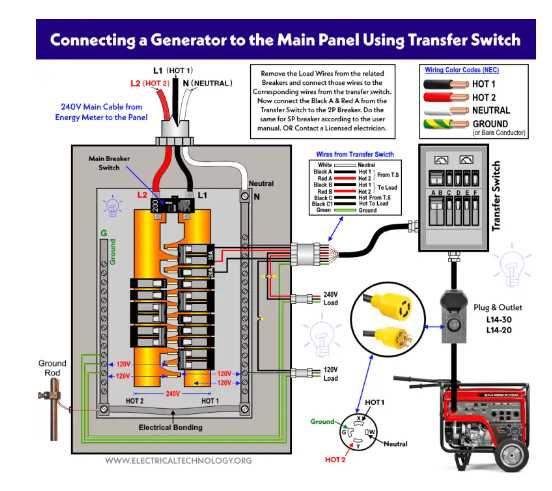

• Install a listed interlock kit if linking temporary power supplies to the building’s electrical network–never bypass safety mechanisms.
• Test continuity between neutral and ground after installation; any reading below 1 ohm indicates a fault requiring correction.
• Seal unused knockout holes in the box with appropriate clamps or plugs to maintain enclosure integrity.

Identifying the Correct Conductors and Connectors for 3-Terminal vs 4-Terminal Appliance Outlets

For a 3-terminal outlet, the cable includes two hot conductors (typically red and black, each carrying 120V) and a single neutral (white) that also serves as the ground. Verify the voltage between each hot wire and neutral–it should read 120V–while the reading between the two hot lines must show 240V. If the configuration lacks a dedicated ground conductor, the neutral terminal is bonded to the appliance chassis, creating a combined neutral-ground path. Use a multimeter to confirm continuity between the neutral screw and the frame before proceeding; any deviation indicates a fault or miswiring.

Outlet Type	Terminal Count	Conductor Colors	Voltage (Hot-Neutral)	Voltage (Hot-Hot)	Ground Handling
3-terminal	3	Red, Black, White	120V	240V	Neutral-ground bond
4-terminal	4	Red, Black, White, Green/Uninsulated	120V	240V	Dedicated ground

In a 4-terminal outlet, the green or bare conductor provides a separate grounding path, eliminating reliance on the neutral for safety. When retrofitting, remove any existing neutral-ground bond inside the appliance enclosure–failure to do so risks energizing the frame during a fault. Match the red and black inputs to the outer screws of the outlet, connect the white to the center terminal, and attach the ground to the green or bare screw. Tighten all terminals to 15-20 lb-in torque to prevent loosening; overheating at loose connections is a leading cause of outlet failure. For verification, test with a non-contact voltage detector after installation–no reading should appear on the ground wire under normal operation.
