Complete Generator Wiring Diagram and Electrical Schematic Guide
Begin by isolating the primary components: the alternator’s stator coils, automatic voltage regulator (AVR), exciter rotor, main rotor, and control panel connections. Use a four-pole, single-phase configuration for units under 15 kVA to minimize voltage drop under load. For three-phase models, ensure the stator leads (U1-U2, V1-V2, W1-W2) are paired with 180-degree offset phase rotation to prevent neutral current imbalance. Label each terminal with heat-shrink tubing–mismatched connections risk backfeeding into the exciter circuit, causing AVR failure within hours.
Mount the AVR adjacent to the brush holder assembly, securing ground wires directly to the engine block with M8 stainless-steel bolts. Avoid daisy-chaining grounds; a single-point earth connection at the negative battery terminal eliminates stray currents in the frame. For remote start systems, route the battery-positive line through a 120A slow-blow fuse within 15 cm of the terminal. Ignoring this risks arcing during surge events, destroying onboard electronics.
For diesel-driven units, integrate a pre-heat relay circuit with a 30-second delay before cranking. Wire the relay between the ignition switch and glow plugs, using 4/0 AWG cable to handle 200A+ starting currents. Parallel the fuel solenoid control line with a 22-gauge signal wire to the oil pressure switch–this ensures shutdown if pressure drops below 10 psi, preventing hydraulic lock in the combustion chamber.
Draw the exciter circuit on graph paper first, verifying each component’s resistance and inductance with a multimeter before final assembly. The rotor’s slip rings require 0.5 mm radially shifted carbon brushes to distribute wear evenly; misaligned brushes cause voltage flicker at 70% load. Include a bidirectional TVS diode across the AVR’s sensing leads to clamp transients above 1 kV–standard diodes fail under repetitive surges.
Test the completed layout under full load (PF = 0.8) using a digital power analyzer. Check for harmonic distortion below 5% THD; higher values indicate loose connections in the stator windings. For mobile units, secure all cables with UV-resistant nylon ties every 20 cm–vibration loosens terminals over time, reducing efficiency by 12% annually.
Understanding Power Source Connection Blueprints
Begin by isolating the neutral busbar before attaching the alternative energy unit’s output lines. Use color-coded conductors–yellow-gold for L1, orange-coral for L2, and violet for L3–to prevent phase mismatches, especially in three-phase setups. Verify the insulation resistance with a 1000V megohmmeter; readings below 1.5 MΩ indicate compromised dielectric integrity requiring immediate replacement of the feeder cables.
Route auxiliary circuits through a double-pole, single-throw relay rated for 30A at 250V AC, ensuring the control coil voltage matches the system’s nominal (e.g., 12VDC or 120VAC). Install transient voltage suppression diodes across relay contacts to mitigate inductive load spikes, which can degrade contact surfaces over time. Label each terminal block with heat-shrink tubing marked in accordance with ANSI/NFPA 79 or IEC 60445 standards for clarity.
Use a hydraulic crimper (die size AWG 6-4) for terminal connections on aluminum conductors to prevent cold flow under mechanical stress. For copper, select a ratcheting crimper with a force gauge to ensure 45-55 lbf pressure per crimp; insufficient force risks oxidation at the junction. Ground the enclosure via a tinned copper strap bonded to the neutral point, with impedance not exceeding 0.1Ω as measured by a 4-terminal ohmmeter.
Prioritize arc-flash protection by incorporating a current-limiting fuse (e.g., RK5 or NH class) with a minimum interrupting rating of 20kA. Size conductors based on 125% continuous load plus 25% derating for ambient temperatures above 40°C, referencing NEC Table 310.15(B)(16). For inverter-based models, add a snubber circuit (RC network: 0.1μF + 100Ω) across switching elements to suppress harmonic distortion above 150 kHz, per IEEE 519-2022 guidelines.
Creating a Fundamental Power Supply Connection Layout
Gather all necessary components before starting: an alternator, batteries, circuit breaker, automatic transfer switch, load terminals, neutral bus, grounding rod, and appropriate cables sized for current capacity. Use #6 AWG copper conductors for 50-amp circuits or #4 AWG for 100-amp systems–check local codes for deviations.
Begin by sketching the alternator’s output terminals. Label L1, L2, and N (neutral) on the left side of your draft. Ensure the neutral wire connects to a dedicated bus bar isolated from the chassis–violating this risks hazardous ground loops.
Route the primary conductors through a double-pole breaker matching the alternator’s capacity. Mount the breaker within 18 inches of the power source to minimize voltage drop. Use crimp connectors with heat shrink tubing on all terminal connections–avoid solder alone for vibration resistance.
Connect the breaker’s output to the transfer switch’s Utility In terminals. The switch must be rated for the same amperage as the breaker. Install a 10-gauge green grounding conductor from the switch’s chassis to the rod driven 8 feet into soil–ensure resistance reads below 25 ohms.
From the transfer switch’s Load Out side, run conductors to the distribution panel. Separate neutral and ground buses here–bonding them risks circulating currents during operation. Label each conductor with its purpose (e.g., “L1 to Main Panel”) using heat-resistant tags.
Verify all connections with a multimeter. Test for continuity between conductors and measure voltage at each stage–expect 120V line-to-neutral or 240V line-to-line under load. If readings deviate by more than 5%, recheck crimps and terminations for oxidation or loose strands.
Seal outdoor connections with dielectric grease to prevent corrosion, especially in humid climates. Enclose the entire setup in a NEMA 3R-rated enclosure if installed outdoors–otherwise, use a ventilated indoor cabinet with clearances per NEC Article 110.
Complete the draft with a legend: list cable gauges, breaker ratings, and switch models. Add warnings (e.g., “Disconnect utility power before maintenance”) in bold near high-voltage sections. Store the final layout in a waterproof sleeve alongside the physical system for future reference.
Core Parts and Standardized Graphics in Power Assembly Blueprints
Begin by identifying the alternator–depicted as concentric circles or a circle bisected by a diagonal line–since misinterpreting this symbol introduces critical errors in load distribution calculations. Verify excitation components: the automatic voltage regulator (AVR) appears as a rectangle with connection flags, often paired with a field coil symbol (zigzag line inside a circle), while brushless designs omit slip rings but include auxiliary diodes shown as triangles on small circles.
- Circuit breakers: represented by a switch symbol overlaying a rectangular frame; confirm trip ratings match system surge capacity.
- Fuel system solenoids: shown as a coil (spiral) adjacent to a valve rectangle; label fuel flow direction to prevent reverse-engineering mismatches.
- Governor actuators: depicted as an adjustable arm on a pivot circle; ensure proportional gain settings align with engine RPM maps.
- Neutral voltage transformers: circles with secondary winding flags; cross-reference vector group configurations (Dyn1, YNd1) with phase rotation.
- Load resistors: zigzag lines between two terminals; specify wattage ratings to avoid overheating in parallel branch circuits.
Trace ground connections–solid horizontal lines with downward arrows–using thick strokes for chassis grounds and thin arrows for signal returns; separate DC grounds from AC returns to eliminate ground loop interference. For digital control modules, look for enclosed rectangles housing smaller functional blocks (rectangles with pin flags); label each pin with signal type (PWM, analog, discrete) and voltage range to prevent firmware conflicts during integration.

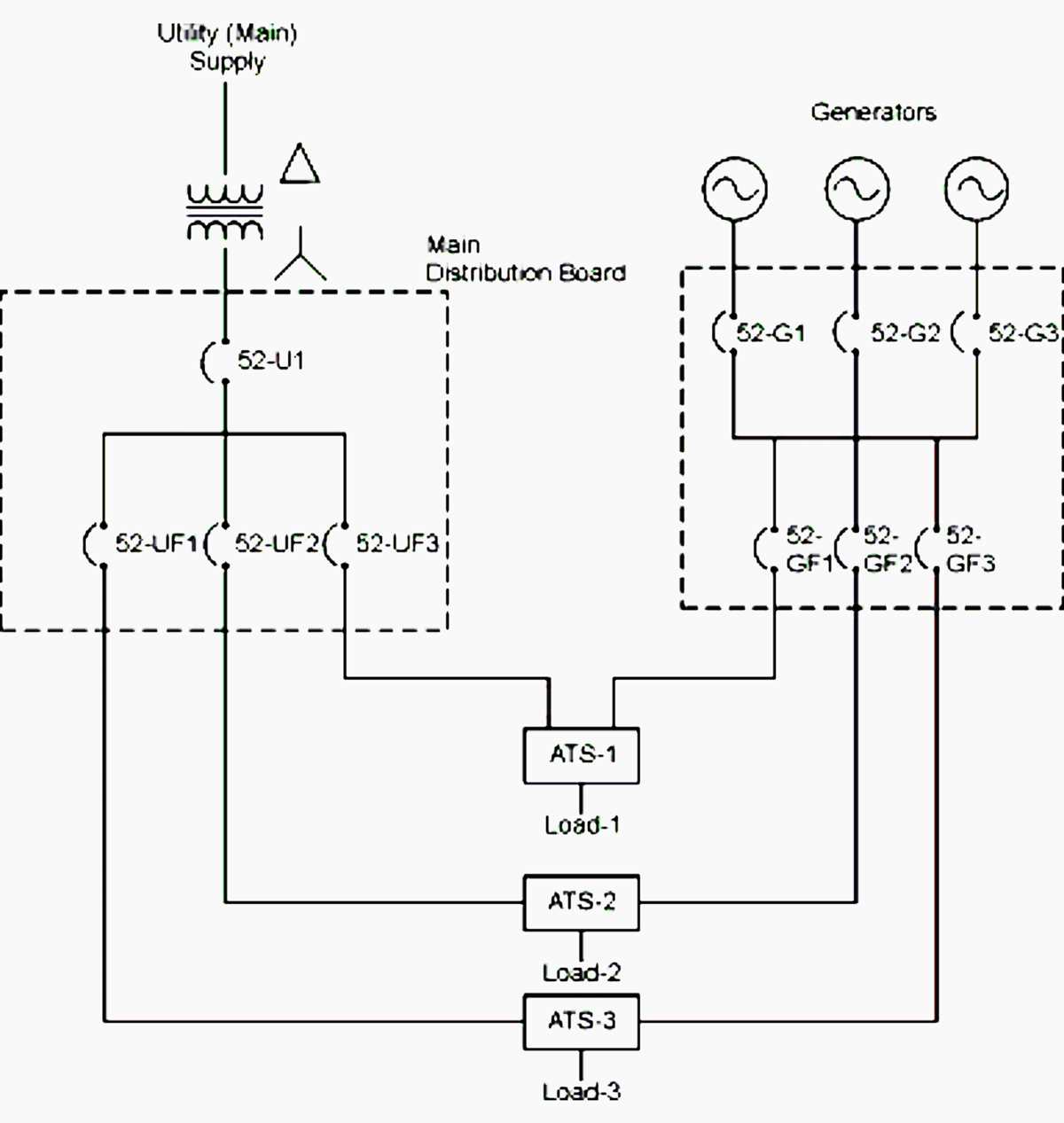

Integrating an Auto-Switching Relay into Backup Power Systems
Install the transfer relay between the utility feed and the reserve power unit’s output terminals, ensuring compliance with NEC Article 702 for optional standby circuits. Use 10 AWG copper conductors for 30-amp circuits; size up to 6 AWG for 50-amp models. Mount the relay within 5 feet of the main service panel to minimize voltage drop–measured resistance should not exceed 3% of the circuit’s total load.
Critical Connection Steps
| Step | Action | Verification |
|---|---|---|
| 1 | Disconnect both utility and reserve feeds before handling terminals | Confirm absence of voltage with a multimeter (below 1V) |
| 2 | Link utility conductors to the relay’s labeled “Normal” terminals | Check continuity between input/output with a tone tracer |
| 3 | Attach reserve source cables to “Emergency” terminals, torqueing lugs to 15 lb-in | Inspect for thermal paste on connections post-install |
| 4 | Route load wires to the corresponding “Load” side, matching phase rotation | Validate phase alignment using a phase rotation meter |
Ground the relay chassis to the service panel’s grounding bus with a minimum 8 AWG green conductor. Install surge protection on both utility and reserve inputs with a clamping voltage of 600V or lower. For three-phase units, verify the relay supports neutral switching–some models require auxiliary contact kits for 4-pole operation. Program delay settings: 0-second start delay for the reserve unit, 30-60 seconds for utility restoration to prevent backfeed.
